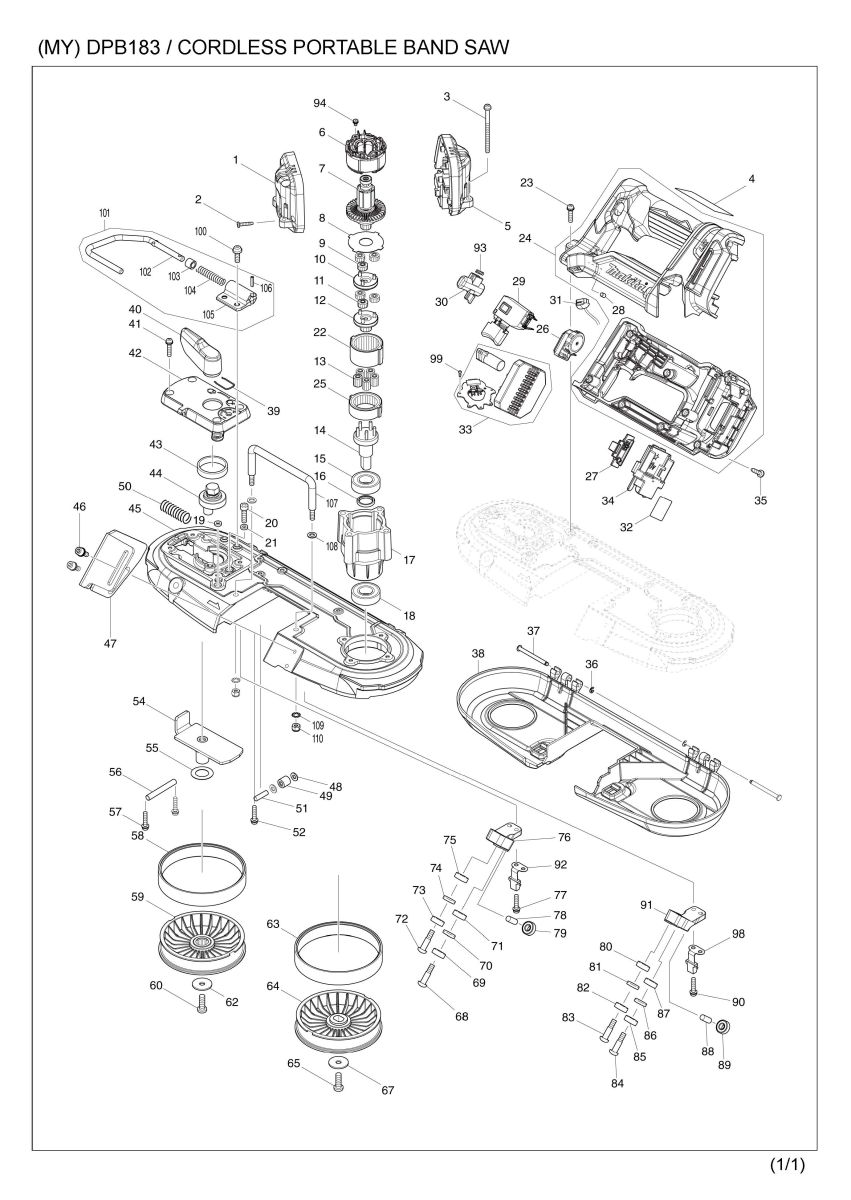

Part Diagram
Total: 118 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183P49-2 | MOTOR HOUSING SET | 1 | |
| 1 | D10 | INC. 5 | ||
| 2 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | |
| 3 | 911188-0 | PAN HEAD SCREW M4X60 | 4 | |
| 4 | 857C69-1 | DPB183 NAME PLATE | 1 | |
| 5 | 183P49-2 | MOTOR HOUSING SET | 1 | |
| 5 | D10 | INC. 1 | ||
| 6 | 629482-3 | STATOR | 1 | |
| 7 | 619628-9 | ROTOR | 1 | |
| 8 | 253474-6 | LOCK WASHER | 1 | |
| 9 | 226923-6 | SPUR GEAR 13 | 3 | |
| 10 | 140M80-3 | SPUR GEAR 14B COMPLETE | 1 | |
| 11 | 226923-6 | SPUR GEAR 13 | 3 | |
| 12 | 140M81-1 | SPUR GEAR 16 COMPLETE | 1 | |
| 13 | 226924-4 | SPUR GEAR 11 | 5 | |
| 14 | 140T74-0 | SPINDLE COMPLETE | 1 | |
| 15 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 16 | 257348-3 | RING 15 | 1 | |
| 17 | 319980-2 | GEAR HOUSING | 1 | |
| 18 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 19 | 262130-7 | URETHANE RING 4 | 1 | |
| 20 | 265382-9 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 21 | 262130-7 | URETHANE RING 4 | 1 | |
| 22 | 226921-0 | INTERNAL GEAR 40 | 1 | |
| 23 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 24 | 183R20-8 | HANDLE SET | 1 | |
| 24 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 24 | D10 | INC. 28 | ||
| 25 | 226922-8 | INTERNAL GEAR 39 | 1 | |
| 26 | 620A64-0 | DIAL CURCUIT | 1 | |
| 27 | 140T79-0 | INDICATION PLATE COMPLETE | 1 | |
| 28 | 263027-3 | RUBBER PIN 4 | 1 | |
| 29 | 651486-7 | SWITCH C3JW-4B-R | 1 | |
| 30 | 412551-5 | LOCK OFF BUTTON | 1 | |
| 31 | 620521-2 | LED CIRCUIT | 1 | |
| 32 | 857C76-4 | DPB183 SERIAL NO. LABEL | 1 | |
| 33 | 620D03-8 | CONTROLLER | 1 | |
| 34 | 643874-2 | TERMINAL | 1 | |
| 35 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 36 | 961017-7 | STOP RING E-3 | 2 | |
| 37 | 256689-4 | PIN 4 | 2 | |
| 38 | 412485-2 | WHEEL COVER | 1 | |
| 39 | 231955-0 | RING SPRING 12 | 1 | |
| 40 | 271462-1 | LEVER 54 | 1 | |
| 41 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 42 | 459084-9 | LEVER HOLDER | 1 | |
| 43 | 214408-4 | PLANE BEARING 30 | 1 | |
| 44 | 326351-6 | LEVER SHAFT | 1 | |
| 45 | 140V75-0 | FRAME COMPLETE | 1 | |
| 45 | C10 | 424736-1 | SPONGE | 1 |
| 45 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 46 | 922224-7 | H.S.H.BOLT M5X16 WITH WG | 2 | |
| 47 | 346728-9 | STOPPER PLATE | 1 | |
| 48 | 267010-2 | FLAT WASHER 5 | 2 | |
| 49 | 212199-1 | NEEDLE BEARING 510 | 1 | |
| 50 | 234313-9 | COMPRESSION SPRING 9 | 1 | |
| 51 | 256155-1 | PIN 5 | 1 | |
| 52 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 54 | 162564-3 | SLIDE PLATE | 1 | |
| 55 | 267164-5 | FLAT WASHER 15 | 1 | |
| 56 | 268241-6 | PIN 6 | 1 | |
| 57 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 58 | 424589-8 | RUBBER TIRE | 1 | |
| 59 | 140J07-5 | WHEEL COMPLETE A | 1 | |
| 60 | 265484-1 | HEX. SOCKET HEAD BOLT M6X17 | 1 | |
| 62 | 267173-4 | FLAT WASHER 6 | 1 | |
| 63 | 424589-8 | RUBBER TIRE | 1 | |
| 64 | 459087-3 | WHEEL B | 1 | |
| 65 | 265484-1 | HEX. SOCKET HEAD BOLT M6X17 | 1 | |
| 67 | 267173-4 | FLAT WASHER 6 | 1 | |
| 68 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |
| 69 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 70 | 941152-7 | FLAT WASHER 6 | 1 | |
| 71 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 72 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |
| 73 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 74 | 941152-7 | FLAT WASHER 6 | 1 | |
| 75 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 76 | 319995-9 | UPPER HOLDER | 1 | |
| 77 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 78 | 256033-5 | PIN 6 | 1 | |
| 79 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 80 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 81 | 941152-7 | FLAT WASHER 6 | 1 | |
| 82 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 83 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |
| 84 | 251337-0 | + PAN HEAD SCREW M5 | 1 | |
| 85 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 86 | 941152-7 | FLAT WASHER 6 | 1 | |
| 87 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 88 | 256033-5 | PIN 6 | 1 | |
| 89 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 90 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 91 | 319994-1 | LOWER HOLDER | 1 | |
| 92 | 162815-4 | HOOK | 1 | |
| 93 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 94 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 98 | 162815-4 | HOOK | 1 | |
| 99 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 100 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 101 | 127601-0 | HOOK ASSEMBLY | 1 | |
| 101 | D10 | INC. 102-106 | ||
| 102 | 281028-9 | HOOK | 1 | |
| 103 | 262561-0 | SLEEVE 6 | 1 | |
| 104 | 233455-6 | COMPRESSION SPRING 7 | 1 | |
| 105 | 313127-0 | JOINT | 1 | |
| 106 | 951057-3 | SPRING PIN 3-12 | 1 | |
| 107 | 327637-1 | GUARD | 1 | |
| 108 | 941102-2 | FLAT WASHER 5 | 2 | |
| 109 | 253484-3 | TOOTHED LOCK WASHER 5 | 2 | |
| 110 | 264013-7 | HEX. LOCK NUT M5-8 | 2 | |
| A01 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A02 | B-40559 | PORTABLE BANDSAW BLADE 18TPI | 1 | |
| A03B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A04B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A05B | 450128-8 | BATTERY COVER | 2 | |
| A06B | 831303-9 | TOOL BAG | 1 |
