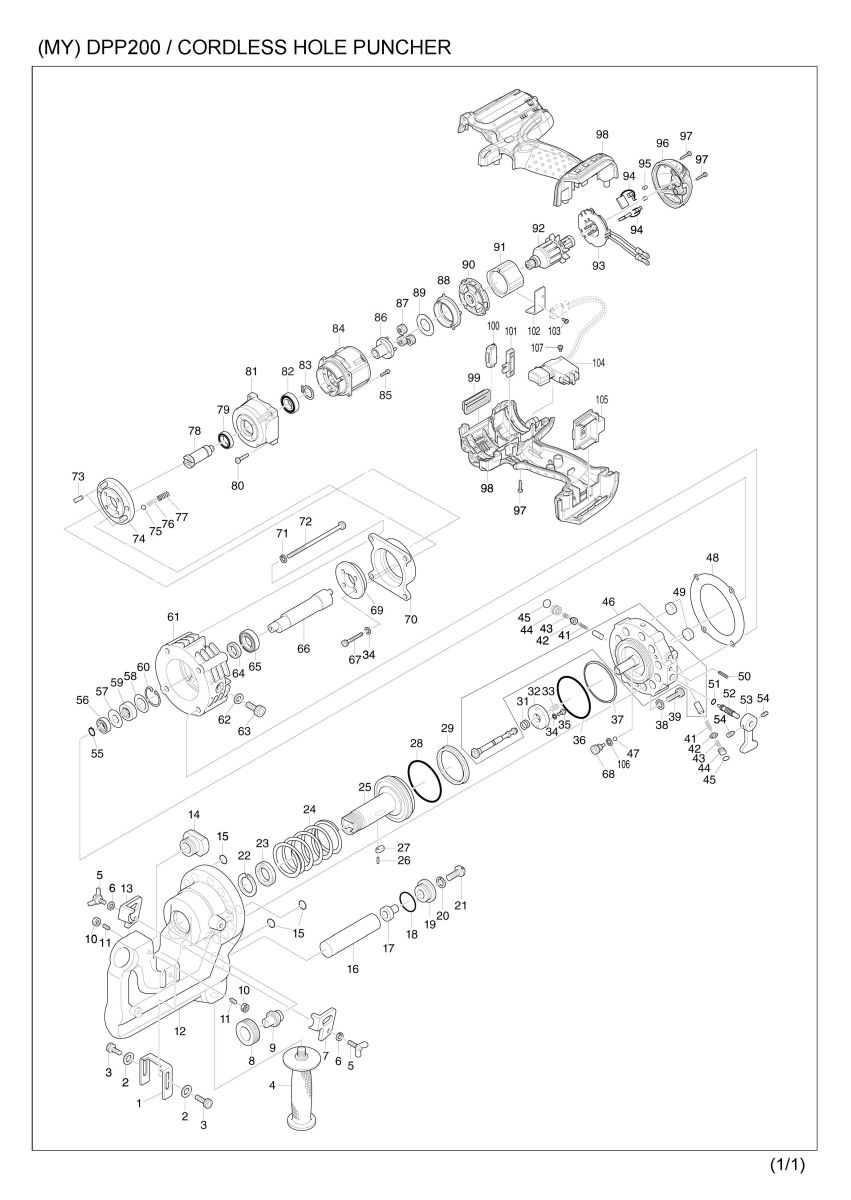

Part Diagram
Total: 122 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | SC03505970 | SLIDE STOPPPER | 1 | |
| 2 | 941101-4 | FLAT WASHER 5 | 2 | |
| 3 | SC00000059 | HEX. SOCKET HEAD BOLT M5X12 | 2 | |
| 003-1 | SC00000059 | HEX. SOCKET HEAD BOLT M5X12 | 2 | |
| 4 | SC00000155 | GRIP M14 | 1 | |
| 5 | SC07552000 | WING BOLT M6X15 | 2 | |
| 6 | 942151-2 | SPRING WASHER 6 | 2 | |
| 7 | SC03302040 | STRIPPER R | 1 | |
| 8 | SC03505270 | PUNCH RETAINER | 1 | |
| 008-1 | SC03505320 | PUNCH RETAINING NUT | 1 | |
| 9 | SC05340100 | PUNCH 12 | 1 | |
| 10 | 931301-4 | HEX. NUT M6 | 2 | |
| 11 | 913327-8 | SET SCREW (CONE POINT) M6X16 | 2 | |
| 12 | SC03103700 | C FRAME | 1 | |
| 12 | C10 | SC07850050 | HEX SOCKET TAPERED SCREW PLUG | 3 |
| 13 | SC03302050 | STRIPPER L | 1 | |
| 14 | SC00000215 | DIE SB-12 | 1 | |
| 15 | SC06505030 | O RING P8 | 3 | |
| 16 | SC09004910 | OIL LEVELER SACK | 1 | |
| 17 | SC00000082 | BUSH | 1 | |
| 18 | SC06505320 | O RING P26 | 1 | |
| 19 | SC03507010 | BUSHING HOLDER | 1 | |
| 20 | SC00000065 | SPRING WASHER 8 | 1 | |
| 21 | SC00000034 | SPECIAL PAN HEAD SCREW M8X20 | 1 | |
| 22 | SC06503640 | BACK UP RING | 1 | |
| 23 | SC06505880 | SKY PACKING | 1 | |
| 24 | SC04000050 | RETURN SPRING FOR CUTTER ROD | 1 | |
| 25 | SC03110750 | ROD | 1 | |
| 26 | SC00000070 | SPRING PIN 2.5X10 | 1 | |
| 27 | SC03700020 | KEY | 1 | |
| 28 | SC06505510 | O RING S67 | 1 | |
| 29 | SC00000096 | ROD PACKING | 1 | |
| 31 | SC04005130 | BULB RETURN SPRING | 1 | |
| 32 | SC03500690 | STOPPER PLATE | 1 | |
| 33 | SC04004170 | RELEASE BULB SPRING | 1 | |
| 34 | SC00000068 | FLAT WASHER 4 | 6 | |
| 35 | SC00000060 | HEX. SOCKET HEAD BOLT 4X6 | 2 | |
| 36 | SC06505190 | O RING G65 | 1 | |
| 37 | SC06503630 | BACK UP RING G65 | 1 | |
| 38 | SC07620040 | WASHER HW8 | 12 | |
| 39 | SC07514130 | HEX. SOCKET HEAD BOLT M8X22 | 12 | |
| 41 | SC00000150 | PISTON RETURN SPRING | 2 | |
| 42 | SC00000149 | CHECK VALVE | 2 | |
| 43 | SC00000021 | CHECK VALVE SPRING | 2 | |
| 44 | SC03500540 | METAL PACKING | 2 | |
| 45 | SC06505590 | O RING S-8 | 2 | |
| 46 | SC09050110 | CYLINDER COMPLETE | 1 | |
| 46 | C10 | SC07900010 | STEEL BALL S4 | 5 |
| 46 | C20 | SC07523040 | HEX.SOCKET SET SCREW M5X5 | 5 |
| 46 | C30 | SC07900000 | STEEL BALL 3 | 2 |
| 46 | C40 | SC07521010 | HEX.SOCKET SET SCREW M4X4 | 2 |
| 47 | SC07900010 | STEEL BALL S4 | 1 | |
| 48 | SC04601600 | LINER B | 1 | |
| 49 | SC00000020 | MAGNET | 2 | |
| 50 | 951116-3 | SPRING PIN 4-20 | 1 | |
| 51 | SC00000158 | O RING P4 | 1 | |
| 52 | SC00000146 | RETURN VALVE | 1 | |
| 53 | SC00000147 | RETURN LEVER | 1 | |
| 54 | 913301-6 | SET SCREW (CUP POINT) M6X6 | 2 | |
| 55 | SC07411250 | CIRCLIP STW5 | 1 | |
| 56 | SC07100050 | BALL BEARING 698 | 1 | |
| 57 | SC03301350 | WASHER B | 1 | |
| 58 | SC03301340 | WASHER A | 1 | |
| 59 | SC07201030 | NEEDLE BEARING | 1 | |
| 60 | SC07411330 | RETAINING RING H25 | 1 | |
| 61 | SC03211330 | PUMP CASE | 1 | |
| 62 | SC00000489 | SEAL WASHER | 1 | |
| 63 | SC00000161 | HEX. SOCKET HEAD BOLT M10X15 | 1 | |
| 64 | SC06504050 | OIL SEAL UE15257 | 1 | |
| 65 | SC00000050 | BALL BEARING 6002RU | 1 | |
| 66 | SC03501070 | CRANK SHAFT | 1 | |
| 67 | SC07511070 | HEX. SOCKET HEAD BOLT M4X25 | 4 | |
| 68 | SC03513230 | SEAL BOLT | 1 | |
| 69 | SC03251180 | FLANGE | 1 | |
| 70 | SC03251320 | SPACER | 1 | |
| 71 | 942101-7 | SPRING WASHER 5 | 4 | |
| 72 | SC07512130 | HEX. SOCKET HEAD BOLT M5X65 | 4 | |
| 73 | SC04007990 | LEAF SPRING | 2 | |
| 74 | SC03252560 | FLANGE FOR MOTOR | 1 | |
| 75 | SC07900080 | STEEL BALL D6 | 2 | |
| 76 | SC04007970 | POSITION SPRING B | 2 | |
| 77 | SC04007960 | POSITION SPRING A | 2 | |
| 78 | 326213-8 | SPINDLE | 1 | |
| 79 | 211233-4 | BALL BEARING 6802LLB | 1 | |
| 80 | 266045-0 | TAPPING SCREW 4X20 | 4 | |
| 81 | 318455-8 | GEAR CASE B | 1 | |
| 82 | 211234-2 | BALL BEARING 6902LLB | 1 | |
| 83 | 961055-9 | RETAINING RING S-15 | 1 | |
| 84 | 419252-6 | GEAR CASE | 1 | |
| 85 | 911017-7 | PAN HEAD SCREW M3X12 | 4 | |
| 86 | 141744-4 | CARRIER COMPLETE | 1 | |
| 87 | 154468-3 | SPUR GEAR 16 COMPLETE | 3 | |
| 88 | 227129-9 | INTERNAL GEAR 46 | 1 | |
| 89 | 267789-5 | FLAT WASHER 18 | 1 | |
| 90 | 450386-6 | MOTOR BRACKET | 1 | |
| 91 | 632J71-5 | YOKE UNIT | 1 | |
| 92 | 619165-3 | ARMATURE | 1 | |
| 93 | 638849-4 | BRUSH HOLDER COMPLETE | 1 | |
| 94 | 194427-5 | CARBON BRUSH SET CB-440 | 1 | |
| 95 | 263032-0 | RUBBER PIN 4 | 2 | |
| 96 | 419642-3 | REAR COVER | 1 | |
| 97 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 10 | |
| 98 | 183G51-1 | HOUSING SET | 1 | |
| 98 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 98 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 99 | 451163-9 | COVER | 1 | |
| 100 | 687216-0 | LENS CASE | 1 | |
| 101 | 451162-1 | LOCK LEVER | 1 | |
| 102 | 689145-3 | HEATSINK | 1 | |
| 103 | 652066-2 | +PAN HEAD SCREW M3X9 WITH W | 1 | |
| 104 | 650653-1 | SWITCH TG553FSB-4B | 1 | |
| 105 | 644808-8 | TERMINAL | 1 | |
| 106 | SC07600130 | WASHER WM3 | 1 | |
| 107 | 652045-0 | +PAN HEAD SCREW M3.5X5 | 2 | |
| A01 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A02 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A03 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A04 | SC00000166 | WRENCH 8-10 | 1 | |
| A05 | SC03505300 | NUT RETAINING BAR | 1 | |
| A06 | SC00000106 | HYDRAULIC OIL ISO46 35CC | 1 | |
| A07 | SC09009190 | PLASTIC CASE SET | 1 | |
| A07 | C10 | SC08100810 | LATCH | 2 |
