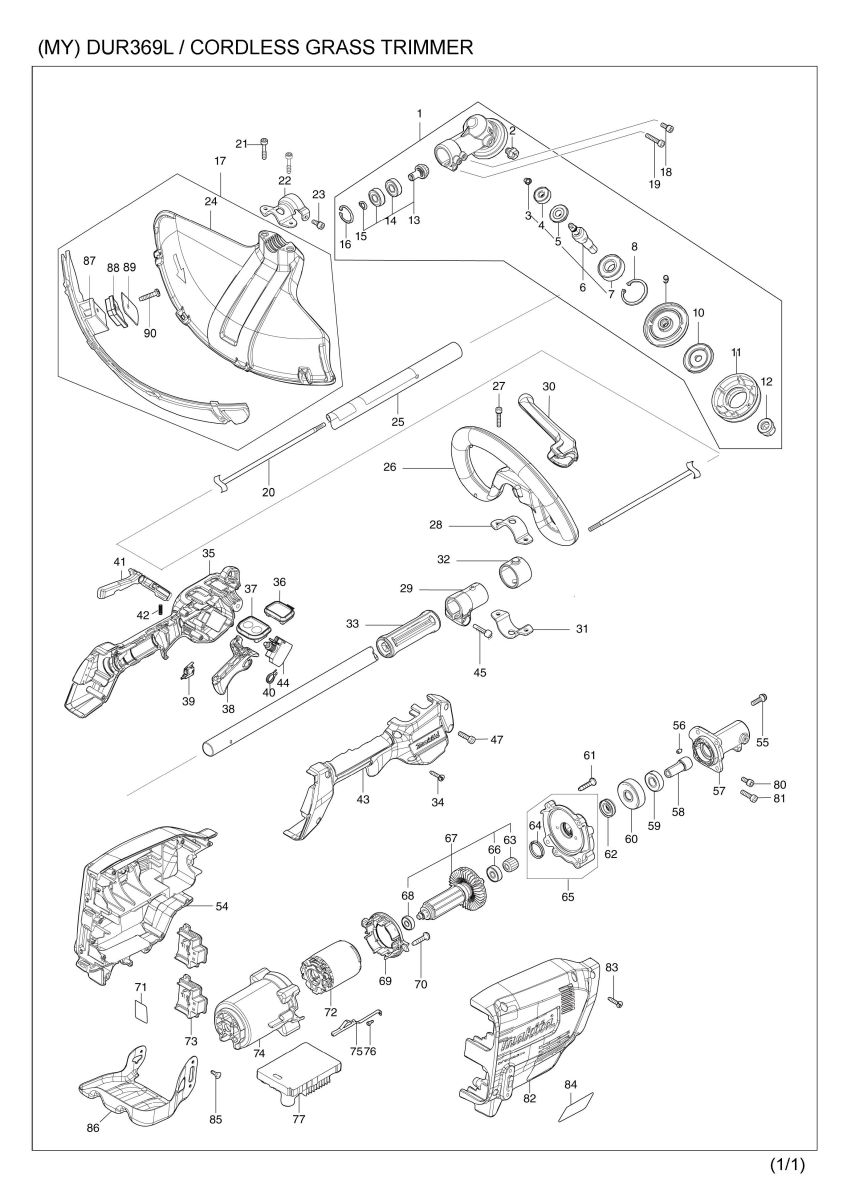

Part Diagram
Total: 111 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 123853-1 | GEAR CASE ASSEMBLY | 1 | |
| 1 | D10 | INC. 2-16 | ||
| 2 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | |
| 3 | 232350-7 | RING SPRING 6 | 1 | |
| 4 | 210030-5 | BALL BEARING 627ZZ | 1 | |
| 5 | 221484-1 | SPIRAL BEVEL GEAR 19 | 1 | |
| 6 | 136233-2 | CUTTER SHAFT ASS'Y | 1 | |
| 6 | D10 | INC. 3-5,7 | ||
| 7 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 8 | 257432-4 | RETAINING RING R-35 | 1 | |
| 9 | 144312-2 | RECEIVE WASHER COMPLETE | 1 | |
| 10 | 347104-0 | CLAMP WASHER | 1 | |
| 11 | 457274-8 | CUP US | 1 | |
| 12 | 252236-9 | HEX. LOCK NUT M10-17 | 1 | |
| 13 | 136235-8 | SPIRAL BEVEL GEAR ASS'Y | 1 | |
| 13 | D10 | INC. 14,15 | ||
| 14 | 210049-4 | BALL BEARING 609ZZ | 2 | |
| 15 | 257986-1 | RETAINING RING (EXT) S-9 | 1 | |
| 16 | 257987-9 | RETAINING RING (INT)R-24 | 1 | |
| 17 | 191B54-1 | PROTECTOR U 430 SET MG | 1 | |
| 17 | D10 | INC. 24,87-90 | ||
| 18 | 922216-6 | HEX. SOCKET HEAD BOLT M5X14 | 1 | |
| 19 | 922242-5 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 20 | 327056-1 | SHAFT | 1 | |
| 21 | 251513-6 | H.S.H.BOLT M5X25 | 2 | |
| 22 | 347107-4 | PROTECTOR CLAMP 24 | 1 | |
| 23 | 922216-6 | HEX. SOCKET HEAD BOLT M5X14 | 1 | |
| 24 | 457271-4 | PROTECTOR U 450 | 1 | |
| 25 | 140M97-6 | SHAFT PIPE COMPLETE A | 1 | |
| 25 | C10 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 25 | C20 | 819N87-3 | CAUTION LABEL | 1 |
| 26 | 457267-5 | LOOP HANDLE | 1 | |
| 26 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 27 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 28 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 29 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 30 | 144315-6 | BARRIER COMPLETE | 1 | |
| 30 | C10 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 |
| 31 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 32 | 424942-8 | DAMPER | 1 | |
| 33 | 451601-1 | SPACER 24 | 1 | |
| 34 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 35 | 183N26-2 | GRIP SET | 1 | |
| 35 | C10 | 931202-6 | HEX. NUT M5 | 1 |
| 35 | D10 | INC. 43 | ||
| 36 | 140K36-4 | INDICATION CIRCUIT COMPLETE G | 1 | |
| 37 | 140K35-6 | SWITCH CIRCUIT COMPLETE G | 1 | |
| 37 | C10 | 819J26-9 | SWITCH LABEL | 1 |
| 38 | 459758-2 | SWITCH LEVER | 1 | |
| 40 | 233622-3 | TORSION SPRING 12 | 1 | |
| 41 | 459759-0 | LOCK OFF LEVER | 1 | |
| 42 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 43 | 183N26-2 | GRIP SET | 1 | |
| 43 | C10 | 931202-6 | HEX. NUT M5 | 1 |
| 43 | D10 | INC. 35 | ||
| 44 | 651436-2 | SWITCH C3JW-1A-P-2 | 1 | |
| 45 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 47 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 54 | 183N23-8 | HOUSING SET | 1 | |
| 54 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 54 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 3 |
| 54 | D10 | INC. 82 | ||
| 55 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 56 | 263002-9 | RUBBER PIN 4 | 1 | |
| 57 | 319919-5 | PIPE BRACKET | 1 | |
| 58 | 325811-5 | SPINDLE HUB | 1 | |
| 59 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 60 | 226931-7 | HELICAL GEAR 29 | 1 | |
| 61 | 266459-3 | TAPPING SCREW 5X25 | 4 | |
| 62 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 63 | 226932-5 | HELICAL GEAR 10 | 1 | |
| 64 | 213961-7 | O RING 22 | 1 | |
| 65 | 136231-6 | GEAR BOX ASS'Y | 1 | |
| 65 | D10 | INC. 64 | ||
| 66 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 67 | 519587-6 | ROTOR ASS'Y | 1 | |
| 67 | D10 | INC. 63,66,68 | ||
| 68 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 69 | 459764-7 | BAFFLE PLATE | 1 | |
| 70 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 71 | 856J21-8 | DUR369L SERIAL NO. LABEL | 1 | |
| 72 | 629443-3 | STATOR | 1 | |
| 73 | 644809-6 | TERMINAL | 2 | |
| 74 | 459763-9 | MOTOR HOUSING | 1 | |
| 77 | 620C07-4 | CONTROLLER | 1 | |
| 80 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 81 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 82 | 183N23-8 | HOUSING SET | 1 | |
| 82 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 82 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 3 |
| 82 | D10 | INC. 54 | ||
| 83 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 84 | 856J12-9 | DUR369L NAME PLATE | 1 | |
| 85 | 251314-2 | + SCREW M4X12 | 3 | |
| 86 | 347563-8 | BATTERY GUARD | 1 | |
| 87 | 144316-4 | PROTECTOR U EXT. 420-450 COMP | 1 | |
| 88 | 459765-5 | CUTTER EXTENSION | 1 | |
| 89 | 347115-5 | CUTTER | 1 | |
| 90 | 266459-3 | TAPPING SCREW 5X25 | 1 | |
| A01 | 125520-4 | BAND ASSEMBLY | 1 | |
| A02 | 197993-1 | TRIMMER HEAD 95-M10L SET ME | 1 | |
| A03 | 126642-3 | PLASTIC BLADE ASSEMBLY255-M10L | 1 | |
| A04 | 144392-8 | TOOL COVER 2T | 1 | |
| A05 | 198345-9 | CUTTER BLADE 255-2 SET ME | 1 | |
| A06 | 782238-6 | BOX WRENCH 17 | 1 | |
| A07 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A08 | 831304-7 | ACCESSORY BAG | 1 | |
| A09 | 195246-2 | SAFETY GOGGLE | 1 | |
| A10B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A11B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A11B | D10 | COMPO-PARTS |
