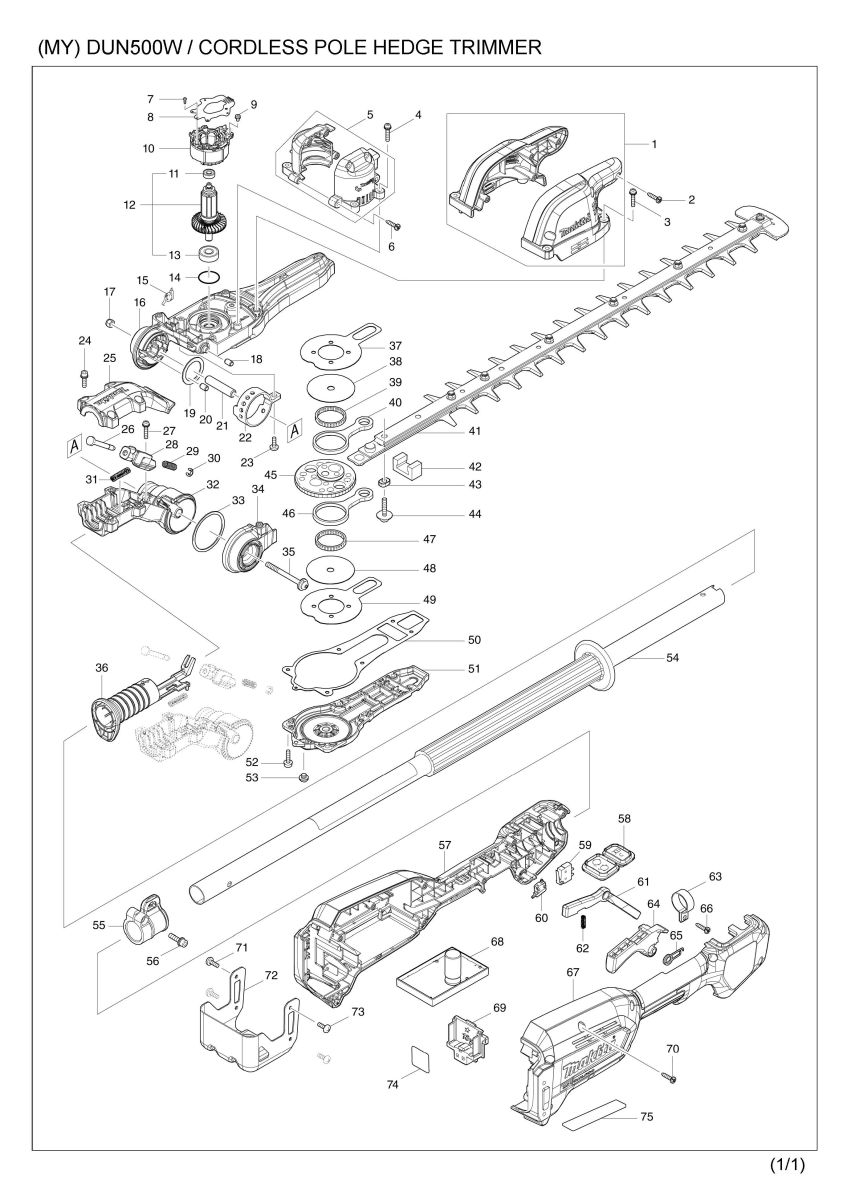

Part Diagram
Total: 104 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183N85-6 | HOUSING SET | 1 | |
| 2 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 3 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 4 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 5 | 183N83-0 | MOTOR HOUSING SET | 1 | |
| 6 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 7 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 8 | 620B02-8 | CONTROLLER B | 1 | |
| 9 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 10 | 629352-6 | STATOR | 1 | |
| 11 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 12 | 519598-1 | ROTOR ASSY | 1 | |
| 12 | D10 | INC. 11,13 | ||
| 13 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 14 | 213961-7 | O RING 22 | 1 | |
| 15 | 632P71-1 | SWITCH UNIT | 1 | |
| 16 | 140R17-0 | GEAR HOUSING COMPLETE | 1 | |
| 17 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 18 | 263005-3 | RUBBER PIN 6 | 1 | |
| 19 | 267304-5 | FLAT WASHER 25 | 1 | |
| 20 | 263005-3 | RUBBER PIN 6 | 3 | |
| 21 | 257761-5 | SLEEVE 6 | 1 | |
| 22 | 347656-1 | ANGULAR HOLDER | 1 | |
| 23 | 265487-5 | H.S. BUTTON HEAD BOLT M5X16 | 1 | |
| 24 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 4 | |
| 25 | 319952-7 | PIPE HOLDER COVER 24 | 1 | |
| 26 | 327514-7 | STOPPER PIN | 1 | |
| 27 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 28 | 412295-7 | STOPPER PIN HOLDER | 1 | |
| 29 | 233096-8 | COMPRESSION SPRING 5 | 1 | |
| 029-1 | 231294-8 | COMPRESSION SPRING 6 | 1 | |
| 30 | 961011-9 | STOP RING E-4 | 1 | |
| 31 | 232299-1 | COMPRESSION SPRING 5 | 1 | |
| 32 | 319950-1 | PIPE HOLDER 24 | 1 | |
| 33 | 267190-4 | FLAT WASHER 45 | 1 | |
| 34 | 319951-9 | SIDE COVER | 1 | |
| 35 | 265A90-8 | H.S.B. HEAD BOLT M5X60 WITH WR | 1 | |
| 36 | 412296-5 | SLIDE GRIP 24 | 1 | |
| 37 | 347361-0 | FRICTION PLATE | 1 | |
| 38 | 347661-8 | PLATE | 1 | |
| 39 | 212229-8 | NEEDLE CAGE 315 | 1 | |
| 40 | 347662-6 | CONNECTING ROD | 1 | |
| 41 | 191C14-9 | SHEAR BLADE 500 SET | 1 | |
| 41 | C10 | 197438-9 | GREASE VESSEL SET(D) | 1 |
| 41 | C11 | 199450-5 | GREASE VESSEL SET | 1 |
| 41 | C12 | 199450-5 | GREASE VESSEL SET | 1 |
| 41 | C20 | 345205-8 | BRANCH CATCHER | 1 |
| 41 | C30 | 911208-0 | PAN HEAD SCREW M5X10 | 1 |
| 41 | C40 | 252311-1 | COLLARED HEX. LOCK NUT M5-8 | 6 |
| 41 | C50 | 257439-0 | SLEEVE 5 | 6 |
| 41 | C60 | 253558-0 | FLAT WASHER 5 | 6 |
| 41 | C70 | 265181-9 | +TRUSS HEAD SCREW M5X20 | 6 |
| 41 | D10 | INC. 43 | ||
| 42 | 443159-4 | SEAL | 1 | |
| 43 | 257439-0 | SLEEVE 5 | 2 | |
| 44 | 265A89-3 | H.S.H.BOLT M5X25 WITH WR | 2 | |
| 45 | 226958-7 | HELICAL GEAR 68 | 1 | |
| 46 | 347662-6 | CONNECTING ROD | 1 | |
| 47 | 212229-8 | NEEDLE CAGE 315 | 1 | |
| 48 | 347661-8 | PLATE | 1 | |
| 49 | 347361-0 | FRICTION PLATE | 1 | |
| 50 | 422568-0 | GEAR HOUSING GASKET | 1 | |
| 51 | 319949-6 | GEAR HOUSING COVER | 1 | |
| 52 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | |
| 53 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 54 | 140R22-7 | PIPE 24 COMPLETE | 1 | |
| 54 | C10 | 8008A7-9 | CAUTION LABEL | 1 |
| 55 | 168478-4 | HANGER | 1 | |
| 56 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | |
| 57 | 183N92-9 | GRIP HOUSING SET | 1 | |
| 57 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 57 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 |
| 57 | D10 | INC. 67 | ||
| 58 | 140R24-3 | SUB CONTROLLER COMPLETE | 1 | |
| 58 | C10 | 8008M5-7 | SWITCH LABEL | 1 |
| 59 | 632E26-0 | SWITCH UNIT | 1 | |
| 61 | 457773-0 | LOCK OFF LEVER | 1 | |
| 62 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 63 | 346248-3 | CLAMP 24 | 1 | |
| 64 | 412285-0 | SWITCH LEVER | 1 | |
| 65 | 233612-6 | TORSION SPRING 10 | 1 | |
| 66 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 67 | 183N92-9 | GRIP HOUSING SET | 1 | |
| 67 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 67 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 |
| 67 | D10 | INC. 57 | ||
| 68 | 620C79-9 | CONTROLLER | 1 | |
| 69 | 644809-6 | TERMINAL | 1 | |
| 70 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 71 | 251314-2 | + SCREW M4X12 | 2 | |
| 72 | 347655-3 | BATTERY GUARD | 1 | |
| 73 | 251314-2 | + SCREW M4X12 | 2 | |
| 74 | 856T84-4 | DUN500W SERIAL NO. LABEL | 1 | |
| 75 | 856T79-7 | DUN500W NAME PLATE | 1 | |
| A01 | 125516-5 | BAND ASSEMBLY | 1 | |
| A02 | 458413-3 | BLADE COVER 500 | 1 | |
| A03B | 450128-8 | BATTERY COVER | 2 | |
| A04B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 197280-8 | BATTERY BL1850B SET | 2 | |
| E02 | 632P62-2 | LEAD UNIT | 1 | |
| E03 | 632P79-5 | LEAD UNIT | 1 | |
| F01 | 191C14-9 | SHEAR BLADE 500 SET | 1 | |
| F05-1 | 1910M5-3 | CHIP RECEIVER 500 SET | 1 |
