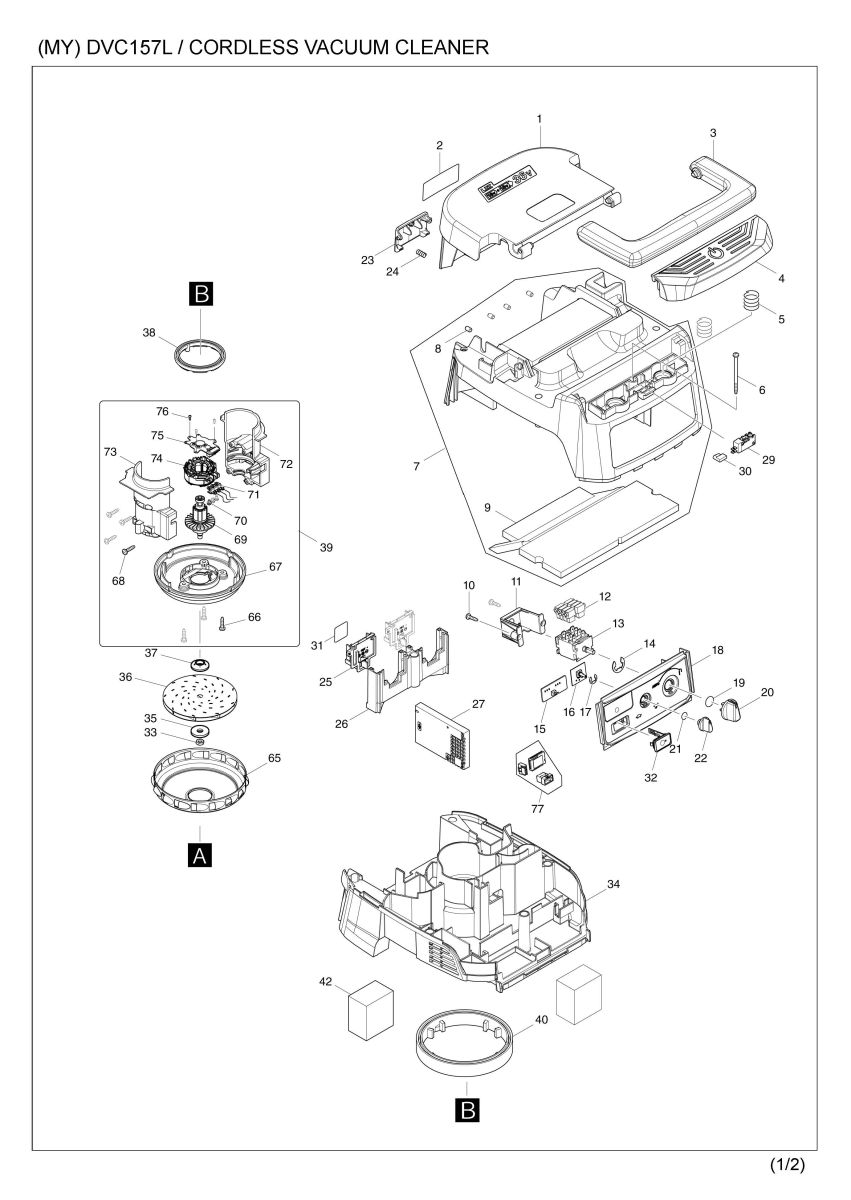

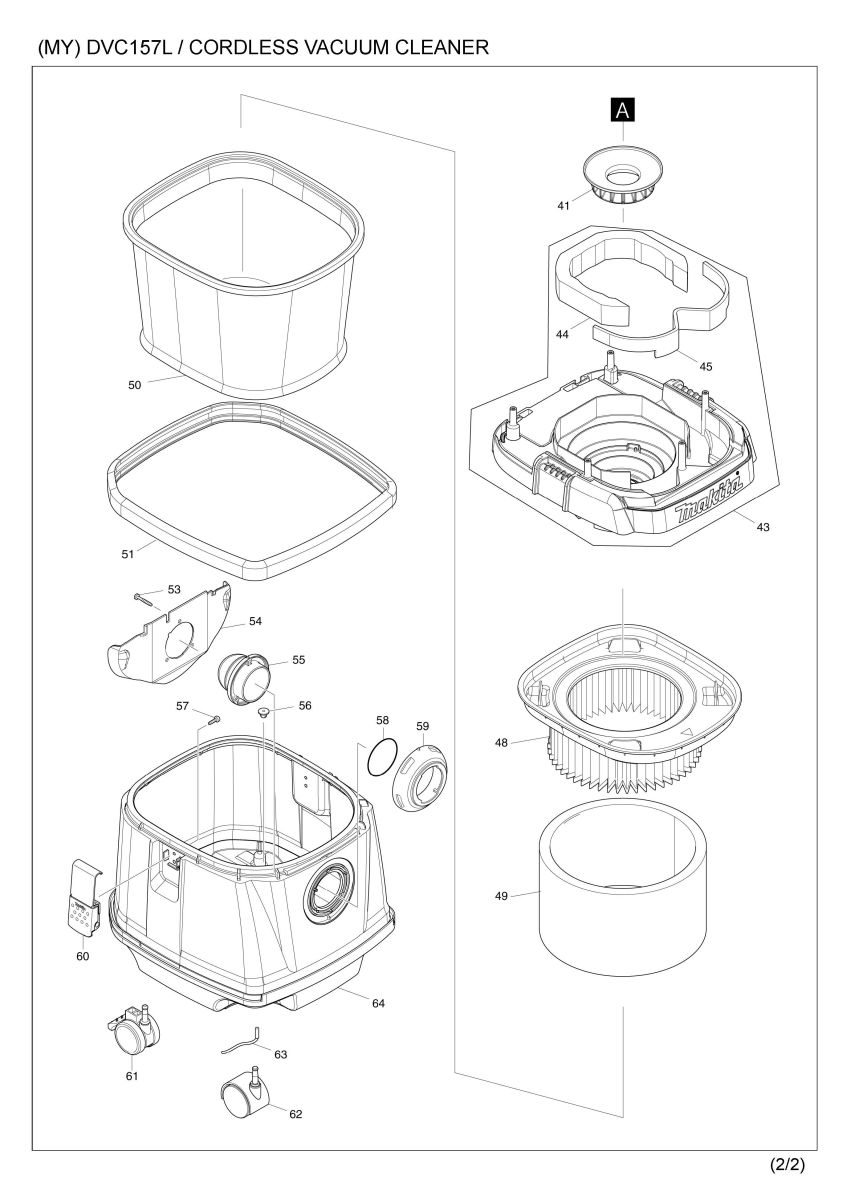

Part Diagram
Total: 143 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 144486-9 | BATTERY COVER COMPLETE | 1 | |
| 1 | C10 | 891977-8 | CAUTION LABEL | 1 |
| 2 | 857C08-1 | DVC157L NAME PLATE | 1 | |
| 3 | 455734-4 | GRIP | 1 | |
| 4 | 459262-1 | SWITCH BUTTON | 1 | |
| 5 | 234273-5 | COMPRESSION SPRING 20 | 2 | |
| 6 | 266340-8 | TAPPING SCREW 4X65 | 6 | |
| 7 | 144973-8 | COWLING COMPLETE | 1 | |
| 7 | D10 | INC. 8,9 | ||
| 8 | 263005-3 | RUBBER PIN 6 | 4 | |
| 9 | 424688-6 | TOP DAMPER | 1 | |
| 10 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 11 | 451343-7 | SWITCH HOLDER | 1 | |
| 12 | 686023-8 | RECEPTACLE SLEEVE | 8 | |
| 13 | 651098-6 | SWITCH 1703.4801 | 1 | |
| 14 | 961062-2 | STOP RING E-12 | 1 | |
| 15 | 620D40-2 | LED CIRCUIT | 1 | |
| 16 | 620D39-7 | SUB CONTROLLER | 1 | |
| 17 | 961013-5 | STOP RING E-7 | 1 | |
| 18 | 140T97-8 | SWITCH BASE COMPLETE | 1 | |
| 18 | C10 | 812D41-6 | INDICATION LABEL | 1 |
| 19 | 213176-6 | O RING 14 | 1 | |
| 20 | 455733-6 | SWITCH LEVER | 1 | |
| 21 | 213054-0 | O RING 9 | 1 | |
| 22 | 451344-5 | SWITCH DIAL | 1 | |
| 23 | 455728-9 | BATTERY COVER HOOK | 1 | |
| 24 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 25 | 644808-8 | TERMINAL | 2 | |
| 26 | 455729-7 | TERMINAL BASE | 1 | |
| 27 | 620D20-8 | CONTROLLER | 1 | |
| 29 | 651910-0 | SWITCH D2VW-01-3HS | 1 | |
| 30 | 686039-3 | RECEPTACLE SLEEVE | 1 | |
| 31 | 857C16-2 | DVC157L SERIAL NO. LABEL | 1 | |
| 32 | 140G18-2 | CAP COMPLETE | 1 | |
| 32 | C10 | 213218-6 | O RING 16 | 1 |
| 32 | C11 | 213A05-9 | O-RING16 | 1 |
| 32 | C20 | 818F57-1 | CAP LABEL | 1 |
| 33 | 252268-6 | HEX. NUT M6 | 1 | |
| 34 | 412581-6 | SEPARATOR | 1 | |
| 35 | 253752-4 | FLAT WASHER 8 | 1 | |
| 36 | 240178-9 | FAN 104 | 1 | |
| 37 | 313062-2 | FLANGE | 1 | |
| 38 | 424685-2 | RUBBER RING 60 | 1 | |
| 39 | 127653-1 | MOTOR ASSEMBLY | 1 | |
| 39 | D10 | INC. 66-76 | ||
| 40 | 424686-0 | RUBBER RING 120 | 1 | |
| 41 | 422590-7 | SUPPORT RING | 1 | |
| 42 | 424690-9 | REAR BLOCK FILTER | 2 | |
| 43 | 143175-3 | TANK COVER COMPLETE | 1 | |
| 43 | D10 | INC. 44,45 | ||
| 44 | 424691-7 | BAND DAMPER | 1 | |
| 45 | 424689-4 | FRONT DAMPER | 1 | |
| 48 | 197166-6 | POWDER FILTER H SET | 1 | |
| 49 | 423398-2 | DAMPER | 1 | |
| 50 | 140253-0 | PRE-FILTER COMPLETE | 1 | |
| 51 | 422148-2 | BUMPER | 1 | |
| 53 | 266257-5 | TAPPING SCREW 4X28 | 3 | |
| 54 | 419351-4 | HOLDER PLATE | 1 | |
| 55 | 419350-6 | HOLDER | 1 | |
| 56 | 421468-1 | CORD SEAL | 1 | |
| 57 | 266192-7 | TAPPING SCREW 4X14 | 4 | |
| 58 | 213655-4 | O RING 56 | 1 | |
| 59 | 451348-7 | INLET | 1 | |
| 60 | 168537-4 | HOOK | 2 | |
| 61 | 168535-8 | CASTER 50 | 2 | |
| 62 | 168434-4 | CASTER 50 | 2 | |
| 63 | 649150-2 | EARTH LINE 120 | 1 | |
| 64 | 459493-2 | TANK | 1 | |
| 65 | 347171-5 | FAN COVER | 1 | |
| 66 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 67 | 457486-3 | FAN BASE | 1 | |
| 68 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 69 | 619431-8 | ROTOR | 1 | |
| 70 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 71 | 632J83-8 | LEAD UNIT | 1 | |
| 72 | 183F90-5 | MOTOR HOUSING SET | 1 | |
| 72 | D10 | INC. 73 | ||
| 73 | 183F90-5 | MOTOR HOUSING SET | 1 | |
| 73 | D10 | INC. 72 | ||
| 74 | 629491-2 | STATOR | 1 | |
| 75 | 620D38-9 | CONTROLLER B | 1 | |
| 76 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 77 | 620D41-0 | SUB CONTROLLER | 1 | |
| A01 | 195433-3 | HOSE COMPLETE 28-3.5 SET | 1 | |
| A01 | C10 | 417191-4 | CUFF LOCK | 1 |
| A01 | C20 | 417586-1 | STOPPER | 1 |
| A01 | C30 | 417662-1 | SLEEVE | 1 |
| A01 | C40 | 417766-9 | FRONT CUFF 38 | 1 |
| A01 | D10 | INC. A03,A04 | ||
| A02 | 195432-5 | POLY BAG SET(650X650) | 1 | |
| A03 | 417765-1 | FRONT CUFF 22 | 1 | |
| A04 | 424379-9 | FRONT CUFF 24 | 1 | |
| A06 | 195434-1 | HOSE COMPLETE 38-2.5 SET | 1 | |
| A06 | C10 | 417191-4 | CUFF LOCK | 1 |
| A06 | C20 | 417306-3 | SLEEVE | 2 |
| A06 | C30 | 417307-1 | FRONT CUFF | 1 |
| A06 | C40 | 417586-1 | STOPPER | 2 |
| A07 | 199455-5 | NOZZLE ASSEMBLY SET | 1 | |
| A08 | 192563-1 | STRAIGHT PIPE SET 565-38 | 1 | |
| A09 | 192562-3 | BENDING PIPE | 1 | |
| A10 | 410306-2 | CORNER NOZZLE | 1 | |
| A11 | 451350-0 | STOPPER | 1 | |
| A14 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| A15 | 127607-8 | TOOL BOX ASSEMBLY | 1 | |
| F22 | 191E30-3 | FLEXIBLE HOSE SET(LOCK) | 1 | |
| F26 | 191G87-6 | NOZZLE ASSEMBLY SET | 1 | |
| F27 | 191G89-2 | TELESCOPIC PIPE SET | 1 | |
| F30 | 192236-6 | TAPERED NOZZLE SET | 1 | |
| F40 | 195435-9 | HOSE COMPLETE 38-5 SET | 1 | |
| F41 | 195436-7 | HOSE COMPLETE 28-5 SET | 1 | |
| F42 | 195437-5 | HOSE COMPLETE 28-2.5 SET | 1 | |
| F44 | 195544-4 | HOLDER 10-33 SET | 1 | |
| F45 | 195545-2 | FRONT CUFF 38 SET | 1 | |
| F46 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F47 | 195547-8 | FRONT CUFF 22 SET | 1 | |
| F48 | 195548-6 | JOINT 22-38 SET | 1 | |
| F49 | 195549-4 | T-NOZZLE ASSY A SET(DRY)38 | 1 | |
| F51 | 195551-7 | T-NOZZLE SET 38 | 1 | |
| F52 | 195552-5 | DAMPER SET | 1 | |
| F53 | 195553-3 | PRE-FILTER SET | 1 | |
| F55 | 195557-5 | FILTER BAG SET 15L(5PCS) | 1 | |
| F55-1 | 195557-5 | FILTER BAG SET 15L(5PCS) | 1 | |
| F56 | 195637-7 | HOLDER,CUFF SET | 1 | |
| F59 | 197323-6 | HOSE STAND SET | 1 | |
| F62 | 198184-7 | F/C SWITCHING T-NOZZLE 38 | 1 | |
| F66 | 198529-9 | FLOOR/CARPET T-NOZZLE BLK EU | 1 | |
| F68 | 198533-8 | F/C SWITCHING T-NOZZLE 38 EU | 1 | |
| F69 | 198540-1 | SHELF BRUSH SET28 BLK EU | 1 | |
| F70 | 198555-8 | ROUND BRUSH SET 28 BLK EU | 1 | |
| F72 | 198560-5 | TELESCOPIC PIPE SET 28 EU | 1 | |
| F74 | 198873-4 | SHELF BRUSH SET28 WHI | 1 | |
| F75 | 198878-4 | ROUND BRUSH SET 28 WHI | 1 | |
| F76 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F77 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F78 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F79 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F81 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F86 | 191M77-5 | JOINT A 32 SET | 1 | |
| F87 | 191M78-3 | JOINT B 35 SET | 1 | |
| F88 | 191M79-1 | JOINT C 38 SET | 1 | |
| G09 | 1912G4-5 | TELESCOPIC PIPE COMPLETE SET | 1 | |
| G10 | 1912G5-3 | BENT PIPE COMPLETE SET | 1 | |
| G11 | 413R35-4 | STOPPER | 1 |
