Part Diagram
Total: 249 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|

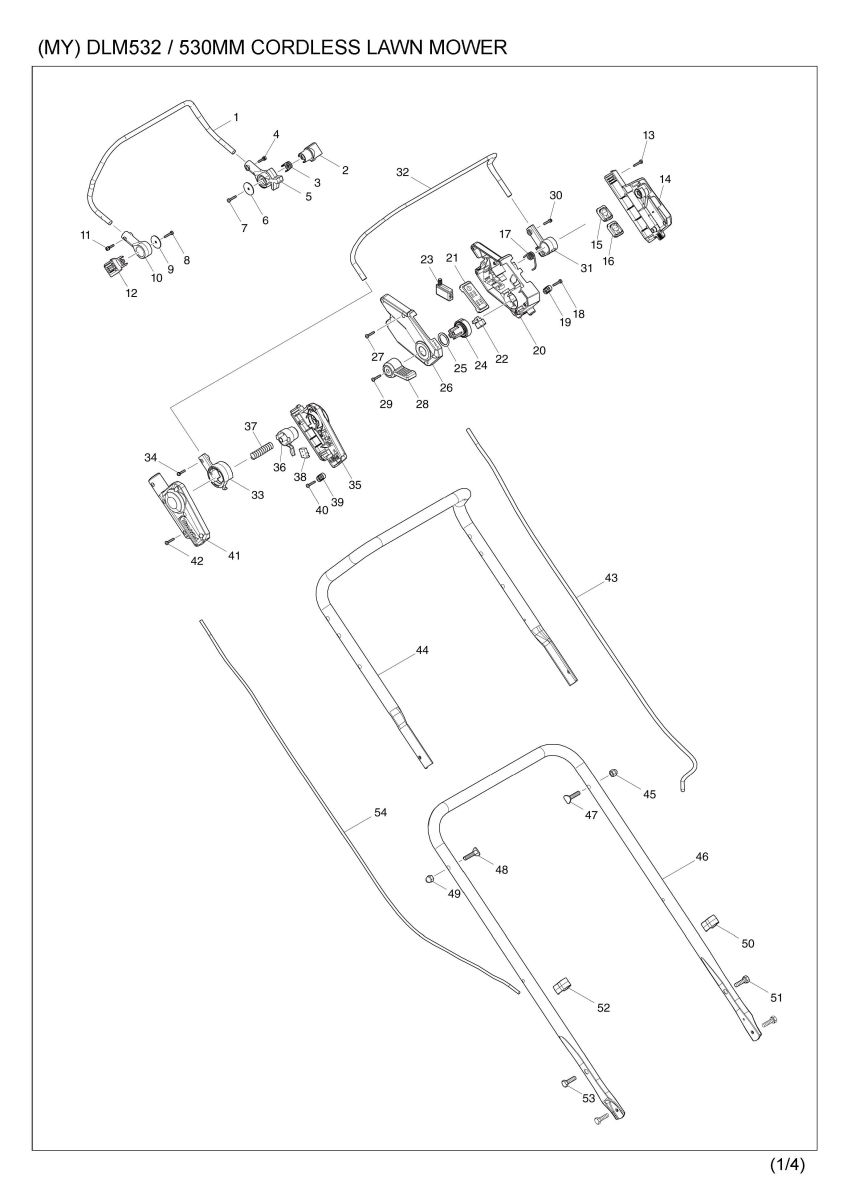

| 1 | 327425-6 | DRIVING LEVER | 1 | |
| 2 | 459859-6 | DRIVING LEVER HOLDER | 1 | |
| 3 | 232566-4 | TORSION SPRING 12 | 1 | |
| 4 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 5 | 459864-3 | DRIVING LEVER SUPPORT L | 1 | |
| 5 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 6 | 267136-0 | FLAT WASHER 5 | 1 | |
| 7 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 8 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 9 | 267136-0 | FLAT WASHER 5 | 1 | |
| 10 | 459858-8 | DRIVING LEVER SUPPORT R | 1 | |
| 10 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 11 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 12 | 459859-6 | DRIVING LEVER HOLDER | 1 | |
| 13 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 14 | 183N90-3 | SWITCH BOX SET | 1 | |
| 14 | D10 | INC. 26 | ||
| 15 | 140F09-7 | SWITCH CIRCUIT COMPLETE | 1 | |
| 15 | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 16 | 140F10-2 | SWITCH CIRCUIT COMPLETE | 1 | |
| 16 | C10 | 818A74-1 | SWITCH LABEL | 1 |
| 17 | 232575-3 | TORSION SPRING 12 | 1 | |
| 18 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 19 | 687124-5 | STRAIN RELIEF | 1 | |
| 20 | 459860-1 | SWITCH BOX | 1 | |
| 21 | 620C48-0 | INDICATION CIRCUIT COMPLETE | 1 | |
| 21 | C10 | 8007C8-5 | INDICATION LABEL | 1 |
| 22 | 620415-1 | SUB CONTROLLER | 1 | |
| 23 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 24 | 459866-9 | SPEED LEVER HOLDER | 1 | |
| 25 | 213897-0 | O-RING 26 | 1 | |
| 26 | 183N90-3 | SWITCH BOX SET | 1 | |
| 26 | D10 | INC. 14 | ||
| 27 | 266424-2 | TAPPING SCREW 4X20 | 5 | |
| 28 | 459865-1 | SPEED LEVER | 1 | |
| 29 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 30 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 31 | 459863-5 | SWITCH LEVER SUPPORT L | 1 | |
| 31 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 32 | 327424-8 | SWITCH LEVER | 1 | |
| 33 | 459856-2 | SWITCH LEVER SUPPORT R | 1 | |
| 33 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 34 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 35 | 183P40-0 | LEVER BOX SET | 1 | |
| 35 | C10 | 8007C6-9 | INDICATION LABEL | 1 |
| 35 | D10 | INC. 41 | ||
| 035-1 | 183X73-3 | LEVER BOX SET | 1 | |
| 035-1 | C10 | 8007C6-9 | INDICATION LABEL | 1 |
| 035-1 | D10 | INC. 41 | ||
| 36 | 459857-0 | LOCK OFF BUTTON | 1 | |
| 37 | 231227-3 | COMPRESSION SPRING 15 | 1 | |
| 38 | 632E26-0 | SWITCH UNIT | 1 | |
| 39 | 687124-5 | STRAIN RELIEF | 1 | |
| 40 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 41 | 183P40-0 | LEVER BOX SET | 1 | |
| 41 | C10 | 8007C6-9 | INDICATION LABEL | 1 |
| 41 | D10 | INC. 35 | ||
| 041-1 | 183X73-3 | LEVER BOX SET | 1 | |
| 041-1 | C10 | 8007C6-9 | INDICATION LABEL | 1 |
| 041-1 | D10 | INC. 35 | ||
| 42 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 43 | 699143-9 | POWER SUPPLY CORD UNIT | 1 | |
| 44 | 327421-4 | HANDLE UPPER | 1 | |
| 45 | 252278-3 | HEX. CAP NUT M8 | 1 | |
| 46 | 327422-2 | HANDLE LOWER | 1 | |
| 47 | 265A62-3 | FLAT HEAD BOLT M8X38 | 1 | |
| 48 | 265A62-3 | FLAT HEAD BOLT M8X38 | 1 | |
| 49 | 252278-3 | HEX. CAP NUT M8 | 1 | |
| 50 | 459905-5 | CLAMP | 1 | |
| 51 | 921451-3 | HEX. BOLT M8X30 | 2 | |
| 52 | 459905-5 | CLAMP | 1 | |
| 53 | 921451-3 | HEX. BOLT M8X30 | 2 | |
| 54 | 699142-1 | POWER SUPPLY CORD UNIT | 1 | |
| 55 | 127412-3 | GRASS CATCHER ASSEMBLY | 1 | |
| 055-1 | 122B20-7 | GRASS CATCHER ASSEMBLY | 1 | |
| 055-1 | C10 | 162976-0 | GRASS CATCHER | 1 |
| 055-1 | C20 | 327866-6 | GRASS CATCHER BRACKET | 1 |

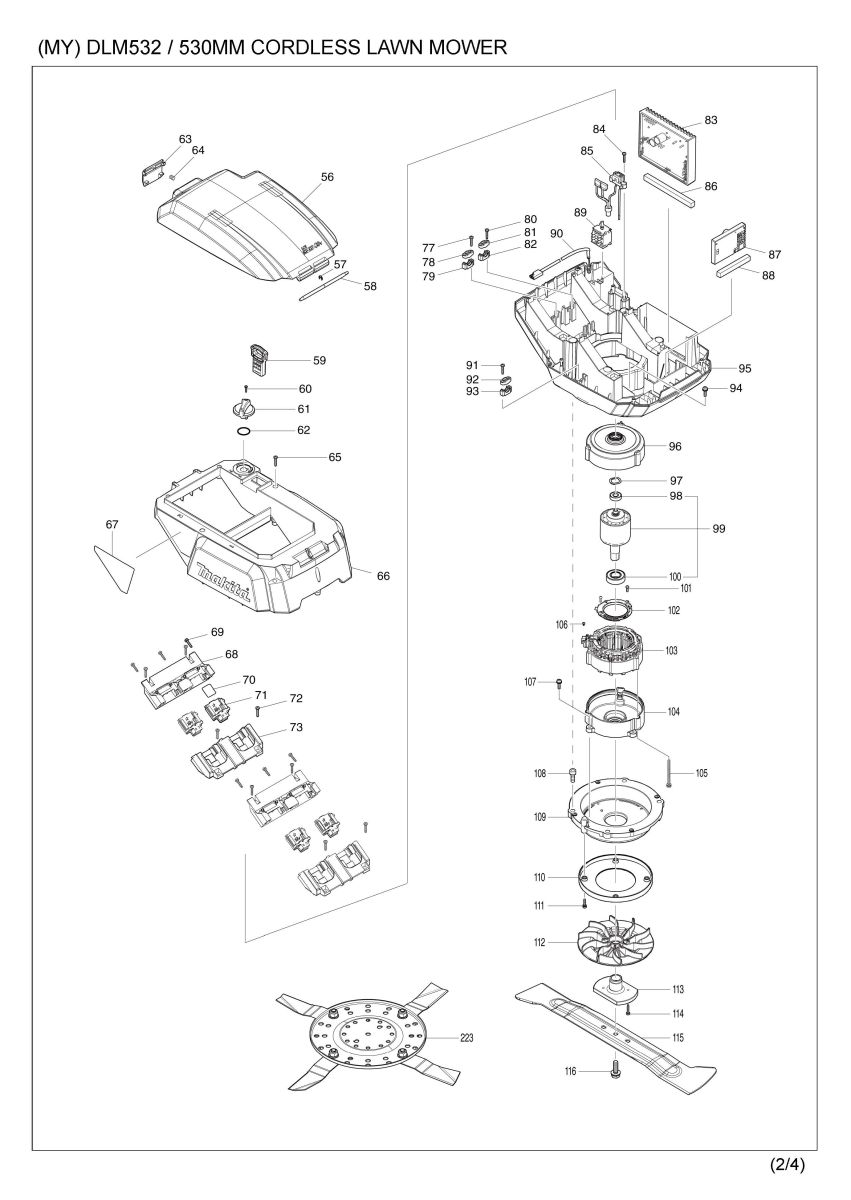

| 56 | 140S03-7 | BATTERY COVER COMPLETE | 1 | |
| 56 | C10 | 890380-0 | CAUTION LABEL | 1 |
| 056-1 | 1410K6-7 | BATTERY COVER COMPLETE | 1 | |
| 056-1 | C10 | 8044A3-5 | CAUTION LABEL | 1 |
| 57 | 961018-5 | STOP RING E-5 | 1 | |
| 58 | 327536-7 | ROD 6 | 1 | |
| 59 | 643535-4 | KEY | 1 | |
| 60 | 266404-8 | TAPPING SCREW BIND 3X14 | 1 | |
| 61 | 459851-2 | SWITCH LEVER | 1 | |
| 62 | 213896-2 | O-RING 24 | 1 | |
| 63 | 459852-0 | LOCK LEVER | 1 | |
| 64 | 231037-8 | COMPRESSION SPRING 7 | 1 | |
| 65 | 266424-2 | TAPPING SCREW 4X20 | 7 | |
| 66 | 459847-3 | COWLING UPPER | 1 | |
| 67 | 856R09-6 | DLM532 NAME PLATE | 1 | |
| 68 | 183N78-3 | TERMINAL HOUSING SET | 2 | |
| 68 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 68 | D10 | INC. 73 | ||
| 69 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 70 | 856R18-5 | DLM532 SERIAL NO. LABEL | 1 | |
| 71 | 644809-6 | TERMINAL | 4 | |
| 72 | 266424-2 | TAPPING SCREW 4X20 | 8 | |
| 73 | 183N78-3 | TERMINAL HOUSING SET | 2 | |
| 73 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 73 | D10 | INC. 68 | ||
| 77 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 78 | 687124-5 | STRAIN RELIEF | 1 | |
| 79 | 687051-6 | STRAIN RELIEF | 1 | |
| 80 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 81 | 687124-5 | STRAIN RELIEF | 1 | |
| 82 | 687051-6 | STRAIN RELIEF | 1 | |
| 83 | 620C45-6 | CONTROLLER | 1 | |
| 84 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 85 | 632P74-5 | LEAD UNIT | 1 | |
| 86 | 422529-0 | SPONGE B | 1 | |
| 87 | 620C47-2 | CONTROLLER | 1 | |
| 88 | 422528-2 | SPONGE A | 1 | |
| 89 | 651444-3 | SWITCH 1703.4703 | 1 | |
| 90 | 699145-5 | POWER SUPPLY CORD UNIT | 1 | |
| 91 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 92 | 687124-5 | STRAIN RELIEF | 1 | |
| 93 | 687051-6 | STRAIN RELIEF | 1 | |
| 94 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 95 | 459848-1 | COWLING LOWER | 1 | |
| 96 | 319869-4 | MOTOR HOUSING UPPER | 1 | |
| 97 | 253455-0 | WAVE WASHER 19 | 1 | |
| 98 | 210141-6 | BALL BEARING 6000DDW | 1 | |
| 99 | 519606-8 | ROTOR ASS'Y | 1 | |
| 99 | D10 | INC. 98,100 | ||
| 100 | 211387-7 | BALL BEARING 6004LLU | 1 | |
| 101 | 265B29-7 | TAPPING SCREW PT 2X8 | 2 | |
| 102 | 620B88-2 | CONTROLLER B | 1 | |
| 103 | 629465-3 | STATOR | 1 | |
| 104 | 319870-9 | MOTOR HOUSING LOWER | 1 | |
| 105 | 911691-1 | PAN HEAD SCREW M5X70 | 3 | |
| 106 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 107 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 108 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 4 | |
| 109 | 319867-8 | MOTOR BRACKET | 1 | |
| 110 | 459853-8 | BAFFLE PLATE | 1 | |
| 111 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | |
| 112 | 240205-2 | FAN 170 | 1 | |
| 113 | 319868-6 | BLADE SUPPORT | 1 | |
| 114 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 115 | 191D52-7 | BLADE 530 SET | 1 | |
| 116 | 265A69-9 | HEX. BOLT M10X35 WITH WG | 1 | |
| 116-1 | 265D72-8 | HEX. BOLT M10X35 WG | 1 | |
| 117 | 127516-1 | MULCHING PLUG ASSEMBLY | 1 | |
| 117 | D10 | INC. 118-121 | ||
| 118 | 459884-7 | LOCK LEVER | 1 | |
| 119 | 231401-3 | COMPRESSION SPRING 7 | 1 | |
| 120 | 459885-5 | LOCK LEVER SUPPORT | 1 | |
| 121 | 266424-2 | TAPPING SCREW 4X20 | 2 | |

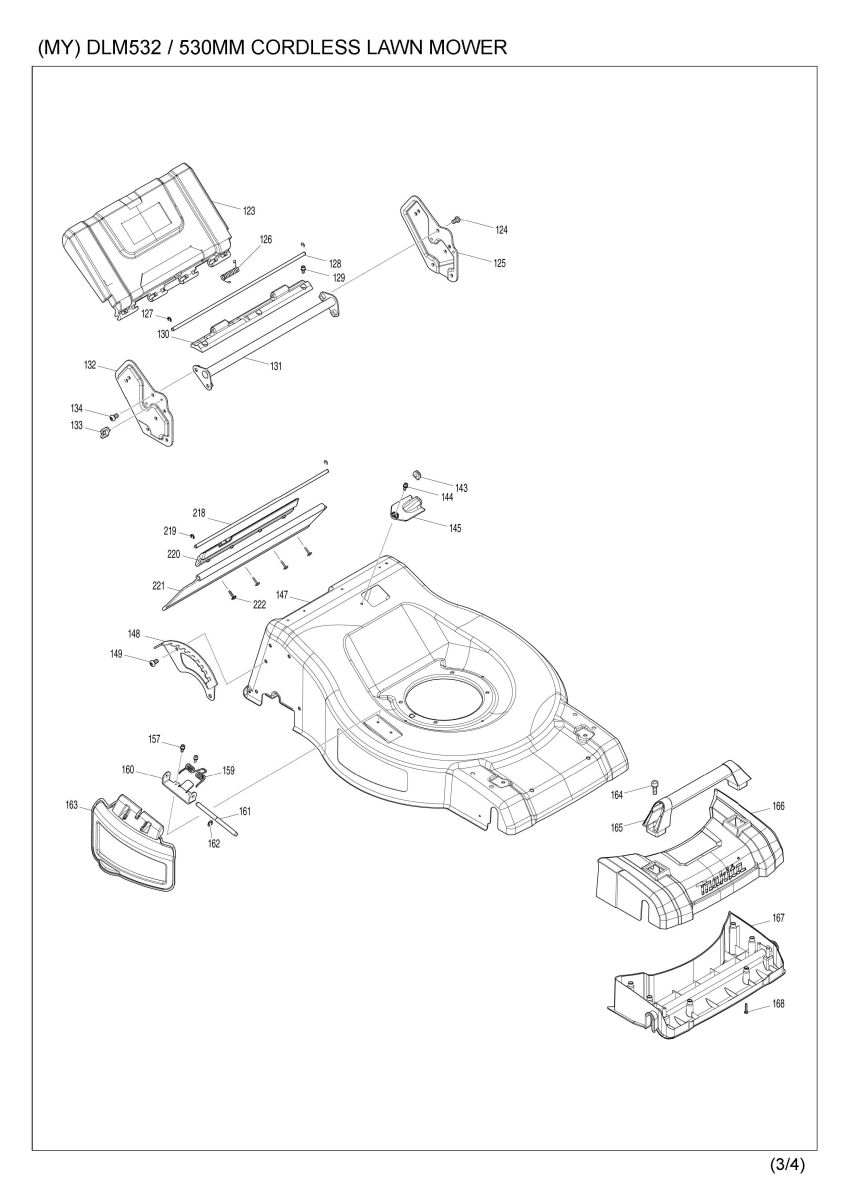

| 123 | 140R96-8 | REAR FLAP COMPLETE | 1 | |
| 123 | C10 | 8007P8-6 | CAUTION LABEL | 1 |
| 123-1 | 1410K8-3 | REAR FLAP COMPLETE | 1 | |
| 123-1 | C10 | 8076C7-2 | CAUTION LABEL | 1 |
| 124 | 265B20-5 | HEX.SOCKET BUTTON HEAD BOLT M8 | 4 | |
| 125 | 347579-3 | HANDLE BRACKET L | 1 | |
| 126 | 233597-6 | TORSION SPRING 8 | 1 | |
| 127 | 961018-5 | STOP RING E-5 | 2 | |
| 128 | 327418-3 | ROD 6 | 1 | |
| 129 | 922213-2 | H.S.H.BOLT M5X12 WITH WR | 3 | |
| 130 | 459877-4 | REAR FLAP HOLDER PLATE | 1 | |
| 131 | 162692-4 | REAR GRIP | 1 | |
| 132 | 347578-5 | HANDLE BRACKET R | 1 | |
| 133 | 451825-9 | CLAMP | 1 | |
| 134 | 265B20-5 | HEX.SOCKET BUTTON HEAD BOLT M8 | 4 | |
| 135 | 232628-8 | TENSION SPRING 16 | 1 | |
| 136 | 347580-8 | CONNECTING ROD | 1 | |
| 137 | 941151-9 | FLAT WASHER 6 | 1 | |
| 138 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | |
| 139 | 267216-2 | FLAT WASHER 8 | 1 | |
| 140 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | |
| 141 | 941151-9 | FLAT WASHER 6 | 1 | |
| 142 | 253762-1 | FLAT WASHER 8 | 1 | |
| 143 | 422526-6 | GROMMET | 1 | |
| 144 | 922213-2 | H.S.H.BOLT M5X12 WITH WR | 1 | |
| 145 | 459880-5 | LEAD COVER | 1 | |
| 146 | 683A20-1 | POLYOLEFIN TUBE | 1 | |
| 147 | 347559-9 | DECK | 1 | |
| 148 | 347582-4 | HEIGHT ADJUST PLATE | 1 | |
| 149 | 265B20-5 | HEX.SOCKET BUTTON HEAD BOLT M8 | 2 | |
| 150 | 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 4 | |
| 151 | 313290-9 | REAR SHAFT HOLDER COVER | 2 | |
| 157 | 922213-2 | H.S.H.BOLT M5X12 WITH WR | 2 | |
| 159 | 232567-2 | TORSION SPRING 9 | 1 | |
| 160 | 347584-0 | SIDE DISCHARGE PLATE | 1 | |
| 161 | 327420-6 | ROD 8 | 1 | |
| 162 | 961013-5 | STOP RING E-7 | 1 | |
| 163 | 459886-3 | SIDE DISCHARGE COVER | 1 | |
| 164 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 2 | |
| 165 | 459870-8 | FRONT GRIP | 1 | |
| 166 | 459871-6 | FRONT COVER | 1 | |
| 167 | 459872-4 | DECK UNDER COVER | 1 | |
| 168 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 169 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | |
| 170 | 211247-3 | BALL BEARING 6002DDW | 1 | |

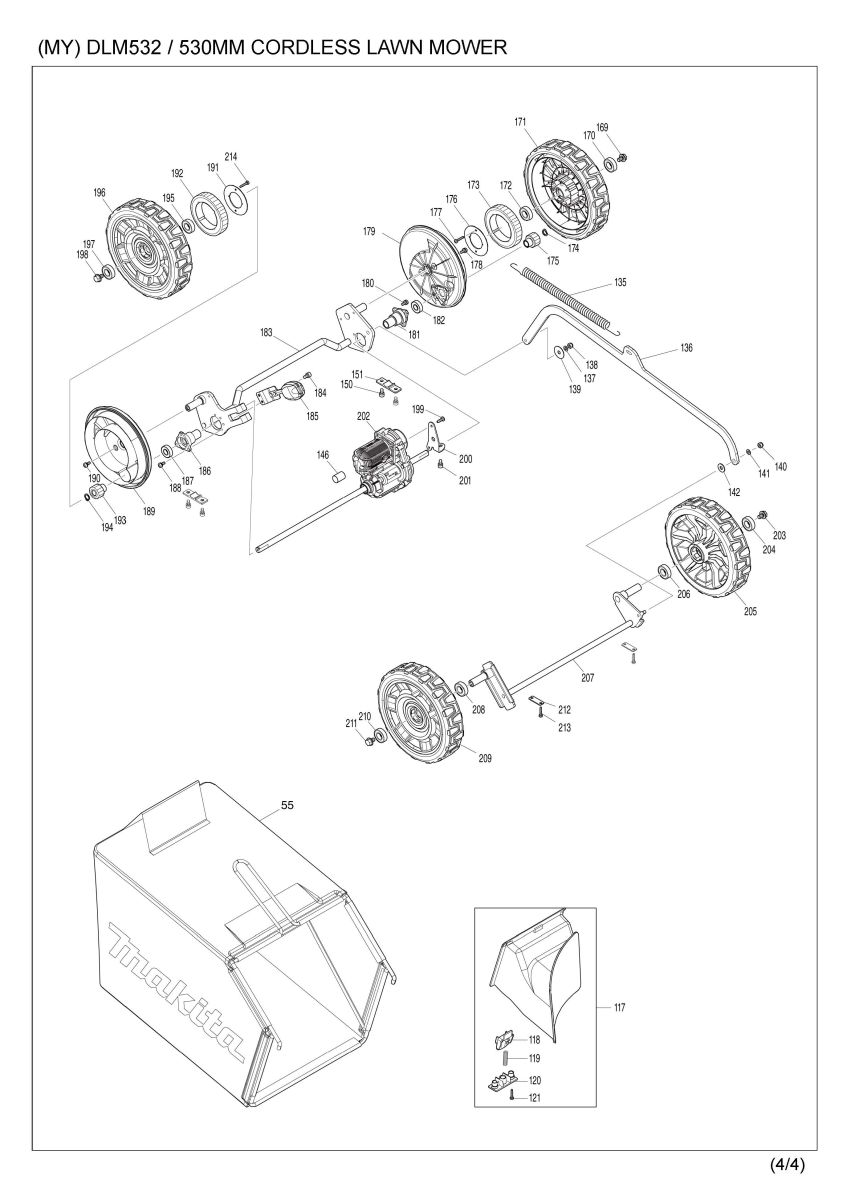

| 171 | 127513-7 | REAR WHEEL ASSEMBLY | 1 | |
| 172 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 173 | 226941-4 | SPUR GEAR 49 | 1 | |
| 174 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 175 | 226940-6 | SPUR GEAR 12 | 1 | |
| 176 | 347586-6 | GEAR HOLDER PLATE | 1 | |
| 177 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 178 | 911213-7 | PAN HEAD SCREW M5X12 | 2 | |
| 179 | 459867-7 | WHEEL CAP | 1 | |
| 180 | 911213-7 | PAN HEAD SCREW M5X12 | 3 | |
| 181 | 327426-4 | REAR SHAFT HOLDER | 1 | |
| 182 | 210163-6 | BALL BEARING 6001DDW | 1 | |
| 183 | 162689-3 | REAR SHAFT | 1 | |
| 184 | 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 2 | |
| 185 | 162694-0 | HEIGHT ADJUST LEVER COMPLETE | 1 | |
| 186 | 327426-4 | REAR SHAFT HOLDER | 1 | |
| 186-1 | 313369-6 | REAR SHAFT HOLDER R | 1 | |
| 187 | 210163-6 | BALL BEARING 6001DDW | 1 | |
| 188 | 911213-7 | PAN HEAD SCREW M5X12 | 3 | |
| 189 | 459867-7 | WHEEL CAP | 1 | |
| 190 | 911213-7 | PAN HEAD SCREW M5X12 | 2 | |
| 191 | 347586-6 | GEAR HOLDER PLATE | 1 | |
| 192 | 226941-4 | SPUR GEAR 49 | 1 | |
| 193 | 226940-6 | SPUR GEAR 12 | 1 | |
| 194 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 195 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 196 | 127513-7 | REAR WHEEL ASSEMBLY | 1 | |
| 197 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 198 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | |
| 199 | 266388-0 | TAPPING SCREW 5X16 | 2 | |
| 200 | 347585-8 | BRACKET | 1 | |
| 201 | 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 1 | |
| 202 | 127510-3 | DRIVE UNIT ASSEMBLY | 1 | |
| 203 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | |
| 204 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 205 | 127514-5 | FRONT WHEEL ASSEMBLY | 1 | |
| 206 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 207 | 162688-5 | FRONT SHAFT | 1 | |
| 208 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 209 | 127514-5 | FRONT WHEEL ASSEMBLY | 1 | |
| 210 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 211 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | |
| 212 | 341462-6 | PLATE | 2 | |
| 213 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 214 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 224 | 961059-1 | RETAINING RING (EXT) S-19 | 1 | |
| A01 | 327589-6 | ROD 6 | 1 | |
| A02 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| A03 | 782212-4 | SOCKET WRENCH 13 | 1 | |
| A04 | 459887-1 | SIDE DISCHARGE MOUTH | 1 | |
| F01 | 191D48-8 | SWING BACK BLADE 530 SET | 1 | |
| F02 | 191D50-1 | SWING BACK BLADE 530 CPL. SET | 1 | |
| F03 | 191D52-7 | BLADE 530 SET | 1 | |
| F04 | 191Y65-4 | BLADE 530 SET | 1 |
