Part Diagram
Total: 322 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001-2 | 123726-8 | SAFETY GUARD ASSEMBLY | 1 | |
| 001-2 | C10 | 890408-4 | CAUTION LABEL | 1 |
| 001-2 | D10 | INC. 2-28 | ||
| 2 | 268111-9 | PIN 10 | 1 | |
| 3 | 253197-6 | FLAT WASHER 10 | 1 | |
| 4 | 418941-0 | SUB COVER R | 1 | |
| 5 | 253828-7 | FLAT WASHER 10 | 1 | |
| 6 | 961006-2 | RETAINING RING S-10 | 1 | |
| 7 | 961006-2 | RETAINING RING S-10 | 1 | |
| 8 | 253828-7 | FLAT WASHER 10 | 1 | |
| 9 | 817283-3 | CAUTION LABEL | 1 | |
| 10 | 418940-2 | COVER | 1 | |
| 11 | 253197-6 | FLAT WASHER 10 | 1 | |
| 12 | 268111-9 | PIN 10 | 1 | |
| 13 | 418942-8 | SUB COVER L | 1 | |
| 14 | 931302-2 | HEX. NUT M6 | 1 | |
| 015-1 | 253428-3 | SPRING WASHER 6 | 1 | |
| 16 | 941151-9 | FLAT WASHER 6 | 1 | |
| 17 | 941151-9 | FLAT WASHER 6 | 1 | |
| 18 | 265462-1 | HEX. BOLT M6X50 | 1 | |
| 19 | 344533-8 | COLLAR | 1 | |
| 020-1 | 347233-9 | FINGER R | 1 | |
| 21 | 257680-5 | SLEEVE 6 | 1 | |
| 22 | 231541-7 | TORSION SPRING 17 | 1 | |
| 23 | 951122-8 | SPRING PIN 4-28 | 1 | |
| 24 | 345599-1 | RIVING KNIFE | 1 | |
| 25 | 231542-5 | TORSION SPRING 17 | 1 | |
| 26 | 257680-5 | SLEEVE 6 | 1 | |
| 027-1 | 347232-1 | FINGER L | 1 | |
| 28 | 344533-8 | COLLAR | 1 | |
| 029-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 30 | 416341-8 | COVER | 1 | |
| 031-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 32 | 687054-0 | STRAIN RELIEF | 1 | |
| 33 | 154602-5 | MOTOR HOUSING COMPLETE | 1 | |
| 33 | C11 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 34 | 181047-4 | CARBON BRUSH CB-154 | 1 | |
| 035-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 36 | 911383-2 | PAN HEAD SCREW M6X60 | 4 | |
| 037-1 | 266352-1 | TAPPING SCREW 5X65 | 2 | |
| 38 | 596410-2 | FIELD ASS'Y 220-240V | 1 | |
| 38 | C10 | 654020-2 | RING TERMINAL | 2 |
| 38 | C20 | 654553-7 | CONNECTOR 34137 | 2 |
| 39 | 416331-1 | BAFFLE PLATE | 1 | |
| 40 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 41 | 253147-1 | FLAT WASHER 15 | 1 | |
| 42 | 518765-5 | ARMATURE ASS'Y 240V | 1 | |
| 42 | D10 | INC. 40,41,43,44,102 | ||
| 43 | 681640-9 | INSULATION WASHER | 1 | |
| 44 | 211088-7 | BALL BEARING 6000DDW | 1 | |
| 45 | 253198-4 | FLAT WASHER 18 | 1 | |
| 46 | 261129-9 | URETHANE WASHER 18 | 1 | |
| 48 | 921331-3 | HEX. BOLT M6X20 | 2 | |
| 49 | 345525-0 | PRESSURE PLATE | 1 | |
| 50 | 317871-1 | KNIFE HOLDER | 1 | |
| 53 | 922334-0 | HEX. SOCKET HEAD BOLT M6X20 | 2 | |
| 54 | 344536-2 | GEAR HOUSING PLATE | 1 | |
| 55 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | |
| 056-1 | 126760-7 | GEAR HOUSING COMPLETE | 1 | |
| 056-1 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 57 | 323736-7 | GUIDE BAR | 1 | |
| 58 | 266040-0 | TAPPING SCREW CT 4X25 | 4 | |
| 59 | 416340-0 | GUIDE BAR RETAINER | 2 | |
| 60 | 266040-0 | TAPPING SCREW CT 4X25 | 4 | |
| 61 | 416340-0 | GUIDE BAR RETAINER | 2 | |
| 62 | 323736-7 | GUIDE BAR | 1 | |
| 63 | 211051-0 | BALL BEARING 609LLB | 1 | |
| 64 | 154595-6 | SPINDLE COMPLETE | 1 | |
| 64 | D10 | INC. 65-68 | ||
| 65 | 226602-6 | HELICAL GEAR 42 | 1 | |
| 66 | 267170-0 | FLAT WASHER 34 | 1 | |
| 67 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 68 | 324556-2 | SPINDLE | 1 | |
| 69 | 316933-2 | BEARING BOX | 1 | |
| 70 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 71 | 931502-4 | HEX. NUT M10 | 1 | |
| 72 | 266040-0 | TAPPING SCREW CT 4X25 | 2 | |
| 73 | 322968-3 | SCREW BAR | 1 | |
| 74 | 961016-9 | STOP RING E-10 | 1 | |
| 75 | 416339-5 | SCREW BAR RETAINER | 1 | |
| 76 | 941302-4 | FLAT WASHER 12 | 1 | |
| 77 | 226747-0 | STRAIGHT BEVEL GEAR | 1 | |
| 78 | 951116-3 | SPRING PIN 4-20 | 1 | |
| 79 | 226747-0 | STRAIGHT BEVEL GEAR | 1 | |
| 80 | 941302-4 | FLAT WASHER 12 | 1 | |
| 81 | 951116-3 | SPRING PIN 4-20 | 1 | |
| 82 | 324562-7 | LOCK LEVER CONNECTOR | 1 | |
| 83 | 253024-7 | FLAT WASHER 10 | 2 | |
| 84 | 231315-6 | COMPRESSION SPRING 14 | 1 | |
| 85 | 322967-5 | LOCK LEVER SHAFT | 1 | |
| 86 | 922232-8 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 87 | 272248-6 | LEVER 120 | 1 | |
| 88 | 324563-5 | HANDLE SHAFT | 1 | |
| 89 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 90 | 253143-9 | FLAT WASHER 12 | 1 | |
| 91 | 213107-5 | O RING 12 | 1 | |
| 92 | 253052-2 | FLAT WASHER 12 | 1 | |
| 93 | 214114-1 | PLANE BEARING 12 | 1 | |
| 94 | 345520-0 | STAY | 1 | |
| 95 | 344543-5 | POINTER | 1 | |
| 96 | 922103-9 | HEX. SOCKET HEAD BOLT M4X6 | 1 | |
| 97 | 271074-0 | ARM 60 | 1 | |
| 98 | 911223-4 | PAN HEAD SCREW M5X16 | 1 | |
| 99 | 251382-5 | + PAN HEAD SCREW M5 | 1 | |
| 100 | 271423-1 | KNOB 32 | 1 | |
| 101 | 267010-2 | FLAT WASHER 5 | 1 | |
| 102 | 240003-4 | FAN 80 | 1 | |
| 103 | 271073-2 | HANDLE 100 | 1 | |
| 104-1 | 224482-4 | OUTER FLANGE 53 | 1 | |
| 105 | 252155-9 | HEX. NUT M12-19 | 1 | |
| 106 | 224401-0 | INNER FLANGE 53 | 1 | |
| 107 | 273523-3 | GRIP | 1 | |
| 108 | 345534-9 | HANDLE PLATE | 1 | |
| 109 | 257161-9 | RING 4 | 1 | |
| 110 | 941051-3 | FLAT WASHER 4 | 1 | |
| 111 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 112 | 252130-5 | HEX. LOCK NUT M10-17 | 1 | |
| 113 | 941251-5 | FLAT WASHER 10 | 2 | |
| 114 | 911223-4 | PAN HEAD SCREW M5X16 | 4 | |
| 115 | 345539-9 | HANDLE PLATE HOLDER | 1 | |
| 116 | 345534-9 | HANDLE PLATE | 1 | |
| 117 | 257161-9 | RING 4 | 1 | |
| 118 | 941051-3 | FLAT WASHER 4 | 1 | |
| 119 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 120 | 257753-4 | SLEEVE 10 | 1 | |
| 121 | 265536-8 | HEX.BOLT M10X60 | 1 | |
| 122 | 273523-3 | GRIP | 1 | |
| 123 | 265382-9 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 124 | 324559-6 | HOOK RING | 1 | |
| 125 | 233229-5 | COMPRESSION SPRING 8 | 1 | |
| 126 | 418655-1 | ROD HOLDER | 1 | |
| 127 | 418655-1 | ROD HOLDER | 1 | |
| 128 | 345535-7 | JOINT PLATE | 1 | |
| 130 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 131 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 132 | 941051-3 | FLAT WASHER 4 | 1 | |
| 133 | 257161-9 | RING 4 | 1 | |
| 134-1 | 324675-4 | ROD JOINT | 1 | |
| 135-1 | 324673-8 | ROD R | 1 | |
| 136-1 | 324674-6 | ROD F | 1 | |
| 137 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 138 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 140 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 141 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 142 | 941051-3 | FLAT WASHER 4 | 1 | |
| 143 | 257161-9 | RING 4 | 1 | |
| 144-1 | 324675-4 | ROD JOINT | 1 | |
| 145 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 146 | 418655-1 | ROD HOLDER | 1 | |
| 147 | 911323-0 | PAN HEAD SCREW M6X16 | 2 | |
| 148 | 687049-3 | STRAIN RELIEF | 1 | |
| 149 | 251308-7 | + PAN HEAD SCREW M4X10 | 1 | |
| 150 | 664084-8 | POWER SUPPLY CORD #14-3-0.5 | 1 | |
| 151 | 345628-0 | PLATE | 1 | |
| 152 | 416333-7 | RACK PLATE | 1 | |
| 153 | 911213-7 | PAN HEAD SCREW M5X12 | 2 | |
| 154 | 418655-1 | ROD HOLDER | 1 | |
| 155 | 233229-5 | COMPRESSION SPRING 8 | 1 | |
| 156 | 324559-6 | HOOK RING | 1 | |
| 157 | 265382-9 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 158 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 159-1 | 318020-3 | ADJUST BLOCK | 1 | |
| 160 | 344529-9 | SLIDE SEAT | 2 | |
| 161 | 232174-1 | LEAF SPRING | 2 | |
| 162 | 345535-7 | JOINT PLATE | 1 | |
| 163 | 416439-1 | DUST GUIDE | 1 | |
| 164 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 165-1 | 318253-0 | FRAME | 1 | |
| 166 | 418917-7 | DUST JOINT | 1 | |
| 167 | 266061-2 | TAPPING SCREW BIND CT 4X8 | 2 | |
| 168 | 154599-8 | FRAME COVER COMPLETE | 1 | |
| 169 | 911114-9 | PAN HEAD SCREW M4X10 | 1 | |
| 170 | 911333-7 | PAN HEAD SCREW M6X20 | 4 | |
| 171 | 416332-9 | FRAME RETAINER | 2 | |
| 172 | 265460-5 | HEX. BOLT M6X20 | 2 | |
| 174 | 266300-0 | TAPPING SCREW 4X18 | 2 | |
| 175 | 413097-4 | SLIDE COVER | 1 | |
| 176 | 266035-3 | TAPPING SCREW BIND CT 5X12 | 4 | |
| 177 | 418918-5 | SWITCH BOX | 1 | |
| 178-1 | 682103-8 | GROMMET | 1 | |
| 179-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 180 | 687054-0 | STRAIN RELIEF | 1 | |
| 181 | 418911-9 | SWITCH BASE | 1 | |
| 182-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 183-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 184-1 | 682103-8 | GROMMET | 1 | |
| 185-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 186 | 687054-0 | STRAIN RELIEF | 1 | |
| 189 | 418909-6 | SWITCH COVER | 1 | |
| 190 | 266192-7 | TAPPING SCREW 4X14 | 3 | |

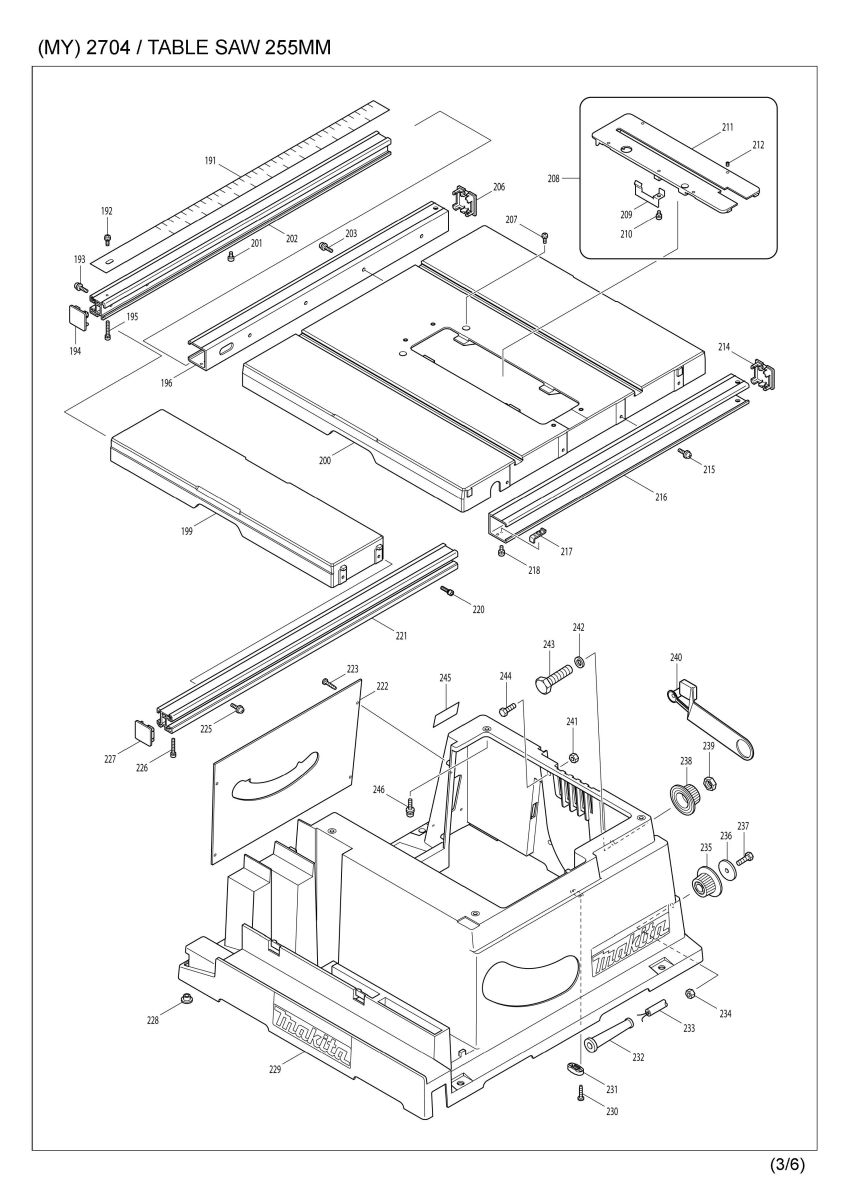

| 191 | 816835-7 | INNER SCALE PLATE | 1 | |
| 192 | 251308-7 | + PAN HEAD SCREW M4X10 | 1 | |
| 193 | 911253-5 | PAN HEAD SCREW M5X30 | 2 | |
| 194 | 418908-8 | INNER RAIL END | 1 | |
| 195 | 922146-1 | HEX. SOCKET HEAD BOLT M4X25 | 1 | |
| 196 | 154596-4 | FRONT OUTER RAIL COMPLETE | 1 | |
| 196 | C10 | 816834-9 | OUTER SCALE PLATE | 1 |
| 199 | 317877-9 | SUB TABLE | 1 | |
| 200-2 | 158952-0 | TABLE COMPLETE | 1 | |
| 200-2 | C10 | 346068-5 | PLATE | 1 |
| 200-2 | C20 | 911118-1 | PAN HEAD SCREW M4X12 | 2 |
| 201 | 922126-7 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 202-1 | 158104-3 | FRONT INNER RAIL COMPLETE | 1 | |
| 203 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 206 | 418907-0 | OUTER RAIL END | 1 | |
| 207 | 265045-7 | + PAN HEAD SCREW M5X18 | 2 | |
| 208-1 | 126901-5 | CENTER COVER ASSEMBLY | 1 | |
| 208-1 | D10 | INC. 211,212 | ||
| 211-1 | 319717-7 | CENTER COVER | 1 | |
| 212 | 266264-8 | H.S.SET SCREW(FLAT POINT)M5X6 | 4 | |
| 214 | 418907-0 | OUTER RAIL END | 1 | |
| 215 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 216 | 317867-2 | REAR OUTER RAIL | 1 | |
| 217 | 345529-2 | RAIL STOPPER | 1 | |
| 218 | 251308-7 | + PAN HEAD SCREW M4X10 | 1 | |
| 220 | 922126-7 | HEX. SOCKET HEAD BOLT M4X16 | 1 | |
| 221-1 | 158103-5 | REAR INNER RAIL COMPLETE | 1 | |
| 222 | 345533-1 | BASE FRONT COVER | 1 | |
| 223-1 | 266192-7 | TAPPING SCREW 4X14 | 4 | |
| 225 | 911253-5 | PAN HEAD SCREW M5X30 | 2 | |
| 226 | 922146-1 | HEX. SOCKET HEAD BOLT M4X25 | 1 | |
| 227 | 418908-8 | INNER RAIL END | 1 | |
| 228 | 286212-1 | CAP 20 | 4 | |
| 229 | 154608-3 | BASE COMPLETE | 1 | |
| 229 | C10 | 810107-2 | CAUTION LABEL | 1 |
| 229 | C20 | 819176-0 | MAKITA LOGO PLATE | 3 |
| 230-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 231 | 687054-0 | STRAIN RELIEF | 1 | |
| 232-1 | 682504-0 | CORD GUARD 10-85 | 1 | |
| 233-1 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 234 | 931302-2 | HEX. NUT M6 | 2 | |
| 235 | 271318-8 | KNOB 37 | 2 | |
| 236 | 941151-9 | FLAT WASHER 6 | 2 | |
| 237 | 921342-8 | HEX. BOLT M6X25 | 2 | |
| 238 | 271320-1 | KNOB 37 | 1 | |
| 239 | 252197-3 | HEX.NUT M14 | 1 | |
| 240 | 421926-7 | HOLDER | 1 | |
| 241 | 931402-8 | HEX. NUT M8 | 1 | |
| 242 | 253797-2 | FLAT WASHER 14 | 1 | |
| 243 | 265537-6 | HEX.BOLT M14X65 | 1 | |
| 244 | 921462-8 | HEX. BOLT M8X40 | 1 | |
| 245 | 861373-4 | 2704 NAME PLATE | 1 | |
| 246 | 911344-2 | PAN HEAD SCREW M6X25 | 4 | |
| 250 | 256769-6 | PIN 6 | 1 | |

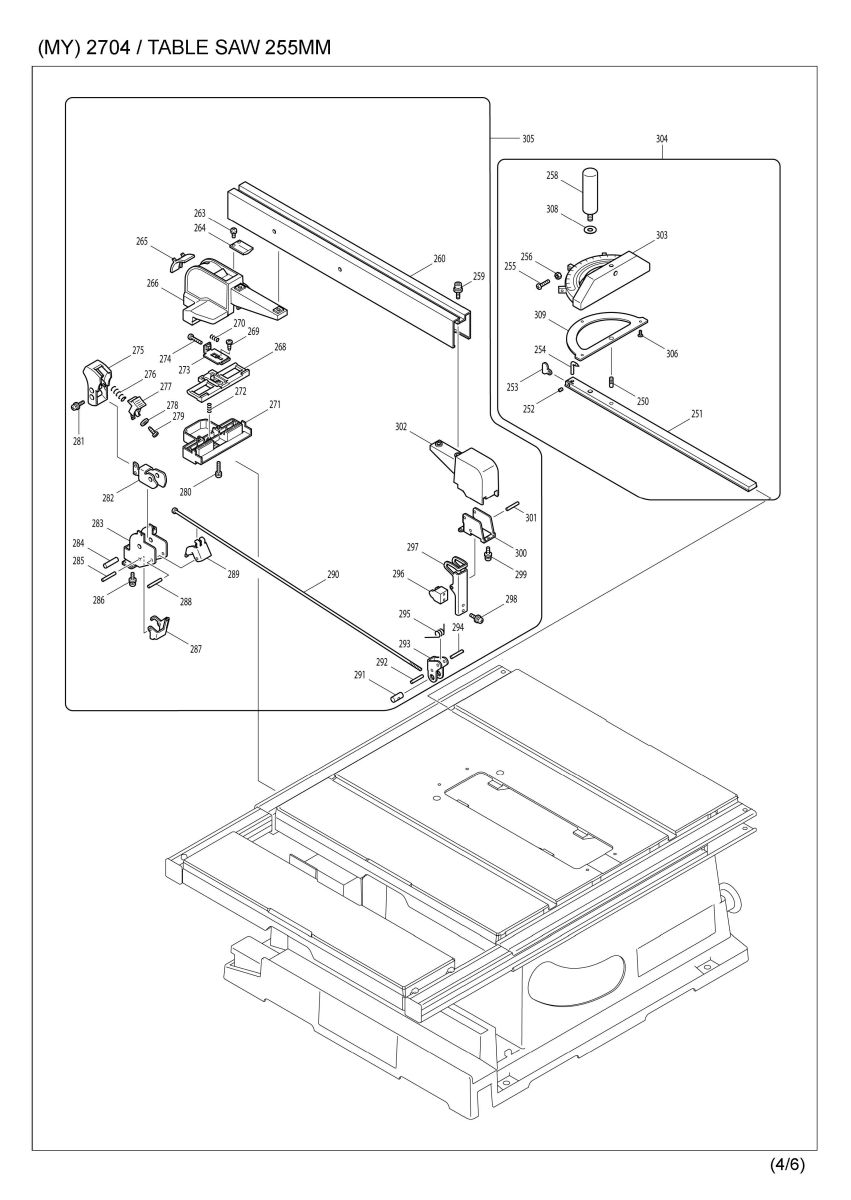

| 251 | 317872-9 | ANGLE RAIL | 1 | |
| 252 | 266378-3 | H.S.SET SCREW M5X5 | 2 | |
| 253 | 345523-4 | ANGLE STOPPER | 1 | |
| 254 | 324530-0 | SCALE PIN | 1 | |
| 255 | 911138-5 | P.H.SCREW M4X20 WITH WR | 3 | |
| 256 | 931102-0 | HEX. NUT M4 | 3 | |
| 258 | 273524-1 | GRIP 28 | 1 | |
| 259 | 922333-2 | HEX.SOCKET HD BOLT M6X20 | 4 | |
| 260 | 317897-3 | RULER | 1 | |
| 263 | 911108-4 | PAN HEAD SCREW M4X8 | 2 | |
| 264 | 418945-2 | LENS | 1 | |
| 265 | 418943-6 | COVER | 1 | |
| 266-1 | 154699-4 | RULE HOLDER COMPLETE | 1 | |
| 266-1 | C10 | 816836-5 | INDICATION LABEL | 1 |
| 268 | 418948-6 | SQUARE GUIDE | 1 | |
| 269 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | |
| 270 | 231485-1 | COMPRESSION SPRING 4 | 1 | |
| 271 | 418947-8 | RULE HOLDER GUIDE | 1 | |
| 272 | 231485-1 | COMPRESSION SPRING 4 | 1 | |
| 273-1 | 345560-8 | LOCK PLATE | 1 | |
| 274 | 265155-0 | +PAN HEAD SCREW M5X25 | 1 | |
| 275 | 418946-0 | LEVER | 1 | |
| 276 | 231297-2 | COMPRESSION SPRING 9 | 1 | |
| 277 | 418944-4 | LOCK LEVER | 1 | |
| 278 | 253874-0 | FLAT WASHER 4 | 1 | |
| 279 | 266020-6 | TAPPING SCREW 4X12 | 1 | |
| 280 | 911133-5 | PAN HEAD SCREW M4X18 | 4 | |
| 281 | 911238-1 | PAN HEAD SCREW M5X22 | 2 | |
| 282 | 345566-6 | HANDLE CAM | 1 | |
| 283-1 | 140D16-8 | HANDLE CAM SUPPORT COMPLETE | 1 | |
| 283-1 | C10 | 345559-3 | HANDLE CAM SUPPORT | 1 |
| 283-1 | D10 | INC. 282,284,285,287-289 | ||
| 284 | 256029-6 | PIN 8 | 1 | |
| 285 | 256200-2 | PIN 5 | 1 | |
| 286 | 911118-1 | PAN HEAD SCREW M4X12 | 4 | |
| 287 | 345564-0 | LOCK PLATE STAY | 1 | |
| 288 | 256200-2 | PIN 5 | 1 | |
| 289 | 345565-8 | HOOK JOINT | 1 | |
| 290 | 265154-2 | +P.H.SCREW M5X655 | 1 | |
| 291 | 324555-4 | NUT M5 | 1 | |
| 292 | 256262-0 | PIN 5 | 1 | |
| 293 | 345562-4 | RULER TOP CONNECTER | 1 | |
| 294 | 256262-0 | PIN 5 | 1 | |
| 295 | 231683-7 | TORSION SPRING 8 | 1 | |
| 296 | 313123-8 | RULER TOP | 1 | |
| 297 | 345563-2 | RULER TOP GUIDE | 1 | |
| 298 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 299 | 911118-1 | PAN HEAD SCREW M4X12 | 3 | |
| 300-1 | 140D15-0 | RULER TOP SUPPORT COMPLETE | 1 | |
| 300-1 | C10 | 345561-6 | RULER TOP SUPPORT | 1 |
| 300-1 | D10 | INC. 291-295,297,301 | ||
| 301 | 256262-0 | PIN 5 | 1 | |
| 302-1 | 317895-7 | RULER TOP HOLDER | 1 | |
| 303-1 | 317874-5 | ANGLE RULE | 1 | |
| 304 | 122735-4 | ANGLE RULE ASS'Y | 1 | |
| 304 | D10 | INC. 250-258,303,306-309 | ||
| 305-1 | 122743-5 | RULER ASS'Y | 1 | |
| 305-1 | D10 | INC. 259-302 | ||
| 306 | 265160-7 | + COUNTERSUNK HEAD SCREW M4X8 | 3 | |
| 308 | 267305-3 | FLAT WASHER 5/16" | 1 | |
| 309 | 419219-4 | ANGLE RULE COVER | 1 | |
| 310 | 257060-5 | RING 15.8 | 1 | |
| 324 | 651574-0 | SWITCH ART-2220-1C-DBA12-01 | 1 | |
| 325 | 631613-2 | SOFT START CIRCUIT | 1 | |

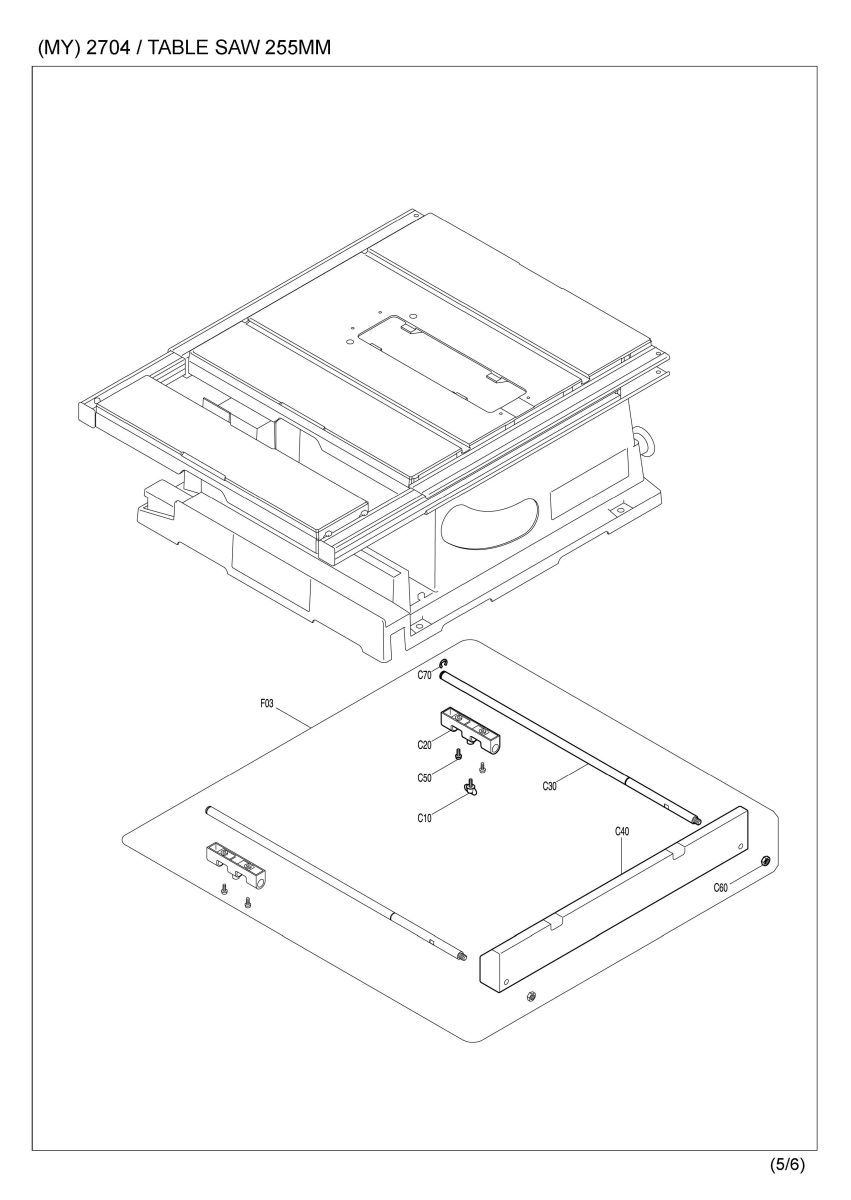

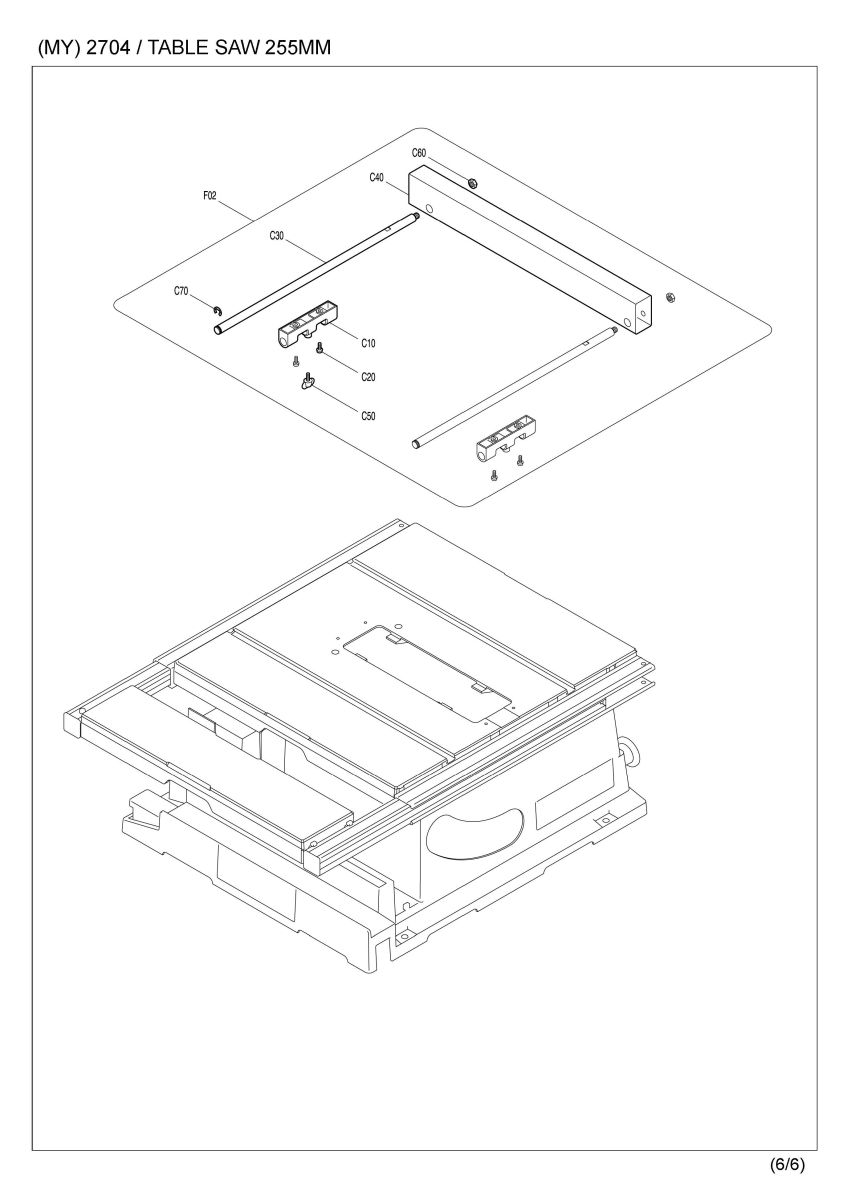

| 330 | 265740-9 | SCREW M5X15 | 2 | |
| 331 | 317879-5 | SLIDE ROD HOLDER | 2 | |
| 332 | 324564-3 | REAR ROD | 2 | |
| 333 | 345537-3 | REAR TABLE | 1 | |
| 334 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | |
| 335 | 931502-4 | HEX. NUT M10 | 2 | |
| 336 | 961016-9 | STOP RING E-10 | 2 | |
| 337 | 911233-1 | PAN HEAD SCREW M5X20 | 1 | |
| A01-2 | B-17734 | T.C.T. SAW BLADE 255X25.4X24T | 1 | |
| A02 | 419093-0 | JOINT | 1 | |
| A03 | 416772-1 | PUSH STICK | 1 | |
| A04 | 781038-1 | WRENCH 19 | 1 | |
| A05 | 782024-5 | WRENCH 13-22 | 1 | |
| A06 | 783203-8 | HEX. WRENCH 5 | 1 |
Back Download
