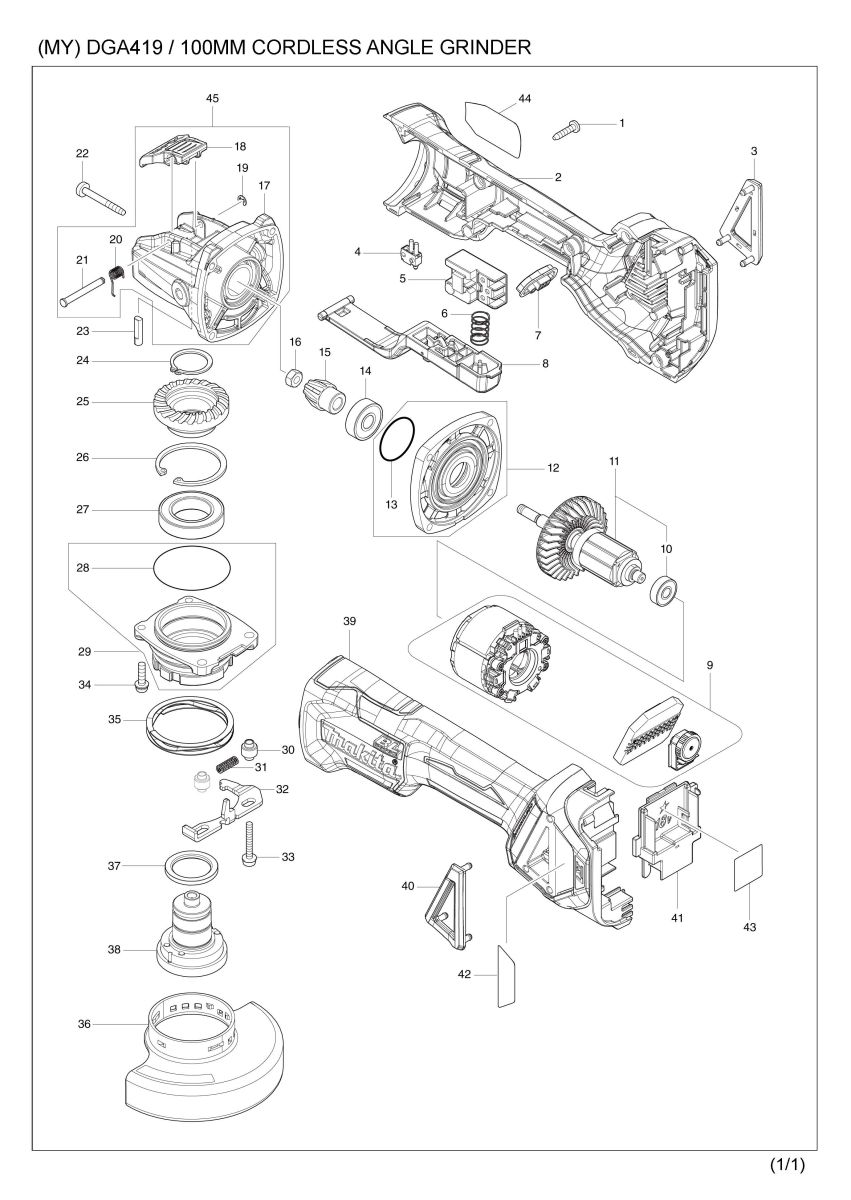

Part Diagram
Total: 64 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 2 | 183H86-8 | MOTOR HOUSING SET | 1 | |
| 2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | D10 | INC. 39 | ||
| 3 | 455450-8 | DUST COVER R | 1 | |
| 4 | 632E12-1 | SWITCH UNIT | 1 | |
| 5 | 650734-1 | SWITCH TG73BDS-2 | 1 | |
| 6 | 234357-9 | COMPRESSION SPRING 11 | 1 | |
| 7 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | |
| 8 | 142976-6 | SWITCH LEVER COMPLETE | 1 | |
| 9 | 629304-7 | STATOR COMPLETE | 1 | |
| 10 | 210169-4 | BALL BEARING 607LLB | 1 | |
| 11 | 510440-9 | ROTOR ASS'Y | 1 | |
| 11 | D10 | INC. 10 | ||
| 12 | 135930-7 | GEAR HOUSING COVER ASSEMBLY | 1 | |
| 12 | D10 | INC. 13 | ||
| 13 | 213445-5 | O-RING 26 | 1 | |
| 14 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 15 | 226950-3 | SPIRAL BEVEL GEAR 10 | 1 | |
| 16 | 252186-8 | HEX. NUT M6 | 1 | |
| 17 | 140N76-0 | GEAR HOUSING COMPLETE | 1 | |
| 18 | 459967-3 | LEVER | 1 | |
| 19 | 961017-7 | STOP RING E-3 | 1 | |
| 20 | 232576-1 | TORSION SPRING 5 | 1 | |
| 21 | 256935-5 | HEADED PIN 4 | 1 | |
| 22 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 23 | 327460-4 | SHAFT | 1 | |
| 24 | 961104-2 | RETAINING RING S-24 | 1 | |
| 25 | 226951-1 | SPIRAL BEVEL GEAR 37 | 1 | |
| 26 | 962201-7 | RETAINING RING (INT) R-42 | 1 | |
| 27 | 210208-0 | BALL BEARING 6905DDW | 1 | |
| 28 | 213622-9 | O RING 45 | 1 | |
| 29 | 136199-6 | BEARING BOX ASS'Y | 1 | |
| 29 | D10 | INC. 28 | ||
| 30 | 327322-6 | SLEEVE 4 | 2 | |
| 31 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 32 | 347615-5 | LEVER | 1 | |
| 33 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 34 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 35 | 232577-9 | SCROW WAVE SPRING 49 | 1 | |
| 36 | 347616-3 | WHEEL COVER 100 | 1 | |
| 37 | 327459-9 | RING 25 | 1 | |
| 38 | 127428-8 | SPINDLE ASSEMBLY | 1 | |
| 39 | 183H86-8 | MOTOR HOUSING SET | 1 | |
| 39 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 39 | D10 | INC. 2 | ||
| 40 | 455449-3 | DUST COVER L | 1 | |
| 41 | 643874-2 | TERMINAL | 1 | |
| 42 | 816D93-9 | INDICATION LABEL | 1 | |
| 43 | 856R49-4 | DGA419 SERIAL NO. LABEL | 1 | |
| 44 | 856R47-8 | DGA419 NAME PLATE | 1 | |
| 45 | 136209-9 | GEAR HOUSING ASS'Y | 1 | |
| 45 | D10 | INC. 17-21 | ||
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | E-00496 | GRIDING WHEEL INOX 100 X-LOCK | 1 | |
| A03B | 450128-8 | BATTERY COVER | 2 | |
| A04B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A06B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A06B | C10 | 453974-8 | LATCH | 4 |
| A07B | 8009B1-4 | DGA419RTJ INDICATION LABEL | 1 | |
| A08B | 8009B2-2 | DGA419RTJ PLASTIC CASE LABEL | 2 | |
| A09B | 839252-4 | INNER TRAY | 1 |
