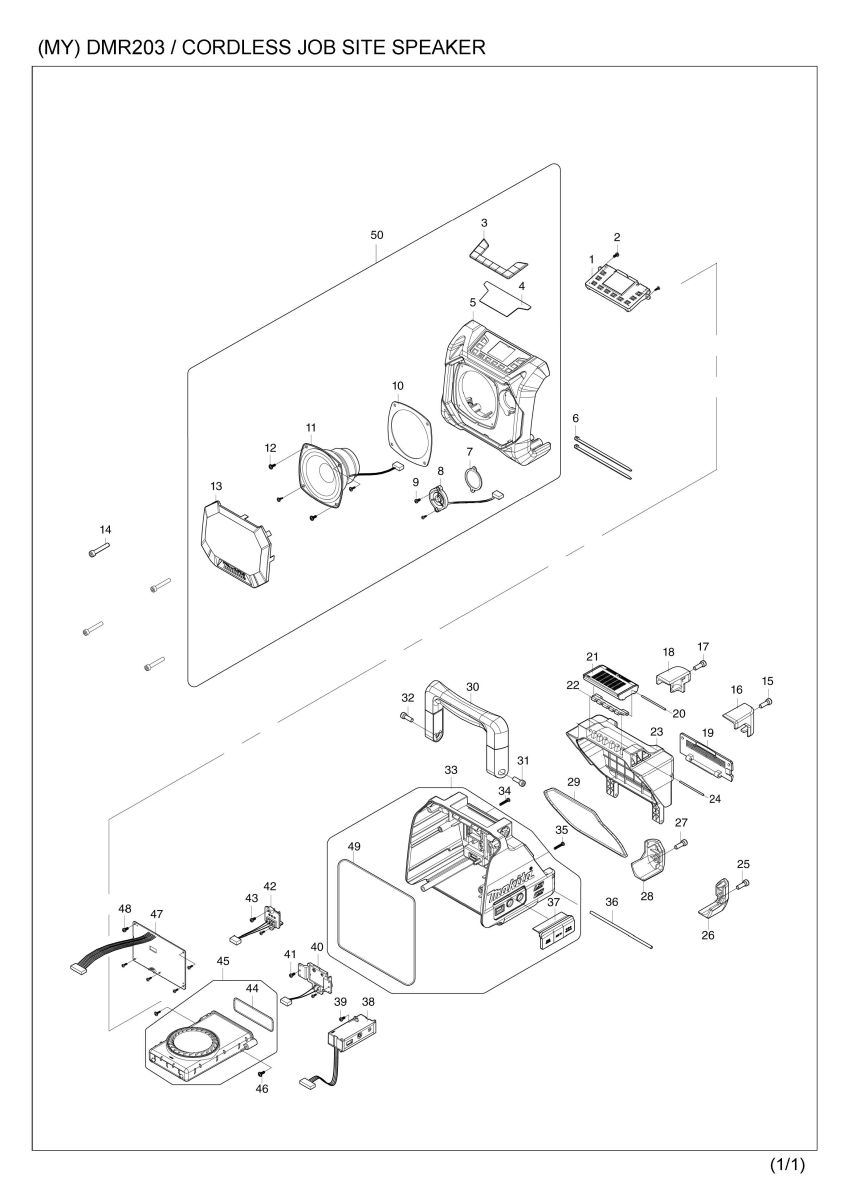

Part Diagram
Total: 54 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | SE00000796 | PCB C ASS'Y | 1 | |
| 2 | SE00000521 | SCREW PTB 3X8(ZK) 29S16308001 | 2 | |
| 3 | SE00000797 | RUBBER KEY | 1 | |
| 4 | SE00000798 | DISPLAY PLATE | 1 | |
| 5 | SE00000799 | FRONT CABINET(BLUE) | 1 | |
| 6 | SE00000195 | W/TIES 100MM | 2 | |
| 7 | SE00000801 | SPEAKER PACKING B | 1 | |
| 8 | SE00000802 | TWEETER SPEAKER ASS'Y | 1 | |
| 9 | SE00000521 | SCREW PTB 3X8(ZK) 29S16308001 | 2 | |
| 10 | SE00000803 | SPEAKER PACKING A | 1 | |
| 11 | SE00000804 | MAIN SPEAKER ASS'Y | 1 | |
| 12 | SE00000557 | SCREW PTPW 3X10(ZK) 29S1531000 | 4 | |
| 13 | SE00000805 | SPEAKER GRILL ASS'Y | 1 | |
| 14 | SE00000530 | SCREW PTHE 6X37(CR) 29S1793701 | 4 | |
| 15 | SE09176166 | HEX SCREW M6X16 | 1 | |
| 16 | SE00000531 | BATTERY BUMPER R 3163B30000010 | 1 | |
| 17 | SE09176166 | HEX SCREW M6X16 | 1 | |
| 18 | SE00000532 | BATTERY BUMPER L 3162B30000010 | 1 | |
| 19 | SE00000534 | PHONE COVER ASS'Y 011B3A5 | 1 | |
| 20 | SE00000533 | PIN D2X88 2100B300100 | 1 | |
| 21 | SE00000535 | LOCKER COVER 3121B30000010 | 1 | |
| 22 | SE00000536 | LOCKER HINGE 3300B30000010 | 1 | |
| 23 | SE00000537 | BATTERY COVER (BLUE) 3120B3000 | 1 | |
| 24 | SE00000539 | PIN D2X77 2100B300200 | 1 | |
| 25 | SE09176166 | HEX SCREW M6X16 | 1 | |
| 26 | SE00000541 | REAR BUMPER R 3161B30000010 | 1 | |
| 27 | SE09176166 | HEX SCREW M6X16 | 1 | |
| 28 | SE00000540 | REAR BUMPER L 3160B30000010 | 1 | |
| 29 | SE00000542 | BATTERY PACKING 2400B300200 | 1 | |
| 30 | SE00000543 | HANDLE ASS'Y-BLUE 01HB3A1 | 1 | |
| 31 | SE09176166 | HEX SCREW M6X16 | 1 | |
| 32 | SE09176166 | HEX SCREW M6X16 | 1 | |
| 33 | SE00000808 | REAR CABINET ASS'Y(BLUE) | 1 | |
| 33 | D10 | INC. 37,49 | ||
| 34 | SE00000548 | SCREW PTB 3X20(ZK) 29S09990047 | 1 | |
| 35 | SE00000548 | SCREW PTB 3X20(ZK) 29S09990047 | 1 | |
| 36 | SE00000549 | BATTERY COVER FIXER PIN 2100b3 | 1 | |
| 37 | SE00000810 | JACK RUBBER COVER | 1 | |
| 38 | SE00000654 | JACK HOLDER ASS'Y-BLUE 011 AA3 | 1 | |
| 39 | SE00000521 | SCREW PTB 3X8(ZK) 29S16308001 | 1 | |
| 40 | SE00000652 | TERMINAL D ASSY 011 AA2 | 1 | |
| 41 | SE00000521 | SCREW PTB 3X8(ZK) 29S16308001 | 2 | |
| 42 | SE00000651 | TERMINAL 10.8V ASSY 011 AA1 | 1 | |
| 43 | SE00000521 | SCREW PTB 3X8(ZK) 29S16308001 | 2 | |
| 44 | SE00000556 | PHONE CASE PACKING 2400B300400 | 1 | |
| 45 | SE00000555 | MOBILE-PHONE-CASE ASS'Y 011B3A | 1 | |
| 45 | D10 | INC. 44 | ||
| 46 | SE00000557 | SCREW PTPW 3X10(ZK) 29S1531000 | 2 | |
| 47 | SE00000812 | PCB A ASS'Y | 1 | |
| 48 | SE00000521 | SCREW PTB 3X8(ZK) 29S16308001 | 5 | |
| 49 | SE024PC040 | PACKING | 1 | |
| 50 | SE00000806 | FRONT CABINET ASS'Y(BLUE) | 1 | |
| 50 | D10 | INC. 3-5,7-13 | ||
| A01 | SE00000795 | AC ADAPTER (SG) | 1 |
