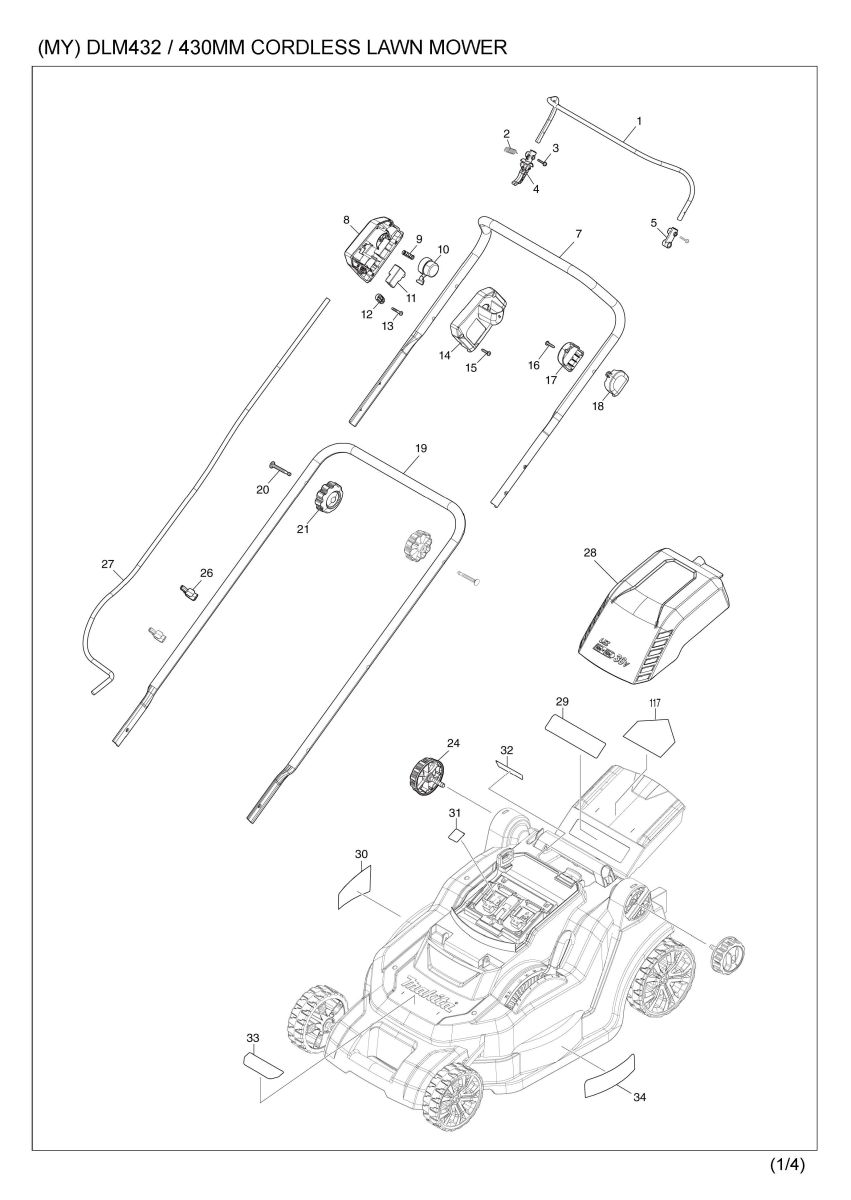

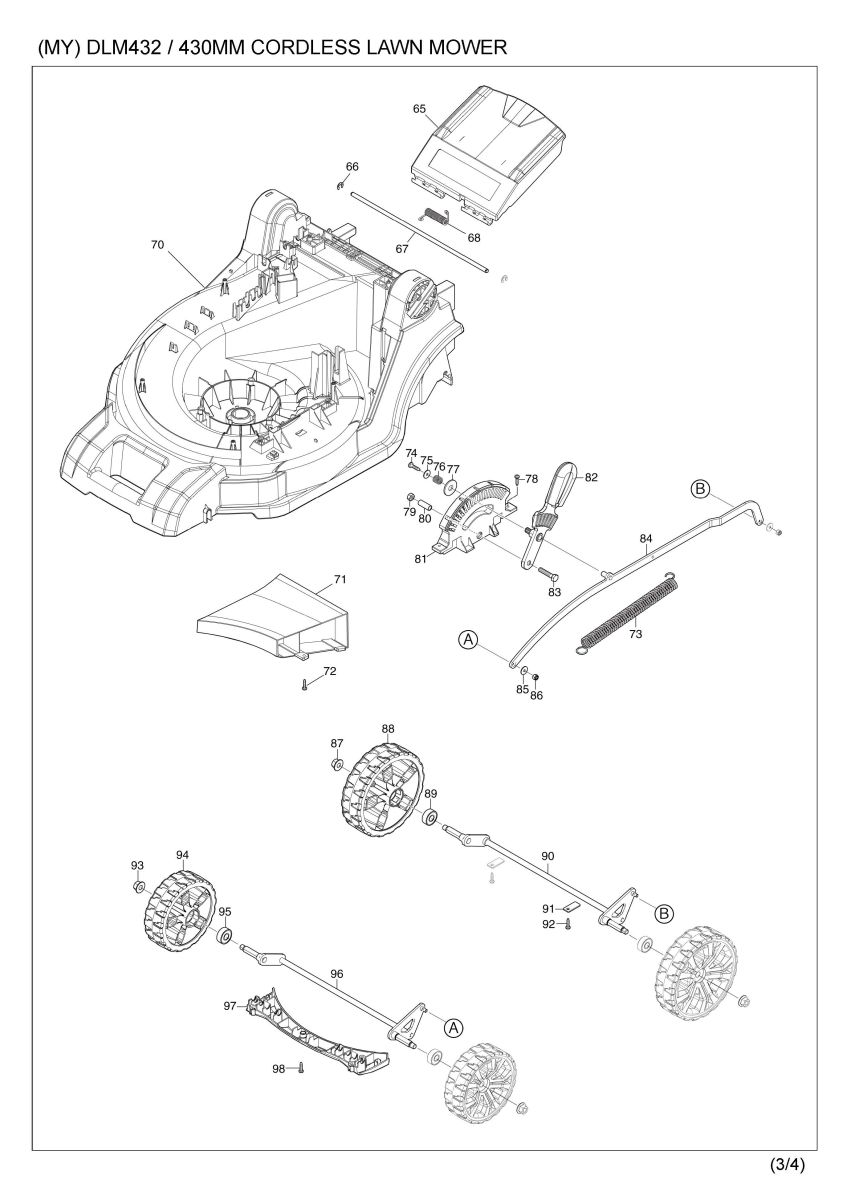

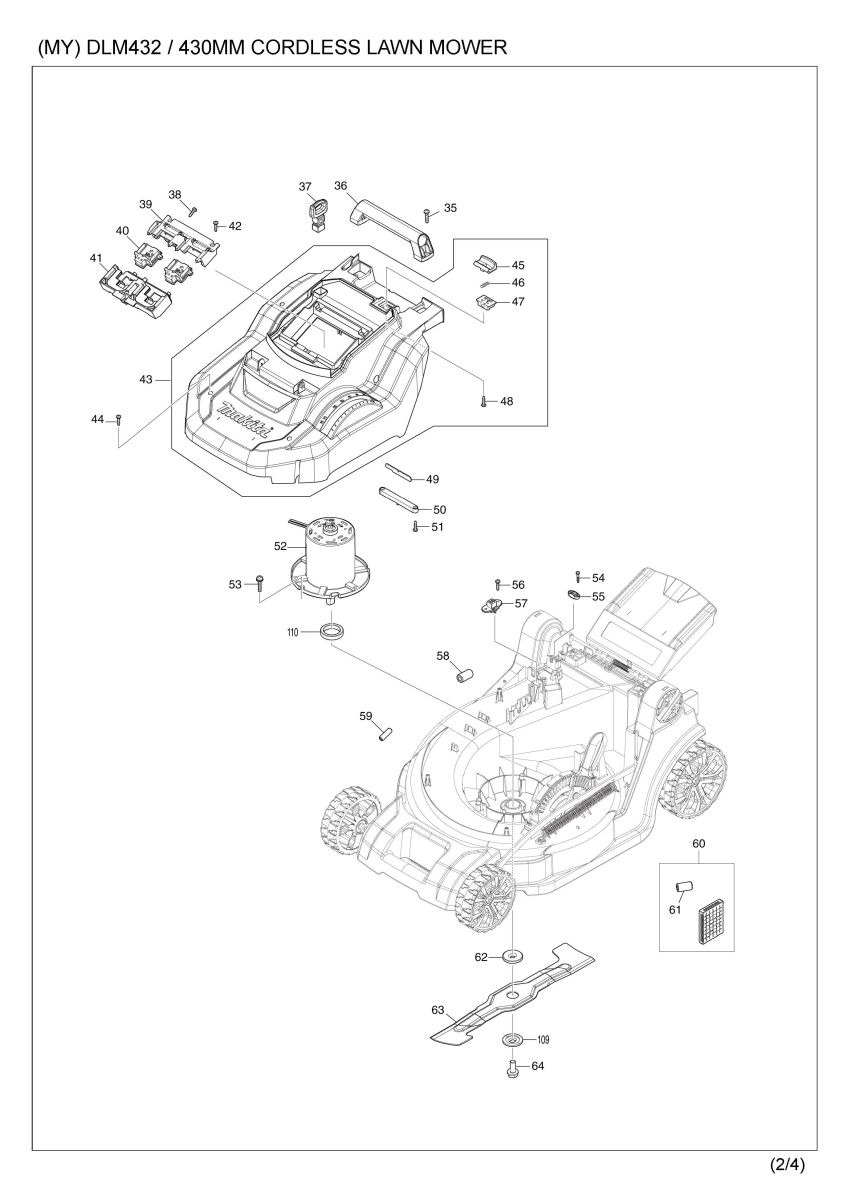

Part Diagram
Total: 178 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 326636-0 | SWITCH LEVER | 1 | |
| 2 | 231876-6 | TENSION SPRING 9 | 1 | |
| 3 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 4 | 455075-8 | LEVER | 1 | |
| 5 | 455078-2 | ARM | 1 | |
| 7 | 143510-5 | UPPER PIPE COMPLETE | 1 | |
| 8 | 459804-1 | SWITCH BOX | 1 | |
| 9 | 233068-3 | COMPRESSION SPRING 6 | 1 | |
| 10 | 455074-0 | SWITCH BUTTON | 1 | |
| 11 | 650730-9 | SWITCH TG72BD-6 | 1 | |
| 12 | 687124-5 | STRAIN RELIEF | 1 | |
| 13 | 265999-8 | TAPPING SCREW 4X25 | 2 | |
| 013-1 | 265B73-4 | TAPPING SCREW 4X25 | 2 | |
| 14 | 140N15-0 | SWITCH BOX COVER COMPLETE K | 1 | |
| 14 | C10 | 890374-5 | INDICATION LABEL | 1 |
| 15 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 015-1 | 265B67-9 | TAPPING SCREW 4X18 | 4 | |
| 16 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 016-1 | 265B67-9 | TAPPING SCREW 4X18 | 1 | |
| 17 | 456352-1 | SWITCH LEVER CASE COVER | 1 | |
| 18 | 456351-3 | SWITCH LEVER CASE | 1 | |
| 19 | 326635-2 | LOWER PIPE | 1 | |
| 20 | 265A14-4 | CUP H. SQUARE NECK BOLT M6X50 | 2 | |
| 21 | 264070-5 | THUMB NUT M6 | 2 | |
| 24 | 266729-0 | THUMB SCREW M8X35 | 2 | |
| 26 | 459809-1 | HOLDER | 2 | |
| 27 | 660393-3 | POWER SUPPLY CORD | 1 | |
| 027-1 | 660396-7 | POWER SUPPLY CORD | 1 | |
| 027-2 | 660393-3 | POWER SUPPLY CORD | 1 | |
| 28 | 140N21-5 | BATTERY COVER COMPLETE E | 1 | |
| 28 | C10 | 8005W1-7 | CAUTION LABEL | 1 |
| 028-1 | 1410K1-7 | BATTERY COVER COMPLETE E | 1 | |
| 028-1 | C10 | 8075Y8-8 | CAUTION LABEL | 1 |
| 29 | 890375-3 | CAUTION LABEL | 1 | |
| 029-1 | 8075Y7-0 | CAUTION LABEL | 1 | |
| 30 | 856L50-3 | DLM432 NAME PLATE | 1 | |
| 31 | 856L57-9 | DLM432 SERIAL NO. LABEL | 1 | |
| 32 | 8005W9-1 | INDICATION LABEL | 1 | |
| 33 | 8005W4-1 | INDICATION LABEL | 1 | |
| 34 | 8005W5-9 | INDICATION LABEL | 1 | |
| 35 | 266459-3 | TAPPING SCREW 5X25 | 2 | |
| 035-1 | 265D56-6 | TAPPING SCREW 5X25 | 2 | |
| 36 | 273675-0 | GRIP A | 1 | |
| 37 | 643890-4 | KEY | 1 | |
| 38 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 038-1 | 265B67-9 | TAPPING SCREW 4X18 | 3 | |
| 39 | 183N35-1 | TERMINAL HOUSING SET | 1 | |
| 39 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 39 | D10 | INC. 41 | ||
| 40 | 644809-6 | TERMINAL | 2 | |
| 41 | 183N35-1 | TERMINAL HOUSING SET | 1 | |
| 41 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 41 | D10 | INC. 39 | ||
| 42 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 042-1 | 265B67-9 | TAPPING SCREW 4X18 | 3 | |
| 43 | 127387-6 | COWLING M ASSEMBLY | 1 | |
| 43 | D10 | INC. 45-48 | ||
| 44 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 044-1 | 265B67-9 | TAPPING SCREW 4X18 | 4 | |
| 45 | 453250-0 | LOCK LEVER | 1 | |
| 46 | 233173-6 | COMPRESSION SPRING 4 | 1 | |
| 046-1 | LC233173-6 | COMPRESSION SPRING 4 | 1 | |
| 046-2 | 233173-6 | COMPRESSION SPRING 4 | 1 | |
| 47 | 453251-8 | LOCK LEVER SUPPORT | 1 | |
| 48 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 048-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 49 | 620B91-3 | LED CIRCUIT | 1 | |
| 50 | 455070-8 | LED COVER | 1 | |
| 51 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 051-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 52 | 629A18-4 | DC MOTOR | 1 | |
| 052-1 | 629A18-4 | DC MOTOR | 1 | |
| 052-2 | 629C53-4 | DC MOTOR | 1 | |
| 53 | 266774-5 | + PAN HEAD SCREW M6X30 WITH WR | 3 | |
| 053-1 | 266774-5 | + PAN HEAD SCREW M6X30 WITH WR | 3 | |
| 053-2 | 265D69-7 | +PAN HEAD SCREW M6X30 WITH WR | 3 | |
| 54 | 265999-8 | TAPPING SCREW 4X25 | 2 | |
| 054-1 | 265B73-4 | TAPPING SCREW 4X25 | 2 | |
| 55 | 687124-5 | STRAIN RELIEF | 1 | |
| 56 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 056-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 57 | 638946-6 | LEAD UNIT | 1 | |
| 60 | 632P20-8 | CONTROLLER UNIT | 1 | |
| 60 | C10 | 654208-4 | RECEPTACLE | 1 |
| 060-1 | 632U27-4 | CONTROLLER UNIT | 1 | |
| 060-1 | C10 | 654199-9 | RECEPTACLE | 1 |
| 62 | 224444-2 | INNER FLANGE 40 | 1 | |
| 63 | 191D43-8 | BLADE 430 SET | 1 | |
| 64 | 266731-3 | HEX. BOLT M10X25 | 1 | |
| 65 | 140S15-0 | REAR FLAP COMPLETE | 1 | |
| 65 | D10 | INC. 29 | ||
| 065-1 | 1410K0-9 | REAR FLAP COMPLETE | 1 | |
| 065-1 | D10 | INC. 29 | ||
| 66 | LC961018-5 | STOP RING (EXT) E-5 | 2 | |
| 066-1 | 961018-5 | STOP RING E-5 | 2 | |
| 67 | 259067-7 | ROD 6 | 1 | |
| 68 | LC233597-6 | TORSION SPRING 8 | 1 | |
| 068-1 | 233597-6 | TORSION SPRING 8 | 1 | |
| 70 | 459780-9 | DECK | 1 | |
| 70 | C10 | 346544-9 | PLATE NUT M8 | 2 |
| 70 | C20 | 931302-2 | HEX. NUT M6 | 3 |
| 070-1 | 413T64-9 | DECK | 1 | |
| 070-1 | C10 | 346544-9 | PLATE NUT M8 | 2 |
| 070-1 | C20 | 931302-2 | HEX. NUT M6 | 3 |
| 71 | 412272-9 | UNDER COVER | 1 | |
| 72 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 072-1 | 265B67-9 | TAPPING SCREW 4X18 | 3 | |
| 73 | LC231875-8 | TENSION SPRING 16 | 1 | |
| 073-1 | 231875-8 | TENSION SPRING 16 | 1 | |
| 74 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 074-1 | 265B67-9 | TAPPING SCREW 4X18 | 1 | |
| 75 | LC267102A7 | FLAT WASHER 4 | 1 | |
| 075-1 | 267102-7 | FLAT WASHER 4 | 1 | |
| 075-2 | 253607-3 | FLAT WASHER 4 | 1 | |
| 76 | LC231297-2 | COMPRESSION SPRING 9 | 1 | |
| 076-1 | 231297-2 | COMPRESSION SPRING 9 | 1 | |
| 77 | LC253808A3 | FLAT WASHER 9 | 1 | |
| 077-1 | 253808-3 | FLAT WASHER 9 | 1 | |
| 78 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 078-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 79 | 931302-2 | HEX. NUT M6 | 1 | |
| 80 | LC257670A8 | SLEEVE 6 | 1 | |
| 080-1 | 257670-8 | SLEEVE 6 | 1 | |
| 81 | 453255-0 | ADJUST PLATE | 1 | |
| 82 | 459099-6 | CHANGE LEVER | 1 | |
| 83 | LC921352-5 | HEX.BOLT M6X30 | 1 | |
| 083-1 | 921352-5 | HEX. BOLT M6X30 | 1 | |
| 84 | 346543-1 | CONNECTING ROD | 1 | |
| 85 | LC941101-4 | FLAT WASHER 5 | 2 | |
| 085-1 | 941101-4 | FLAT WASHER 5 | 2 | |
| 86 | 252103-8 | HEX. LOCK NUT M5-8 | 2 | |
| 87 | LC252145-2 | COLLARED HEX. NUT M8 | 2 | |
| 087-1 | 252145-2 | COLLARED HEX NUT M8 | 2 | |
| 88 | 459101-5 | REAR WHEEL | 2 | |
| 89 | LC210070-3 | BALL BEARING 6200ZZ | 2 | |
| 089-1 | 210070-3 | BALL BEARING 6200ZZ | 2 | |
| 089-2 | 210303-6 | BALL BEARING 6200ZZ | 2 | |
| 90 | 165669-8 | REAR SHAFT | 1 | |
| 090-1 | 162C97-6 | REAR SHAFT | 1 | |
| 91 | LC346545-7 | PLATE | 2 | |
| 091-1 | 346545-7 | PLATE | 2 | |
| 92 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 092-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 93 | LC252145-2 | COLLARED HEX. NUT M8 | 2 | |
| 093-1 | 252145-2 | COLLARED HEX NUT M8 | 2 | |
| 94 | 459100-7 | FRONT WHEEL | 2 | |
| 95 | LC210070-3 | BALL BEARING 6200ZZ | 2 | |
| 095-1 | 210070-3 | BALL BEARING 6200ZZ | 2 | |
| 095-2 | 210303-6 | BALL BEARING 6200ZZ | 2 | |
| 96 | 165668-0 | FRONT SHAFT | 1 | |
| 096-1 | 162C68-3 | FRONT SHAFT | 1 | |
| 97 | 456353-9 | FRONT COVER | 1 | |
| 98 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 098-1 | 265B67-9 | TAPPING SCREW 4X18 | 5 | |
| 99 | 327409-4 | REAR BAG ROD | 1 | |
| 099-1 | 327411-7 | REAR BAG ROD | 1 | |
| 100 | 267438-4 | FLAT WASHER 5 | 2 | |
| 101 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 101-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 102 | 127386-8 | REAR BAG ASSEMBLY M | 1 | |
| 102 | D10 | INC. 104-108 | ||
| 102-1 | 127392-3 | REAR BAG ASSEMBLY M | 1 | |
| 102-1 | D10 | INC. 104-108 | ||
| 104 | 273676-8 | GRIP B | 1 | |
| 105 | 459807-5 | REAR BAG COVER | 1 | |
| 105-1 | 459812-2 | REAR BAG COVER | 1 | |
| 106 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 106-1 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 106-2 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 106-3 | 265B67-9 | TAPPING SCREW 4X18 | 2 | |
| 107 | 162680-1 | REAR BAG | 1 | |
| 107-1 | 162684-3 | REAR BAG | 1 | |
| 108 | 459806-7 | INDICATOR M | 1 | |
| 109 | 224445-0 | OUTER FLANGE 40 | 1 | |
| A01 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| A02B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A02B | D10 | COMPO-PARTS | ||
| A03B | 197280-8 | BATTERY BL1850B SET | 2 |
