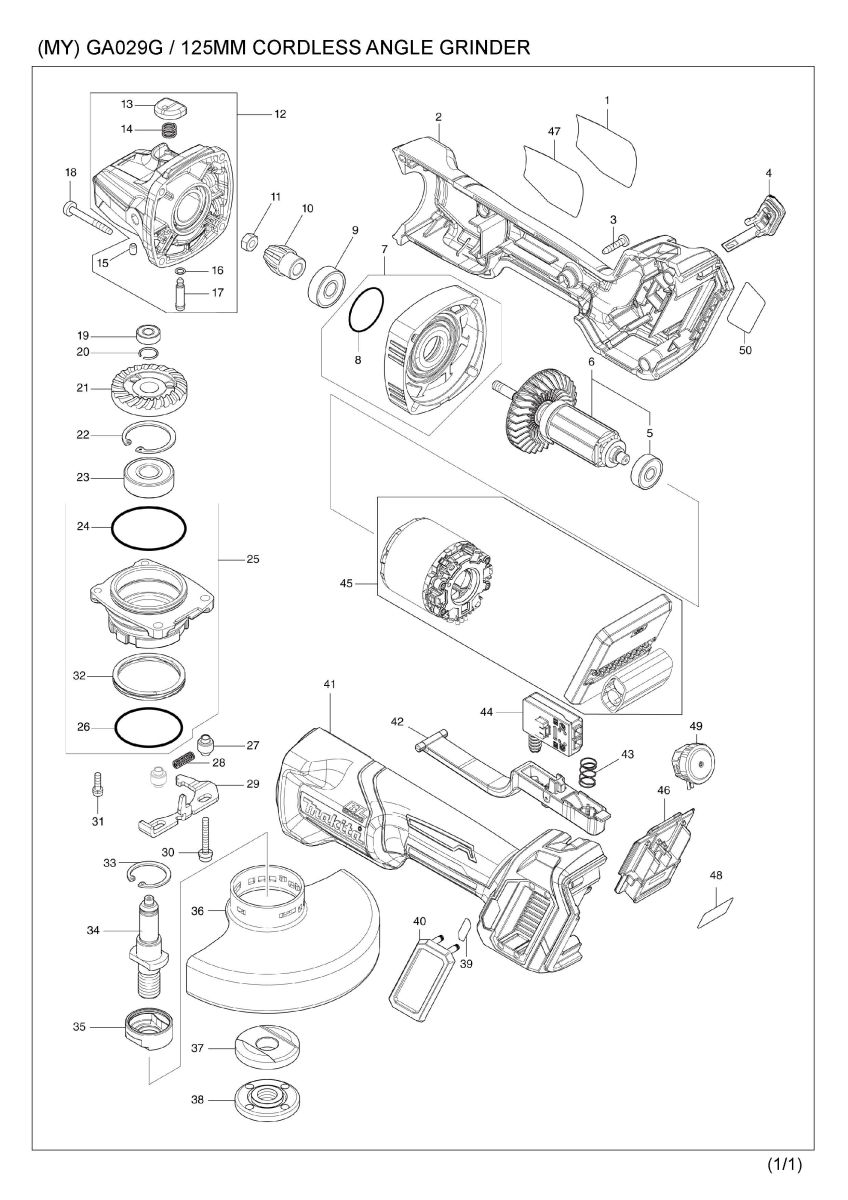

Part Diagram: GA029GM201/ GD201/ GZ

ItemSubParts No.Parts DescriptionQty
18008U5-3CLEAR LABEL1
2183P78-5MOTOR HOUSING SET1
2C10263005-3RUBBER PIN 62
2D10INC. 41
3266326-2TAPPING SCREW 4X185
4140G30-2CAP COMPLETE1
4C10213218-6O RING 161
4C20818H48-4CAP LABEL1
5210023-2BALL BEARING 627DDW1
6519595-7ROTOR ASS'Y1
6D10INC. 5
7136190-4GEAR HOUSING COVER ASS'Y1
7D10INC. 8
8213445-5O-RING 261
9210042-8BALL BEARING 629LLB1
10226976-5SPIRAL BEVEL GEAR 101
11252186-8HEX. NUT M61
12136198-8GEAR HOUSING ASS'Y1
12D10INC. 13-17
13412234-7PIN CAP1
14233072-2COMPRESSION SPRING 81
15263002-9RUBBER PIN 41
16213960-9O RING 51
17256546-6SHOULDER PIN 41
18266048-4TAPPING SCREW 4X404
19210033-9BALL BEARING 696ZZ1
20233950-6RING SPRING 111
21226862-0SPIRAL BEVEL GEAR 371
22962151-6RETAINING RING R-321
23211129-9BALL BEARING 6201DDW1
24213622-9O RING 451
25136262-5BEARING BOX ASS'Y1
25D10INC. 24,26,32
26213510-0O RING 361
27327322-6SLEEVE 42
28232490-1COMPRESSION SPRING 41
29347641-4LEVER B1
30911159-7PAN HEAD SCREW M4X302
31911138-5P.H.SCREW M4X20 WITH WR2
32232542-8SCROW WAVE SPRING 411
33962105-3RETAINING RING R-261
34326672-6SPINDLE1
35310514-4LEAD FLANGE1
36347480-2WHEEL COVER 1251
37224447-6INNER FLANGE 42B1
38224554-5LOCK NUT 14-451
398005T5-8XGT LOGO LABEL1
40422610-7DUST COVER1
41183P78-5MOTOR HOUSING SET1
41C10263005-3RUBBER PIN 62
41D10INC. 2
42140T33-4SWITCH LEVER COMPLETE1
43233263-5COMPRESSION SPRING 91
44651083-9SWITCH C3XA-1PSPM1
45629A00-3STATOR COMPLETE1
46632P65-6TERMINAL UNIT1
47857H80-3GA029G NAME PLATE1
48857H86-1GA029G SERIAL NO. LABEL1
49620D30-5DIAL CIRCUIT1
508015J1-9INDICATION LABEL1
A01158237-4GRIP 36 COMPLETE1
A02A-80656GRINDING WHEEL 125 WA36N1
A03782423-1LOCK NUT WRENCH 351
A04412393-7BATTERY COVER2
A05***DC40RADC40RA FAST CHARGER1
A05BD10COMPO-PARTS
A06B191B43-6BATTERY BL4025 SET2
A06C191B33-9BATTERY BL4040 SET2
A06-1B191B36-3BATTERY BL4025 SET2
A06-1C191B26-6BATTERY BL4040 SET2
A07821552-6CONNECTOR PLASTIC CASE (TYPE4)1
A07BC10453974-8LATCH4
A08B8017V6-5GA029GD201 PLASTIC CASE LABEL2
A08C8017W0-4GA029GM201 PLASTIC CASE LABEL2
A09B8017V5-7GA029GD201 INDICATION LABEL1
A09C8017V9-9GA029GM201 INDICATION LABEL1
A10835E79-0INNER TRAY1
