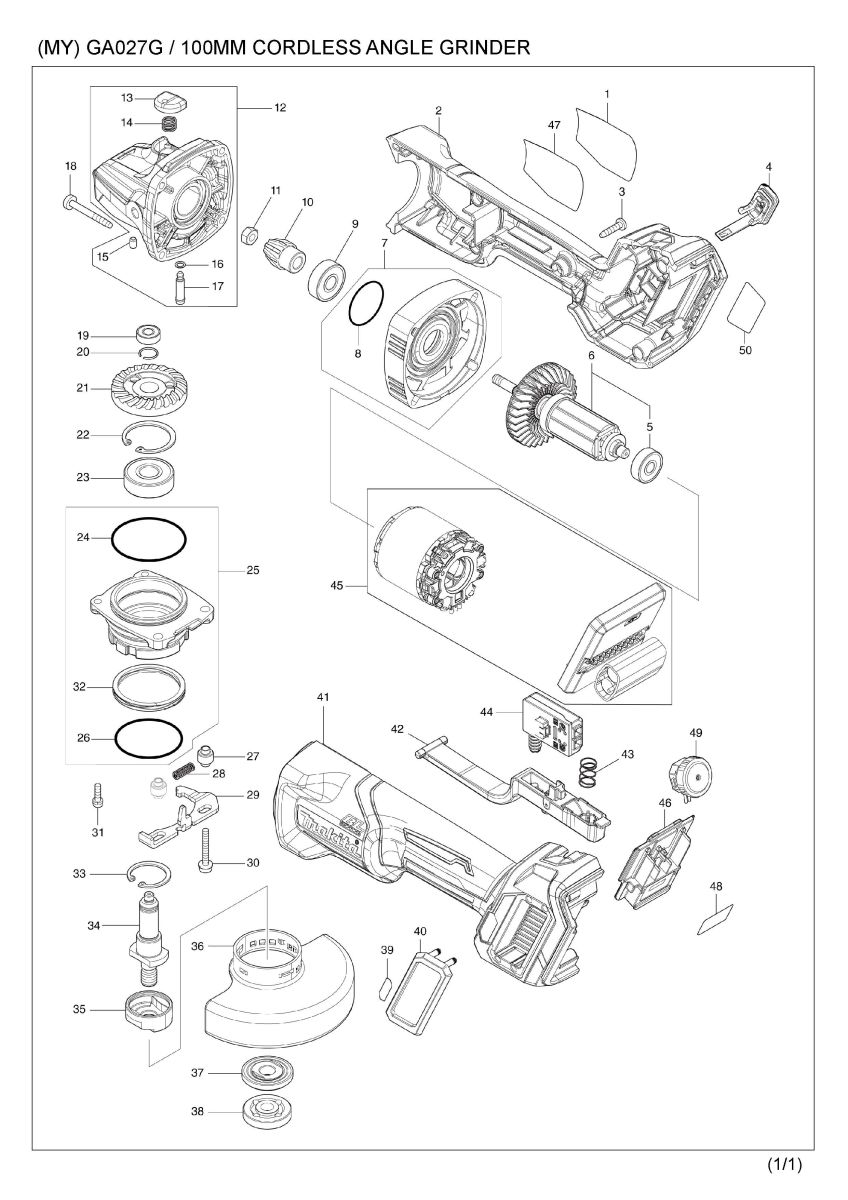

Part Diagram
Total: 176 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 8008U5-3 | CLEAR LABEL | 1 | |
| 002 | 183P78-5 | MOTOR HOUSING SET | 1 | |
| 002 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 002 | D10 | INC. 41 | ||
| 003 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 004 | 140G30-2 | CAP COMPLETE | 1 | |
| 004 | C10 | 213218-6 | O RING 16 | 1 |
| 004 | C11 | 213A05-9 | O-RING16 | 1 |
| 004 | C20 | 818H48-4 | CAP LABEL | 1 |
| 005 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 006 | 519595-7 | ROTOR ASS'Y | 1 | |
| 006 | D10 | INC. 5 | ||
| 007 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | |
| 007 | D10 | INC. 8 | ||
| 008 | 213445-5 | O-RING 26 | 1 | |
| 009 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 010 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | |
| 011 | 252186-8 | HEX. NUT M6 | 1 | |
| 012 | 136198-8 | GEAR HOUSING ASS'Y | 1 | |
| 012 | D10 | INC. 13-17 | ||
| 013 | 412234-7 | PIN CAP | 1 | |
| 014 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 015 | 263002-9 | RUBBER PIN 4 | 1 | |
| 016 | 213960-9 | O RING 5 | 1 | |
| 017 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 018 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 019 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 020 | 233950-6 | RING SPRING 11 | 1 | |
| 021 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 022 | 962151-6 | RETAINING RING R-32 | 1 | |
| 023 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 024 | 213622-9 | O RING 45 | 1 | |
| 024-1 | 213622-9 | O RING 45 | 1 | |
| 025 | 136262-5 | BEARING BOX ASS'Y | 1 | |
| 025 | D10 | INC. 24,26,32 | ||
| 026 | 213510-0 | O RING 36 | 1 | |
| 027 | 327322-6 | SLEEVE 4 | 2 | |
| 028 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 029 | 347641-4 | LEVER B | 1 | |
| 030 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 031 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 032 | 232542-8 | COILED WAVE SPRING 41 | 1 | |
| 032-1 | 232542-8 | COILED WAVE SPRING 41 | 1 | |
| 033 | 962105-3 | RETAINING RING R-26 | 1 | |
| 034 | 326669-5 | SPINDLE | 1 | |
| 035 | 310516-0 | LEAD FLANGE B | 1 | |
| 036 | 347478-9 | WHEEL COVER 100 | 1 | |
| 037 | 224483-2 | INNER FLANGE 30 | 1 | |
| 038 | 224559-5 | LOCK NUT 10-30 | 1 | |
| 039 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| 040 | 422610-7 | DUST COVER | 1 | |
| 041 | 183P78-5 | MOTOR HOUSING SET | 1 | |
| 041 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041 | D10 | INC. 2 | ||
| 042 | 140T33-4 | SWITCH LEVER COMPLETE | 1 | |
| 043 | 233263-5 | COMPRESSION SPRING 9 | 1 | |
| 044 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 045 | 629A00-3 | STATOR COMPLETE | 1 | |
| 046 | 632P65-6 | TERMINAL UNIT | 1 | |
| 047 | 857H55-2 | GA027G NAME PLATE | 1 | |
| 048 | 857H58-6 | GA027G SERIAL NO. LABEL | 1 | |
| 049 | 620D30-5 | DIAL CIRCUIT | 1 | |
| 050 | 8015J1-9 | INDICATION LABEL | 1 | |
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | A-80852 | GRINDING WHEEL 100X6X16 | 1 | |
| A03 | 782420-7 | LOCK NUT WRENCH 20 | 1 | |
| A04B | 412393-7 | BATTERY COVER | 2 | |
| A04C | 412393-7 | BATTERY COVER | 2 | |
| A05B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A05C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05C | D10 | COMPO-PARTS | ||
| A06B | 191B43-6 | BATTERY BL4025 SET | 2 | |
| A06C | 191B33-9 | BATTERY BL4040 SET | 2 | |
| A06-1B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A06-1C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A07B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A07B | C10 | 453974-8 | LATCH | 4 |
| A07C | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A07C | C10 | 453974-8 | LATCH | 4 |
| A08B | 8017T5-3 | GA027GD201 PLASTIC CASE LABEL | 2 | |
| A08C | 8017U0-0 | GA027GM201 PLASTIC CASE LABEL | 2 | |
| A09B | 8017T2-9 | GA027GD201 INDICATION LABEL | 1 | |
| A09C | 8017T9-5 | GA027GM201 INDICATION LABEL | 1 | |
| A10B | 835E79-0 | INNER TRAY | 1 | |
| A10C | 835E79-0 | INNER TRAY | 1 | |
| F02 | 194514-0 | VIBRATION PROOF GRIP SET | 1 | |
| F03 | 191V54-1 | CUTTING W.C.A. 100 SET | 1 | |
| 001 | 8008U5-3 | CLEAR LABEL | 1 | |
| 002 | 183P78-5 | MOTOR HOUSING SET | 1 | |
| 002 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 002 | D10 | INC. 41 | ||
| 003 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 004 | 140G30-2 | CAP COMPLETE | 1 | |
| 004 | C10 | 213218-6 | O RING 16 | 1 |
| 004 | C11 | 213A05-9 | O-RING16 | 1 |
| 004 | C20 | 818H48-4 | CAP LABEL | 1 |
| 005 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 006 | 519595-7 | ROTOR ASS'Y | 1 | |
| 006 | D10 | INC. 5 | ||
| 007 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | |
| 007 | D10 | INC. 8 | ||
| 008 | 213445-5 | O-RING 26 | 1 | |
| 009 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 010 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | |
| 011 | 252186-8 | HEX. NUT M6 | 1 | |
| 012 | 136198-8 | GEAR HOUSING ASS'Y | 1 | |
| 012 | D10 | INC. 13-17 | ||
| 013 | 412234-7 | PIN CAP | 1 | |
| 014 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 015 | 263002-9 | RUBBER PIN 4 | 1 | |
| 016 | 213960-9 | O RING 5 | 1 | |
| 017 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 018 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 019 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 020 | 233950-6 | RING SPRING 11 | 1 | |
| 021 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 022 | 962151-6 | RETAINING RING R-32 | 1 | |
| 023 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 024 | 213622-9 | O RING 45 | 1 | |
| 024-1 | 213622-9 | O RING 45 | 1 | |
| 025 | 136262-5 | BEARING BOX ASS'Y | 1 | |
| 025 | D10 | INC. 24,26,32 | ||
| 026 | 213510-0 | O RING 36 | 1 | |
| 027 | 327322-6 | SLEEVE 4 | 2 | |
| 028 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 029 | 347641-4 | LEVER B | 1 | |
| 030 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 031 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 032 | 232542-8 | COILED WAVE SPRING 41 | 1 | |
| 032-1 | 232542-8 | COILED WAVE SPRING 41 | 1 | |
| 033 | 962105-3 | RETAINING RING R-26 | 1 | |
| 034 | 326669-5 | SPINDLE | 1 | |
| 035 | 310516-0 | LEAD FLANGE B | 1 | |
| 036 | 347478-9 | WHEEL COVER 100 | 1 | |
| 037 | 224483-2 | INNER FLANGE 30 | 1 | |
| 038 | 224559-5 | LOCK NUT 10-30 | 1 | |
| 039 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| 040 | 422610-7 | DUST COVER | 1 | |
| 041 | 183P78-5 | MOTOR HOUSING SET | 1 | |
| 041 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041 | D10 | INC. 2 | ||
| 042 | 140T33-4 | SWITCH LEVER COMPLETE | 1 | |
| 043 | 233263-5 | COMPRESSION SPRING 9 | 1 | |
| 044 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 045 | 629A00-3 | STATOR COMPLETE | 1 | |
| 046 | 632P65-6 | TERMINAL UNIT | 1 | |
| 047 | 857H55-2 | GA027G NAME PLATE | 1 | |
| 048 | 857H58-6 | GA027G SERIAL NO. LABEL | 1 | |
| 049 | 620D30-5 | DIAL CIRCUIT | 1 | |
| 050 | 8015J1-9 | INDICATION LABEL | 1 | |
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | A-80852 | GRINDING WHEEL 100X6X16 | 1 | |
| A03 | 782420-7 | LOCK NUT WRENCH 20 | 1 | |
| A04B | 412393-7 | BATTERY COVER | 2 | |
| A04C | 412393-7 | BATTERY COVER | 2 | |
| A05B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A05C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05C | D10 | COMPO-PARTS | ||
| A06B | 191B43-6 | BATTERY BL4025 SET | 2 | |
| A06C | 191B33-9 | BATTERY BL4040 SET | 2 | |
| A06-1B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A06-1C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A07B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A07B | C10 | 453974-8 | LATCH | 4 |
| A07C | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A07C | C10 | 453974-8 | LATCH | 4 |
| A08B | 8017T5-3 | GA027GD201 PLASTIC CASE LABEL | 2 | |
| A08C | 8017U0-0 | GA027GM201 PLASTIC CASE LABEL | 2 | |
| A09B | 8017T2-9 | GA027GD201 INDICATION LABEL | 1 | |
| A09C | 8017T9-5 | GA027GM201 INDICATION LABEL | 1 | |
| A10B | 835E79-0 | INNER TRAY | 1 | |
| A10C | 835E79-0 | INNER TRAY | 1 | |
| F02 | 194514-0 | VIBRATION PROOF GRIP SET | 1 | |
| F03 | 191V54-1 | CUTTING W.C.A. 100 SET | 1 |
