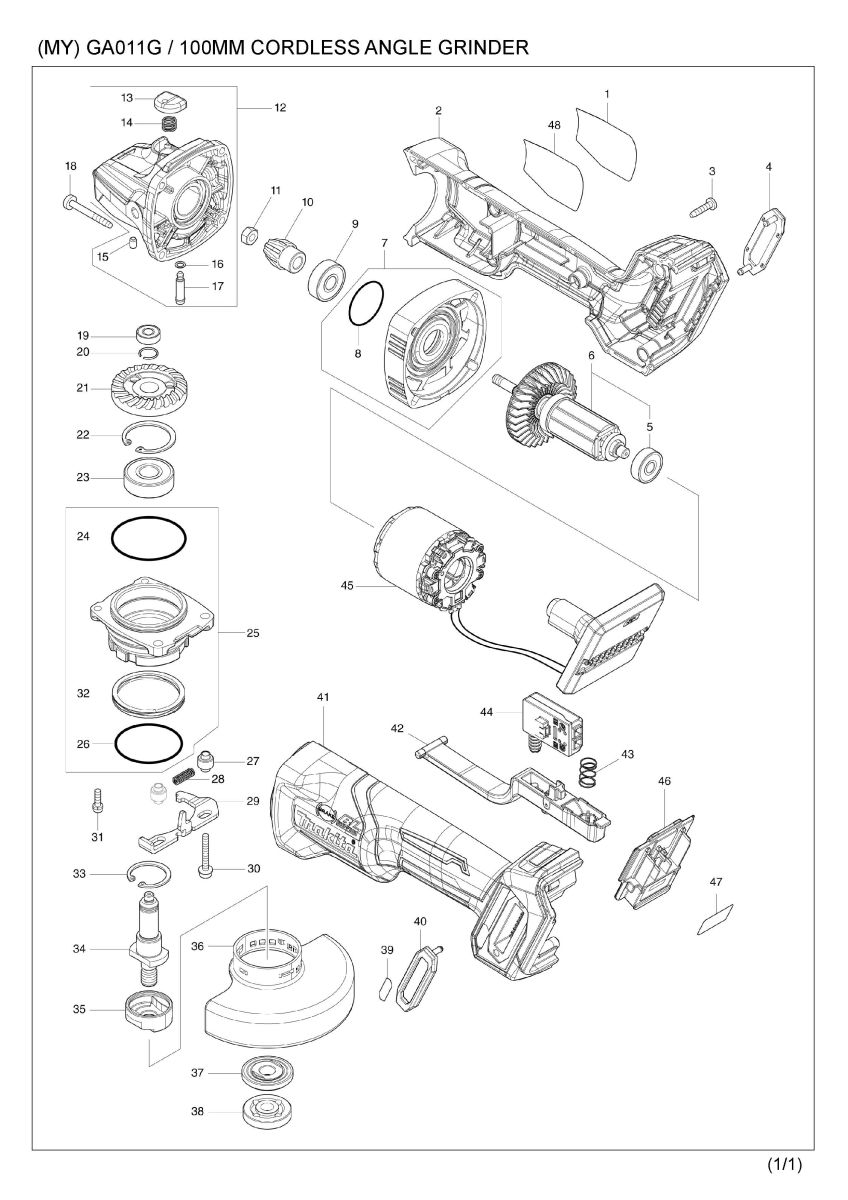

Part Diagram
Total: 73 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 8008U5-3 | CLEAR LABEL | 1 | |
| 2 | 183P29-8 | MOTOR HOUSING SET | 1 | |
| 2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | D10 | INC. 41 | ||
| 3 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 4 | 422563-0 | DUST COVER | 1 | |
| 5 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 6 | 519595-7 | ROTOR ASS'Y | 1 | |
| 6 | D10 | INC. 5 | ||
| 7 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | |
| 7 | D10 | INC. 8 | ||
| 8 | 213445-5 | O-RING 26 | 1 | |
| 9 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 10 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | |
| 11 | 252186-8 | HEX. NUT M6 | 1 | |
| 12 | 136198-8 | GEAR HOUSING ASS'Y | 1 | |
| 12 | D10 | INC. 13-17 | ||
| 13 | 412234-7 | PIN CAP | 1 | |
| 14 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 15 | 263002-9 | RUBBER PIN 4 | 1 | |
| 16 | 213960-9 | O RING 5 | 1 | |
| 17 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 18 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 19 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 20 | 233950-6 | RING SPRING 11 | 1 | |
| 21 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 22 | 962151-6 | RETAINING RING R-32 | 1 | |
| 23 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 24 | 213622-9 | O RING 45 | 1 | |
| 25 | 136262-5 | BEARING BOX ASS'Y | 1 | |
| 25 | D10 | INC. 24,26,32 | ||
| 26 | 213510-0 | O RING 36 | 1 | |
| 27 | 327322-6 | SLEEVE 4 | 2 | |
| 28 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 29 | 347641-4 | LEVER B | 1 | |
| 30 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 31 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 32 | 232542-8 | SCROW WAVE SPRING 41 | 1 | |
| 33 | 962105-3 | RETAINING RING R-26 | 1 | |
| 34 | 326669-5 | SPINDLE | 1 | |
| 35 | 310516-0 | LEAD FLANGE B | 1 | |
| 36 | 347478-9 | WHEEL COVER 100 | 1 | |
| 37 | 224483-2 | INNER FLANGE 30 | 1 | |
| 38 | 224559-5 | LOCK NUT 10-30 | 1 | |
| 39 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| 40 | 422563-0 | DUST COVER | 1 | |
| 41 | 183P29-8 | MOTOR HOUSING SET | 1 | |
| 41 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 41 | D10 | INC. 2 | ||
| 42 | 140T33-4 | SWITCH LEVER COMPLETE | 1 | |
| 43 | 233263-5 | COMPRESSION SPRING 9 | 1 | |
| 44 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 45 | 629480-7 | STATOR COMPLETE | 1 | |
| 46 | 632P65-6 | TERMINAL UNIT | 1 | |
| 47 | 856Y14-5 | GA011G SERIAL NO. LABEL | 1 | |
| 48 | 856Y11-1 | GA011G NAME PLATE | 1 | |
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | A-80852 | GRINDING WHEEL 100X6X16 | 1 | |
| A03 | 782420-7 | LOCK NUT WRENCH 20 | 1 | |
| A04 | 412393-7 | BATTERY COVER | 2 | |
| A05 | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 191B43-6 | BATTERY BL4025 SET | 2 | |
| A06C | 191B33-9 | BATTERY BL4040 SET | 2 | |
| A06-1B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A06-1C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A07 | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A07B | C10 | 453974-8 | LATCH | 4 |
| A08B | 8013L1-1 | GA011GD201 INDICATION LABEL | 1 | |
| A08C | 8013L3-7 | GA011GM201 INDICATION LABEL | 1 | |
| A09B | 8013L2-9 | GA011GD201 PLASTIC CASE LABEL | 2 | |
| A09C | 8013L4-5 | GA011GM201 PLASTIC CASE LABEL | 2 | |
| A10 | 835E79-0 | INNER TRAY | 1 |
