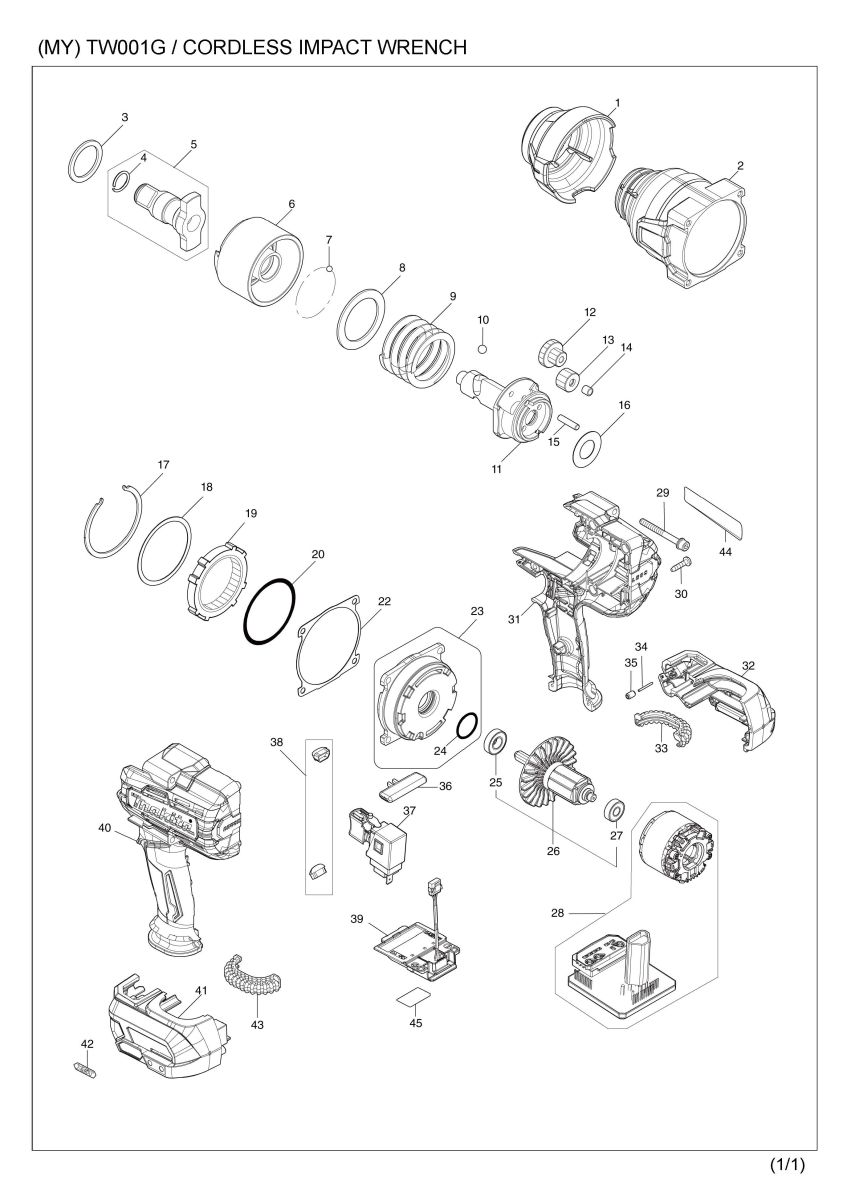

Part Diagram
Total: 231 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 422594-9 | BUMPER | 1 | |
| 002 | 140T99-4 | HAMMER CASE COMPLETE | 1 | |
| 003 | 267250-2 | FLAT WASHER 30 | 1 | |
| 004 | 232334-5 | RING SPRING 16 | 1 | |
| 005 | 136249-7 | ANVIL E ASS'Y | 1 | |
| D10 | INC. 4 | |||
| 006 | 327595-1 | HAMMER | 1 | |
| 007 | 216002-8 | STEEL BALL 4.8 | 30 | |
| 008 | 253478-8 | FLAT WASHER 41 | 1 | |
| 009 | 232623-8 | COMPRESSION SPRING 41 | 1 | |
| 010 | 216009-4 | STEEL BALL 7.1 | 2 | |
| 011 | 327594-3 | SPINDLE | 1 | |
| 012 | 226990-1 | SPUR GEAR 11-22 | 2 | |
| 013A | 226989-6 | SPUR GEAR 15 | 2 | |
| 013B | 226989-6 | SPUR GEAR 15 | 2 | |
| 013C | 226989-6 | SPUR GEAR 15 | 2 | |
| 013-1A | 227935-2 | SPUR GEAR 15 | 2 | |
| 013-1B | 227935-2 | SPUR GEAR 15 | 2 | |
| 013-1C | 227935-2 | SPUR GEAR 15 | 2 | |
| 013-1D | 227935-2 | SPUR GEAR 15 | 2 | |
| 013-1E | 227935-2 | SPUR GEAR 15 | 2 | |
| 013-1F | 227935-2 | SPUR GEAR 15 | 2 | |
| 014A | 257539-6 | SLEEVE 5 | 2 | |
| 014B | 257539-6 | SLEEVE 5 | 2 | |
| 014C | 257539-6 | SLEEVE 5 | 2 | |
| 015 | 268238-5 | PIN 5 | 4 | |
| 016 | 267235-8 | FLAT WASHER 18 | 1 | |
| 017 | 346947-7 | RETAINER | 1 | |
| 018 | 253479-6 | FLAT WASHER 57 | 1 | |
| 019 | 226991-9 | INTERNAL SPUR GEAR 50 | 1 | |
| 020 | 213663-5 | O RING 55 | 1 | |
| 022 | 422595-7 | GASKET | 1 | |
| 023 | 136279-8 | INTERNAL GEAR CASE ASS'Y | 1 | |
| D10 | INC. 24 | |||
| 024 | 213961-7 | O RING 22 | 1 | |
| 025 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 026 | 519630-1 | ROTOR ASSY | 1 | |
| D10 | INC. 25,27 | |||
| 027 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 028 | 629A16-8 | STATOR UNIT | 1 | |
| C10 | 8012S9-8 | SWITCH LABEL | 1 | |
| 029 | 265B38-6 | H. S. HEAD BOLT M5X50 WITH WRM | 4 | |
| 030 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 031A | 183P61-2 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031B | 183P61-2 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031C | 183P61-2 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031-1A | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031-1B | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031-1C | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031-1D | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031-1E | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 031-1F | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 40 | |||
| 032A | 183P62-0 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032B | 183P62-0 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032C | 183P62-0 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032-1A | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032-1B | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032-1C | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032-1D | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032-1E | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 032-1F | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 41 | |||
| 033A | 424773-5 | CUSHION RUBBER | 1 | |
| 033B | 424773-5 | CUSHION RUBBER | 1 | |
| 033C | 424773-5 | CUSHION RUBBER | 1 | |
| 033-1A | 422810-9 | CUSHION RUBBER | 1 | |
| 033-1B | 422810-9 | CUSHION RUBBER | 1 | |
| 033-1C | 422810-9 | CUSHION RUBBER | 1 | |
| 033-1D | 422810-9 | CUSHION RUBBER | 1 | |
| 033-1E | 422810-9 | CUSHION RUBBER | 1 | |
| 033-1F | 422810-9 | CUSHION RUBBER | 1 | |
| 034A | 268284-8 | PIN 1.5 | 1 | |
| 034B | 268284-8 | PIN 1.5 | 1 | |
| 034C | 268284-8 | PIN 1.5 | 1 | |
| 035A | 263036-2 | RUBBER PIN 5 | 1 | |
| 035B | 263036-2 | RUBBER PIN 5 | 1 | |
| 035C | 263036-2 | RUBBER PIN 5 | 1 | |
| 036 | 456268-0 | F/R CHANGE LEVER | 1 | |
| 037 | 140U03-9 | SWITCH COMPLETE | 1 | |
| C10 | 424774-3 | SWITCH COVER | 1 | |
| 038 | 620D09-6 | LED CIRCUIT | 1 | |
| 039 | 632P49-4 | TERMINAL UNIT | 1 | |
| 040A | 183P61-2 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040B | 183P61-2 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040C | 183P61-2 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040-1A | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040-1B | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040-1C | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040-1D | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040-1E | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 040-1F | 183V83-8 | HOUSING SET | 1 | |
| D10 | INC. 31 | |||
| 041A | 183P62-0 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041B | 183P62-0 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041C | 183P62-0 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041-1A | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041-1B | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041-1C | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041-1D | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041-1E | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 041-1F | 183S33-5 | BATTERY HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 | |
| D10 | INC. 32 | |||
| 042A | 8005T5-8 | XGT LOGO LABEL | 1 | |
| 042B | 8005T5-8 | XGT LOGO LABEL | 1 | |
| 042C | 8005T5-8 | XGT LOGO LABEL | 1 | |
| 043A | 424773-5 | CUSHION RUBBER | 1 | |
| 043B | 424773-5 | CUSHION RUBBER | 1 | |
| 043C | 424773-5 | CUSHION RUBBER | 1 | |
| 043-1A | 422810-9 | CUSHION RUBBER | 1 | |
| 043-1B | 422810-9 | CUSHION RUBBER | 1 | |
| 043-1C | 422810-9 | CUSHION RUBBER | 1 | |
| 043-1D | 422810-9 | CUSHION RUBBER | 1 | |
| 043-1E | 422810-9 | CUSHION RUBBER | 1 | |
| 043-1F | 422810-9 | CUSHION RUBBER | 1 | |
| 044 | 857G20-5 | TW001G NAME PLATE | 1 | |
| 045 | 857G27-1 | TW001G SERIAL NO. LABEL | 1 | |
| 046D | 162941-9 | BRACKET | 1 | |
| 046E | 162941-9 | BRACKET | 1 | |
| 046F | 162941-9 | BRACKET | 1 | |
| 047D | 282022-4 | RING 40 | 1 | |
| 047E | 282022-4 | RING 40 | 1 | |
| 047F | 282022-4 | RING 40 | 1 | |
| A01 | 251314-2 | + SCREW M4X12 | 2 | |
| A02 | 346949-3 | HOOK | 1 | |
| A03B | 412393-7 | BATTERY COVER | 1 | |
| A03C | 412393-7 | BATTERY COVER | 2 | |
| A03E | 412393-7 | BATTERY COVER | 1 | |
| A03F | 412393-7 | BATTERY COVER | 2 | |
| A04B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A04C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A04E | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A04F | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A05B | 191B43-6 | BATTERY BL4025 SET | 2 | |
| A05C | 191B33-9 | BATTERY BL4040 SET | 2 | |
| A05E | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A05F | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A05-1B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A05-1C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A06B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A06C | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A06E | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A06F | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A07B | 835K85-1 | INNER TRAY | 1 | |
| A07C | 835K85-1 | INNER TRAY | 1 | |
| A07E | 835K85-1 | INNER TRAY | 1 | |
| A07F | 835K85-1 | INNER TRAY | 1 | |
| A08B | 8016P7-5 | TW001GD201 PLASTIC CASE LABEL | 2 | |
| A08E | 8060R3-6 | TW001GD203 PLASTIC CASE LABEL | 2 | |
| A09B | 8016P6-7 | TW001GD201 INDICATION LABEL | 1 | |
| A09E | 8060R2-8 | TW001GD203 INDICATION LABEL | 1 | |
| A09F | 8023M2-9 | TW001GM204 MODEL NO. LABEL | 1 | |
| A10D | 161347-8 | SHOULDER BELT | 1 | |
| A10E | 161347-8 | SHOULDER BELT | 1 | |
| A10F | 161347-8 | SHOULDER BELT | 1 |
