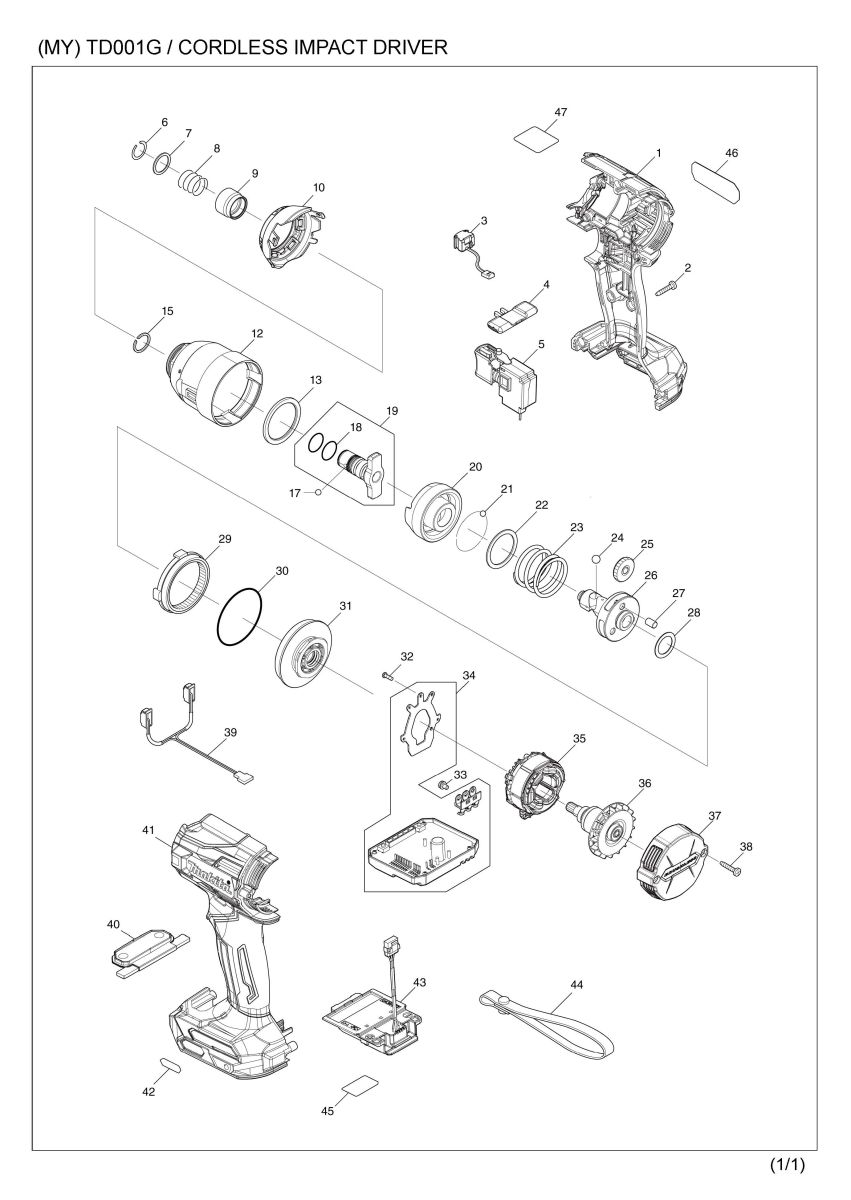

Part Diagram
Total: 93 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183P56-5 | HOUSING SET | 1 | |
| 001 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | C30 | 422616-5 | SPONGE SHEET | 1 |
| 001 | D10 | INC. 41 | ||
| 001-1 | 183P56-5 | HOUSING SET | 1 | |
| 001-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001-1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001-1 | D10 | INC. 41 | ||
| 002 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 003 | 632L84-8 | SWITCH UNIT | 1 | |
| 004 | 455053-8 | F/R CHANGE LEVER | 1 | |
| 005 | 651442-7 | SWITCH C3JR-1A-1 | 1 | |
| 006 | 231952-6 | RING SPRING 12 | 1 | |
| 007 | 267101-9 | FLAT WASHER 14 | 1 | |
| 008 | 232592-3 | COMPRESSION SPRING 14 | 1 | |
| 009 | 327531-7 | BIT SLEEVE | 1 | |
| 009-1 | 327960-4 | BIT SLEEVE | 1 | |
| 010 | 136171-8 | HAMMER CASE COVER ASSY | 1 | |
| 010 | C10 | 422269-0 | BUMPER | 1 |
| 012 | 140R47-1 | HAMMER CASE COMPLETE | 1 | |
| 012 | C10 | 210177-5 | BALL BEARING 68/14LLU | 2 |
| 012 | C20 | 267063-1 | FLAT WASHER 18 | 1 |
| 012 | C30 | 962113-4 | RETAINING RING R-24 | 1 |
| 013 | 261160-5 | NYLON WASHER 30 | 1 | |
| 015 | 259075-8 | RETAINING RING(EXT) WR-14 | 1 | |
| 017 | 216001-0 | STEEL BALL 3.5 | 2 | |
| 018 | 213118-0 | O RING 12 | 2 | |
| 019 | 136204-9 | ANVIL N ASS'Y | 1 | |
| 019 | D10 | INC. 18 | ||
| 020 | 327525-2 | HAMMER | 1 | |
| 021 | 216001-0 | STEEL BALL 3.5 | 25 | |
| 022 | 267342-7 | FLAT WASHER 26 | 1 | |
| 023 | 232591-5 | COMPRESSION SPRING 25 | 1 | |
| 024 | 216013-3 | STEEL BALL 6 | 2 | |
| 025 | 226960-0 | SPUR GEAR 24 | 3 | |
| 025-1 | 227915-8 | SPUR GEAR 24 | 3 | |
| 025-2 | 227926-3 | SPUR GEAR 24 | 3 | |
| 026 | 327524-4 | SPINDLE | 1 | |
| 027 | 268311-1 | PIN 5 | 3 | |
| 028 | 267194-6 | FLAT WASHER 15 | 1 | |
| 029 | 226961-8 | INTERNAL GEAR 56 | 1 | |
| 030 | 213892-0 | O-RING 43 | 1 | |
| 031 | 140R48-9 | BEARING BOX COMPLETE | 1 | |
| 032 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 033 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 034 | 620B96-3 | CONTROLLER | 1 | |
| 035 | 629464-5 | STATOR | 1 | |
| 036 | 619605-1 | ROTOR | 1 | |
| 037 | 412339-3 | REAR COVER | 1 | |
| 038 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 039 | 620B97-1 | LED CIRCUIT | 1 | |
| 040 | 140R54-4 | SWITCH PLATE COMPLETE | 1 | |
| 040 | C10 | 8011F4-1 | SWITCH LABEL | 1 |
| 041 | 183P56-5 | HOUSING SET | 1 | |
| 041 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 041 | C30 | 422616-5 | SPONGE SHEET | 1 |
| 041 | D10 | INC. 1 | ||
| 041-1 | 183P56-5 | HOUSING SET | 1 | |
| 041-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041-1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 041-1 | D10 | INC. 1 | ||
| 042 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| 043 | 632P49-4 | TERMINAL UNIT | 1 | |
| 045 | 856V15-5 | TD001G SERIAL NO. LABEL | 1 | |
| 046 | 856V08-2 | TD001G NAME PLATE | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03 | E-08436 | TWIST TORSION BIT PH2-65MM | 1 | |
| A03-1 | A-67511 | SLIM TWIST TORSION PH2-65 3PC | 1 | |
| A04B | 412393-7 | BATTERY COVER | 1 | |
| A04C | 412393-7 | BATTERY COVER | 1 | |
| A05B | 191B43-6 | BATTERY BL4025 SET | 2 | |
| A05C | 191B33-9 | BATTERY BL4040 SET | 2 | |
| A05-1B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A05-1C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A06B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A06C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A06C | D10 | COMPO-PARTS | ||
| A07B | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A07B | C10 | 453974-8 | LATCH | 4 |
| A07C | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A07C | C10 | 453974-8 | LATCH | 4 |
| A08B | 8011K5-4 | TD001GD201 PLASTIC CASE LABEL | 2 | |
| A08C | 8011L2-7 | TD001GM201 PLASTIC CASE LABEL | 2 | |
| A09B | 8011K4-6 | TD001GD201 INDICATION LABEL | 1 | |
| A09C | 8011L1-9 | TD001GM201 INDICATION LABEL | 1 | |
| A10B | 835F94-0 | INNER TRAY | 1 | |
| A10C | 835F94-0 | INNER TRAY | 1 | |
| A12 | 784042-9 | +BIT2-65 | 1 | |
| F04-1 | 191F58-7 | TOOL HANGER SET | 1 |
