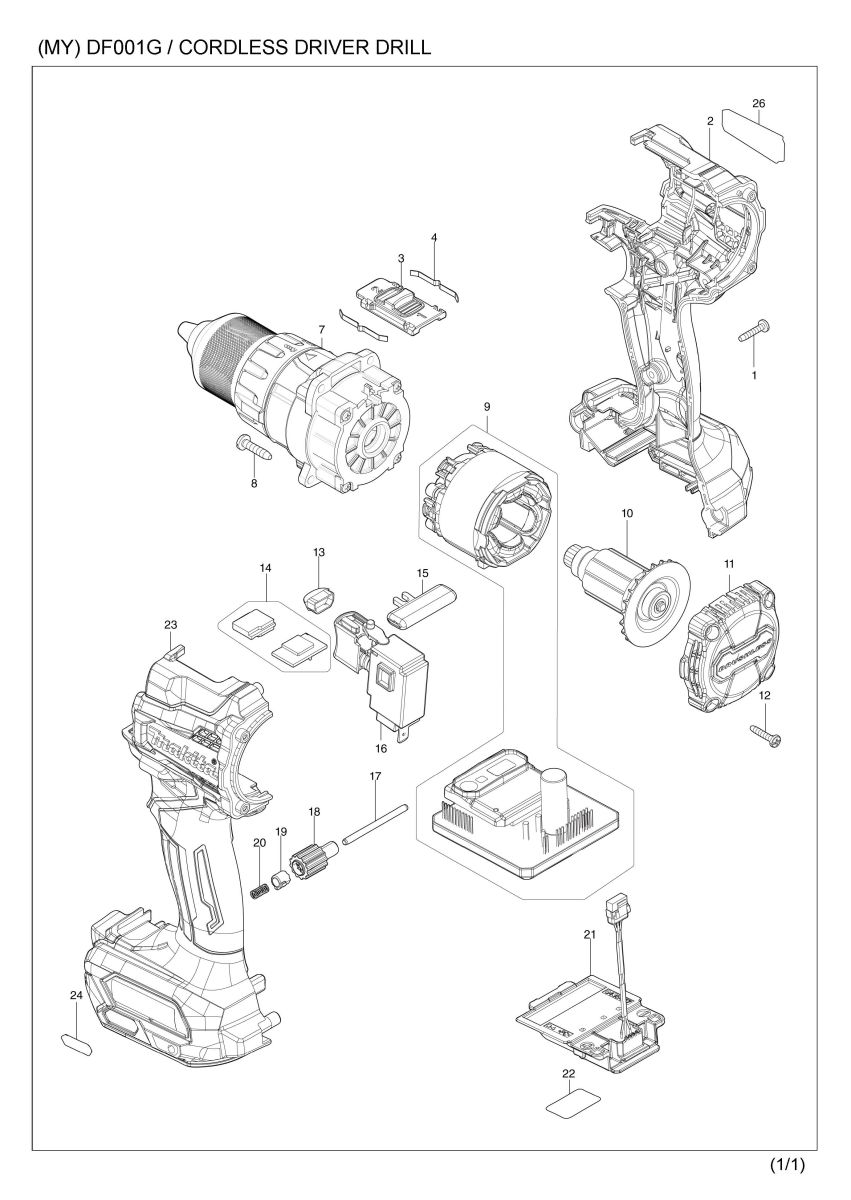

Part Diagram
Total: 72 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | |
| 2 | 183N73-3 | HOUSING SET | 1 | |
| 2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 2 | C30 | 422569-8 | SPONGE SHEET | 2 |
| 2 | D10 | INC. 23 | ||
| 002-1 | 183S37-7 | HOUSING SET | 1 | |
| 002-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 002-1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 002-1 | C30 | 422569-8 | SPONGE SHEET | 2 |
| 002-1 | D10 | INC. 23 | ||
| 3 | 127494-5 | SPEED CHANGE LEVER ASSEMBLY | 1 | |
| 3 | C10 | 233438-6 | COMPRESSION SPRING 4 | 2 |
| 4 | 232220-0 | LEAF SPRING | 2 | |
| 7 | 136232-4 | KEYLESS DRILL CHUCK ASS'Y | 1 | |
| 007-1 | 136360-5 | KEYLESS DRILL CHUCK ASS'Y | 1 | |
| 007-1 | C10 | 763252-1 | KEYLESS DRILL CHUCK 13 | 1 |
| 007-1 | C20 | 127728-6 | GEAR ASSEMBLY | 1 |
| 007-1 | C30 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 |
| 007-2 | 136406-7 | KEYLESS DRILL CHUCK ASS'Y | 1 | |
| 007-2 | C10 | 763252-1 | KEYLESS DRILL CHUCK 13 | 1 |
| 007-2 | C20 | 122A41-3 | GEAR ASSEMBLY | 1 |
| 007-2 | C30 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 |
| 8 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 9 | 629476-8 | STATOR COMPLETE | 1 | |
| 9 | C10 | 8009H0-8 | SWITCH LABEL | 1 |
| 10 | 619613-2 | ROTOR | 1 | |
| 010-1 | 619613-2 | ROTOR | 1 | |
| 11 | 412361-0 | REAR COVER | 1 | |
| 12 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 13 | 620549-0 | LED CIRCUIT | 1 | |
| 14 | 620C81-2 | SENSOR CIRCUIT | 1 | |
| 15 | 419041-9 | F/R CHANGE LEVER | 1 | |
| 16 | 651443-5 | SWITCH C3JR-4B | 1 | |
| 17 | 256949-4 | ROD 3 | 1 | |
| 18 | 140R76-4 | DIAL COMPLETE | 1 | |
| 19 | 313288-6 | DIAL CAM | 1 | |
| 20 | 232597-3 | COMPRESSION SPRING 3 | 1 | |
| 21 | 632P49-4 | TERMINAL UNIT | 1 | |
| 22 | 856T20-0 | DF001G SERIAL NO. LABEL | 1 | |
| 23 | 183N73-3 | HOUSING SET | 1 | |
| 23 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 23 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 23 | C30 | 422569-8 | SPONGE SHEET | 2 |
| 23 | D10 | INC. 2 | ||
| 023-1 | 183S37-7 | HOUSING SET | 1 | |
| 023-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 023-2 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 023-3 | C30 | 422569-8 | SPONGE SHEET | 2 |
| 023-4 | D10 | INC. 2 | ||
| 24 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| 26 | 856T13-7 | DF001G NAME PLATE | 1 | |
| A01 | 127552-7 | GRIP ASSEMBLY | 1 | |
| A01 | C10 | 140S65-5 | ARM R COMPLETE | 1 |
| A01 | C20 | 140S66-3 | POLE COMPLETE | 1 |
| A02 | C30 | 266886-4 | HEX. BOLT M8X65 | 1 |
| A03 | C40 | 319966-6 | ARM L | 1 |
| A04 | C50 | 962055-2 | RETAINING RING (INT) R-15 | 1 |
| A02 | 251314-2 | + SCREW M4X12 | 2 | |
| A03 | 346317-0 | HOOK | 1 | |
| A04 | 784637-8 | +- BIT 2-45 | 2 | |
| A05 | 452947-8 | BIT HOLDER | 1 | |
| A06B | 412393-7 | BATTERY COVER | 1 | |
| A07B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A07B | D10 | COMPO-PARTS | ||
| A08B | 191B43-6 | BATTERY BL4025 SET | 2 | |
| A08-1B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A09B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A09B | C10 | 453974-8 | LATCH | 4 |
| A10B | 835F93-2 | INNER TRAY | 1 | |
| A11B | 8010K6-6 | DF001GD201 INDICATION LABEL | 1 | |
| A12B | 8010K7-4 | DF001GD201 PLASTIC CASE LABEL | 2 |
