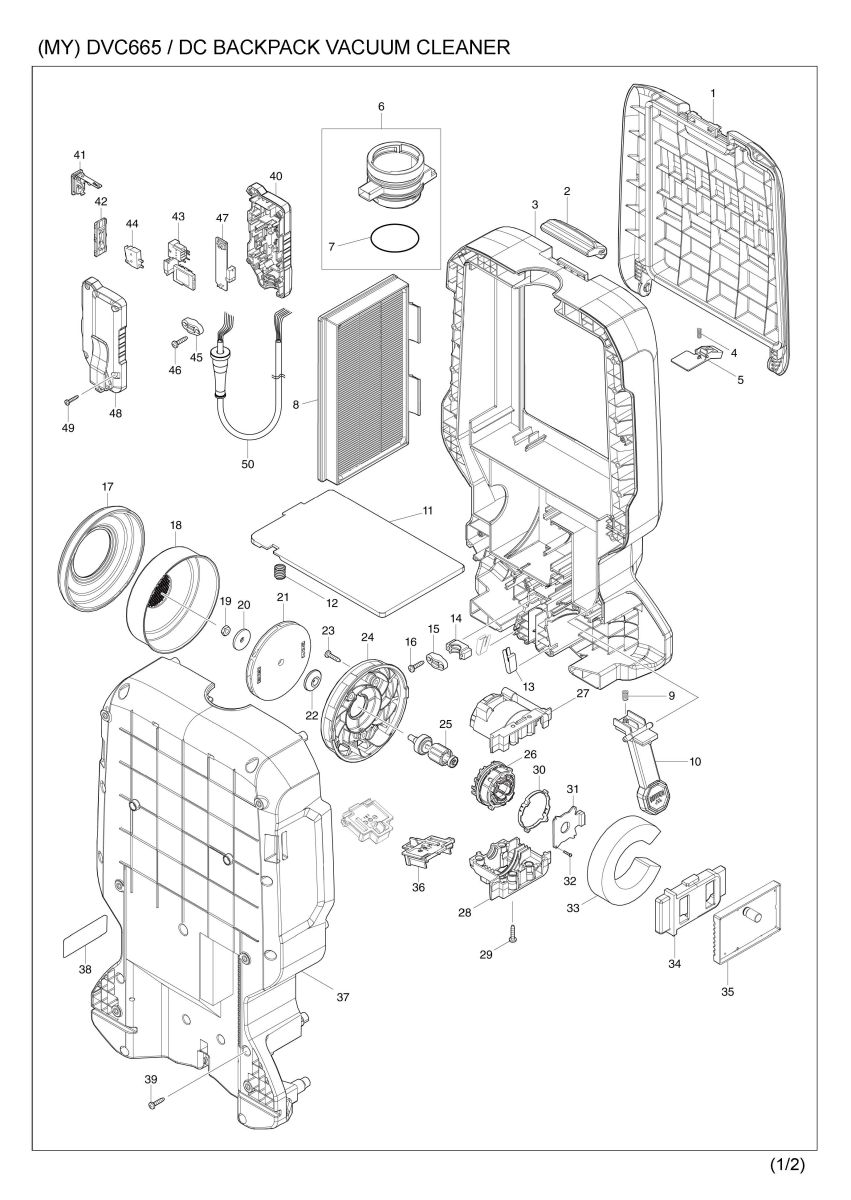

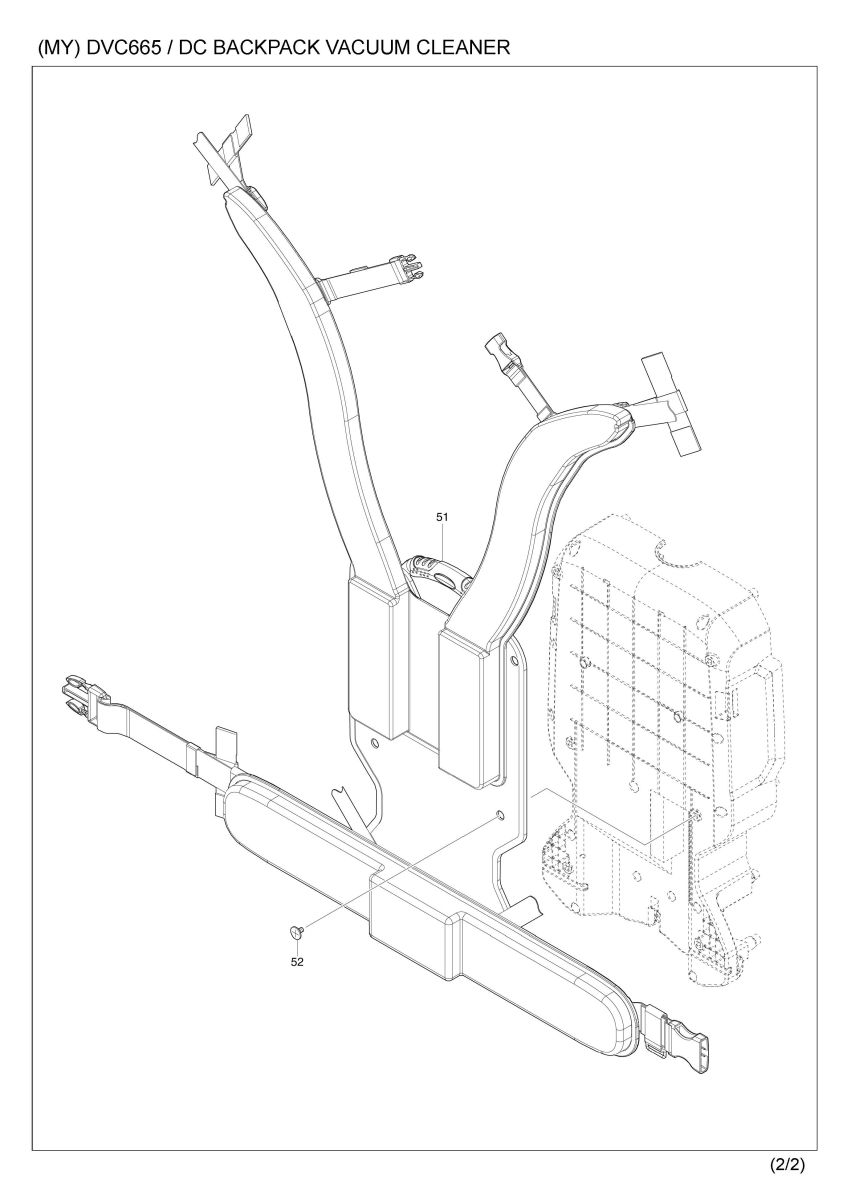

Part Diagram
Total: 109 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 140P98-2 | DUST BOX COVER COMPLETE | 1 | |
| 1 | C10 | 422536-3 | SEAL A | 1 |
| 2 | 123586-8 | LATCH ASSEMBLY | 1 | |
| 3 | 140P92-4 | UPPER HOUSING COMPLETE | 1 | |
| 3 | C10 | 422534-7 | BAND DAMPER D | 1 |
| 3 | C20 | 422550-9 | BAND DAMPER A | 1 |
| 4 | 232389-0 | COMPRESSION SPRING 5 | 1 | |
| 5 | 412268-0 | STOPPER PLATE | 1 | |
| 6 | 135771-1 | INLET ASS'Y | 1 | |
| 6 | D10 | INC. 7 | ||
| 7 | 213655-4 | O RING 56 | 1 | |
| 8 | 191D12-9 | MAIN FILTER H SET | 1 | |
| 9 | 232588-4 | COMPRESSION SPRING 6 | 1 | |
| 10 | 140P99-0 | LEVER 100 COMPLETE | 1 | |
| 11 | 459913-6 | PLATE | 1 | |
| 12 | 234141-2 | COMPRESSION SPRING 12 | 2 | |
| 13 | 232267-4 | LEAF SPRING | 2 | |
| 14 | 687051-6 | STRAIN RELIEF | 1 | |
| 15 | 687123-7 | STRAIN RELIEF | 1 | |
| 16 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 17 | 422376-9 | SUPPORT RING | 1 | |
| 18 | 161804-6 | FAN COVER | 1 | |
| 19 | 252268-6 | HEX. NUT M6 | 1 | |
| 20 | 322407-3 | WASHER 6 | 1 | |
| 21 | 241851-4 | FAN 94 | 1 | |
| 22 | 313062-2 | FLANGE | 1 | |
| 23 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 24 | 456736-3 | FAN BASE | 1 | |
| 25 | 619517-8 | ROTOR | 1 | |
| 025-1 | 619517-8 | ROTOR | 1 | |
| 26 | 629381-9 | STATOR | 1 | |
| 27 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 27 | D10 | INC. 28 | ||
| 28 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 28 | D10 | INC. 27 | ||
| 29 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 30 | 687464-1 | SUPPORT | 1 | |
| 31 | 620526-2 | CONTROLLER B | 1 | |
| 32 | 266786-8 | + PAN HEAD TAPPING SCREW 2X10 | 4 | |
| 33 | 422370-1 | BAND DAMPER C | 1 | |
| 34 | 424837-5 | SUPPORT A | 1 | |
| 35 | 620C53-7 | CONTROLLER | 1 | |
| 36 | 644809-6 | TERMINAL | 2 | |
| 37 | 140P94-0 | LOWER HOUSING COMPLETE | 1 | |
| 37 | C10 | 422535-5 | BAND DAMPER E | 1 |
| 37 | C20 | 422551-7 | BAND DAMPER B | 1 |
| 38 | 856K60-4 | DVC665 NAME PLATE | 1 | |
| 39 | 266326-2 | TAPPING SCREW 4X18 | 13 | |
| 40 | 183K75-1 | SWITCH CASE SET | 1 | |
| 40 | C10 | 818F55-5 | SWITCH LABELA | 1 |
| 40 | C20 | 818F56-3 | SWITCH LABELB | 1 |
| 40 | D10 | INC. 48 | ||
| 41 | 140G18-2 | CAP COMPLETE | 1 | |
| 41 | C10 | 213218-6 | O RING 16 | 1 |
| 41 | C11 | 213A05-9 | O-RING16 | 1 |
| 41 | C20 | 818F57-1 | CAP LABEL | 1 |
| 42 | 458714-9 | SWITCH LEVER | 1 | |
| 43 | 620943-6 | SUB CONTROLLER | 1 | |
| 44 | 632E26-0 | SWITCH UNIT | 1 | |
| 45 | 687123-7 | STRAIN RELIEF | 1 | |
| 46 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 47 | 620949-4 | SWITCH CIRCUIT | 1 | |
| 48 | 183K75-1 | SWITCH CASE SET | 1 | |
| 48 | C10 | 818F55-5 | SWITCH LABELA | 1 |
| 48 | C20 | 818F56-3 | SWITCH LABELB | 1 |
| 48 | D10 | INC. 40 | ||
| 49 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 50 | 699137-4 | POWER SUPPLY CORD UNIT | 1 | |
| 050-1 | 699137-4 | POWER SUPPLY CORD UNIT | 1 | |
| 51 | 162750-6 | HARNESS | 1 | |
| 52 | 265008-3 | + FLAT HEAD SCREW M5 | 6 | |
| A01 | 152992-0 | HOSE COMPLETE 28-1.5 | 1 | |
| A02 | 166116-2 | HOSE BAND | 1 | |
| A03 | 191C26-2 | FILTER BAG SET | 1 | |
| A08 | 417765-1 | FRONT CUFF 22 | 1 | |
| A09 | 424379-9 | FRONT CUFF 24 | 1 | |
| F10 | 192236-6 | TAPERED NOZZLE SET | 1 | |
| F13 | 195545-2 | FRONT CUFF 38 SET | 1 | |
| F14 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F15 | 195547-8 | FRONT CUFF 22 SET | 1 | |
| F16 | 195548-6 | JOINT 22-38 SET | 1 | |
| F17 | 195549-4 | T-NOZZLE ASSY A SET(DRY)38 | 1 | |
| F18 | 195551-7 | T-NOZZLE SET 38 | 1 | |
| F28 | 198184-7 | F/C SWITCHING T-NOZZLE 38 | 1 | |
| F32 | 198533-8 | F/C SWITCHING T-NOZZLE 38 EU | 1 | |
| F33 | 198537-0 | SHELF BRUSH SET28 IVO EU | 1 | |
| F34 | 191496-7 | FLEXIBLE HOSE SET28(IVO) | 1 | |
| F36 | 198552-4 | ROUND BRUSH SET 28 IVO | 1 | |
| F39 | 198560-5 | TELESCOPIC PIPE SET 28 EU | 1 | |
| F42 | 198868-7 | FLEXIBLE HOSE SET28(WHI) | 1 | |
| F44 | 198873-4 | SHELF BRUSH SET28 WHI | 1 | |
| F46 | 198878-4 | ROUND BRUSH SET 28 WHI | 1 | |
| F48 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F51 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F53 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F55 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F56 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F58 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F63 | 199491-1 | CYCLONE ATTACHMENT SET | 1 | |
| F65 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F80-2 | 199393-1 | WIRELESS UNIT SET | 1 | |
| F82 | 191E30-3 | FLEXIBLE HOSE SET(LOCK) | 1 | |
| F84 | 191D80-2 | STRAIGHT PIPE SET 320 | 1 | |
| F86 | 191M77-5 | JOINT A 32 SET | 1 | |
| F87 | 191M78-3 | JOINT B 35 SET | 1 | |
| F88 | 191M79-1 | JOINT C 38 SET | 1 | |
| F89 | 191Y84-0 | DUST BAG SET | 1 | |
| G09 | 1912G4-5 | TELESCOPIC PIPE COMPLETE SET | 1 | |
| G10 | 1912G5-3 | BENT PIPE COMPLETE SET | 1 |
