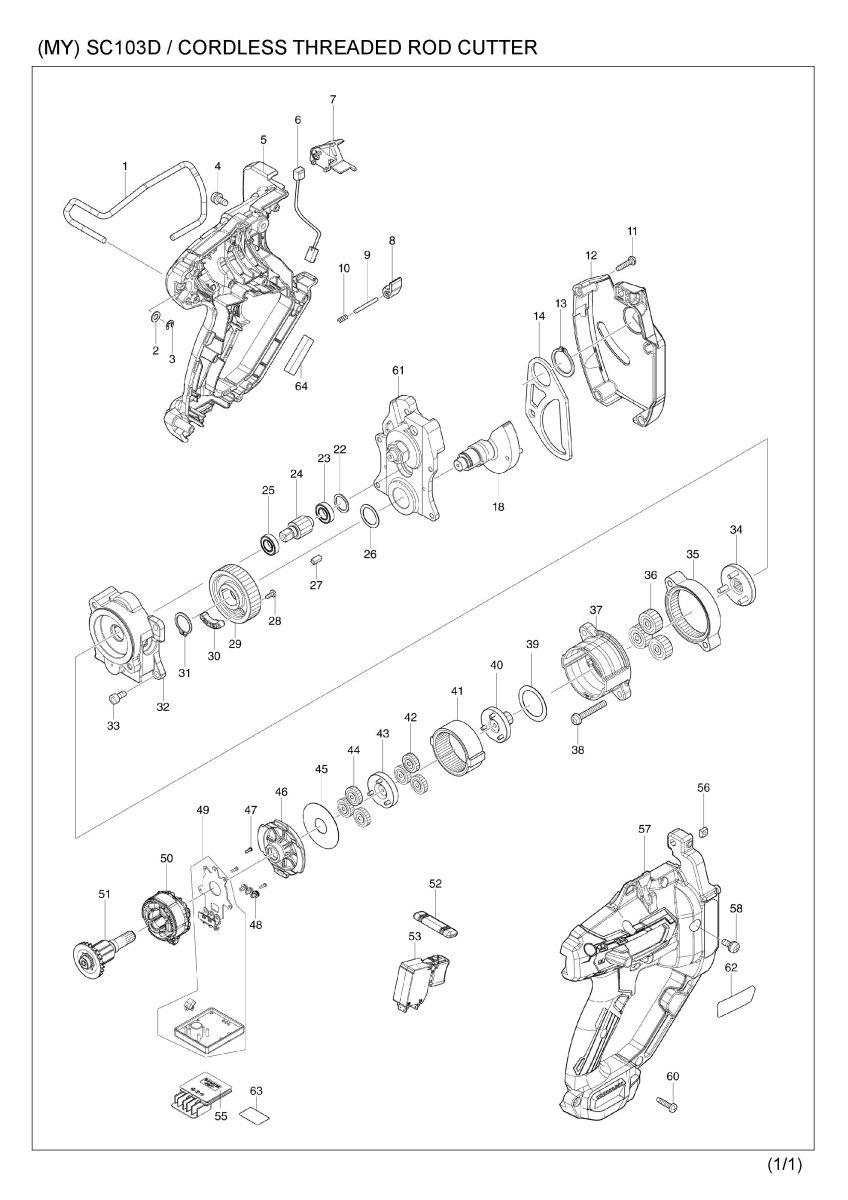

Part Diagram
Total: 78 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 281019-0 | HOOK | 1 | |
| 2 | 941102-2 | FLAT WASHER 5 | 1 | |
| 3 | 961011-9 | STOP RING E-4 | 1 | |
| 4 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | |
| 5 | 183N49-0 | HOUSING SET | 1 | |
| 5 | C10 | 263002-9 | RUBBER PIN 4 | 3 |
| 5 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 5 | C30 | 816U42-8 | INDICATION LABEL | 1 |
| 5 | C40 | 816V02-6 | CAUTION LABEL | 1 |
| 5 | D10 | INC. 57 | ||
| 6 | 620C15-5 | LED CIRCUIT | 1 | |
| 7 | 458373-9 | LED HOLDER | 1 | |
| 8 | 458379-7 | SCREW GUIDE | 1 | |
| 9 | 256267-0 | PIN 3 | 1 | |
| 10 | 231403-9 | COMPRESSION SPRING 3 | 1 | |
| 11 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 12 | 140B24-7 | FRONT COVER COMPLETE | 1 | |
| 12 | C10 | 816U44-4 | CAUTION LABEL | 1 |
| 13 | 961104-2 | RETAINING RING S-24 | 1 | |
| 14 | 347350-5 | RETURN PLATE | 1 | |
| 18 | 144986-9 | CAM COMPLETE | 1 | |
| 22 | 267447-3 | FLAT WASHER 14 | 1 | |
| 23 | 211485-7 | BALL BEARING 6800LLU | 1 | |
| 24 | 226168-6 | SPUR GEAR 10C | 1 | |
| 25 | 211485-7 | BALL BEARING 6800LLU | 1 | |
| 26 | 253409-7 | FLAT WASHER 17 | 1 | |
| 27 | 254202-2 | KEY 4 | 2 | |
| 28 | 265954-0 | TAPPING SCREW BIND PT3X8 | 2 | |
| 29 | 226169-4 | SPUR GEAR 39 | 1 | |
| 30 | 144990-8 | MAGNET HOLDER COMPLETE | 1 | |
| 31 | 961057-5 | RETAINING RING S-17 | 1 | |
| 32 | 144992-4 | GEAR COVER COMLPETE | 1 | |
| 33 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 4 | |
| 34 | 144989-3 | CARRIER COMPLETE | 1 | |
| 35 | 226166-0 | INTERNAL GEAR 48 | 1 | |
| 36 | 226165-2 | SPUR GEAR 19 | 3 | |
| 37 | 458374-7 | GEAR HOUSING | 1 | |
| 38 | 911258-5 | PAN HEAD SCREW M5X35 | 2 | |
| 39 | 253792-2 | FLAT WASHER 26 | 1 | |
| 40 | 144988-5 | SPUR GEAR 9 COMPLETE | 1 | |
| 41 | 226164-4 | INTERNAL GEAR 53 | 1 | |
| 42 | 226163-6 | SPUR GEAR 21 | 3 | |
| 43 | 144987-7 | SPUR GEAR 10B COMPLETE | 1 | |
| 44 | 226163-6 | SPUR GEAR 21 | 3 | |
| 45 | 253410-2 | FLAT WASHER 15 | 1 | |
| 46 | 458375-5 | GEAR HOUSING COVER | 1 | |
| 47 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 48 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 49 | 620C14-7 | CONTROLLER | 1 | |
| 50 | 629448-3 | STATOR | 1 | |
| 51 | 619512-8 | ROTOR | 1 | |
| 52 | 458378-9 | F/R CHANGE LEVER | 1 | |
| 53 | 651367-5 | SWITCH C3JW-2CM | 1 | |
| 55 | 644813-5 | TERMINAL | 1 | |
| 56 | 252173-7 | SQUARE NUT | 1 | |
| 57 | 183N49-0 | HOUSING SET | 1 | |
| 57 | C10 | 263002-9 | RUBBER PIN 4 | 3 |
| 57 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 57 | C30 | 816U42-8 | INDICATION LABEL | 1 |
| 57 | C40 | 816V02-6 | CAUTION LABEL | 1 |
| 57 | D10 | INC. 5 | ||
| 58 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | |
| 60 | 265995-6 | TAPPING SCREW 4X18 | 10 | |
| 61 | 126984-5 | CUTTING ARM ASSEMBLY | 1 | |
| 62 | 856M93-1 | SC103D NAME PLATE | 1 | |
| 63 | 856M99-9 | SC103D SERIAL NO. LABEL | 1 | |
| A01 | 271445-1 | THUMB SCREW M4X10 | 1 | |
| A02 | 415486-9 | DEPTH GAUGE | 1 | |
| A03 | 458380-2 | BLADE COVER | 1 | |
| A04 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A05 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 2 | |
| A06 | 199081-0 | CUTTER BLADE 3/8 SET | 1 | |
| A07 | 199444-0 | CUTTER BLADE 1/4 SET | 1 | |
| A11 | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A11 | C10 | 453974-8 | LATCH | 4 |
| A12 | 835E29-5 | INNER TRAY | 1 | |
| A13 | 8007N2-4 | SC103DZJ PLASTIC CASE LABEL | 2 | |
| A14 | 8007N1-6 | SC103DZJ INDICATION LABEL | 1 |
