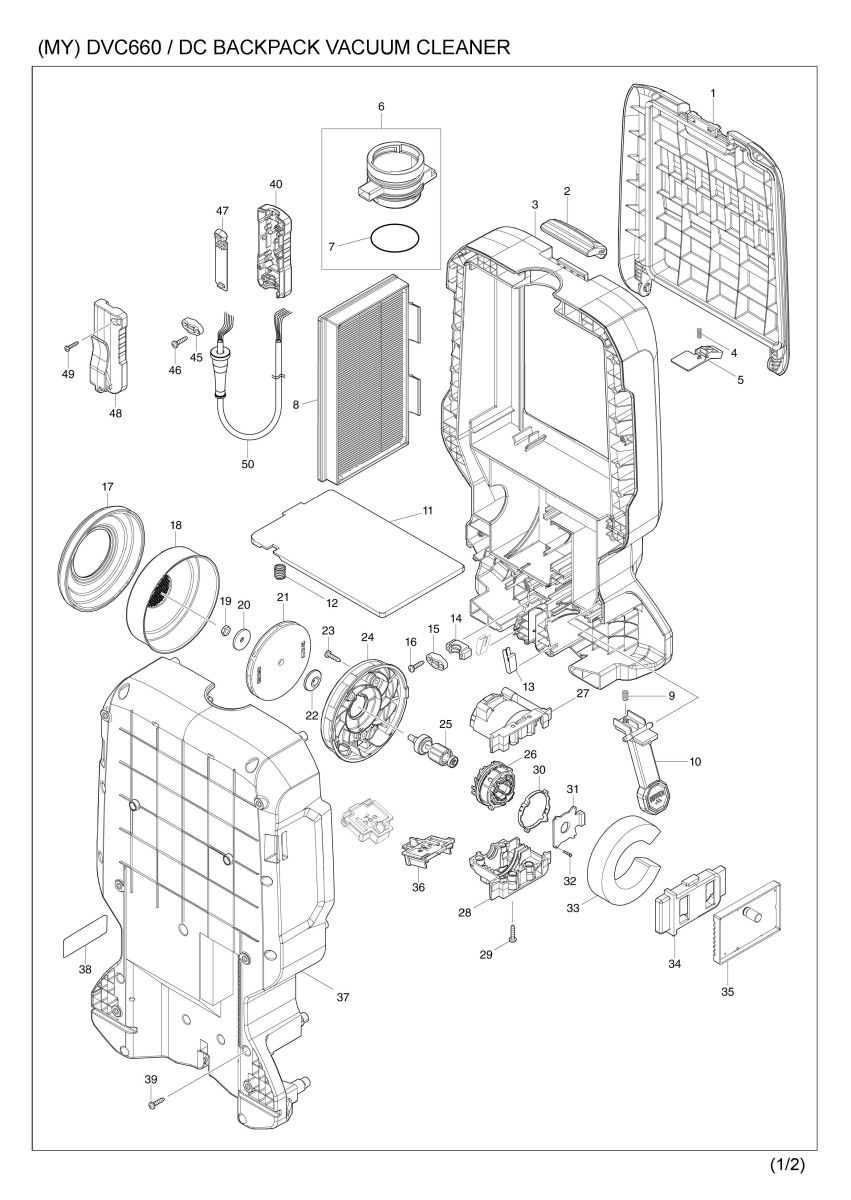

Part Diagram
Total: 67 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 140P97-4 | DUST BOX COVER COMPLETE | 1 | |
| 1 | C10 | 422536-3 | SEAL A | 1 |
| 2 | 127480-6 | LATCH ASSEMBLY | 1 | |
| 3 | 140P91-6 | UPPER HOUSING COMPLETE | 1 | |
| 3 | C10 | 422534-7 | BAND DAMPER D | 1 |
| 3 | C20 | 422550-9 | BAND DAMPER A | 1 |
| 4 | 232389-0 | COMPRESSION SPRING 5 | 1 | |
| 5 | 459912-8 | STOPPER PLATE | 1 | |
| 6 | 135771-1 | INLET ASS'Y | 1 | |
| 6 | D10 | INC. 7 | ||
| 7 | 213655-4 | O RING 56 | 1 | |
| 8 | 191D12-9 | MAIN FILTER H SET | 1 | |
| 9 | 232588-4 | COMPRESSION SPRING 6 | 1 | |
| 10 | 140P99-0 | LEVER 100 COMPLETE | 1 | |
| 11 | 459913-6 | PLATE | 1 | |
| 12 | 234141-2 | COMPRESSION SPRING 12 | 2 | |
| 13 | 232267-4 | LEAF SPRING | 2 | |
| 14 | 687051-6 | STRAIN RELIEF | 1 | |
| 15 | 687123-7 | STRAIN RELIEF | 1 | |
| 16 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 17 | 422376-9 | SUPPORT RING | 1 | |
| 18 | 161804-6 | FAN COVER | 1 | |
| 19 | 252268-6 | HEX. NUT M6 | 1 | |
| 20 | 322407-3 | WASHER 6 | 1 | |
| 21 | 241851-4 | FAN 94 | 1 | |
| 22 | 313062-2 | FLANGE | 1 | |
| 23 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 24 | 456736-3 | FAN BASE | 1 | |
| 25 | 619517-8 | ROTOR | 1 | |
| 26 | 629381-9 | STATOR | 1 | |
| 27 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 27 | D10 | INC. 28 | ||
| 28 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 28 | D10 | INC. 27 | ||
| 29 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 30 | 687464-1 | SUPPORT | 1 | |
| 31 | 620526-2 | CONTROLLER B | 1 | |
| 32 | 266786-8 | + PAN HEAD TAPPING SCREW 2X10 | 4 | |
| 33 | 422370-1 | BAND DAMPER C | 1 | |
| 34 | 424837-5 | SUPPORT A | 1 | |
| 35 | 620C52-9 | CONTROLLER | 1 | |
| 36 | 644809-6 | TERMINAL | 2 | |
| 37 | 140P93-2 | LOWER HOUSING COMPLETE | 1 | |
| 37 | C10 | 422535-5 | BAND DAMPER E | 1 |
| 37 | C20 | 422551-7 | BAND DAMPER B | 1 |
| 38 | 856K43-4 | DVC660 NAME PLATE | 1 | |
| 39 | 266326-2 | TAPPING SCREW 4X18 | 13 | |
| 40 | 183K74-3 | SWITCH CASE SET | 1 | |
| 40 | C10 | 818F86-4 | SWITCH LABEL | 1 |
| 40 | D10 | INC. 48 | ||
| 45 | 687123-7 | STRAIN RELIEF | 1 | |
| 46 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 47 | 620525-4 | SUB CONTROLLER | 1 | |
| 48 | 183K74-3 | SWITCH CASE SET | 1 | |
| 48 | C10 | 818F86-4 | SWITCH LABEL | 1 |
| 48 | D10 | INC. 40 | ||
| 49 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 50 | 699136-6 | POWER SUPPLY CORD UNIT | 1 | |

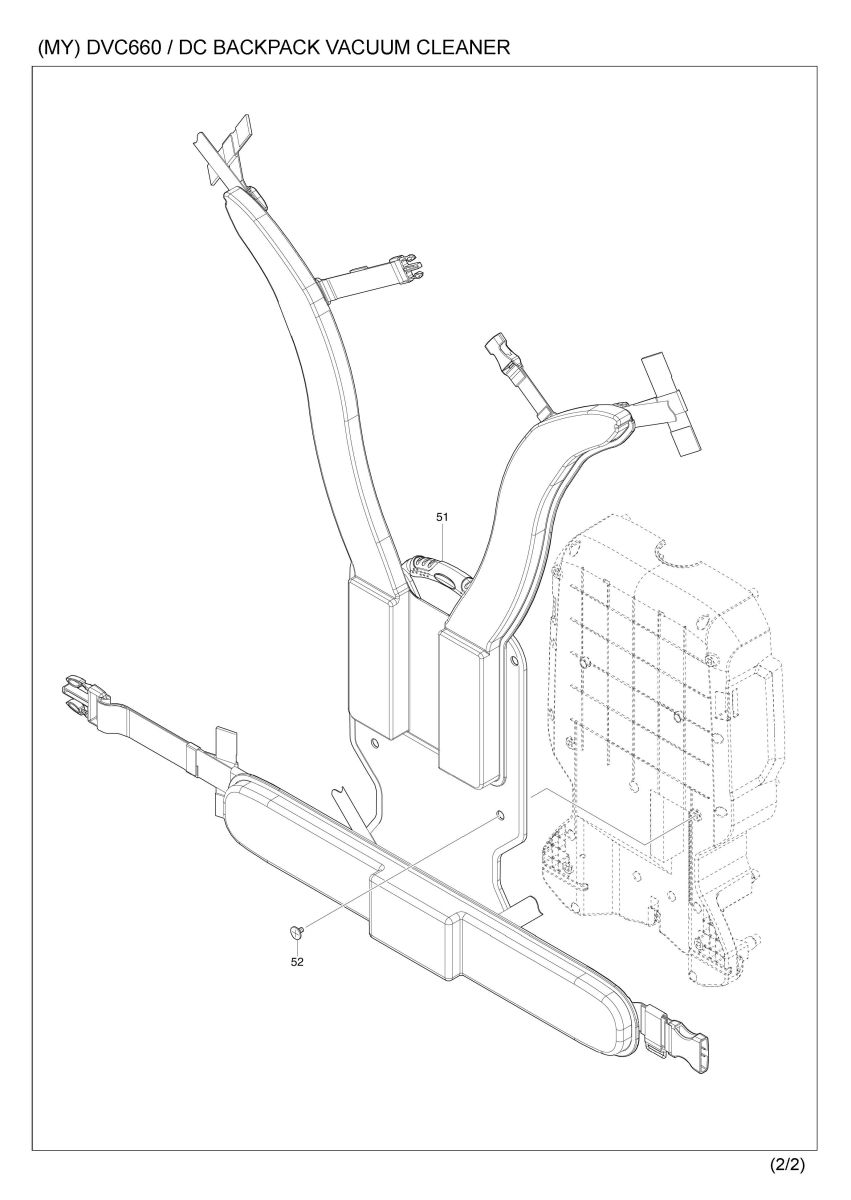

| 51 | 162700-1 | HARNESS | 1 | |
| 52 | 265008-3 | + FLAT HEAD SCREW K5 | 6 | |
| A01 | 199453-9 | HOSE COMPLETE 32-1.0 SET | 1 | |
| A02 | 166116-2 | HOSE BAND | 1 | |
| A03 | 191C26-2 | FILTER BAG SET | 1 | |
| A04 | 197901-2 | FLEXIBLE RUBBER NOZZLE SET EU | 1 | |
| A05 | 127082-8 | NOZZLE ASSEMBLY | 1 | |
| A06 | 140G19-0 | TELESCOPIC PIPE COMPLETE | 1 | |
| A07 | 140G26-3 | BENT PIPE COMPLETE | 1 |
