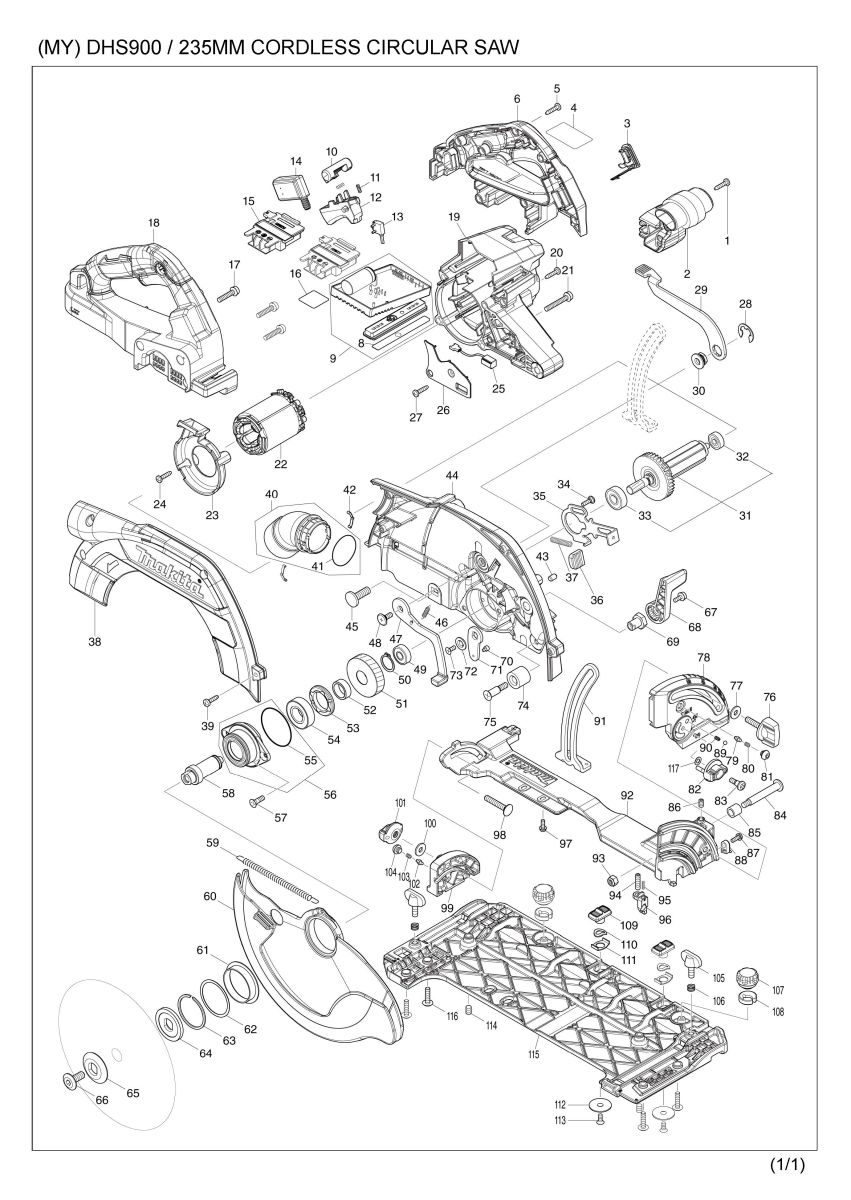

Part Diagram
Total: 168 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 2 | 459828-7 | FRONT GRIP | 1 | |
| 3 | 140F99-0 | CAP COMPLETE | 1 | |
| 3 | C10 | 213218-6 | O RING 16 | 1 |
| 3 | C11 | 213A05-9 | O-RING16 | 1 |
| 3 | C20 | 818H07-8 | CAP LABEL | 1 |
| 4 | 856L73-1 | DHS900 NAME PLATE | 1 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 6 | 183N39-3 | HANDLE SET | 1 | |
| 6 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 6 | D10 | INC. 18 | ||
| 8 | 813T74-0 | INDICATION LABEL | 1 | |
| 9 | 620C59-5 | CONTROLLER COMPLETE | 1 | |
| 9 | D10 | INC. 8 | ||
| 009-1 | 620M35-9 | CONTROLLER COMPLETE | 1 | |
| 009-1 | D10 | INC. 8 | ||
| 10 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 11 | 231433-0 | COMPRESSION SPRING 4 | 2 | |
| 12 | 459829-5 | SWITCH LEVER | 1 | |
| 13 | 632M92-5 | SWITCH UNIT | 1 | |
| 14 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 15 | 643874-2 | TERMINAL | 2 | |
| 16 | 856L79-9 | DHS900 SERIAL NO. LABEL | 1 | |
| 17 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | |
| 18 | 183N39-3 | HANDLE SET | 1 | |
| 18 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 18 | D10 | INC. 6 | ||
| 19 | 459823-7 | MOTOR HOUSING | 1 | |
| 20 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 21 | 911258-5 | PAN HEAD SCREW M5X35 | 4 | |
| 22 | 629462-9 | STATOR | 1 | |
| 022-1 | 629C15-2 | STATOR | 1 | |
| 23 | 459826-1 | BAFFLE PLATE | 1 | |
| 24 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 25 | 620936-3 | LED CIRCUIT | 1 | |
| 26 | 459827-9 | LIGHT COVER | 1 | |
| 27 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 28 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 29 | 271453-2 | LEVER 132 | 1 | |
| 30 | 252262-8 | COLLERED HEX. NUT M8 | 1 | |
| 31 | 519602-6 | ROTOR ASS'Y | 1 | |
| 31 | D10 | INC. 32,33 | ||
| 32 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 33 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 34 | 251529-1 | + PAN HEAD SCREW M4X14 | 1 | |
| 35 | 347575-1 | SHAFT LOCK | 1 | |
| 36 | 286039-9 | CAP | 1 | |
| 37 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 38 | 319860-2 | BLADE CASE COVER | 1 | |
| 39 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | |
| 40 | 136173-4 | DUST NOZZLE ASS'Y | 1 | |
| 40 | D10 | INC. 41 | ||
| 41 | 213444-7 | O RING 30 | 1 | |
| 42 | 232227-6 | LEAF SPRING | 2 | |
| 042-1 | 232674-1 | LEAF SPRING | 2 | |
| 43 | 263005-3 | RUBBER PIN 6 | 1 | |
| 043-1 | 263005-3 | RUBBER PIN 6 | 1 | |
| 44 | 140P83-5 | BLADE CASE COMPLETE | 1 | |
| 44 | C10 | 213434-0 | O RING 26 | 1 |
| 44 | C20 | 8004T1-0 | SCALE LABEL | 1 |
| 044-1 | 140P83-5 | BLADE CASE COMPLETE | 1 | |
| 044-1 | C10 | 213434-0 | O RING 26 | 1 |
| 044-1 | C20 | 8004T1-0 | SCALE LABEL | 1 |
| 044-1 | D10 | INC. 43 | ||
| 45 | 266396-1 | FLATHEAD SQUARENECKBOLT M8X24 | 1 | |
| 46 | 232563-0 | TENSION SPRING 4 | 1 | |
| 47 | 162686-9 | OPEN LEVER | 1 | |
| 48 | 265A60-7 | + PAN HEAD SCREW M5X14 | 1 | |
| 49 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 50 | 961057-5 | RETAINING RING S-17 | 1 | |
| 51 | 226934-1 | HELICAL GEAR 46 | 1 | |
| 52 | 257451-0 | RING 17 | 1 | |
| 53 | 285809-3 | BEARING RETAINER 23-36 | 1 | |
| 54 | 210301-0 | BALL BEARING 6003DDW | 1 | |
| 55 | 213623-7 | O RING 46 | 1 | |
| 56 | 136192-0 | BEARING BOX ASS'Y | 1 | |
| 56 | D10 | INC. 55 | ||
| 57 | 265034-2 | + COUNTERSUNK HEAD SCREW M5X1 | 2 | |
| 58 | 327192-3 | SPINDLE | 1 | |
| 59 | 232562-2 | TENSION SPRING 6 | 1 | |
| 60 | 319861-0 | SAFETY COVER | 1 | |
| 61 | 459830-0 | SPACER | 1 | |
| 62 | 267337-0 | FLAT WASHER 40 | 1 | |
| 63 | 257452-8 | RETAINING RING (EXT) WR-40 | 1 | |
| 64 | 224609-6 | INNER FLANGE 38 | 1 | |
| 65 | 224600-4 | OUTER FLANGE 38 | 1 | |
| 66 | 265A59-2 | HEX.SOCKET HEAD BOLT M8 | 1 | |
| 67 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 68 | 271451-6 | LEVER 55 | 1 | |
| 69 | 252275-9 | HEX. NUT M4-16 | 1 | |
| 70 | 265A82-7 | HEX. SOCKET HEAD SCREW M3X4 | 1 | |
| 71 | 347576-9 | OPEN PLATE | 1 | |
| 72 | 347577-7 | WASHER 6 | 1 | |
| 73 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 | |
| 74 | 262185-2 | RUBBER SLEEVE8 | 1 | |
| 75 | 251572-0 | + COUNTERSUNK HEAD SCREW M6X3 | 1 | |
| 76 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 77 | 253111-2 | FLAT WASHER 6 | 1 | |
| 78 | 319865-2 | FRONT ANGULAR PLATE | 1 | |
| 79 | 263041-9 | SHOULDER PIN 3-5 | 1 | |
| 80 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | |
| 81 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 82 | 450704-8 | DIAL 27 | 1 | |
| 83 | 251370-2 | + PAN HEAD SCREW M5 | 1 | |
| 84 | 251528-3 | + PAN HEAD SCREW M6 | 1 | |
| 85 | 257580-9 | SLEEVE 8 | 1 | |
| 86 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 87 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 88 | 419632-6 | POSITION PLATE | 1 | |
| 89 | 216008-6 | STEEL BALL 4 | 1 | |
| 90 | 233314-4 | COMPRESSION SPRING 4 | 1 | |
| 91 | 347574-3 | DEPTH GUIDE | 1 | |
| 92 | 140P89-3 | FRAME COMPLETE | 1 | |
| 92 | C10 | 233025-1 | COMPRESSION SPRING 2 | 2 |
| 92 | C20 | 259008-3 | PUSH NUT 4 | 2 |
| 92 | C30 | 286041-2 | CAP 14 | 2 |
| 92 | C40 | 345747-2 | SPACER PLATE | 2 |
| 92 | C50 | 347392-9 | PLATE | 2 |
| 93 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | |
| 94 | 265A83-5 | H.S.SET SCREW(FLAT POINT)M5X20 | 1 | |
| 95 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 96 | 412210-1 | SLIDER | 1 | |
| 97 | 265A84-3 | PAN HEAD SCREW M4X12 WITH WR | 2 | |
| 98 | 266332-7 | R.H SQUARE NECK BOLT M6X35 | 1 | |
| 99 | 319866-0 | REAR ANGULAR PLATE | 1 | |
| 100 | 253111-2 | FLAT WASHER 6 | 1 | |
| 101 | 252270-9 | THUMB NUT M6 | 1 | |
| 102 | 263041-9 | SHOULDER PIN 3-5 | 1 | |
| 103 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | |
| 104 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 105 | 265701-9 | THUMB SCREW M6X14 | 2 | |
| 106 | 233376-2 | COMPRESSION SPRING 8 | 2 | |
| 107 | 265775-0 | THUMB SCREW M4X3 | 2 | |
| 108 | 419627-9 | HOLDER | 2 | |
| 109 | 458092-7 | SLIDE LEVER | 2 | |
| 110 | 253932-2 | WAVE WASHER 10 | 2 | |
| 111 | 345977-5 | PLATE | 2 | |
| 112 | 345748-0 | LOCK WASHER | 2 | |
| 113 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 114 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 2 | |
| 115 | 319862-8 | BASE | 1 | |
| 116 | 265181-9 | +TRUSS HEAD SCREW M5X20 | 4 | |
| 117 | 253811-4 | FLAT WASHER 5 | 1 | |
| 118 | 620L68-8 | CONTROLLER B | 1 | |
| 119 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 162687-7 | SUB BASE | 1 | |
| A02 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A03 | E-01959 | TCT BLADE 235X24T WOOD EFFICUT | 1 | |
| A05B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A07B | 821797-6 | PLASTIC CASE | 1 | |
| A07B | C10 | 162271-8 | LATCH | 2 |
| A07B | C20 | 453229-1 | THUMB SCREW M12X8 | 1 |
| A08B | 8006H9-2 | DHS900PT2 PLASTIC CASE LABEL | 2 | |
| F02 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F03 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F05 | 194416-0 | SHEET 10000 SET | 1 | |
| F06 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F07 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F09 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F11 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F13 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F14 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F16 | 198885-7 | GUIDE RAIL CONNECTOR SET(EU) | 1 | |
| F17 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F18 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 |
