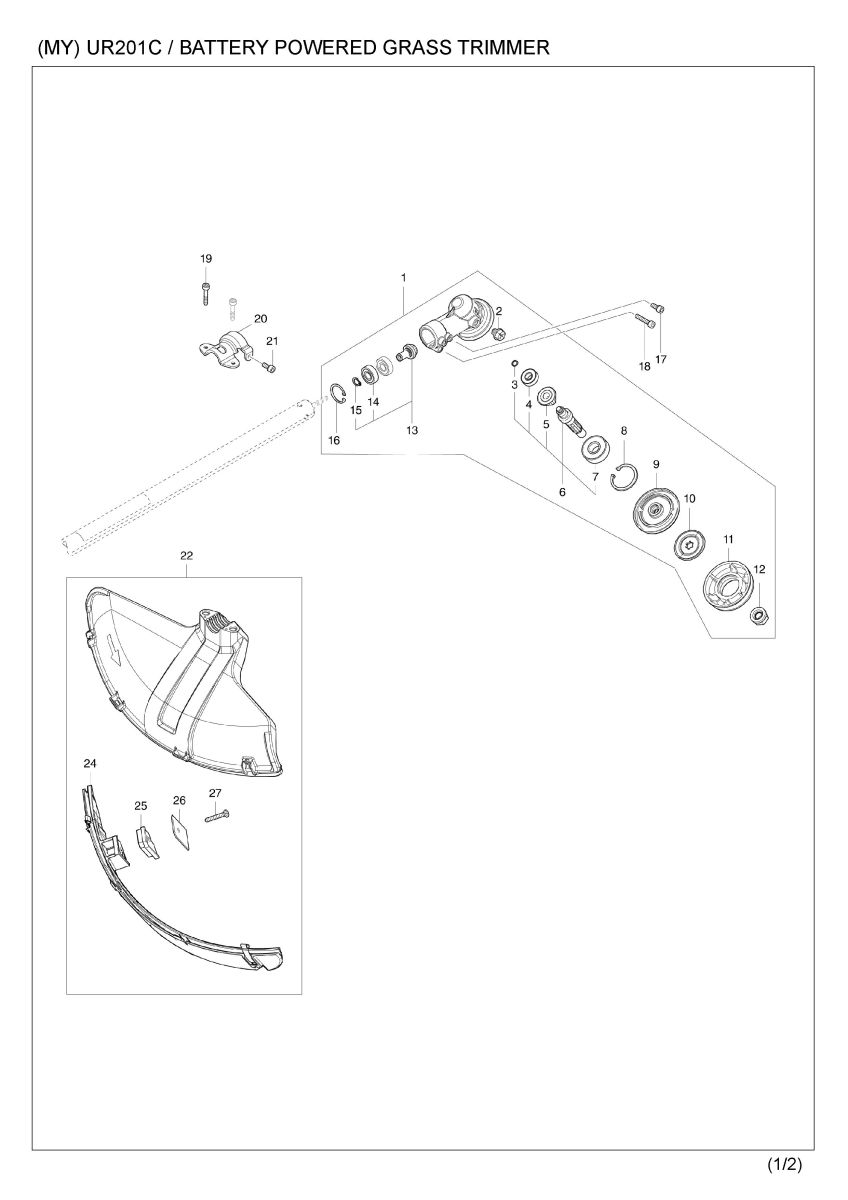

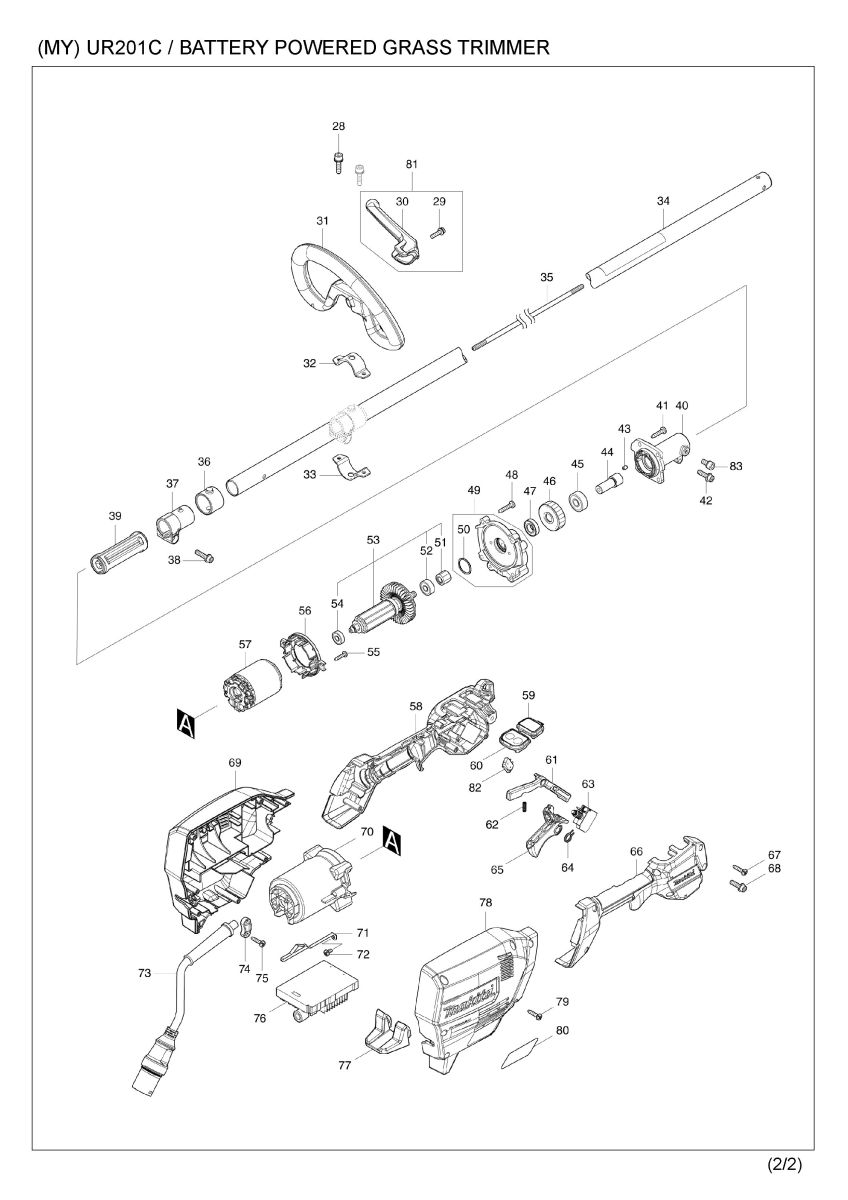

Part Diagram
Total: 126 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 123853-1 | GEAR CASE ASSEMBLY | 1 | |
| 001 | D10 | INC. 2,6,8-13,16 | ||
| 002 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | |
| 003 | 232350-7 | RING SPRING 6 | 1 | |
| 004 | 210030-5 | BALL BEARING 627ZZ | 1 | |
| 005 | 221484-1 | SPIRAL BEVEL GEAR 19 | 1 | |
| 006 | 136233-2 | CUTTER SHAFT ASS'Y | 1 | |
| 006 | D10 | INC. 3-5,7 | ||
| 007 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 008 | 257432-4 | RETAINING RING R-35 | 1 | |
| 009 | 144312-2 | RECEIVE WASHER COMPLETE | 1 | |
| 010 | 347104-0 | CLAMP WASHER | 1 | |
| 011 | 457274-8 | CUP US | 1 | |
| 012 | 252236-9 | HEX. LOCK NUT M10-17 | 1 | |
| 013 | 136235-8 | SPIRAL BEVEL GEAR ASS'Y | 1 | |
| 013 | D10 | INC. 14,15 | ||
| 014 | 210049-4 | BALL BEARING 609ZZ | 2 | |
| 015 | 257986-1 | RETAINING RING (EXT) S-9 | 1 | |
| 016 | 257987-9 | RETAINING RING (INT)R-24 | 1 | |
| 017 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 018 | 922242-5 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 019 | 251513-6 | H.S.H.BOLT M5X25 | 2 | |
| 020 | 347107-4 | PROTECTOR CLAMP 24 | 1 | |
| 021 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 022 | 191B54-1 | PROTECTOR U 430 SET MG | 1 | |
| 022 | D10 | INC. 24-27 | ||
| 024 | 144316-4 | PROTECTOR U EXT. 420-450 COMP | 1 | |
| 024 | C10 | 346696-6 | HOOK | 2 |
| 024 | C20 | 232284-4 | LEAF SPRING | 2 |
| 025 | 459765-5 | CUTTER EXTENSION | 1 | |
| 026 | 347115-5 | CUTTER | 1 | |
| 027 | 266459-3 | TAPPING SCREW 5X25 | 1 | |
| 028 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 029 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 030 | 457268-3 | BARRIER | 1 | |
| 031 | 457267-5 | LOOP HANDLE | 1 | |
| 031 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 032 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 033 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 034 | 140S82-5 | SHAFT PIPE COMPLETE I | 1 | |
| 034 | C10 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 034 | C20 | 819J22-7 | CAUTION LABEL | 1 |
| 035 | 327056-1 | SHAFT | 1 | |
| 036 | 424942-8 | DAMPER | 1 | |
| 037 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 038 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 039 | 451601-1 | SPACER 24 | 1 | |
| 040 | 319919-5 | PIPE BRACKET | 1 | |
| 041 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 042 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 043 | 263002-9 | RUBBER PIN 4 | 1 | |
| 044 | 325811-5 | SPINDLE HUB | 1 | |
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 046 | 226931-7 | HELICAL GEAR 29 | 1 | |
| 047 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 048 | 266459-3 | TAPPING SCREW 5X25 | 4 | |
| 049 | 136231-6 | GEAR BOX ASS'Y | 1 | |
| 049 | D10 | INC. 50 | ||
| 050 | 213961-7 | O RING 22 | 1 | |
| 051 | 226932-5 | HELICAL GEAR 10 | 1 | |
| 052 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 053 | 519587-6 | ROTOR ASS'Y | 1 | |
| 053 | D10 | INC. 51,52,54 | ||
| 054 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 055 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 056 | 459764-7 | BAFFLE PLATE | 1 | |
| 057 | 629471-8 | STATOR | 1 | |
| 057-1 | 629C13-6 | STATOR | 1 | |
| 058 | 183N26-2 | GRIP SET | 1 | |
| 058 | D10 | INC. 66 | ||
| 059 | 140K36-4 | INDICATION CIRCUIT COMPLETE G | 1 | |
| 060 | 140W06-5 | SWITCH CIRCUIT COMPLETE G | 1 | |
| 060 | C10 | 819J26-9 | SWITCH LABEL | 1 |
| 061 | 459759-0 | LOCK OFF LEVER | 1 | |
| 062 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 063 | 651436-2 | SWITCH C3JW-1A-P-2 | 1 | |
| 064 | 233622-3 | TORSION SPRING 12 | 1 | |
| 065 | 459758-2 | SWITCH LEVER | 1 | |
| 066 | 183N26-2 | GRIP SET | 1 | |
| 066 | D10 | INC. 58 | ||
| 067 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 068 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 069 | 183N70-9 | HOUSING SET | 1 | |
| 069 | D10 | INC. 78 | ||
| 070 | 459763-9 | MOTOR HOUSING | 1 | |
| 073 | 699147-1 | POWER SUPPLY CORD UNIT | 1 | |
| 074 | 687149-9 | STRAIN RELIEF | 1 | |
| 075 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 076 | 620C68-4 | CONTROLLER | 1 | |
| 077 | 422609-2 | GUARD | 1 | |
| 078 | 183N70-9 | HOUSING SET | 1 | |
| 078 | D10 | INC. 69 | ||
| 079 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 080 | 856S17-3 | UR201C NAME PLATE | 1 | |
| 081 | 144315-6 | BARRIER COMPLETE | 1 | |
| 081 | D10 | INC. 29,30 | ||
| 083 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 083-1 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 084 | 638A31-1 | LEAD UNIT | 1 | |
| 085 | 620L68-8 | CONTROLLER B | 1 | |
| 086 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 782238-6 | BOX WRENCH 17 | 1 | |
| A02 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A03 | 197243-4 | BAND ASSEMBLY SET | 1 | |
| A04 | 831304-7 | ACCESSORY BAG | 1 | |
| A05 | 198345-9 | CUTTER BLADE 255-2 SET ME | 1 | |
| A06 | 144392-8 | TOOL COVER 2T | 1 | |
| A07 | 197804-0 | TRIMMER HEAD 95-M10L SET M | 1 | |
| A08 | 198384-9 | PLASTIC BLADE 255 SET M | 1 | |
| A08-1 | 126642-3 | PLASTIC BLADE ASSEMBLY255-M10L | 1 | |
| A09 | 195246-2 | SAFETY GOGGLE | 1 | |
| F09 | 197472-9 | NYLON CORD 2.0-15M SET | 1 | |
| F10 | 197473-7 | NYLON CORD 2.0-30M SET | 1 | |
| F11 | 197474-5 | NYLON CORD 2.0-160M SET | 1 | |
| F12 | 197475-3 | NYLON CORD 2.0-280M SET | 1 | |
| F15 | 198266-5 | TRIMMER HEAD 110-M10L SET ME | 1 | |
| F20 | 198502-9 | NYLON CORD 2.4-30M SET | 1 | |
| F21 | 198503-7 | NYLON CORD 2.4-120M SET | 1 | |
| F22 | 198504-5 | NYLON CORD 2.4-180M SET | 1 | |
| F24-1 | 199450-5 | GREASE VESSEL SET | 1 | |
| F26 | 199868-0 | PLASTIC BLADE 305 SET MG | 1 | |
| F27 | 199870-3 | PLASTIC BLADE 305 BLADE SET MG | 1 | |
| F45 | 1915D7-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F46 | 1914R6-0 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 |
