Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 459798-0 | END NOZZLE 72 | 1 | |
| 001-1 | 183R01-2 | END NOZZLE 72 SET | 1 | |
| 2 | 127501-4 | PIPE 90-72 ASSEMBLY | 1 | |
| 2 | C10 | 265A67-3 | H.S.H.SHOULDER BOLT M5X38 | 1 |
| 002-1 | 183R06-2 | PIPE 90-72 ASSEMBLY SET | 1 | |
| 002-1 | C10 | 265A67-3 | H.S.H.SHOULDER BOLT M5X38 | 1 |
| 3 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 4 | 459790-6 | SWITCH COVER | 1 | |
| 5 | 459793-0 | PUSHER A | 1 | |
| 6 | 233118-4 | COMPRESSION SPRING 4 | 1 | |
| 7 | 632L94-5 | SWITCH UNIT | 1 | |
| 8 | 127424-6 | FAN COVER ASSEMBLY | 1 | |
| 8 | C10 | 265A66-5 | H.S.H.SHOULDER BOLT M5X32 | 1 |
| 9 | 232600-0 | TORSION SPRING 8 | 1 | |
| 10 | 856S45-8 | DUB363 NAME PLATE | 1 | |
| 11 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 12 | 459784-1 | VOLUTE CASE R | 1 | |
| 13 | 252154-1 | HEX. NUT M8-13 | 1 | |
| 14 | 347570-1 | SHREDDER | 1 | |
| 15 | 240204-4 | FAN 180 | 1 | |
| 16 | 140S59-0 | VOLUTE CASE L COMPLETE | 1 | |
| 16 | C10 | 8011Y4-4 | CAUTION LABEL | 1 |
| 016-1 | 141R96-1 | VOLUTE CASE L COMPLETE | 1 | |
| 016-1 | C10 | 8011Y4-4 | CAUTION LABEL | 1 |
| 016-2 | 141U48-0 | VOLUTE CASE L COMPLETE | 1 | |
| 016-2 | C10 | 8011Y4-4 | CAUTION LABEL | 1 |
| 016-2 | C20 | 8072S8-8 | CAUTION LABEL | 1 |
| 016-3 | 141U48-0 | VOLUTE CASE L COMPLETE | 1 | |
| 016-3 | C10 | 8012T7-9 | CAUTION LABEL | 1 |
| 016-3 | C20 | 8072S8-8 | CAUTION LABEL | 1 |
| 17 | 347718-5 | EARTH PLATE | 1 | |
| 18 | 140S58-2 | CONTROLLER COMPLETE | 1 | |
| 18 | C10 | 8007N9-0 | SWITCH LABEL | 1 |
| 19 | 459794-8 | PUSHER B | 1 | |
| 20 | 233118-4 | COMPRESSION SPRING 4 | 1 | |
| 21 | 632L94-5 | SWITCH UNIT | 1 | |
| 22 | 644809-6 | TERMINAL | 2 | |
| 24 | 856S53-9 | DUB363 SERIAL NO. LABEL | 1 | |
| 25 | 459791-4 | SWITCH LEVER | 1 | |
| 26 | 651438-8 | SWITCH C3JW-6B-PAN | 1 | |
| 27 | 266127-8 | + TAPPING SCREW PT 3X20 | 1 | |
| 28 | 459698-4 | LINK | 1 | |
| 29 | 213154-6 | O RING 14 | 1 | |
| 30 | 652008-6 | PAN HEAD SCREW M3.5X7 | 1 | |
| 31 | 459792-2 | CONTROL LEVER | 1 | |
| 32 | 459788-3 | GRIP L | 1 | |
| 33 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 34 | 632P80-0 | LEAD UNIT | 1 | |
| 35 | 962105-3 | RETAINING RING R-26 | 1 | |
| 36 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 37 | 629473-4 | STATOR COMPLETE | 1 | |
| 38 | 619609-3 | ROTOR | 1 | |
| 39 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 40 | 459789-1 | MOTOR HOUSING | 1 | |
| 41 | 140N74-4 | MOTOR COVER COMPLETE | 1 | |
| 41 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 42 | 911253-5 | PAN HEAD SCREW M5X30 | 3 | |
| 43 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | |
| 44 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 45 | 266351-3 | TAPPING SCREW 4X35 | 2 | |
| 46 | 459787-5 | SUB HANDLE | 1 | |
| 046-1 | 413738-2 | SUB HANDLE | 1 | |

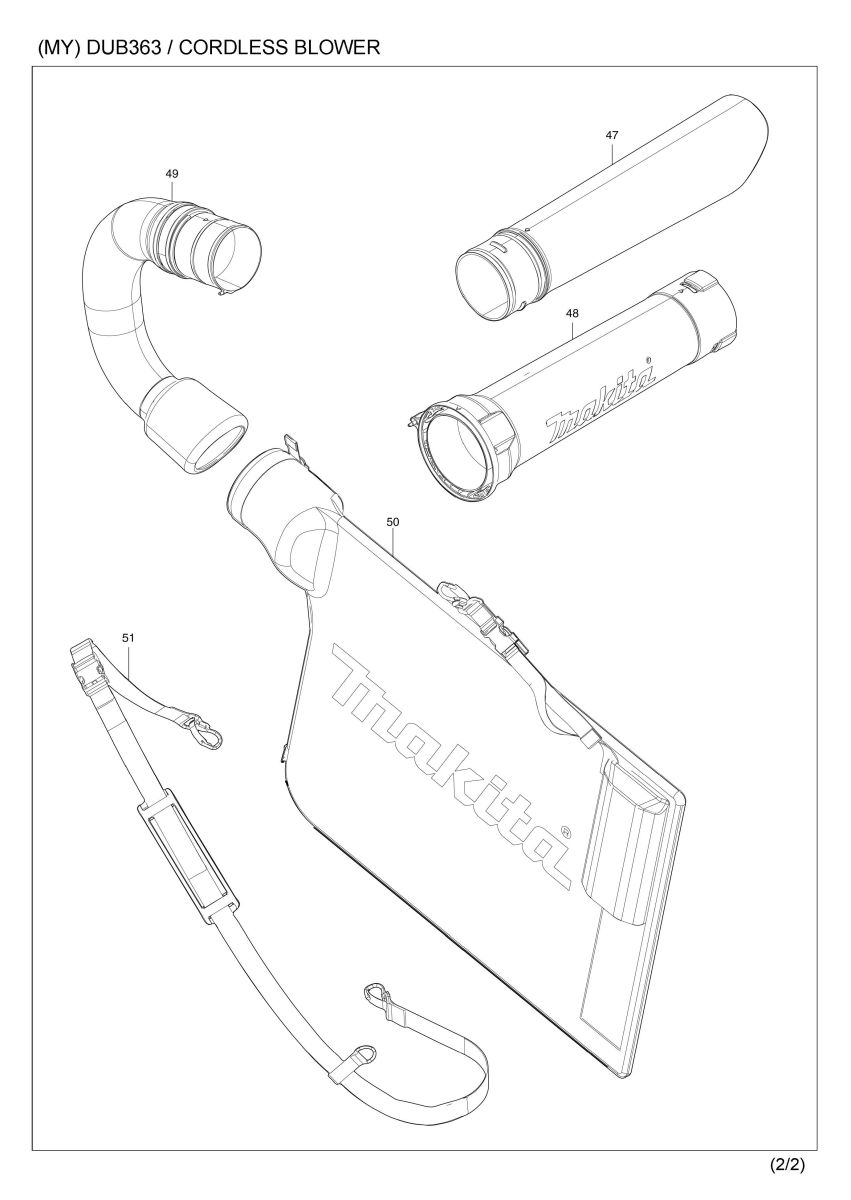

| 47 | 459800-9 | VACUUM PIPE B | 1 | |
| 047-1 | 183R08-8 | VACUUM PIPE B SET | 1 | |
| 48 | 127425-4 | VACUUM PIPE A ASSEMBLY | 1 | |
| 48 | C10 | 265A66-5 | H.S.H.SHOULDER BOLT M5X32 | 1 |
| 048-1 | 183R04-6 | VACUUM PIPE A ASSEMBLY SET | 1 | |
| 048-1 | C10 | 265A66-5 | H.S.H.SHOULDER BOLT M5X32 | 1 |
| 49 | 127502-2 | BENT PIPE 90 ASSMBLY | 1 | |
| 49 | C10 | 265A67-3 | H.S.H.SHOULDER BOLT M5X38 | 1 |
| 50 | 162697-4 | DUST BAG | 1 | |
| 050-1 | 162988-3 | DUST BAG | 1 | |
| 51 | 162698-2 | BAND 30 COMPLETE | 1 | |
| A01 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A03B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A04B | 197280-8 | BATTERY BL1850B SET | 2 | |
| F01-1 | 191P37-5 | VACUUM KIT SET | 1 | |
| F02 | 197888-8 | EXTENSION NOZZLE SET | 1 | |
| F03 | 197889-6 | FLAT NOZZLE SET | 1 | |
| F04 | 191P40-6 | DUST BAG SET | 1 | |
| F05 | 191J13-3 | ADAPTER PIPE 71 SET | 1 | |
| F06 | 191B03-8 | GUTTER NOZZLE SET | 1 | |
| F06 | C10 | 459816-4 | EXTENSION PIPE 72 | 3 |
| F06 | C20 | 162790-4 | END NOZZLE COMPLETE | 1 |
| F06 | C30 | 281030-2 | HOSE CLAMP 75-90 | 2 |
| F06 | C40 | 281031-0 | HOSE CLAMP 85-100 | 1 |
