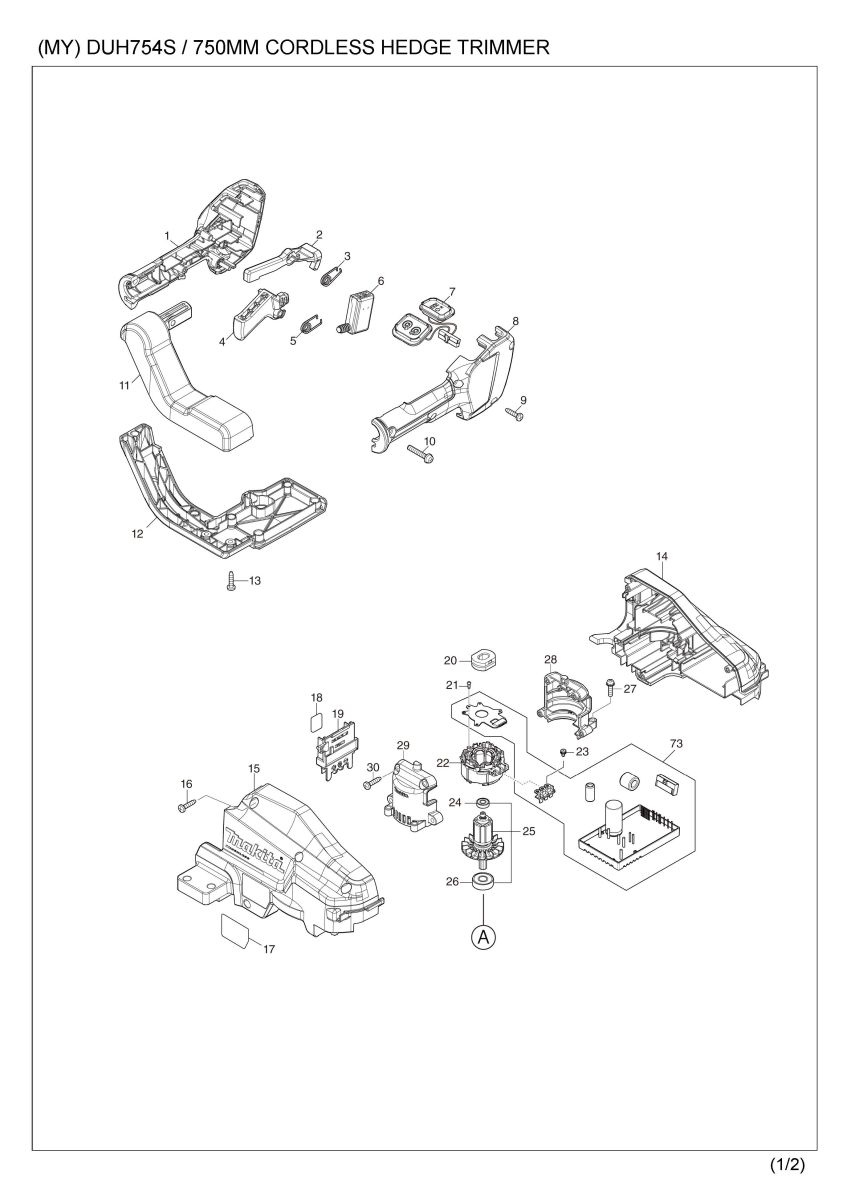

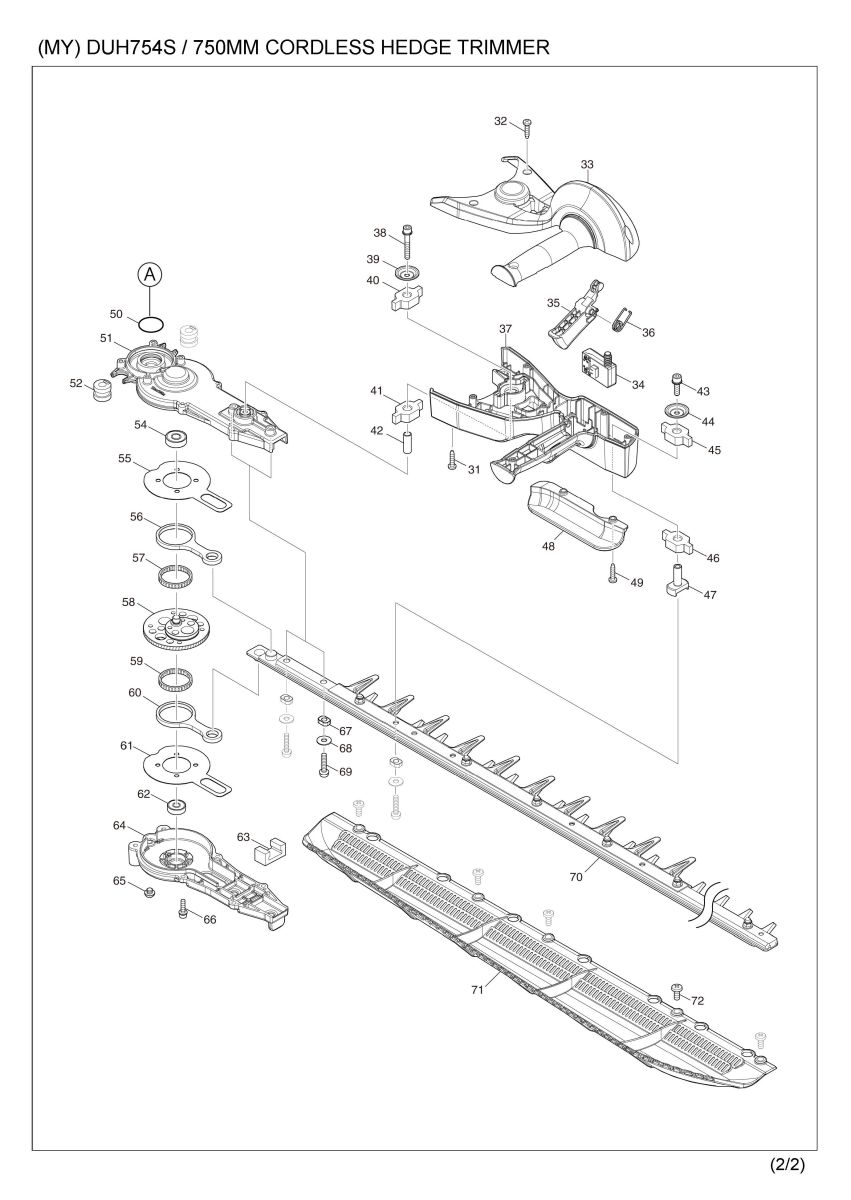

Part Diagram
Total: 129 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183N66-0 | GRIP SET | 1 | |
| 1 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 |
| 1 | D10 | INC. 8 | ||
| 2 | 455629-1 | LOCK OFF LEVER | 1 | |
| 002-1 | 413Y35-6 | LOCK OFF LEVER | 1 | |
| 3 | 233621-5 | TORSION SPRING 9 | 1 | |
| 4 | 412315-7 | SWITCH LEVER R | 1 | |
| 5 | 233621-5 | TORSION SPRING 9 | 1 | |
| 6 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 7 | 140S92-2 | SUB CONTROLLER COMPLETE | 1 | |
| 7 | C10 | 8008M5-7 | SWITCH LABEL | 1 |
| 7 | C20 | 8008M7-3 | INDICATION LABEL | 1 |
| 8 | 183N66-0 | GRIP SET | 1 | |
| 8 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 |
| 8 | D10 | INC. 1 | ||
| 9 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 10 | 911253-5 | PAN HEAD SCREW M5X30 | 1 | |
| 11 | 412311-5 | GRIP JOINT COVER | 1 | |
| 12 | 412310-7 | GRIP JOINT | 1 | |
| 13 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 14 | 183N69-4 | HOUSING SET | 1 | |
| 14 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 14 | C20 | 424344-8 | DAMPER | 4 |
| 14 | D10 | INC. 15 | ||
| 15 | 183N69-4 | HOUSING SET | 1 | |
| 15 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 15 | C20 | 424344-8 | DAMPER | 4 |
| 15 | D10 | INC. 14 | ||
| 16 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 17 | 856R38-9 | DUH754S NAME PLATE | 1 | |
| 18 | 856R41-0 | DUH754S SERIAL NO. LABEL | 1 | |
| 19 | 643874-2 | TERMINAL | 1 | |
| 20 | 422261-6 | RUBBER SLEEVE | 1 | |
| 21 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 22 | 629352-6 | STATOR | 1 | |
| 23 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 24 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 25 | 510448-3 | ROTOR ASSY | 1 | |
| 25 | D10 | INC. 24,26 | ||
| 26 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 27 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | |
| 28 | 183L66-8 | MOTOR HOUSING SET | 1 | |
| 28 | D10 | INC. 29 | ||
| 028-1 | 183L66-8 | MOTOR HOUSING SET | 1 | |
| 028-1 | D10 | INC. 29 | ||
| 29 | 183L66-8 | MOTOR HOUSING SET | 1 | |
| 29 | D10 | INC. 28 | ||
| 029-1 | 183L66-8 | MOTOR HOUSING SET | 1 | |
| 029-1 | D10 | INC. 28 | ||
| 30 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 31 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 32 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 33 | 183P30-3 | FRONT GRIP SET | 1 | |
| 33 | C10 | 8008M9-9 | CAUTION LABEL | 1 |
| 33 | D10 | INC. 37 | ||
| 033-1 | 1830Y0-1 | FRONT GRIP SET | 1 | |
| 033-1 | C10 | 8074L5-7 | CAUTION LABEL | 1 |
| 033-1 | D10 | INC. 37 | ||
| 34 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 35 | 412316-5 | SWITCH LEVER F | 1 | |
| 36 | 233621-5 | TORSION SPRING 9 | 1 | |
| 37 | 183P30-3 | FRONT GRIP SET | 1 | |
| 37 | C10 | 8008M9-9 | CAUTION LABEL | 1 |
| 37 | D10 | INC. 33 | ||
| 037-1 | 1830Y0-1 | FRONT GRIP SET | 1 | |
| 037-1 | C10 | 8074L5-7 | CAUTION LABEL | 1 |
| 037-1 | D10 | INC. 33 | ||
| 38 | 251476-6 | H.S.H.BOLT M5X35 WITH WR | 1 | |
| 038-1 | 265D13-4 | H.S.H.BOLT M5X35 WITH WRM | 1 | |
| 39 | 253416-0 | DISH WASHER 5 | 1 | |
| 40 | 422260-8 | RUBBER SLEEVE 8 | 1 | |
| 41 | 422260-8 | RUBBER SLEEVE 8 | 1 | |
| 42 | 257678-2 | SLEEVE 6 | 1 | |
| 43 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | |
| 44 | 253416-0 | DISH WASHER 5 | 1 | |
| 45 | 422260-8 | RUBBER SLEEVE 8 | 1 | |
| 46 | 422260-8 | RUBBER SLEEVE 8 | 1 | |
| 47 | 327535-9 | CONNECTOR | 1 | |
| 48 | 412317-3 | LOWER GUARD | 1 | |
| 49 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 50 | 213961-7 | O RING 22 | 1 | |
| 51 | 140S12-6 | GEAR HOUSING COMPLETE | 1 | |
| 51 | C10 | 424344-8 | DAMPER | 1 |
| 051-1 | 140S12-6 | GEAR HOUSING COMPLETE | 1 | |
| 051-1 | C10 | 424344-8 | DAMPER | 1 |
| 52 | 422259-3 | RUBBER SLEEVE 8 | 2 | |
| 54 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 054-1 | 210223-4 | BALL BEARING 608ZZ | 1 | |
| 55 | 347361-0 | FRICTION PLATE | 1 | |
| 56 | 347662-6 | CONNECTING ROD | 1 | |
| 57 | 212229-8 | NEEDLE CAGE 315 | 1 | |
| 58 | 140R63-3 | GEAR COMPLETE | 1 | |
| 59 | 212229-8 | NEEDLE CAGE 315 | 1 | |
| 60 | 347662-6 | CONNECTING ROD | 1 | |
| 61 | 347361-0 | FRICTION PLATE | 1 | |
| 62 | 211499-6 | BALL BEARING 626ZZ | 1 | |
| 63 | 443159-4 | SEAL | 1 | |
| 64 | 140B62-9 | GEAR HOUSING COVER COMPLETE | 1 | |
| 064-1 | 140B62-9 | GEAR HOUSING COVER COMPLETE | 1 | |
| 65 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 66 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | |
| 67 | 310983-9 | SLEEVE 5 | 3 | |
| 68 | 253804-1 | FLAT WASHER 6 | 3 | |
| 69 | 265182-7 | + PAN HEAD SCREW M5X25 | 3 | |
| 069-1 | 265B66-1 | + PAN HEAD SCREW M5X25 WITH WR | 3 | |
| 70 | 191D39-9 | SHEAR BLADE ASSEMBLY 750 SET | 1 | |
| 70 | C10 | 188605-7 | OIL VESSEL SET | 1 |
| 70 | C20 | 310983-9 | SLEEVE 5 | 8 |
| 70 | D10 | INC. 67 | ||
| 070-1 | 191Y05-2 | SHEAR BLADE 750E SET | 1 | |
| 070-1 | C10 | 188605-7 | OIL VESSEL SET | 1 |
| 070-1 | C20 | 310983-9 | SLEEVE 5 | 8 |
| 070-1 | C30 | 347962-4 | GUARD | 1 |
| 070-1 | D10 | INC. 67 | ||
| 71 | 191D34-9 | CHIP RECEIVER 750 SET | 1 | |
| 72 | 915211-3 | BINDING HEAD SCREW M5X12 | 5 | |
| 73 | 620B95-5 | CONTROLLER | 1 | |
| 073-1 | 620P65-8 | CONTROLLER | 1 | |
| A01 | 412770-3 | BLADE COVER 750 | 1 | |
| A02 | 195246-2 | SAFETY GOGGLE | 1 | |
| A03B | 450128-8 | BATTERY COVER | 1 | |
| A03C | 450128-8 | BATTERY COVER | 2 | |
| A04B | 197280-8 | BATTERY BL1850B SET | 1 | |
| A04C | 197422-4 | BATTERY BL1860B SET | 2 | |
| A05B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A05C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05C | D10 | COMPO-PARTS | ||
| F01-1 | 199450-5 | GREASE VESSEL SET | 1 |
