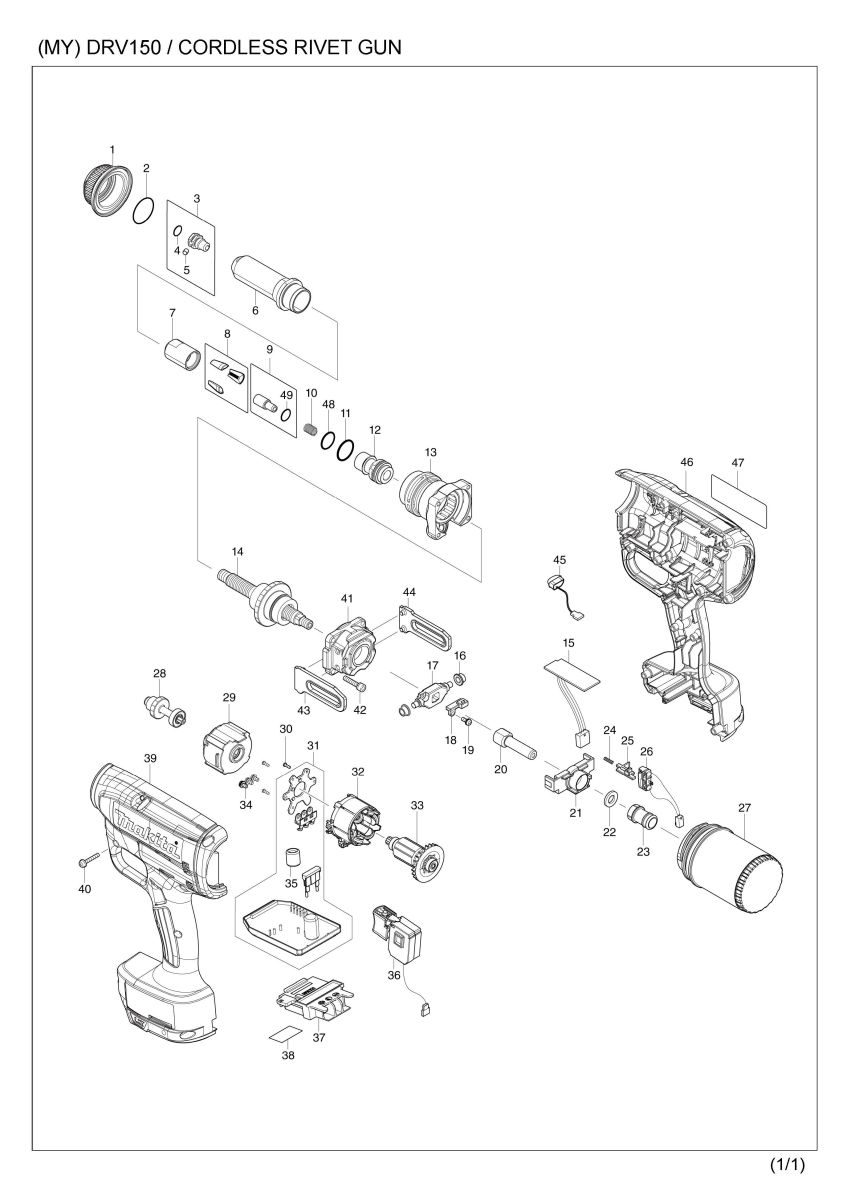

Part Diagram
Total: 84 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 319812-3 | SCREW NUT 4.8 | 1 | |
| 2 | 213380-7 | O RING 24 | 1 | |
| 3 | 127225-2 | NOSEPIECE 4.8A ASSEMBLY | 1 | |
| 3 | D10 | INC. 4,5 | ||
| 4 | 213011-8 | O RING 7 | 1 | |
| 5 | 256217-5 | PIN 4 | 1 | |
| 6 | 327281-4 | JAW CASE | 1 | |
| 006-1 | 327279-1 | HEAD 6.4 | 1 | |
| 7 | 327279-1 | HEAD 6.4 | 1 | |
| 007-1 | 327281-4 | JAW CASE | 1 | |
| 8 | 199731-7 | JAW 4.8 SET | 1 | |
| 9 | 127475-9 | JAW PUSHER 3.6 ASSEMBLY | 1 | |
| 9 | D10 | INC. 49 | ||
| 10 | 232586-8 | COMPRESSION SPRING 7 | 1 | |
| 11 | 213265-7 | O RING 17 | 1 | |
| 12 | 327285-6 | JOINT 4.8 | 1 | |
| 13 | 140J44-9 | FRONT HOUSING COMPLETE | 1 | |
| 14 | 127221-0 | BALL SCREW | 1 | |
| 15 | 620A44-6 | HALL IC CIRCUIT | 1 | |
| 16 | 257457-8 | RING 5 | 2 | |
| 17 | 310935-0 | ROLLER SHAFT 4.8 | 1 | |
| 18 | 140E40-7 | MAGNET HOLDER COMPLETE | 1 | |
| 018-1 | 140T04-1 | MAGNET HOLDER COMPLETE | 1 | |
| 19 | 911008-8 | PAN HEAD SCREW M3X8 | 1 | |
| 20 | 327284-8 | TUBE 4.8 | 1 | |
| 21 | 458772-5 | TUBE GUIDE A | 1 | |
| 22 | 261161-3 | FELT RING 8 | 1 | |
| 23 | 458773-3 | TUBE GUIDE B | 1 | |
| 24 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 25 | 458774-1 | SWITCH LEVER | 1 | |
| 26 | 632M90-9 | SWITCH UNIT | 1 | |
| 27 | 162500-9 | MANDREL CONTAINER COMPLETE | 1 | |
| 28 | 140J46-5 | SPUR GEAR 10 COMPLETE | 1 | |
| 29 | 127222-8 | GEAR ASSEMBLY | 1 | |
| 30 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 31 | 632M67-4 | CONTROLLER UNIT | 1 | |
| 32 | 629373-8 | STATOR | 1 | |
| 33 | 619535-6 | ROTOR | 1 | |
| 34 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 36 | 651379-8 | SWITCH C3JW-1A-S | 1 | |
| 37 | 643874-2 | TERMINAL | 1 | |
| 38 | 855M09-3 | DRV150 SERIAL NO. LABEL | 1 | |
| 39 | 183L30-9 | HOUSING SET | 1 | |
| 39 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 39 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 39 | C30 | 931002-4 | HEX. NUT M3 | 10 |
| 39 | D10 | INC. 46 | ||
| 40 | 265095-2 | PAN HEAD SCREW M3X20 | 10 | |
| 41 | 140J45-7 | REAR HOUSING COMPLETE | 1 | |
| 42 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | |
| 43 | 310908-3 | GUIDE PLATE L | 1 | |
| 043-1 | 313297-5 | GUIDE PLATE L | 1 | |
| 44 | 310909-1 | GUIDE PLATE R | 1 | |
| 044-1 | 313298-3 | GUIDE PLATE R | 1 | |
| 45 | 620549-0 | LED CIRCUIT | 1 | |
| 46 | 183L30-9 | HOUSING SET | 1 | |
| 46 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 46 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 46 | C30 | 931002-4 | HEX. NUT M3 | 10 |
| 46 | D10 | INC. 39 | ||
| 47 | 855M01-9 | DRV150 NAME PLATE | 1 | |
| 48 | 213891-2 | O RING 14.5 | 1 | |
| 49 | 213054-0 | O RING 9 | 1 | |
| A01 | 251314-2 | + SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03 | 191C04-2 | ACCESSORY SET B FOR 4.0 | 1 | |
| A03 | C10 | 213011-8 | O RING 7 | 1 |
| A03 | C20 | 256217-5 | PIN 4 | 1 |
| A03 | C30 | 213054-0 | O RING 9 | 1 |
| A04 | 199728-6 | ACCESSORY SET FOR 3.2 | 1 | |
| A04 | C10 | 213011-8 | O RING 7 | 1 |
| A04 | C20 | 256217-5 | PIN 4 | 1 |
| A04 | C30 | 213054-0 | O RING 9 | 1 |
| A05 | 199729-4 | ACCESSORY SET FOR 2.4 | 1 | |
| A05 | C10 | 213011-8 | O RING 7 | 1 |
| A05 | C20 | 256217-5 | PIN 4 | 1 |
| A05 | C30 | 213054-0 | O RING 9 | 1 |
| A06 | 191D57-7 | GREASE SET | 1 | |
| A07B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A07B | D10 | COMPO-PARTS | ||
| A08B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A09B | 450128-8 | BATTERY COVER | 1 | |
| A10B | 821755-2 | PLASTIC CASE | 1 | |
| A10B | C10 | 162315-4 | LATCH | 2 |
