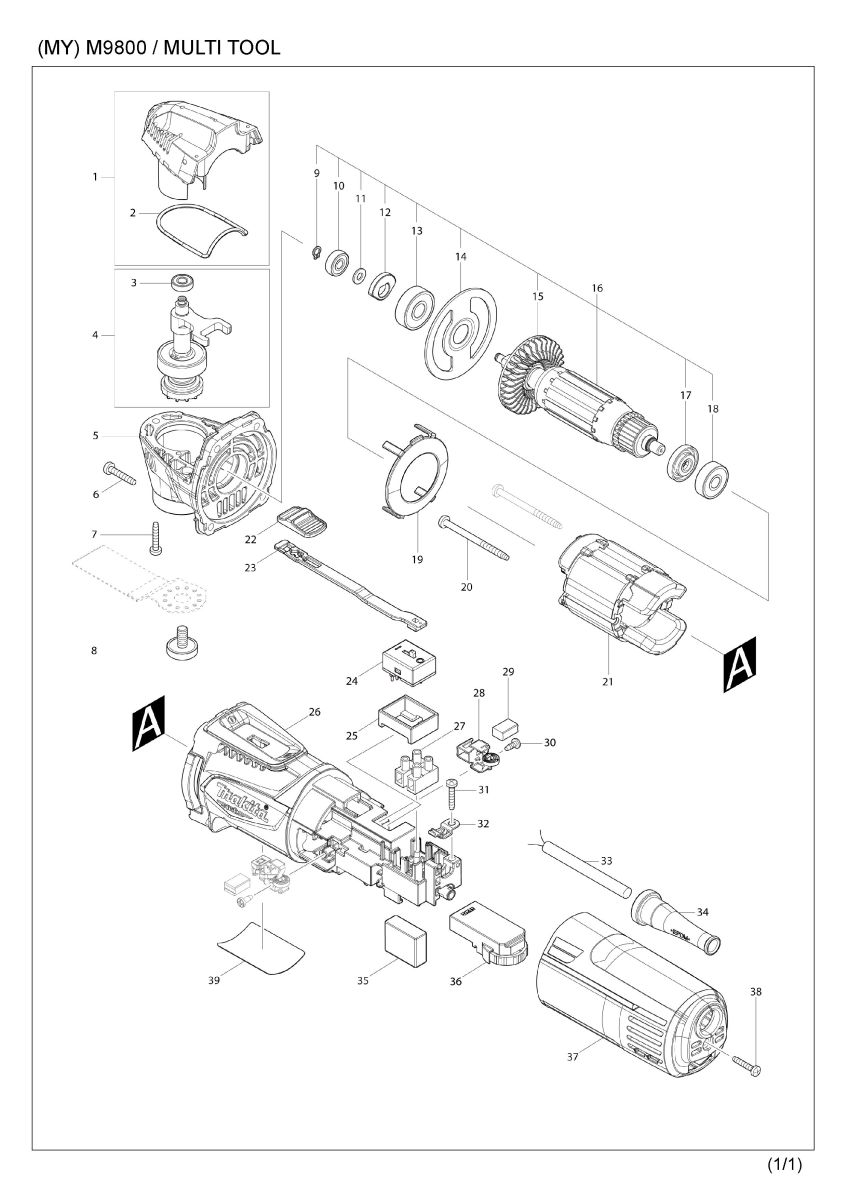

Part Diagram
Total: 48 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183M17-7 | HEAD HOUSING SET | 1 | |
| 001 | D10 | INC. 2,5 | ||
| 002 | 422371-9 | SEAL RING | 1 | |
| 003 | 210039-7 | BALL BEARING 695DDW | 1 | |
| 004 | 136108-5 | SPINDLE ASS'Y | 1 | |
| 004 | D10 | INC. 3 | ||
| 005 | 183M17-7 | HEAD HOUSING SET | 1 | |
| 005 | D10 | INC. 1,2 | ||
| 006 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 007 | 266424-2 | TAPPING SCREW 4X20 | 3 | |
| 008 | 265674-6 | HEX. SOKCET HEAD BOLT M6X14 | 1 | |
| 009 | 961008-8 | RETAINING RING S-5 | 1 | |
| 010 | 210144-0 | SPHERE BEARING 505 | 1 | |
| 011 | 267010-2 | FLAT WASHER 5 | 1 | |
| 012 | 313245-4 | BALANCER | 1 | |
| 013 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 014 | 285034-6 | BEARING RETAINER | 1 | |
| 015 | 240195-9 | FAN 50 | 1 | |
| 016 | 515444-6 | ARMATURE ASS'Y 240V | 1 | |
| 016 | D10 | INC. 9-15,17,18 | ||
| 017 | 681636-0 | INSULATION WASHER | 1 | |
| 018 | 210045-2 | BALL BEARING 627DDW | 1 | |
| 019 | 458915-9 | BAFFLE PLATE | 1 | |
| 020 | 266415-3 | TAPPING SCREW 4X55 | 2 | |
| 021 | 634729-2 | FIELD 240V | 1 | |
| 022 | 453761-5 | SWITCH KNOB | 1 | |
| 023 | 458914-1 | SWITCH LEVER | 1 | |
| 024 | 651388-7 | SWITCH ASW-1108-03 | 1 | |
| 025 | 424860-0 | SWITCH COVER | 1 | |
| 026A | 458948-4 | MOTOR HOUSING | 1 | |
| 026B | 458949-2 | MOTOR HOUSING | 1 | |
| 027 | 654531-7 | TERMINAL BLOCK 2P | 1 | |
| 028 | 643716-0 | BRUSH HOLDER | 2 | |
| 029 | 194722-3 | CARBON BRUSH CB-459 | 1 | |
| 029-1 | 195026-6 | CARBON BRUSH SET CB-459 | 1 | |
| 030 | 266492-5 | TAPPING SCREW 3X8 | 2 | |
| 031 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 032 | 687681-3 | STRAIN RELIEF | 1 | |
| 033 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 034 | 682096-9 | CORD GUARD | 1 | |
| 036 | 620A79-7 | CONTROLLER | 1 | |
| 037A | 458952-3 | REAR COVER | 1 | |
| 037B | 458953-1 | REAR COVER | 1 | |
| 038 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 039 | 855P47-3 | M9800 NAME PLATE | 1 | |
| A01 | 410047-0 | WRENCH HOLDER 5.6 | 1 | |
| A02 | 783203-8 | HEX. WRENCH 5 | 1 | |
| F01 | 199895-7 | DUST ATTACHMENT SET | 1 |
