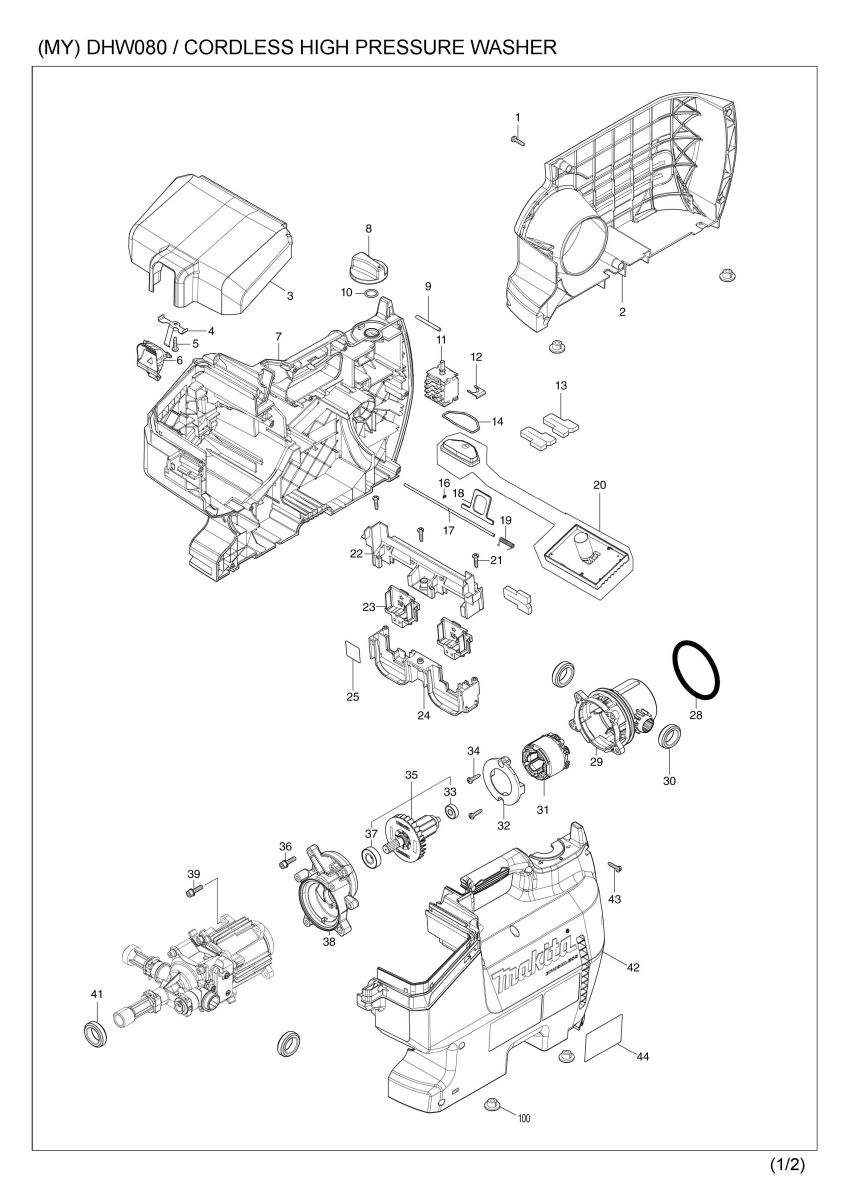

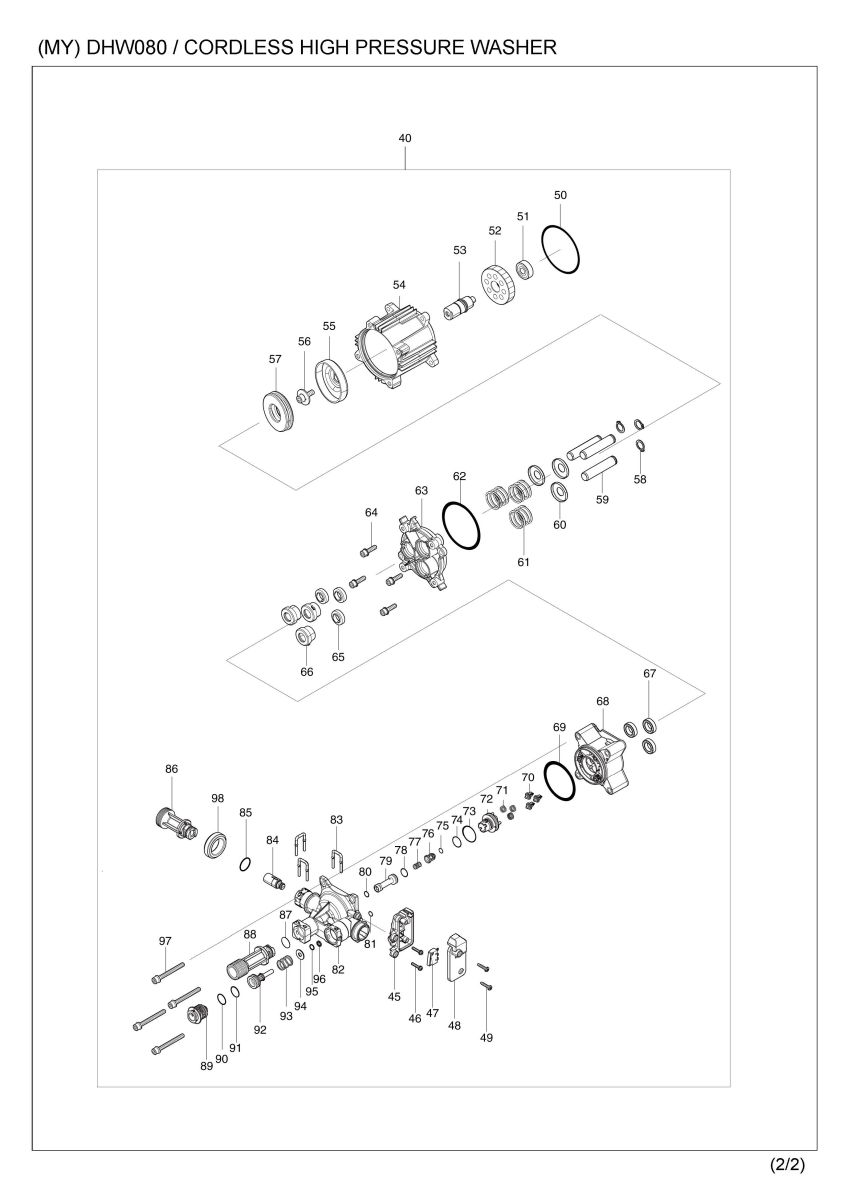

Part Diagram
Total: 148 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 002 | 458336-5 | ACCESSORY BOX | 1 | |
| 003 | 458332-3 | BATTERY BOX COVER | 1 | |
| 003-1 | 412900-6 | BATTERY BOX COVER | 1 | |
| 003-2 | 413734-0 | BATTERY BOX COVER | 1 | |
| 004 | 232471-5 | LEAF SPRING | 1 | |
| 004-1 | 232658-9 | LEAF SPRING | 1 | |
| 005 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 006 | 459380-5 | LOCK LEVER | 1 | |
| 007 | 183M37-1 | HOUSING SET | 1 | |
| C10 | 809R02-9 | CAUTION LABEL | 1 | |
| D10 | INC. 42 | |||
| 007-1 | 183R51-7 | HOUSING SET | 1 | |
| C10 | 809R02-9 | CAUTION LABEL | 1 | |
| D10 | INC. 42 | |||
| 008 | 456837-7 | SWITCH DIAL 50 | 1 | |
| 009 | 268292-9 | PIN 4 | 1 | |
| 010 | 213176-6 | O RING 14 | 1 | |
| 011 | 651382-9 | SWITCH 1703.4702 | 1 | |
| 012 | 347530-3 | LOCK PLATE | 1 | |
| 013 | 422411-3 | SPONGE | 3 | |
| 014 | 213527-3 | O RING 38 | 1 | |
| 016 | 257926-9 | STOP RING E-2.0 | 1 | |
| 017 | 327333-1 | ROD 3 | 1 | |
| 018 | 347513-3 | HOOK | 1 | |
| 019 | 232435-9 | TORSION SPRING 4 | 1 | |
| 019-1 | 232704-8 | TORSION SPRING 4 | 1 | |
| 020 | 620B17-5 | CONTROLLER COMPLETE | 1 | |
| C10 | 819R38-0 | INDICATION LABEL | 1 | |
| 021 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 022 | 183M55-9 | TERMINAL HOLDER SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 24 | |||
| 023 | 644809-6 | TERMINAL | 2 | |
| 024 | 183M55-9 | TERMINAL HOLDER SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 22 | |||
| 025 | 855Y74-4 | DHW080 SERIAL NO. LABEL | 1 | |
| 028 | 422250-1 | RECEIVE RUBBER | 1 | |
| 029 | 458326-8 | MOTOR HOUSING | 1 | |
| 030 | 422409-0 | RUBBER CUSHION | 2 | |
| 031 | 629414-0 | STATOR | 1 | |
| 032 | 458327-6 | BAFFLE PLATE | 1 | |
| 033 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 034 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 035 | 519570-3 | ROTOR ASSEMBLY | 1 | |
| D10 | INC. 33,37 | |||
| 036 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 4 | |
| 037 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 038 | 161823-2 | GEAR HOUSING COMPLETE | 1 | |
| C10 | 263002-9 | RUBBER PIN 4 | 2 | |
| 039 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 4 | |
| 040 | 126764-9 | PUMP ASSEMBLY | 1 | |
| D10 | INC. 45-98 | |||
| 040-1 | 127722-8 | PUMP ASSEMBLY | 1 | |
| D10 | INC. 45-98 | |||
| 040-2 | 127774-9 | PUMP ASSEMBLY | 1 | |
| D10 | INC. 45-98 | |||
| 040-3 | 122A67-5 | PUMP ASSEMBLY | 1 | |
| D10 | INC. 45-98 | |||
| 040-4 | 122C03-3 | PUMP ASSEMBLY | 1 | |
| D10 | INC. 45-98 | |||
| 041 | 422409-0 | RUBBER CUSHION | 2 | |
| 042 | 183M37-1 | HOUSING SET | 1 | |
| C10 | 809R02-9 | CAUTION LABEL | 1 | |
| D10 | INC. 7 | |||
| 042-1 | 183R51-7 | HOUSING SET | 1 | |
| C10 | 809R02-9 | CAUTION LABEL | 1 | |
| D10 | INC. 7 | |||
| 043 | 266326-2 | TAPPING SCREW 4X18 | 11 | |
| 044 | 855Y66-3 | DHW080 NAME PLATE | 1 | |
| 045 | 183M00-4 | SWITCH BOX SET | 1 | |
| D10 | INC. 48 | |||
| 046 | 911028-2 | PAN HEAD SCREW M3X16 | 2 | |
| 047 | 632N61-2 | SWITCH UNIT | 1 | |
| 048 | 183M00-4 | SWITCH BOX SET | 1 | |
| D10 | INC. 45 | |||
| 049 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 050 | 213706-3 | O RING 67 | 1 | |
| 051 | 210032-1 | BALL BEARING 628DDW | 1 | |
| 052 | 221597-8 | HELICAL GEAR 47 | 1 | |
| 053 | 327076-5 | SPINDLE | 1 | |
| 054 | 161821-6 | PUMP HOUSING COMPLETE | 1 | |
| 055 | 347341-6 | WOBBLE PLATE 8.5 | 1 | |
| 056 | 265A34-8 | H.S.H.BOLT M6X20 WITH WR | 1 | |
| 057 | 210176-7 | THRUST BALL BEARING 2454 | 1 | |
| 058 | 961052-5 | RETAINING RING (EXT) S-12 | 3 | |
| 059 | 327075-7 | PISTON PIN 12 | 3 | |
| 060 | 347340-8 | SPRING RETAINER C | 3 | |
| 061 | 232434-1 | COMPRESSION SPRING 22 | 3 | |
| 062 | 213706-3 | O RING 67 | 1 | |
| 063 | 319670-7 | PISTON SYLINDER | 1 | |
| 064 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 4 | |
| 065 | 213861-1 | OIL SEAL 12 | 3 | |
| 066 | 458323-4 | SEAL HOLDER 12 | 3 | |
| 067 | 422254-3 | PACKING 12 | 3 | |
| 068 | 161820-8 | PISTON HOUSING COMPLETE | 1 | |
| 068-1 | 162994-8 | PISTON HOUSING COMPLETE | 1 | |
| 069 | 213656-2 | O RING 53 | 1 | |
| 070 | 458320-0 | OUTFLOW VALVE | 3 | |
| 071 | 232432-5 | COMPRESSION SPRING 7 | 3 | |
| 072 | 458321-8 | VALVE HOLDER | 1 | |
| 073 | 213379-2 | O RING 21 | 1 | |
| 074 | 213238-0 | O-RING 13 | 1 | |
| 075 | 213005-3 | O RING 5 | 1 | |
| 076 | 458322-6 | SPRING RETAINER A | 1 | |
| 077 | 232433-3 | COMPRESSION SPRING 6 | 1 | |
| 078 | 213055-8 | O RING 10 | 1 | |
| 079 | 458309-8 | ADJUST HOLDER | 1 | |
| 080 | 213011-8 | O RING 7 | 1 | |
| 081 | 213005-3 | O RING 5 | 1 | |
| 082 | 319784-2 | PUMP HEAD | 1 | |
| 082-1 | 313420-2 | PUMP HEAD | 1 | |
| 083 | 327074-9 | U TYPE PIN 3 | 3 | |
| 084 | 126765-7 | RELIEF VALVE ASSEMBLY | 1 | |
| 085 | 213176-6 | O RING 14 | 1 | |
| 086 | 458316-1 | INFLOW JOINT | 1 | |
| 087 | 213176-6 | O RING 14 | 1 | |
| 088 | 458315-3 | OUTFLOW JOINT | 1 | |
| 088-1 | 412804-2 | OUTFLOW JOINT | 1 | |
| 089 | 458310-3 | PUMP HEAD CAP | 1 | |
| 090 | 213223-3 | O RING 16 | 1 | |
| 091 | 213154-6 | O RING 14 | 1 | |
| 091-1 | 213922-7 | O-RING 14 | 1 | |
| 092 | 458311-1 | PRESSURE PIN | 1 | |
| 093 | 232429-4 | COMPRESSION SPRING 11 | 1 | |
| 094 | 253407-1 | FLAT WASHER 5A | 1 | |
| 095 | 213005-3 | O RING 5 | 1 | |
| 096 | 253408-9 | FLAT WASHER 5B | 1 | |
| 097 | 265A33-0 | H.S.H.BOLT M5X50 WITH WR | 4 | |
| 098 | 422409-0 | RUBBER CUSHION | 1 | |
| 100 | 286212-1 | CAP 20 | 4 | |
| 101 | 422719-5 | BATTERY COVER SEAL | 1 | |
| A01 | 197842-2 | TRIGGER GUN SET | 1 | |
| A02 | 197822-8 | VARIABLE NOZZLE SET | 1 | |
| A03 | 197873-1 | SELF-SUCTION HOSE SET | 1 | |
| A03-1 | 197873-1 | SELF-SUCTION HOSE SET | 1 | |
| A03-2 | 1910R1-6 | HOSE ASSEMBLY SET | 1 | |
| A04 | 197883-8 | ONE TOUCH JOINT SET | 1 | |
| A05 | 197881-2 | ABSORPTION CONNECTOR SET | 1 | |
| A06 | 197879-9 | CLEANER PIN SET | 1 | |
| A07 | 126766-5 | HIGH PRESSURE HOSE 5M | 1 | |
| A08 | 127104-4 | STORAGE BOX ASSEMBLY | 1 | |
| D10 | COMPO-PARTS | |||
| A10B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A11B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A17 | 1910R2-4 | STRAINER ASSEMBLY SET | 1 |
