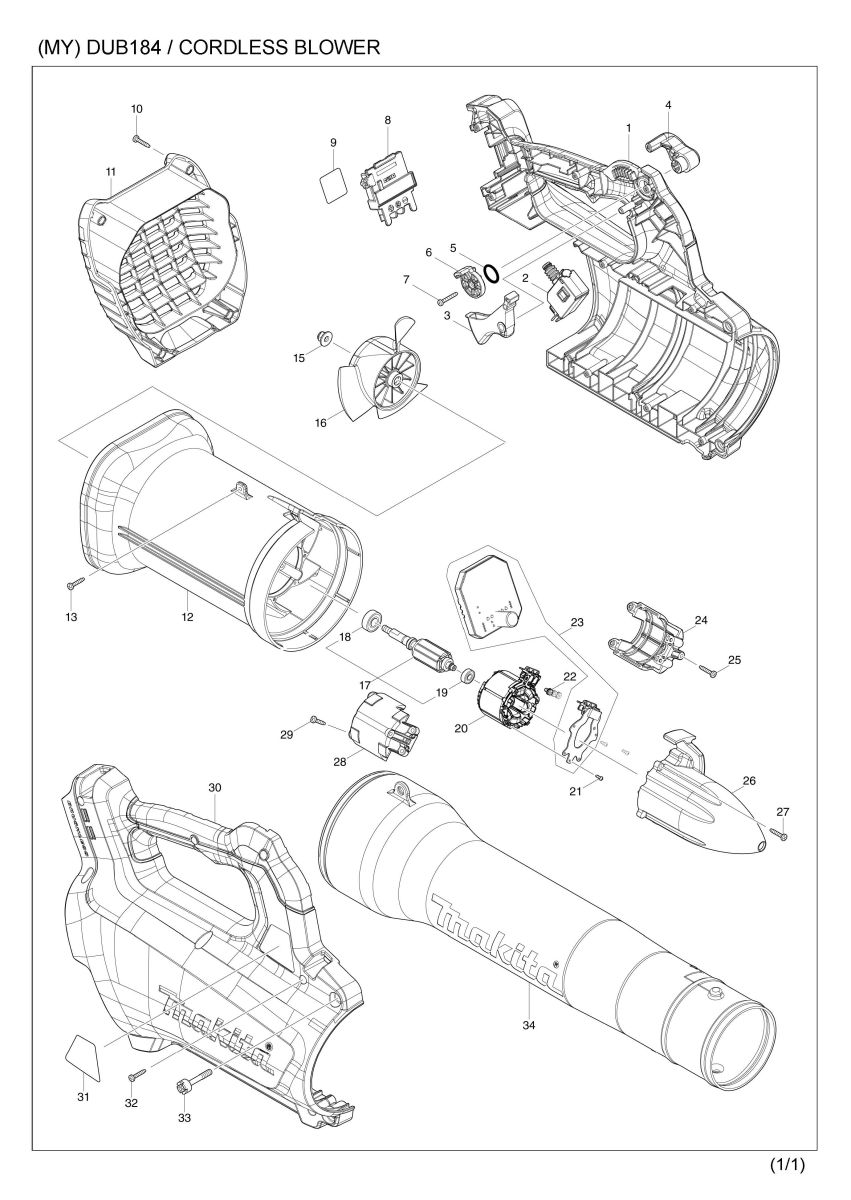

Part Diagram
Total: 74 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183M74-5 | HOUSING SET | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 1 | C20 | 806D81-4 | CAUTION LABEL | 1 |
| 1 | D10 | INC. 30 | ||
| 001-1 | 183N88-0 | HOUSING SET | 1 | |
| 001-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001-1 | C20 | 806D81-4 | CAUTION LABEL | 1 |
| 001-1 | C21 | 8011Y4-4 | CAUTION LABEL | 1 |
| 001-1 | D10 | INC. 30 | ||
| 001-2 | 183N88-0 | HOUSING SET | 1 | |
| 001-2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001-2 | C21 | 8012T7-9 | CAUTION LABEL | 1 |
| 001-2 | D10 | INC. 30 | ||
| 2 | 651395-0 | SWITCH C3JW-6B-PA6N | 1 | |
| 3 | 459696-8 | SWITCH LEVER | 1 | |
| 4 | 459697-6 | CONTROL LEVER | 1 | |
| 5 | 213154-6 | O RING 14 | 1 | |
| 6 | 459698-4 | LINK | 1 | |
| 7 | 266127-8 | + TAPPING SCREW PT 3X20 | 1 | |
| 8 | 643874-2 | TERMINAL | 1 | |
| 9 | 856D78-3 | DUB184 SERIAL NO. LABEL | 1 | |
| 10 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 11 | 459699-2 | REAR COVER | 1 | |
| 12 | 459695-0 | FAN HOUSING | 1 | |
| 13 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | |
| 15 | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 16 | 240177-1 | FAN 110 | 1 | |
| 17 | 519580-0 | ROTOR ASS'Y | 1 | |
| 17 | D10 | INC. 18,19 | ||
| 18 | 210040-2 | BALL BEARING 698LLU | 1 | |
| 19 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 20 | 629292-8 | STATOR | 1 | |
| 21 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 22 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 23 | 620B76-9 | CONTROLLER | 1 | |
| 023-1 | 620B76-9 | CONTROLLER | 1 | |
| 24 | 183M64-8 | MOTOR HOUSING SET | 1 | |
| 24 | D10 | INC. 28 | ||
| 25 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 26 | 459700-3 | CAP | 1 | |
| 27 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | |
| 28 | 183M64-8 | MOTOR HOUSING SET | 1 | |
| 28 | D10 | INC. 24 | ||
| 29 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 30 | 183M74-5 | HOUSING SET | 1 | |
| 30 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 30 | C20 | 806D81-4 | CAUTION LABEL | 1 |
| 30 | D10 | INC. 1 | ||
| 030-1 | 183N88-0 | HOUSING SET | 1 | |
| 030-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 030-1 | C20 | 806D81-4 | CAUTION LABEL | 1 |
| 030-1 | C21 | 8011Y4-4 | CAUTION LABEL | 1 |
| 030-1 | D10 | INC. 1 | ||
| 030-2 | 183N88-0 | HOUSING SET | 1 | |
| 030-2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 030-2 | C21 | 8012T7-9 | CAUTION LABEL | 1 |
| 030-2 | D10 | INC. 1 | ||
| 31 | 856D71-7 | DUB184 NAME PLATE | 1 | |
| 32 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 33 | 251570-4 | HEX.SOCKET HEAD BOLT M5X30 | 2 | |
| 34 | 459701-1 | FRONT NOZZLE | 1 | |
| 034-1 | 183P96-3 | FRONT NOZZLE SET | 1 | |
| A01 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A07B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A07B | D10 | COMPO-PARTS | ||
| A08B | 197280-8 | BATTERY BL1850B SET | 1 | |
| F03 | 197888-8 | EXTENSION NOZZLE SET | 1 | |
| F04 | 197889-6 | FLAT NOZZLE SET | 1 | |
| F06 | 191B03-8 | GUTTER NOZZLE SET | 1 | |
| F06 | C10 | 459816-4 | EXTENSION PIPE 72 | 3 |
| F06 | C20 | 162790-4 | END NOZZLE COMPLETE | 1 |
| F06 | C30 | 281030-2 | HOSE CLAMP 75-90 | 2 |
| F06 | C40 | 281031-0 | HOSE CLAMP 85-100 | 1 |
| F07 | 1915C8-7 | WATER BLOWING NOZZLE SET | 1 |
