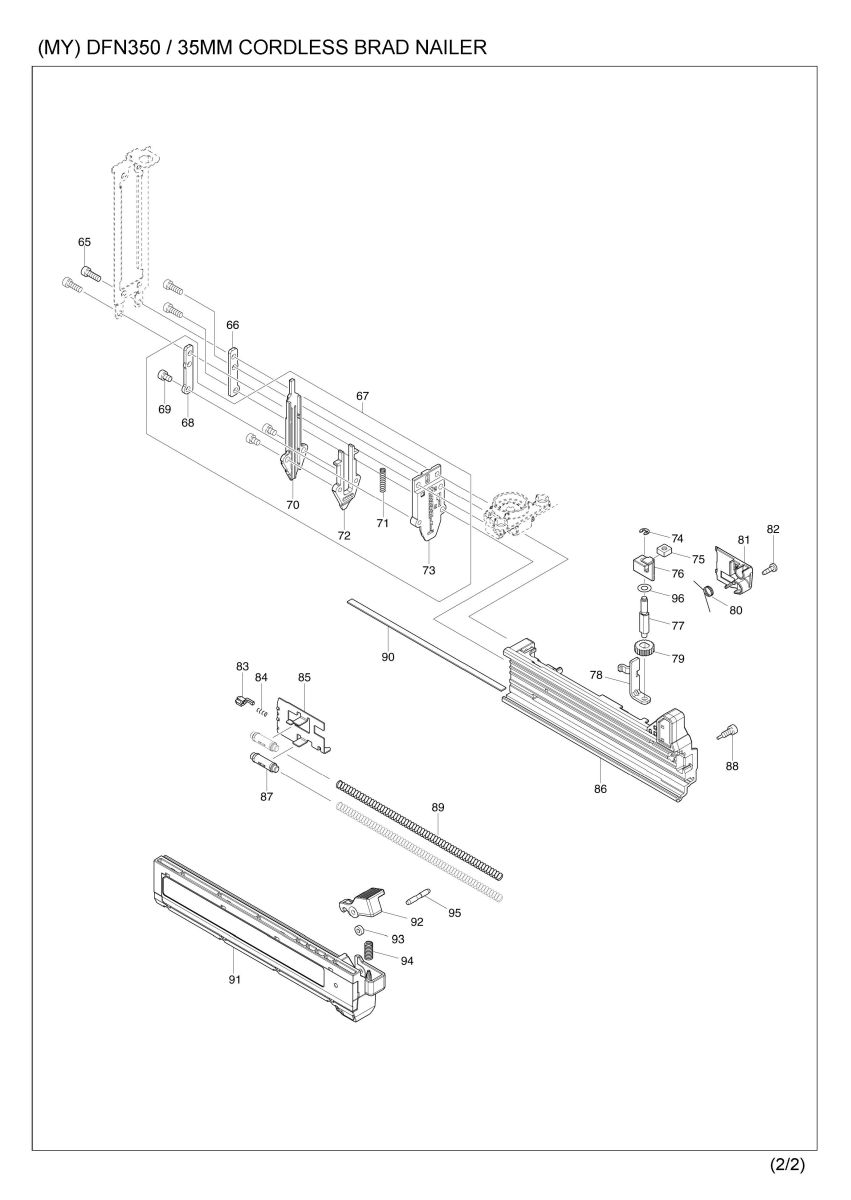

Part Diagram
Total: 138 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183L67-6 | HOUSING SET | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 1 | C30 | 931102-0 | HEX. NUT M4 | 1 |
| 1 | D10 | INC. 18 | ||
| 2 | 855T69-7 | DFN350 NAME PLATE | 1 | |
| 3 | 911173-3 | PAN HEAD SCREW M4X45 | 1 | |
| 4 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 5 | 457385-9 | HOUSING R COVER | 1 | |
| 6 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 7 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 8 | 620507-6 | LED CIRCUIT | 1 | |
| 9 | 632N39-5 | CONTROLLER UNIT | 1 | |
| 10 | 643860-3 | TERMINAL | 1 | |
| 11 | 855T76-0 | DFN350 SERIAL NO. LABEL | 1 | |
| 12 | 632G60-2 | SWITCH UNIT | 1 | |
| 13 | 456799-9 | TRIGGER LOCK | 1 | |
| 14 | 651910-0 | SWITCH D2VW-01-3HS | 1 | |
| 15 | 232370-1 | COMPRESSION SPRING 5 | 1 | |
| 16 | 457386-7 | TRIGGER | 1 | |
| 016-1 | 412772-9 | TRIGGER | 1 | |
| 17 | 632K06-2 | SWITCH UNIT | 1 | |
| 18 | 183L67-6 | HOUSING SET | 1 | |
| 18 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 18 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 18 | C30 | 931102-0 | HEX. NUT M4 | 1 |
| 18 | D10 | INC. 1 | ||
| 19 | 915101-0 | BINDING HEAD SCREW M4X6 | 4 | |
| 20 | 459369-3 | FRONT COVER | 1 | |
| 21 | 347528-0 | UPPER PLATE | 1 | |
| 22 | 256882-0 | FLAT FILLISTER HD. PIN 4 | 1 | |
| 23 | 347519-1 | DRIVER | 1 | |
| 24 | 347521-4 | RAIL | 1 | |
| 25 | 310924-5 | COUNTER WEIGHT A | 2 | |
| 26 | 310925-3 | COUNTER WEIGHT B | 2 | |
| 27 | 251566-5 | H.S.H BOLT M4X6 WITH W | 2 | |
| 28 | 347146-4 | PINION GUIDE | 2 | |
| 29 | 457390-6 | COUNTER WEIGHT HOLDER | 4 | |
| 30 | 136104-3 | SPUR GEAR ASSEMBLY | 2 | |
| 32 | 326902-5 | PINION SHAFT | 2 | |
| 33 | 266199-3 | HEX.SOCKET HEAD BOLT M4X6 | 4 | |
| 34 | 347145-6 | GUIDE RAIL R | 1 | |
| 35 | 347144-8 | GUIDE RAIL L | 1 | |
| 36 | 326903-3 | GUIDE BOLT | 1 | |
| 37 | 347526-4 | BOTTOM PLATE | 1 | |
| 037-1 | 347728-2 | BOTTOM PLATE | 1 | |
| 38 | 459311-4 | SPRING HOLDER | 1 | |
| 39 | 347522-2 | SPRING BASE | 1 | |
| 40 | 232511-9 | COMPRESSION SPRING 17 | 1 | |
| 41 | 347524-8 | HAMMER | 1 | |
| 041-1 | 347657-9 | HAMMER | 1 | |
| 041-2 | 347735-5 | HAMMER | 1 | |
| 42 | 422457-9 | CUSHION | 1 | |
| 43 | 253804-1 | FLAT WASHER 6 | 1 | |
| 44 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 45 | 319824-6 | HOLDER | 1 | |
| 045-1 | 319965-8 | HOLDER | 1 | |
| 46 | 252273-3 | HEX. NUT M6 | 1 | |
| 47 | 347527-2 | COUNTER STOPPER | 1 | |
| 047-1 | 347729-0 | COUNTER STOPPER | 1 | |
| 48 | 422456-1 | COUNTER CUSHION | 2 | |
| 048-1 | 422592-3 | COUNTER CUSHION | 2 | |
| 49 | 326904-1 | WEIGHT | 2 | |
| 049-1 | 327591-9 | WEIGHT | 2 | |
| 50 | 232363-8 | COMPRESSION SPRING 7 | 2 | |
| 51 | 327328-4 | GUIDE PIPE | 2 | |
| 051-1 | 327592-7 | GUIDE PIPE | 2 | |
| 52 | 347525-6 | GEAR PLATE | 1 | |
| 53 | 266901-4 | TAPPING SCREW 4X14 | 1 | |
| 54 | 140K45-3 | SPUR GEAR 61 COMPLETE | 1 | |
| 054-1 | 140Y96-0 | SPUR GEAR 61 COMPLETE | 1 | |
| 55 | 347139-1 | LOCK ARM | 1 | |
| 56 | 327327-6 | LOCK PIN | 1 | |
| 57 | 253353-8 | THIN WASHER 10 | 1 | |
| 58 | 140K48-7 | SPUR GEAR 8 COMPLETE | 1 | |
| 59 | 310945-7 | LOCK BLOCK | 1 | |
| 60 | 232513-5 | COMPRESSION SPRING 3 | 1 | |
| 61 | 221961-3 | SPUR GEAR 27 | 3 | |
| 62 | 227166-3 | INTERNAL GEAR 69 | 1 | |
| 63 | 267053-4 | FLAT WASHER 12 | 1 | |
| 64 | 629408-5 | DC MOTOR | 1 | |
| 65 | 922117-8 | HEX. SOCKET HEAD BOLT M4X12 | 4 | |
| 66 | 347523-0 | PLATE | 1 | |
| 67 | 127291-9 | DRIVER GUIDE ASSEMBLY | 1 | |
| 67 | D10 | INC. 68-73 | ||
| 68 | 347523-0 | PLATE | 1 | |
| 69 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 3 | |
| 70 | 310942-3 | DRIVER GUIDE | 1 | |
| 71 | 232512-7 | COMPRESSION SPRING 3 | 1 | |
| 72 | 310943-1 | CENTER PLATE | 1 | |
| 73 | 310941-5 | SET PLATE | 1 | |
| 74 | 961017-7 | STOP RING E-3 | 1 | |
| 75 | 264050-1 | SQUARE NUT M5-8 | 1 | |
| 075-1 | 264050-1 | SQUARE NUT M5-8 | 1 | |
| 76 | 459309-1 | CONTACT ARM | 1 | |
| 076-1 | 412237-1 | CONTACT ARM | 1 | |
| 076-2 | 412726-6 | CONTACT ARM | 1 | |
| 77 | 327326-8 | ADJUSTER SHAFT | 1 | |
| 78 | 347529-8 | ARM | 1 | |
| 79 | 459310-6 | ADJUSTER | 1 | |
| 80 | 232514-3 | TORSION SPRING 7 | 1 | |
| 81 | 459312-2 | ADJUSTER COVER | 1 | |
| 82 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 83 | 310176-8 | STOPPER | 1 | |
| 84 | 233018-8 | COMPRESSION SPRING 3 | 1 | |
| 85 | 347520-6 | PUSHER | 1 | |
| 86 | 459305-9 | MAGAZINE | 1 | |
| 87 | 459313-0 | SLEEVE | 2 | |
| 88 | 265A52-6 | HEX.SOCKET HEAD BOLT M4X14 | 1 | |
| 89 | 234325-2 | COMPRESSION SPRING 6 | 2 | |
| 90 | 346774-2 | NAIL PLATE | 1 | |
| 91 | 140K97-4 | SLIDE DOOR COMPLETE | 1 | |
| 92 | 457388-3 | LEVER | 1 | |
| 93 | 262054-7 | URETHANE RING 3 | 1 | |
| 94 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 95 | 256877-3 | PIN 3 | 1 | |
| 96 | 253334-2 | THIN WASHER 5 | 1 | |
| 096-1 | 267010-2 | FLAT WASHER 5 | 1 | |
| A01 | 195246-2 | SAFETY GOGGLE | 1 | |
| A02 | 251314-2 | + SCREW M4X12 | 1 | |
| A03 | 346317-0 | HOOK | 1 | |
| A04 | 422464-2 | NOSE ADAPTER | 1 | |
| A05 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A06B | 140J12-2 | PLASTIC CASE COMPLETE | 1 | |
| A06B | C10 | 162302-3 | LATCH | 2 |
| A06B | C20 | 324319-6 | SHAFT | 1 |
| A06B | C30 | 451749-9 | HANDLE | 1 |
| A06B | C40 | 835A38-0 | INNER TRAY | 1 |
| A06-1B | 140S88-3 | PLASTIC CASE COMPLETE | 1 | |
| A06-1B | C10 | 162302-3 | LATCH | 2 |
| A06-1B | C20 | 324319-6 | SHAFT | 1 |
| A06-1B | C30 | 451749-9 | HANDLE | 1 |
| A06-1B | C40 | 835H54-4 | INNER TRAY | 1 |
| A08B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A08B | D10 | COMPO-PARTS | ||
| A09B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A09-1B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A10B | 450128-8 | BATTERY COVER | 1 |
