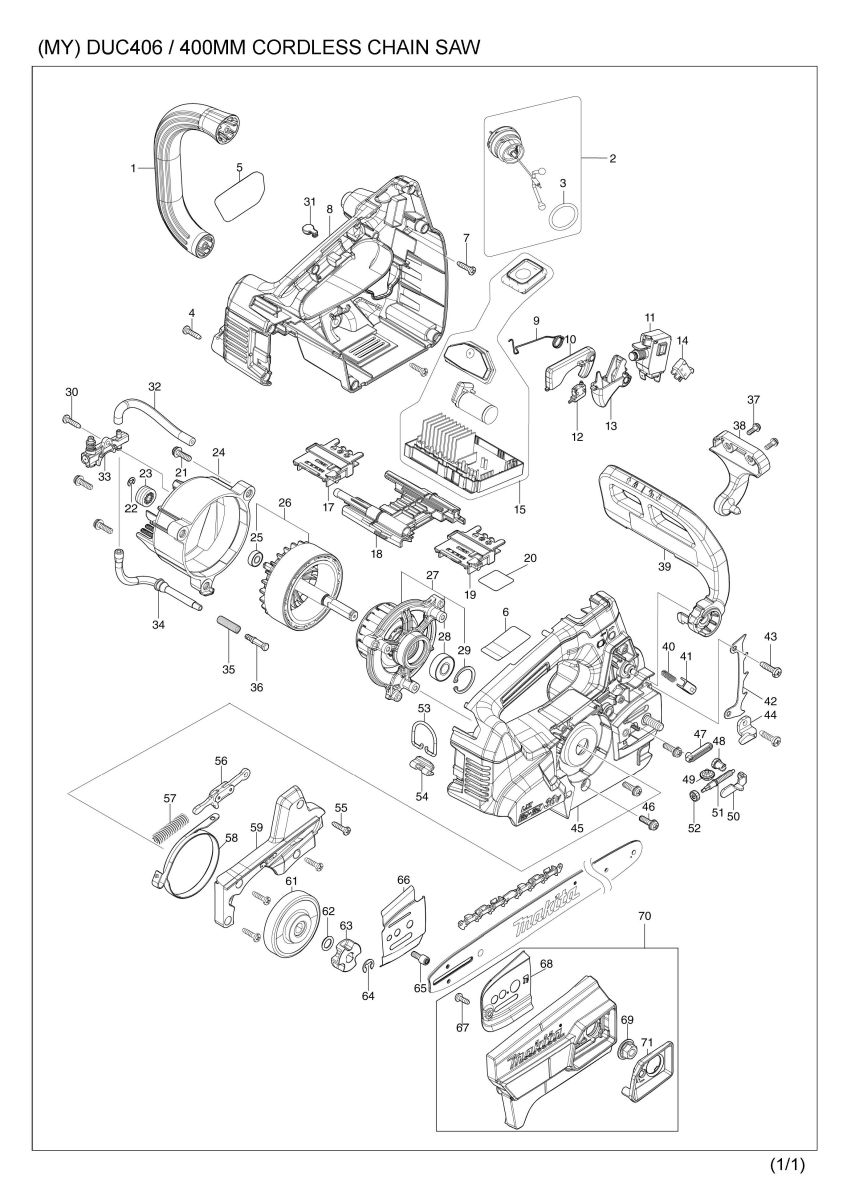

Part Diagram
Total: 125 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 459275-2 | FRONT HANDLE | 1 | |
| 2 | 126832-8 | TANK CAP ASSEMBLY | 1 | |
| 2 | D10 | INC. 3 | ||
| 3 | 213355-6 | O-RING 25 | 1 | |
| 003-1 | 213894-6 | O-RING 25 | 1 | |
| 003-2 | 213A11-4 | O-RING 25 | 1 | |
| 4 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 5 | 819S65-3 | DUC406 MODEL NO. LABEL | 1 | |
| 6 | 856A53-1 | DUC406 NAME PLATE | 1 | |
| 006-1 | 856A53-1 | DUC406 NAME PLATE | 1 | |
| 7 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 8 | 183N15-7 | HOUSING SET | 1 | |
| 8 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 8 | C20 | 424170-5 | VALVE | 1 |
| 8 | C30 | 454724-4 | SINTER INSERT | 1 |
| 8 | D10 | INC. 45 | ||
| 9 | 232509-6 | TORSION SPRING 10 | 1 | |
| 10 | 459268-9 | CATCH LEVER | 1 | |
| 11 | 651365-9 | SWITCH C3JW-6BM-P | 1 | |
| 12 | 632L49-0 | SWITCH UNIT | 1 | |
| 13 | 459267-1 | SWITCH LEVER | 1 | |
| 14 | 632L48-2 | SWITCH UNIT | 1 | |
| 15 | 140K84-3 | CONTROLLER COMPLETE | 1 | |
| 15 | C10 | 819R38-0 | INDICATION LABEL | 1 |
| 15 | C20 | 819S81-5 | SWITCH LABEL | 1 |
| 17 | 643874-2 | TERMINAL | 1 | |
| 18 | 140K81-9 | CENTER CASE COMPLETE | 1 | |
| 18 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 018-1 | 140V36-0 | CENTER CASE COMPLETE | 1 | |
| 018-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 19 | 643874-2 | TERMINAL | 1 | |
| 20 | 856A57-3 | DUC406 SERIAL NO. LABEL | 1 | |
| 21 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | |
| 22 | 961011-9 | STOP RING E-4 | 1 | |
| 23 | 226884-0 | WORM GEAR | 1 | |
| 24 | 459276-0 | MOTOR HOUSING | 1 | |
| 25 | 210026-6 | BALL BEARING 696ZZ | 1 | |
| 26 | 519576-1 | ROTOR ASS'Y | 1 | |
| 26 | D10 | INC. 25 | ||
| 27 | 529420-4 | STATOR ASS'Y | 1 | |
| 27 | D10 | INC. 28,29 | ||
| 027-1 | 520146-1 | STATOR ASSY | 1 | |
| 027-1 | D10 | INC. 28,29 | ||
| 28 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 028-1 | 210274-7 | BALL BEARING 6000DDW | 1 | |
| 29 | 962105-3 | RETAINING RING R-26 | 1 | |
| 30 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 31 | 422467-6 | CAP | 1 | |
| 32 | 422451-1 | OIL TUBE 3-100 | 1 | |
| 33 | 142156-4 | OIL PUMP COMPLETE | 1 | |
| 033-1 | 142156-4 | OIL PUMP COMPLETE | 1 | |
| 34 | 422452-9 | OIL TUBE 3-130 | 1 | |
| 35 | 231975-4 | SPRING | 1 | |
| 36 | 452666-6 | NIPPLE | 1 | |
| 036-1 | 452666-6 | NIPPLE | 1 | |
| 37 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 38 | 459270-2 | FRONT HAND GUARD RETAINER | 1 | |
| 39 | 140M05-7 | FRONT HAND GUARD COMPLETE | 1 | |
| 39 | C10 | 819S76-8 | CAUTION LABEL | 1 |
| 40 | 234210-9 | COMPRESSION SPRING 3 | 1 | |
| 41 | 313212-9 | HAND GUARD GUIDE | 1 | |
| 42 | 346809-9 | SPIKE BUMPER | 1 | |
| 43 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 44 | 347516-7 | CHAIN CATCHER | 1 | |
| 45 | 183N15-7 | HOUSING SET | 1 | |
| 45 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 45 | C20 | 424170-5 | VALVE | 1 |
| 45 | C30 | 454724-4 | SINTER INSERT | 1 |
| 45 | D10 | INC. 8 | ||
| 46 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | |
| 47 | 422466-8 | GROMET | 1 | |
| 48 | 227620-7 | DRIVE GEAR 14 | 1 | |
| 49 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 50 | 347517-5 | TENSION SLIDE | 1 | |
| 51 | 327317-9 | ADJUST SCREW | 1 | |
| 52 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 53 | 281222-3 | HOOK | 1 | |
| 54 | 347514-1 | HOOK SUPPORT | 1 | |
| 55 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 56 | 140A74-6 | LINK PLATE COMPLETE | 1 | |
| 57 | 232452-9 | COMPRESSION SPRING 7 | 1 | |
| 58 | 347515-9 | BRAKE BAND COMPLETE | 1 | |
| 59 | 459273-6 | HOUSING R COVER | 1 | |
| 61 | 162638-0 | BRAKE DRUM COMPLETE | 1 | |
| 62 | 213060-5 | O RING 10 | 1 | |
| 63 | 221464-7 | SPROCKET 6 | 1 | |
| 64 | 961013-5 | STOP RING E-7 | 1 | |
| 65 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | |
| 66 | 347533-7 | GUIDE PLATE L | 1 | |
| 67 | 266427-6 | TAPPING SCREW 4X12 | 1 | |
| 68 | 347534-5 | GUIDE PLATE R | 1 | |
| 69 | 162494-8 | FLANGE NUT COMPLETE | 1 | |
| 70 | 136138-6 | SPROCKET COVER ASS'Y | 1 | |
| 70 | D10 | INC. 67-69,71 | ||
| 71 | 459278-6 | NUT COVER | 1 | |
| A01 | 165247-4 | GUIDE BAR 16 | 1 | |
| A01-1 | 165247-4 | GUIDE BAR 16 | 1 | |
| A02 | 419242-9 | CHAIN COVER | 1 | |
| A02-1 | 419242-9 | CHAIN COVER | 1 | |
| A03 | 196742-3 | SAW CHAIN SET | 1 | |
| A03-1 | 191H03-4 | SAW CHAIN 16 SET | 1 | |
| A04 | 199897-3 | OIL VESSEL SET | 1 | |
| A05 | 782023-7 | WRENCH 13-16 | 1 | |
| A06B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | 197280-8 | BATTERY BL1850B SET | 2 | |
| F13 | 195093-1 | CHAIN OIL SET | 1 | |
| F14 | 195923-6 | ROUND FILE 4.5 SET | 1 | |
| F14-1 | D-70954 | FILE HOLDER SET 4.5MM(11/64") | 1 | |
| F15 | 196205-9 | SAW CHAIN SET | 1 | |
| F15-1 | 191H08-4 | SAW CHAIN 10 SET | 1 | |
| F16 | 196206-7 | SAW CHAIN SET | 1 | |
| F25 | 196740-7 | SAW CHAIN SET | 1 | |
| F25-1 | 191H01-8 | SAW CHAIN 12 SET | 1 | |
| F29 | 198457-8 | CHAIN EDGER SET | 1 | |
| F29-1 | D-70948 | FILE HOLDER SET 4.0MM(5/32") | 1 | |
| F31 | 199075-5 | SAW CHAIN SET | 1 | |
| F49 | 1914F1-6 | SAW CHAIN 10 SET | 1 | |
| F50 | 1914F2-4 | SAW CHAIN 12 SET | 1 | |
| F51 | 1914F3-2 | SAW CHAIN 14 SET | 1 | |
| F52 | 1914F4-0 | SAW CHAIN 16 SET | 1 | |
| F53 | 1914F5-8 | SAW CHAIN 10 SET | 1 | |
| F54 | 1914F6-6 | SAW CHAIN 12 SET | 1 | |
| F55 | 1914F7-4 | SAW CHAIN 14 SET | 1 | |
| F56 | 1914F8-2 | SAW CHAIN 16 SET | 1 |
