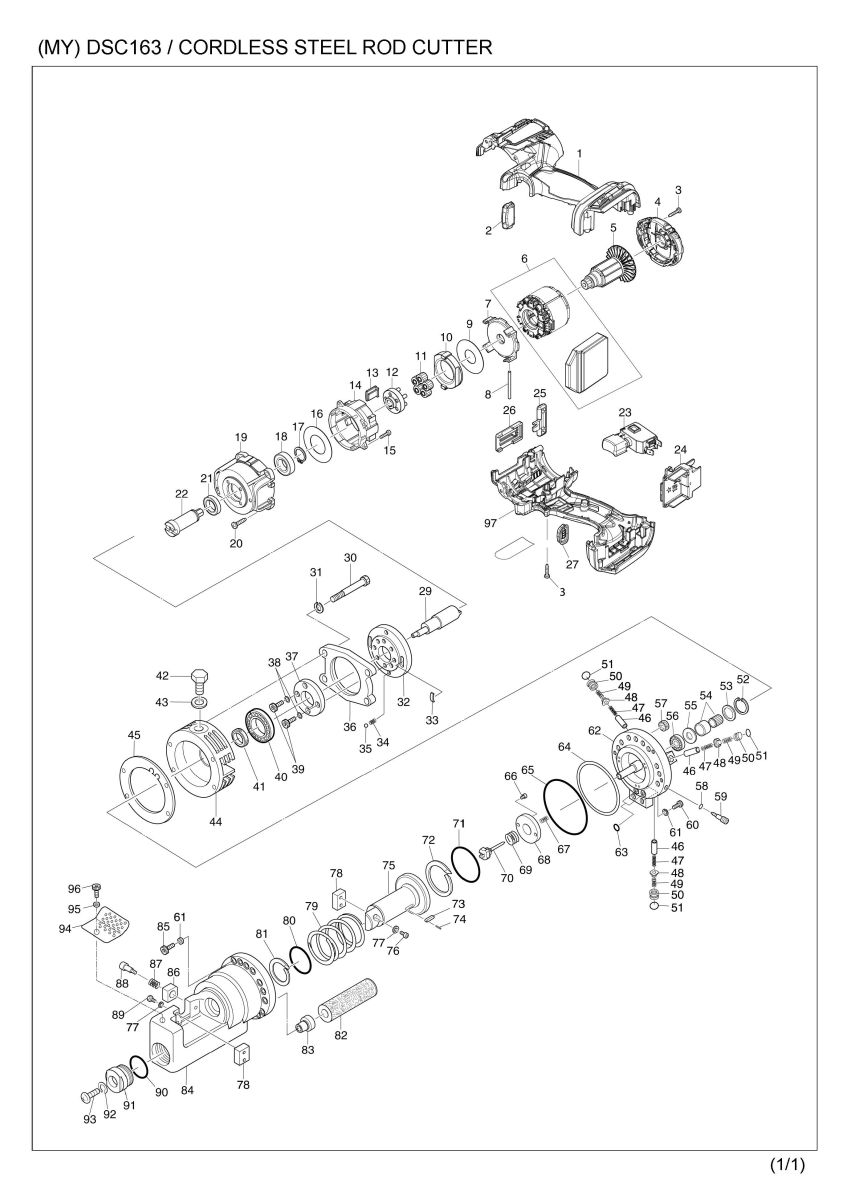

Part Diagram
Total: 123 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183C36-3 | HOUSING SET | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 1 | D10 | INC. 97 | ||
| 2 | 620283-2 | LED CIRCUIT | 1 | |
| 3 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 4 | 455011-4 | REAR COVER | 1 | |
| 5 | 619336-2 | ROTOR | 1 | |
| 6 | 629116-8 | STATOR COMPLETE | 1 | |
| 7 | 455005-9 | MOTOR BRACKET | 1 | |
| 8 | 256375-7 | ROD 3 | 2 | |
| 9 | 253401-3 | FLAT WASHER 18 | 1 | |
| 10 | 221558-8 | INTERNAL SPUR GEAR 41 | 1 | |
| 11 | 226193-7 | SPUR GEAR 13 | 5 | |
| 12 | 144591-2 | CARRIER COMPLETE | 1 | |
| 13 | 422168-6 | RUBBER SEAL | 1 | |
| 14 | 455006-7 | GEAR CASE | 1 | |
| 15 | 911017-7 | PAN HEAD SCREW M3X12 | 4 | |
| 16 | 253888-9 | FLAT WASHER 25 | 1 | |
| 17 | 961055-9 | RETAINING RING S-15 | 1 | |
| 18 | 211234-2 | BALL BEARING 6902LLB | 1 | |
| 19 | 319616-3 | GEAR HOUSING | 1 | |
| 20 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 21 | 211233-4 | BALL BEARING 6802LLB | 1 | |
| 22 | 326996-0 | SPINDLE | 1 | |
| 23 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 24 | 643874-2 | TERMINAL | 1 | |
| 25 | 451162-1 | LOCK LEVER | 1 | |
| 025-1 | 413R94-8 | LOCK LEVER | 1 | |
| 26 | 457799-2 | COVER | 1 | |
| 27 | 142263-3 | INDICATOR PANEL COMPLETE | 1 | |
| 29 | SC03501140 | ECCENTRIC SHAFT | 1 | |
| 30 | SC07512110 | BOLT HB5X50 | 4 | |
| 31 | SC07610030 | SPRING WASHER 5 | 4 | |
| 031-1 | 942101-7 | SPRING WASHER 5 | 4 | |
| 32 | SC03222700 | FLANGE SET PLATE | 1 | |
| 33 | SC04007620 | LEAF SPRING | 2 | |
| 34 | SC04007430 | POSITION SPRING | 2 | |
| 35 | SC07900010 | STEEL BALL S4 | 2 | |
| 36 | SC03221200 | INTERMEDIATE HOUSING | 1 | |
| 37 | SC03251180 | FLANGE | 1 | |
| 38 | SC00000068 | FLAT WASHER 4 | 4 | |
| 39 | SC07511060 | BOLT HB4X22 | 4 | |
| 40 | SC00000050 | BALL BEARING 6002RU | 1 | |
| 41 | SC06504000 | OIL SEAL MHS15257 | 1 | |
| 041-1 | SC00000484 | OIL SEAL MSH15257 | 1 | |
| 42 | SC00000061 | HEX. BOLT 10X15 | 1 | |
| 43 | SC00000489 | SEAL WASHER | 1 | |
| 44 | SC03212300 | BEARING HOUSING | 1 | |
| 45 | SC04601440 | LINER B | 1 | |
| 46 | SC03500390 | PISTON | 3 | |
| 47 | SC04003020 | PISTON RETURN SPRING | 3 | |
| 48 | SC03500460 | CHECK VALVE | 3 | |
| 048-1 | SC00000149 | CHECK VALVE | 3 | |
| 49 | SC00000021 | CHECK VALVE SPRING | 3 | |
| 049-1 | SC00000468 | SPRING #43449N2 | 3 | |
| 049-2 | SC04002000 | CHECK VALVE SPRING | 3 | |
| 50 | SC03500540 | METAL PACKING | 3 | |
| 51 | SC06505590 | O RING S-8 | 3 | |
| 52 | SC00000487 | STOP RING H19 | 1 | |
| 53 | SC00000465 | NEEDLE BEARING HOLDER A T45421 | 1 | |
| 54 | SC00000466 | NEEDLE BEARING #RNAF81510 | 1 | |
| 55 | SC00000467 | NEEDLE BEARING HOLDER B T45422 | 1 | |
| 56 | SC07100030 | BALL BEARING 625 | 1 | |
| 57 | SC00000020 | MAGNET | 2 | |
| 58 | SC06505300 | O RING S4 | 1 | |
| 59 | SC03501420 | RETURN VALVE | 1 | |
| 60 | SC00000097 | HEX.SOCKET HEAD BOLT M6X20 | 2 | |
| 060-1 | SC00000097 | HEX.SOCKET HEAD BOLT M6X20 | 2 | |
| 61 | SC00000066 | WASHER 6 | 14 | |
| 62 | SC03206510 | CYLINDER | 1 | |
| 63 | SC06505010 | O RING P6 | 2 | |
| 64 | SC06503240 | BACK-UP RING G55 | 1 | |
| 65 | SC06505180 | O RING G55 | 1 | |
| 66 | SC00000060 | HEX. SOCKET HEAD BOLT 4X6 | 2 | |
| 066-1 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 2 | |
| 67 | SC00000023 | RELEASE VALVE SPRING | 1 | |
| 68 | SC00000481 | STOPPER PLATE #45423 | 1 | |
| 69 | SC00000032 | VALVE RETURN SPRING | 1 | |
| 70 | SC00000462 | RELEASE VALVE #T45461 | 1 | |
| 71 | SC06505280 | O RING P46 | 1 | |
| 72 | SC06503230 | BACK-UP RING P46 | 1 | |
| 73 | SC03700080 | KEY | 1 | |
| 74 | SC00000070 | SPRING PIN 2.5X10 | 1 | |
| 75 | SC03113600 | CUTTER ROD | 1 | |
| 76 | SC00000059 | HEX. SOCKET HEAD BOLT M5X12 | 2 | |
| 076-1 | SC00000059 | HEX. SOCKET HEAD BOLT M5X12 | 2 | |
| 77 | SC00000067 | WASHER 5 | 4 | |
| 78 | SC09002470 | CUTTER BLADE SET | 1 | |
| 79 | SC04000320 | RETURN SPRING FOR CUTTER ROD | 1 | |
| 80 | SC06505320 | O RING P26 | 1 | |
| 81 | SC06503190 | BACK-UP RING P26 | 1 | |
| 82 | SC09004930 | OIL LEVELER SACK & SPONGE SET | 1 | |
| 082-1 | SC09004930 | OIL LEVELER SACK & SPONGE SET | 1 | |
| 83 | SC00000029 | BUSH | 1 | |
| 84 | SC03104000 | CUTTER HEAD | 1 | |
| 85 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 12 | |
| 86 | SC03503890 | STOPPER | 1 | |
| 87 | SC00000469 | SPRING #T45470 | 1 | |
| 88 | SC03500990 | BOLT | 1 | |
| 89 | SC00000098 | HEX. SOCKET HEAD BOLT 5X15 | 2 | |
| 90 | SC06505310 | O RING P22A | 1 | |
| 91 | SC03501400 | BUSH HOLDER | 1 | |
| 92 | SC00000065 | SPRING WASHER 8 | 1 | |
| 092-1 | 942201-3 | SPRING WASHER 8 | 1 | |
| 93 | SC00000034 | SPECIAL PAN HEAD SCREW M8X20 | 1 | |
| 94 | SC03505780 | PROTECTOR | 1 | |
| 95 | SC07610030 | SPRING WASHER 5 | 1 | |
| 095-1 | SC07610030 | SPRING WASHER 5 | 1 | |
| 96 | SC07512010 | HEX.SOCKET HEAD BOLT M5X10 | 1 | |
| 096-1 | SC07512010 | HEX.SOCKET HEAD BOLT M5X10 | 1 | |
| 97 | 183C36-3 | HOUSING SET | 1 | |
| 97 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 97 | D10 | INC. 1 | ||
| A01 | SC00000103 | HEX KEY WRENCH 3 | 1 | |
| A01-1 | SC00000103 | HEX KEY WRENCH 3 | 1 | |
| A02 | SC00000104 | HEX KEY WRENCH 4 | 1 | |
| A02-1 | SC00000104 | HEX KEY WRENCH 4 | 1 | |
| A03 | SC00000105 | HEX. WRENCH M5 | 1 | |
| A04 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A05 | SC00000107 | WRENCH 17-14 | 1 | |
| A06 | SC00000106 | HYDRAULIC OIL ISO46 35CC | 1 | |
| A07 | SC09009190 | PLASTIC CASE SET | 1 | |
| A09 | SC08016190 | DSC163ZK PLASTIC CASE LABEL | 1 |
