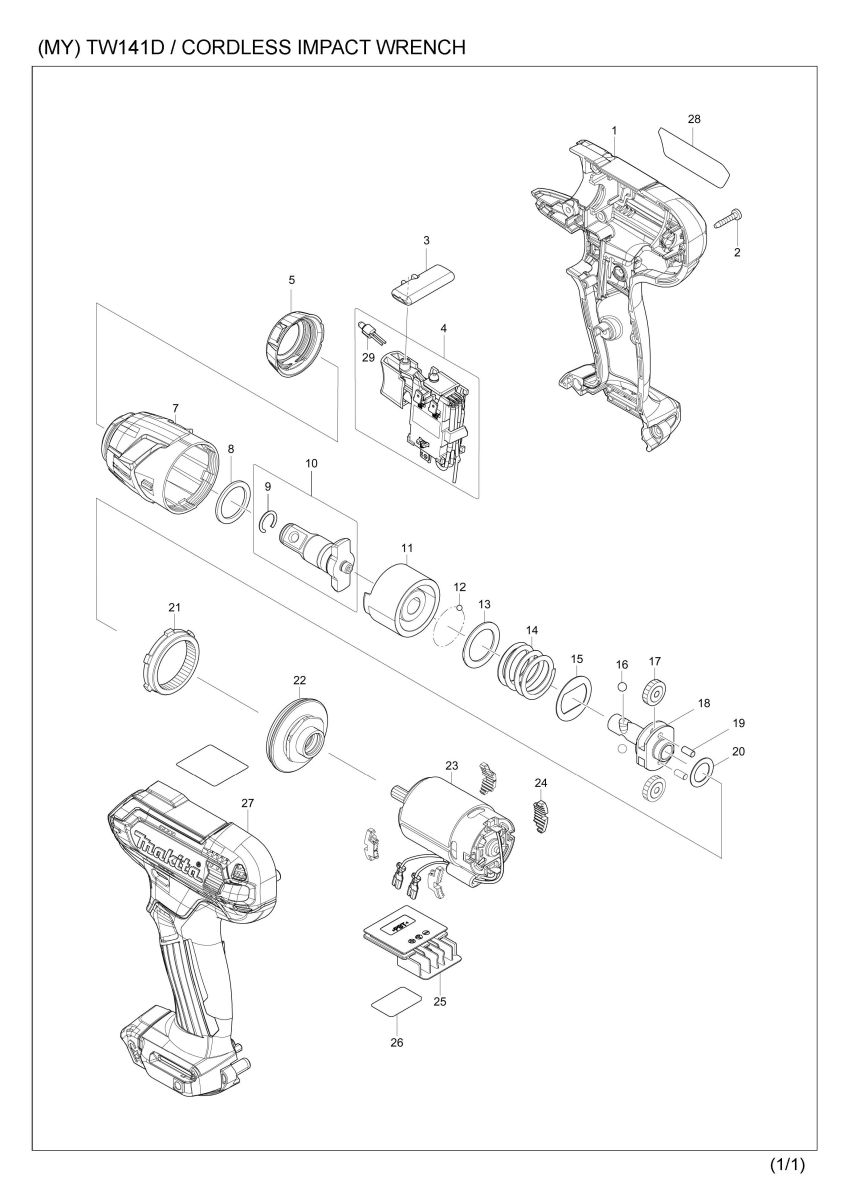

Part Diagram: TW141DSME/ WAE/ Z

ItemSubParts No.Parts DescriptionQty
001183J75-5HOUSING SET1
001C10252126-6HEX. LOCKING NUT M4-72
001D10INC. 27
002266429-2TAPPING SCREW 3X168
003456039-5F/R CHANGE LEVER1
004632M06-4SWITCH UNIT1
004D10INC. 29
005422407-4BUMPER1
007140D36-2HAMMER CASE COMPLETE1
007C10213882-3O-RING 161
008261140-1NYLON WASHER 201
009231907-1RING SPRING 101
010136030-6ANVIL E ASSY1
010D10INC. 9
011327334-9HAMMER1
012216019-1STEEL BALL 324
013267380-9FLAT WASHER 201
014232517-7COMPRESSION SPRING 211
015267813-4WASHER 211
016216002-8STEEL BALL 4.82
017226190-3SPUR GEAR 182
018327127-4SPINDLE1
019268217-3PIN 3.52
020253052-2FLAT WASHER 121
021226191-1INTERNAL GEAR 451
021-1226957-9INTERNAL GEAR 451
022140B04-3BEARING BOX COMPLETE1
022C10213188-9O-RING 131
022-1140P27-5BEARING BOX COMPLETE1
022-1C10213188-9O-RING 131
023632L96-1MOTOR COMPLETE1
024422273-9CUSHION4
025644813-5TERMINAL1
026855S57-8TW141D SERIAL NO. LABEL1
027183J75-5HOUSING SET1
027C10252126-6HEX. LOCKING NUT M4-72
027D10INC. 1
028855S50-2TW141D NAME PLATE1
029620625-0LED CIRCUIT1
031213458-6O RING 341
A01266622-8+ TRUSS HEAD SCREW M4X121
A02346909-5HOOK1
A03B821661-1PLASTIC CARRYING CASE1
A03BC10417724-5LATCH2
A03C821661-1PLASTIC CARRYING CASE1
A03CC10417724-5LATCH2
A04B***DC10WDDC10WD BATTERY CHARGER1
A04BD10COMPO-PARTS
A04C***DC10SBDC10SB BATTERY CHARGER1
A04CD10COMPO-PARTS
A05B197396-9BATTERY BL1021B SET2
A05C197406-2BATTERY BL1041B SET2
A05-1B197396-9BATTERY BL1021B SET2
A05-1C197406-2BATTERY BL1041B SET2
A06B456128-6BATTERY COVER1
A06C456128-6BATTERY COVER1
