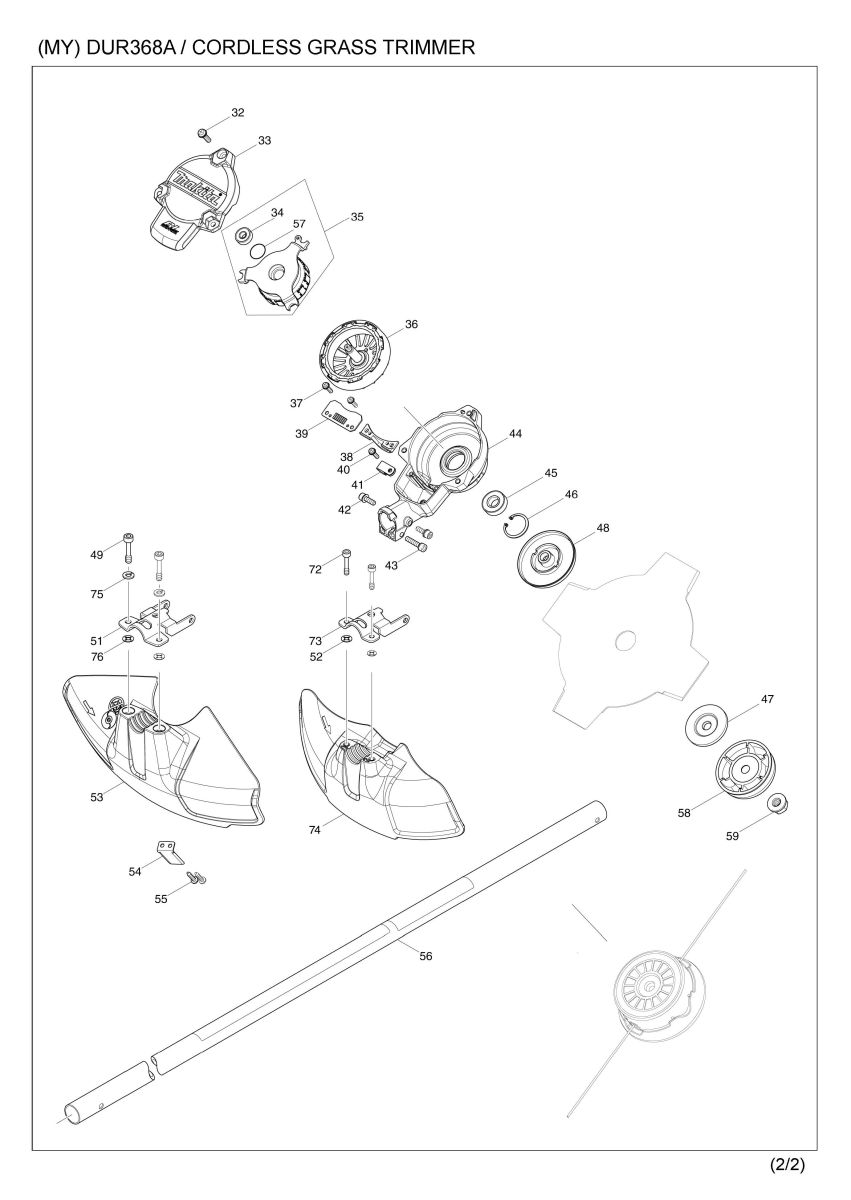

Part Diagram
Total: 118 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 140L83-1 | HANDLE 19 COMPLETE | 1 | |
| 2 | 135395-3 | HANDLE HOLDER ASS'Y | 1 | |
| 2 | D10 | INC. 3-7 | ||
| 002-1 | 1830A9-5 | HANDLE HOLDER SET | 1 | |
| 002-1 | D10 | INC. 3-7 | ||
| 3 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 4 | |
| 4 | 318272-6 | HANDLE HOLDER 1 | 1 | |
| 5 | 318273-4 | HANDLE HOLDER 2 | 1 | |
| 6 | 318274-2 | HANDLE HOLDER 3 | 1 | |
| 7 | 922251-4 | HEX. SOCKET HEAD BOLT M5X30 | 2 | |
| 007-1 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 2 | |
| 8 | 699118-8 | POWER SUPPLY CORD UNIT | 1 | |
| 9 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 10 | 687260-7 | STRAIN RELIEF | 1 | |
| 13 | 855V64-9 | DUR368A SERIAL NO. LABEL | 1 | |
| 14 | 699067-9 | POWER SUPPLY CORD UNIT | 1 | |
| 15 | 183L33-3 | HOUSING SET | 1 | |
| 15 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 15 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 3 |
| 15 | D10 | INC. 23 | ||
| 015-1 | 183L33-3 | HOUSING SET | 1 | |
| 015-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 015-1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 3 |
| 015-1 | D10 | INC. 23 | ||
| 17 | 346248-3 | CLAMP 24 | 1 | |
| 18 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 19 | 687260-7 | STRAIN RELIEF | 1 | |
| 20 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 21 | 620A36-5 | CONTROLLER | 1 | |
| 021-1 | 620G00-2 | CONTROLLER | 1 | |
| 021-2 | 620J84-8 | CONTROLLER | 1 | |
| 22 | 644808-8 | TERMINAL | 2 | |
| 23 | 183L33-3 | HOUSING SET | 1 | |
| 23 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 23 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 3 |
| 23 | D10 | INC. 15 | ||
| 023-1 | 183L33-3 | HOUSING SET | 1 | |
| 023-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 023-1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 3 |
| 023-1 | D10 | INC. 15 | ||
| 24 | 855V55-0 | DUR368A NAME PLATE | 1 | |
| 25 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 26 | 251314-2 | + SCREW M4X12 | 1 | |
| 27 | 251314-2 | + SCREW M4X12 | 2 | |
| 28 | 346858-6 | BATTERY GUARD | 1 | |
| 29 | 168478-4 | HANGER | 1 | |
| 30 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | |
| 31 | 424463-0 | CUSHION | 1 | |
| 32 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 33 | 455626-7 | TOP COVER | 1 | |
| 34 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 034-1 | 210269-0 | BALL BEARING 607ZZ | 1 | |
| 35 | 529146-8 | STATOR ASS'Y | 1 | |
| 35 | D10 | INC. 34,57 | ||
| 035-1 | 520136-4 | STATOR ASS'Y | 1 | |
| 035-1 | D10 | INC. 34,57 | ||
| 035-2 | 520135-6 | STATOR ASS'Y | 1 | |
| 035-2 | D10 | INC. 34,57 | ||
| 035-3 | 592E25-3 | STATOR ASS'Y | 1 | |
| 035-3 | D10 | INC. 34,57 | ||
| 36 | 619462-7 | ROTOR | 1 | |
| 37 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 38 | 455628-3 | INNER COVER | 1 | |
| 39 | 620562-8 | CONTROLLER B | 1 | |
| 039-1 | 620E48-2 | CONTROLLER B | 1 | |
| 039-2 | 620J62-8 | CONTROLLER B | 1 | |
| 40 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 41 | 687042-7 | STRAIN RELIEF | 1 | |
| 42 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | |
| 43 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 44 | 143039-1 | MOTOR HOUSING COMPLETE | 1 | |
| 45 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 46 | 962106-1 | RETAINING RING R-28 | 1 | |
| 48 | 140L84-9 | RECEIVE WASHER COMPLETE G | 1 | |
| 49 | 266579-3 | HEX SOCKET HEAD BOLT M6X30 | 2 | |
| 51 | 346073-2 | PROTECTOR CLAMP | 1 | |
| 53 | 455926-5 | PROTECTOR | 1 | |
| 54 | 346855-2 | CUTTER | 1 | |
| 55 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 56 | 140L89-9 | PIPE COMPLETE O | 1 | |
| 56 | C10 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 56 | C20 | 819N87-3 | CAUTION LABEL | 1 |
| 57 | 213325-5 | O RING 19 | 1 | |
| 60 | 183A77-7 | GRIP SET | 1 | |
| 60 | D10 | INC. 67 | ||
| 61 | 455629-1 | LOCK OFF LEVER | 1 | |
| 061-1 | 413Y35-6 | LOCK OFF LEVER | 1 | |
| 62 | 233621-5 | TORSION SPRING 9 | 1 | |
| 63 | 632E40-6 | SWITCH UNIT | 1 | |
| 64 | 455816-2 | SWITCH LEVER | 1 | |
| 65 | 233612-6 | TORSION SPRING 10 | 1 | |
| 66 | 140L81-5 | SUB CONTROLLER COMPLETE G | 1 | |
| 66 | C10 | 819N38-6 | SWITCH LABEL | 1 |
| 66 | C20 | 819N39-4 | INDICATION LABEL | 1 |
| 67 | 183A77-7 | GRIP SET | 1 | |
| 67 | D10 | INC. 60 | ||
| 68 | 911258-5 | PAN HEAD SCREW M5X35 | 1 | |
| 69 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 75 | 253428-3 | SPRING WASHER 6 | 2 | |
| 76 | 413143-3 | WASHER | 2 | |
| A01 | 125516-5 | BAND ASSEMBLY | 1 | |
| A03 | 195246-2 | SAFETY GOGGLE | 1 | |
| A06 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A07 | 831304-7 | ACCESSORY BAG | 1 | |
| A08 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A10 | 126642-3 | PLASTIC BLADE ASSEMBLY255-M10L | 1 | |
| A11B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A11B | D10 | COMPO-PARTS | ||
| A12B | 197280-8 | BATTERY BL1850B SET | 2 | |
| F07 | 197472-9 | NYLON CORD 2.0-15M SET | 1 | |
| F08 | 197473-7 | NYLON CORD 2.0-30M SET | 1 | |
| F09 | 197474-5 | NYLON CORD 2.0-160M SET | 1 | |
| F10 | 197475-3 | NYLON CORD 2.0-280M SET | 1 | |
| F15 | 198502-9 | NYLON CORD 2.4-30M SET | 1 | |
| F16 | 198503-7 | NYLON CORD 2.4-120M SET | 1 | |
| F17 | 198504-5 | NYLON CORD 2.4-180M SET | 1 | |
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 |
