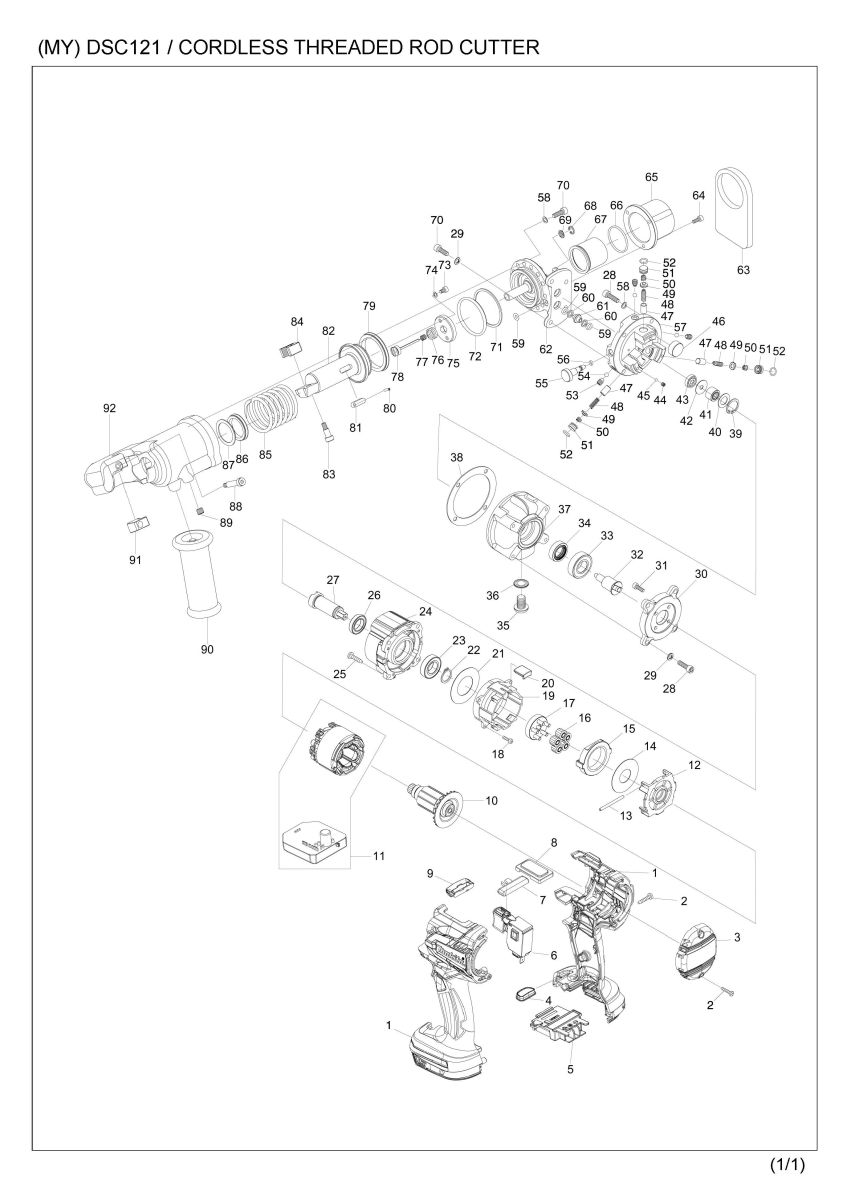

Part Diagram
Total: 105 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183C36-3 | HOUSING SET | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 3 | 455011-4 | REAR COVER | 1 | |
| 4 | 142263-3 | INDICATOR PANEL COMPLETE | 1 | |
| 5 | 643874-2 | TERMINAL | 1 | |
| 6 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 7 | 451162-1 | LOCK LEVER | 1 | |
| 007-1 | 413R94-8 | LOCK LEVER | 1 | |
| 8 | 457799-2 | COVER | 1 | |
| 9 | 620283-2 | LED CIRCUIT | 1 | |
| 10 | 619336-2 | ROTOR | 1 | |
| 11 | 629116-8 | STATOR COMPLETE | 1 | |
| 12 | 455005-9 | MOTOR BRACKET | 1 | |
| 13 | 256375-7 | ROD 3 | 2 | |
| 14 | 253401-3 | FLAT WASHER 18 | 1 | |
| 15 | 221558-8 | INTERNAL SPUR GEAR 41 | 1 | |
| 16 | 226193-7 | SPUR GEAR 13 | 5 | |
| 17 | 144591-2 | CARRIER COMPLETE | 1 | |
| 18 | 911017-7 | PAN HEAD SCREW M3X12 | 4 | |
| 19 | 455006-7 | GEAR CASE | 1 | |
| 20 | 422168-6 | RUBBER SEAL | 1 | |
| 21 | 253888-9 | FLAT WASHER 25 | 1 | |
| 22 | 961055-9 | RETAINING RING S-15 | 1 | |
| 23 | 211234-2 | BALL BEARING 6902LLB | 1 | |
| 24 | 319616-3 | GEAR HOUSING | 1 | |
| 25 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 26 | 211233-4 | BALL BEARING 6802LLB | 1 | |
| 27 | 326996-0 | SPINDLE | 1 | |
| 28 | SC07512050 | HEX.SOCKET HEAD BOLT M5X18 | 8 | |
| 028-1 | SC07512050 | HEX.SOCKET HEAD BOLT M5X18 | 8 | |
| 29 | SC07610030 | SPRING WASHER 5 | 8 | |
| 029-1 | SC07610030 | SPRING WASHER 5 | 8 | |
| 30 | SC03220120 | MOTOR FLANGE | 1 | |
| 31 | SC07511080 | BOLT HB4X12 | 4 | |
| 32 | SC00000486 | ECCENTRIC SHAFT T45417 | 1 | |
| 33 | SC00000050 | BALL BEARING 6002RU | 1 | |
| 34 | SC06504050 | OIL SEAL UE15257 | 1 | |
| 35 | SC07550100 | HEX. SOCKET BUTTON BOLT HBB10X | 1 | |
| 36 | SC00000489 | SEAL WASHER | 1 | |
| 37 | SC03210040 | PIMP CASE | 1 | |
| 38 | SC04601550 | LINER B | 1 | |
| 39 | SC00000487 | STOP RING H19 | 1 | |
| 40 | SC00000465 | NEEDLE BEARING HOLDER A T45421 | 1 | |
| 41 | SC00000466 | NEEDLE BEARING #RNAF81510 | 1 | |
| 42 | SC00000467 | NEEDLE BEARING HOLDER B T45422 | 1 | |
| 43 | SC07100030 | BALL BEARING 625 | 1 | |
| 44 | SC07521010 | BOLT HS4X4 | 3 | |
| 45 | SC07900000 | STEEL BALL 3 | 3 | |
| 46 | SC00000020 | MAGNET | 1 | |
| 47 | SC03500380 | PISTON | 3 | |
| 48 | SC00000022 | PISTON RETURN SPRING | 3 | |
| 49 | SC00000464 | CHECK VALVE #T43445 | 3 | |
| 50 | SC00000468 | SPRING #43449N2 | 3 | |
| 51 | SC03500540 | METAL PACKING | 3 | |
| 52 | SC06505590 | O RING S-8 | 3 | |
| 53 | SC07523020 | BOLT HS6X8 | 3 | |
| 54 | SC07900070 | STEEL BALL D3/16 | 3 | |
| 55 | SC03503900 | RETURN VALVE | 1 | |
| 56 | SC06505300 | O RING S4 | 1 | |
| 57 | SC03207610 | MAIN PUMP | 1 | |
| 58 | SC00000067 | WASHER 5 | 17 | |
| 59 | SC06505010 | O RING P6 | 5 | |
| 60 | SC06503580 | BACKUP RING P6 | 4 | |
| 61 | SC03500750 | O-RING GUIDE | 2 | |
| 62 | SC03515230 | FLANGE FOR CUTTER HEAD | 1 | |
| 63 | SC04500710 | BALANCE STAND | 1 | |
| 64 | SC07511010 | HEX. SOCKET HEAD BOLT 4X8 | 3 | |
| 65 | SC04500690 | LEVELER COVER | 1 | |
| 66 | SC06505570 | O-RING S31.5 | 1 | |
| 67 | SC04500680 | OIL LEVELER COVER | 1 | |
| 68 | SC07410110 | STOP RING H10 | 1 | |
| 69 | SC03301860 | FILTER | 1 | |
| 70 | SC00000098 | HEX. SOCKET HEAD BOLT 5X15 | 17 | |
| 71 | SC06503600 | BACKUP RING G45 | 1 | |
| 72 | SC06505460 | O-RING G45 | 1 | |
| 73 | SC00000060 | HEX. SOCKET HEAD BOLT 4X6 | 2 | |
| 74 | SC00000068 | FLAT WASHER 4 | 2 | |
| 75 | SC00000481 | STOPPER PLATE #45423 | 1 | |
| 76 | SC00000471 | SPRING #T45378 | 1 | |
| 77 | SC00000023 | RELEASE VALVE SPRING | 1 | |
| 78 | SC03500140 | RELEASE VALVE | 1 | |
| 79 | SC00000485 | PACKING OSI50406 | 1 | |
| 80 | SC00000070 | SPRING PIN 2.5X10 | 2 | |
| 81 | SC03700080 | KEY | 2 | |
| 82 | SC03111710 | CUTTER ROD | 1 | |
| 83 | SC06602200 | BOLT | 1 | |
| 84 | SC09002730 | CUTTER W3/8 | 1 | |
| 84 | D10 | INC. 91 | ||
| 85 | SC04000400 | RETURN SPRING | 1 | |
| 86 | SC06500170 | SKY PACKING | 1 | |
| 87 | SC06503590 | BACKUP RING TBC-26X34X1 | 1 | |
| 88 | SC06602190 | BOLT 6.5X25 | 1 | |
| 89 | SC07850050 | HEX SOCKET TAPERED SCREW PLUG | 1 | |
| 90 | SC09004210 | HANDLE SET | 1 | |
| 91 | SC09002730 | CUTTER W3/8 | 1 | |
| 91 | D10 | INC. 84 | ||
| 92 | SC03104210 | CUTTER HEAD | 1 | |
| A01 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A02 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A03 | SC00000106 | OIL 35CC | 1 | |
| A04 | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A04 | C10 | 453974-8 | LATCH | 4 |
| A07 | SC08015990 | DSC121ZK INDICATION LABEL | 1 | |
| A08 | SC08016000 | DSC121ZK PLASTIC CASE LABEL | 1 |
