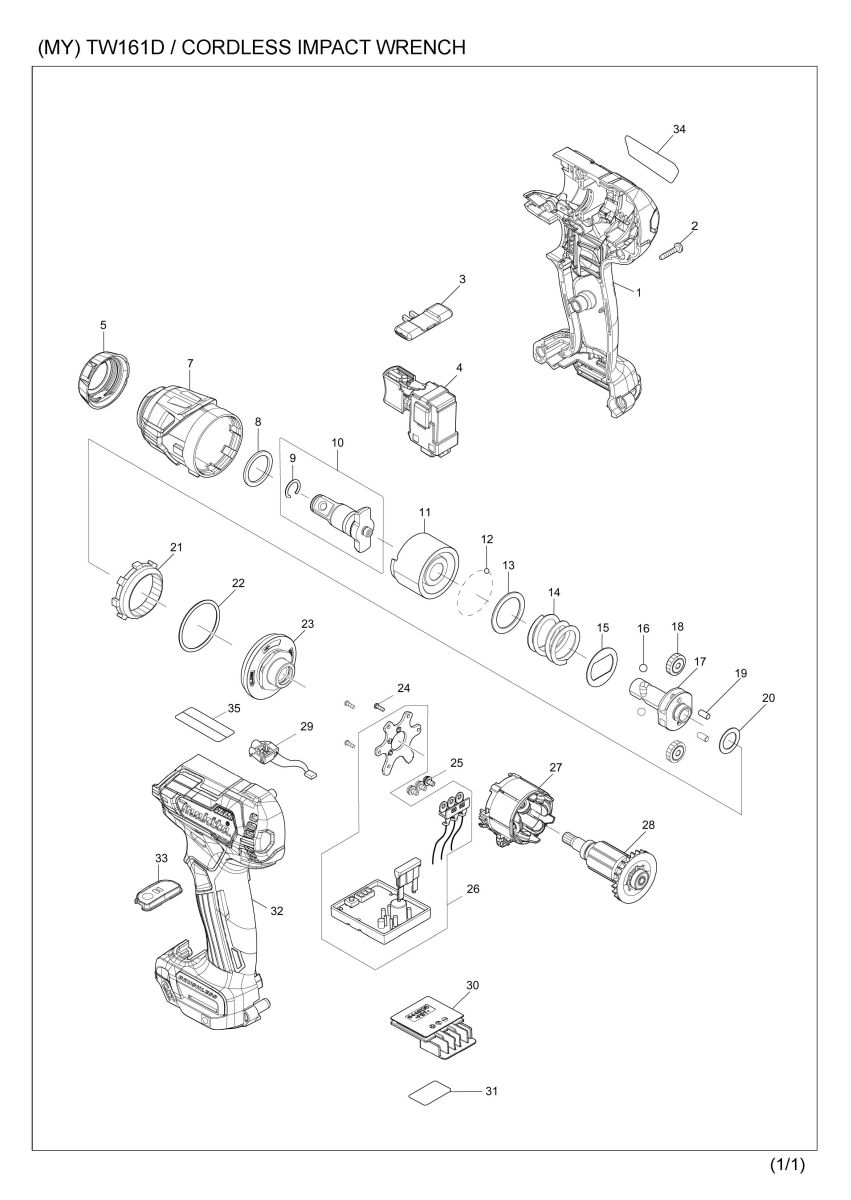

Part Diagram
Total: 66 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183L31-7 | HOUSING SET | 1 | |
| 001 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 001 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | D10 | INC. 32 | ||
| 002 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 003 | 455053-8 | F/R CHANGE LEVER | 1 | |
| 004 | 143975-1 | SWITCH COMPLETE | 1 | |
| 004 | C10 | 424890-1 | SWITCH COVER | 1 |
| 005 | 422407-4 | BUMPER | 1 | |
| 007 | 140K41-1 | HAMMER CASE COMPLETE | 1 | |
| 007 | C10 | 213882-3 | O-RING 16 | 1 |
| 008 | 261159-0 | NYLON WASHER 19 | 1 | |
| 009 | 231907-1 | RING SPRING 10 | 1 | |
| 010 | 136030-6 | ANVIL E ASSY | 1 | |
| 010 | D10 | INC. 9 | ||
| 011 | 327200-0 | HAMMER | 1 | |
| 012 | 216019-1 | STEEL BALL 3 | 24 | |
| 013 | 267352-4 | FLAT WASHER 22 | 1 | |
| 014 | 232516-9 | COMPRESSION SPRING 21 | 1 | |
| 015 | 267813-4 | WASHER 21 | 1 | |
| 016 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 017 | 327046-4 | SPINDLE | 1 | |
| 018 | 227213-0 | SPUR GEAR 17 | 2 | |
| 019 | 268217-3 | PIN 3.5 | 2 | |
| 020 | 253052-2 | FLAT WASHER 12 | 1 | |
| 021 | 227316-0 | INTERNAL GEAR 43 | 1 | |
| 022 | 213479-8 | O RING 33 | 1 | |
| 023 | 140G75-0 | BEARING BOX COMPLETE | 1 | |
| 023 | C10 | 213845-9 | O-RING 13 | 1 |
| 024 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 025 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 026 | 620998-1 | CONTROLLER | 1 | |
| 027 | 629398-2 | STATOR | 1 | |
| 028 | 619491-0 | ROTOR | 1 | |
| 028-1 | 619491-0 | ROTOR | 1 | |
| 029 | 620999-9 | LED CIRCUIT | 1 | |
| 030 | 644813-5 | TERMINAL | 1 | |
| 031 | 855S26-9 | TW161D SERIAL NO. LABEL | 1 | |
| 032 | 183L31-7 | HOUSING SET | 1 | |
| 032 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 032 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 032 | D10 | INC. 1 | ||
| 033 | 140G52-2 | SWITCH PLATE COMPLETE | 1 | |
| 033 | C10 | 818X19-7 | SWITCH LABEL | 1 |
| 034 | 855S19-6 | TW161D NAME PLATE | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03B | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A03B | C10 | 417724-5 | LATCH | 2 |
| A03C | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A03C | C10 | 417724-5 | LATCH | 2 |
| A04B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A04C | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A04C | D10 | COMPO-PARTS | ||
| A05B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A05-1B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05-1C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A05-2B | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A05-2C | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A05-3B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A05-3C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A06B | 456128-6 | BATTERY COVER | 1 | |
| A06C | 456128-6 | BATTERY COVER | 1 | |
| F40 | 347C56-3 | HOOK | 1 |
