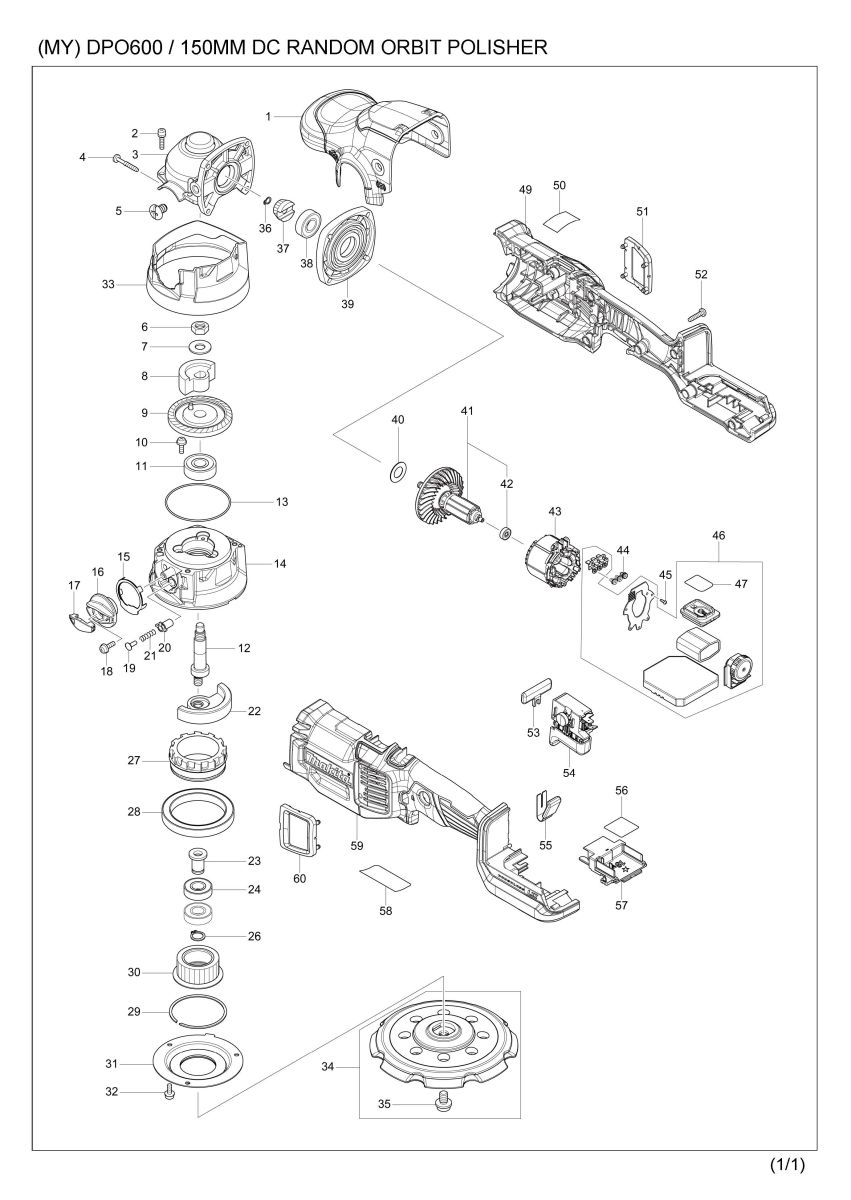

Part Diagram
Total: 72 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 456805-0 | HEAD COVER | 1 | |
| 2 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | |
| 3 | 143783-0 | GEAR HOUSING COMPLETE | 1 | |
| 4 | 266257-5 | TAPPING SCREW 4X28 | 4 | |
| 5 | 265083-9 | + FLAT HEAD SCREW M8X11 | 2 | |
| 6 | 931503-2 | HEX. NUT M10 | 1 | |
| 7 | 253024-7 | FLAT WASHER 10 | 1 | |
| 8 | 326735-8 | UPPER BALANCE WEIGHT | 1 | |
| 9 | 143782-2 | SPIRAL BEVEL GEAR 37 COMPLETE | 1 | |
| 10 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | |
| 11 | 211145-1 | BALL BEARING 6201ZZ | 1 | |
| 12 | 324069-3 | SPINDLE | 1 | |
| 13 | 213724-1 | O RING 62 | 1 | |
| 14 | 143784-8 | SKIRT COMPLETE | 1 | |
| 15 | 153427-4 | DUST SEAL WASHER COMPLETE | 1 | |
| 16 | 143785-6 | KNOB COMPLETE | 1 | |
| 17 | 456809-2 | CAP | 1 | |
| 18 | 911119-9 | PAN HEAD SCREW M4X12 | 1 | |
| 19 | 417382-7 | SPRING HOLDER | 1 | |
| 20 | 345209-0 | HOLDER | 1 | |
| 21 | 231230-4 | COMPRESSION SPRING 4 | 1 | |
| 22 | 326736-6 | LOWER BALANCE WEIGHT | 1 | |
| 23 | 324070-8 | SLEEVE | 1 | |
| 24 | 211131-2 | BALL BEARING 6001DDW | 2 | |
| 26 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 27 | 221453-2 | INTERNAL SPUR GEAR 29 | 1 | |
| 28 | 210146-6 | BALL BEARING 6811LLB | 1 | |
| 29 | 257933-2 | STOP RING (EXT) WR-55 | 1 | |
| 30 | 143790-3 | SPUR GEAR 26 COMPLETE | 1 | |
| 31 | 143938-7 | BEARING RETAINER 80 COMPLETE | 1 | |
| 32 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | |
| 33 | 456806-8 | BUMPER | 1 | |
| 34 | 197929-0 | PAD 150 SET | 1 | |
| 34 | D10 | INC. 35 | ||
| 034-1 | 197928-2 | PAD 150 SET | 1 | |
| 034-1 | D10 | INC. 35 | ||
| 35 | 266270-3 | HEX.SOCKET HEAD BOLT M8X14 | 1 | |
| 36 | 961002-0 | RETAINING RING S-6 | 1 | |
| 37 | 221450-8 | SPIRAL BEVEL GEAR 10 | 1 | |
| 38 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 39 | 317359-1 | GEAR HOUSING COVER | 1 | |
| 40 | 253084-9 | FLAT WASHER 12 | 1 | |
| 41 | 519546-0 | ROTOR ASSY | 1 | |
| 41 | D10 | INC. 42 | ||
| 42 | 210036-3 | BALL BEARING 604ZZ | 1 | |
| 43 | 629391-6 | STATOR | 1 | |
| 44 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 45 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 46 | 620A17-9 | CONTROLLER COMPLETE | 1 | |
| 46 | D10 | INC. 47 | ||
| 47 | 818M11-7 | SWITCH LABEL | 1 | |
| 49 | 183K93-9 | MOTOR HOUSING SET | 1 | |
| 49 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 49 | D10 | INC. 59 | ||
| 50 | 818M10-9 | INDICATION LABEL | 1 | |
| 51 | 422380-8 | DUST COVER | 1 | |
| 52 | 265995-6 | TAPPING SCREW 4X18 | 10 | |
| 53 | 458972-7 | LOCK OFF BUTTON | 1 | |
| 54 | 651381-1 | SWITCH C3JW-4B-2L64 | 1 | |
| 55 | 232494-3 | LEAF SPRING | 1 | |
| 56 | 855C07-7 | DPO600 SERIAL NO. LABEL | 1 | |
| 57 | 643874-2 | TERMINAL | 1 | |
| 58 | 855C04-3 | DPO600 NAME PLATE | 1 | |
| 59 | 183K93-9 | MOTOR HOUSING SET | 1 | |
| 59 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 59 | D10 | INC. 49 | ||
| 60 | 422380-8 | DUST COVER | 1 | |
| A01 | 783203-8 | HEX. WRENCH 5 | 1 | |
| F01 | 193288-0 | FELT PAD 150 | 1 | |
| F02 | 196152-4 | FELT PAD SET | 1 | |
| F15 | 197925-8 | PAD 100 SET(EU) | 1 | |
| F19 | 198043-5 | GRIP 36 SET(EU) | 1 |
