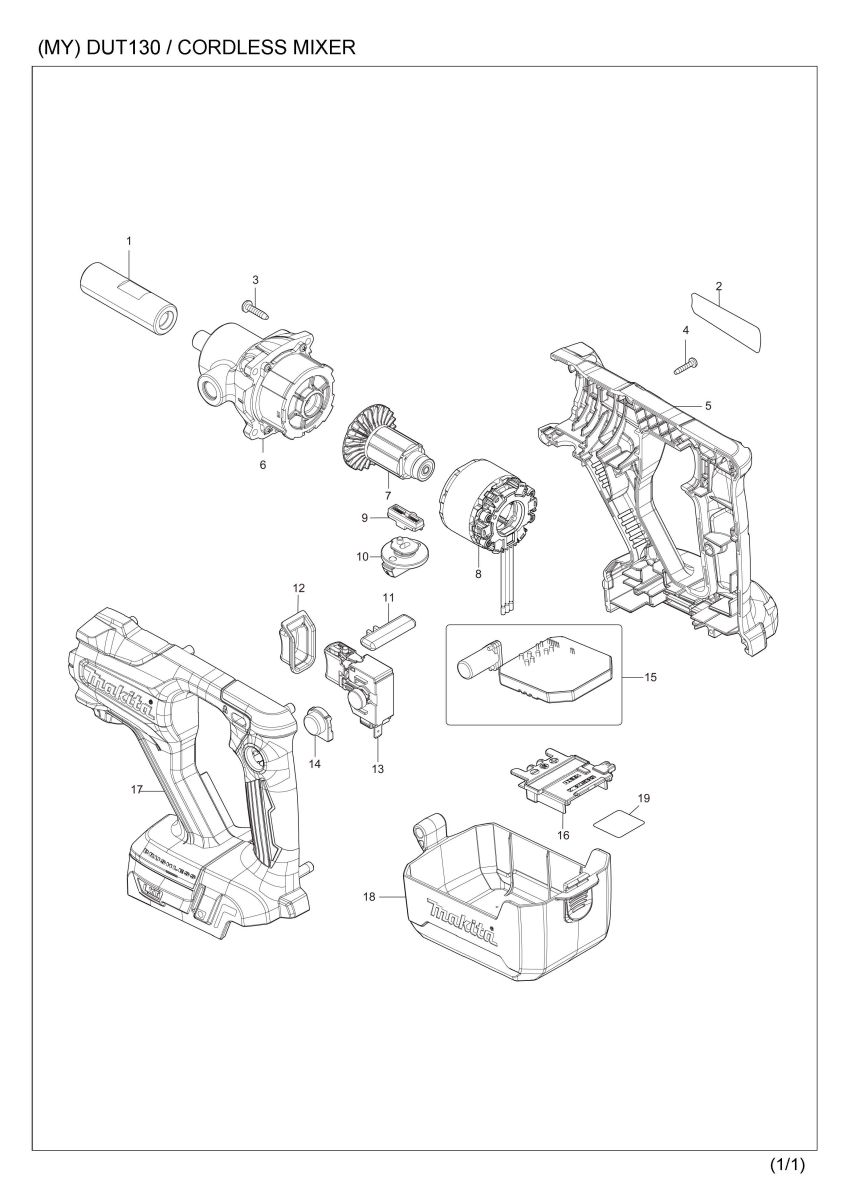

Part Diagram
Total: 47 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 323962-8 | SHAFT HOLDER 1/2-M12 | 1 | |
| 001-1 | 323962-8 | SHAFT HOLDER 1/2-M12 | 1 | |
| 001-2 | 327B34-3 | SHAFT HOLDER 1/2-M12 | 1 | |
| 2 | 855D77-2 | DUT130 NAME PLATE | 1 | |
| 3 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 003-1 | 266045-0 | TAPPING SCREW 4X20 | 4 | |
| 4 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 10 | |
| 5 | 183L06-6 | HOUSING SET | 1 | |
| 5 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 5 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 5 | D10 | INC. 17 | ||
| 6 | 127065-8 | GEAR ASSEMBLY | 1 | |
| 7 | 619551-8 | ROTOR | 1 | |
| 8 | 629396-6 | STATOR | 1 | |
| 9 | 127066-6 | CHANGE LEVER ASSEMBLY | 1 | |
| 9 | C10 | 232518-5 | COMPRESSION SPRING 4 | 2 |
| 10 | 127282-0 | SPEED CHANGE LEVER ASSEMBLY | 1 | |
| 10 | C10 | 213118-0 | O RING 12 | 1 |
| 11 | 458822-6 | LOCK LEVER | 1 | |
| 12 | 458816-1 | SWITCH COVER | 1 | |
| 13 | 651088-9 | SWITCH C3JW-4B-1L | 1 | |
| 14 | 458819-5 | LOCK ON BUTTON COVER | 1 | |
| 15 | 620972-9 | CONTROLLER | 1 | |
| 16 | 643874-2 | TERMINAL | 1 | |
| 17 | 183L06-6 | HOUSING SET | 1 | |
| 17 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 17 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 17 | D10 | INC. 5 | ||
| 18 | 458820-0 | COVER | 1 | |
| 19 | 855D80-3 | DUT130 SERIAL NO. LABEL | 1 | |
| A01 | 140G50-6 | GRIP COMPLETE | 1 | |
| A02 | A-43692 | MIXING BLADE 165 | 1 | |
| A03 | A-43751 | SHAFT COMPLETE | 1 | |
| A03-1 | 168349-5 | SHAFT COMPLETE | 1 | |
| A04 | 265220-5 | HEX. BOLT M8X18 | 1 | |
| A05 | 326649-1 | SHAFT HOLDER 1/2-M14 | 1 | |
| A05-1 | 326649-1 | SHAFT HOLDER 1/2-M14 | 1 | |
| A05-2 | 327B35-1 | SHAFT HOLDER 1/2-M14 | 1 | |
| A06 | 458814-5 | FRONT COVER | 1 | |
| A07 | 781006-4 | WRENCH 13 | 1 | |
| A08 | 781010-3 | WRENCH 19 | 2 | |
| A09 | 831253-8 | TOTE BAG | 1 | |
| A10B | 450128-8 | BATTERY COVER | 2 | |
| A11B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A11B | D10 | COMPO-PARTS | ||
| A12B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A12-1B | 197600-6 | BATTERY BL1830B SET | 2 |
