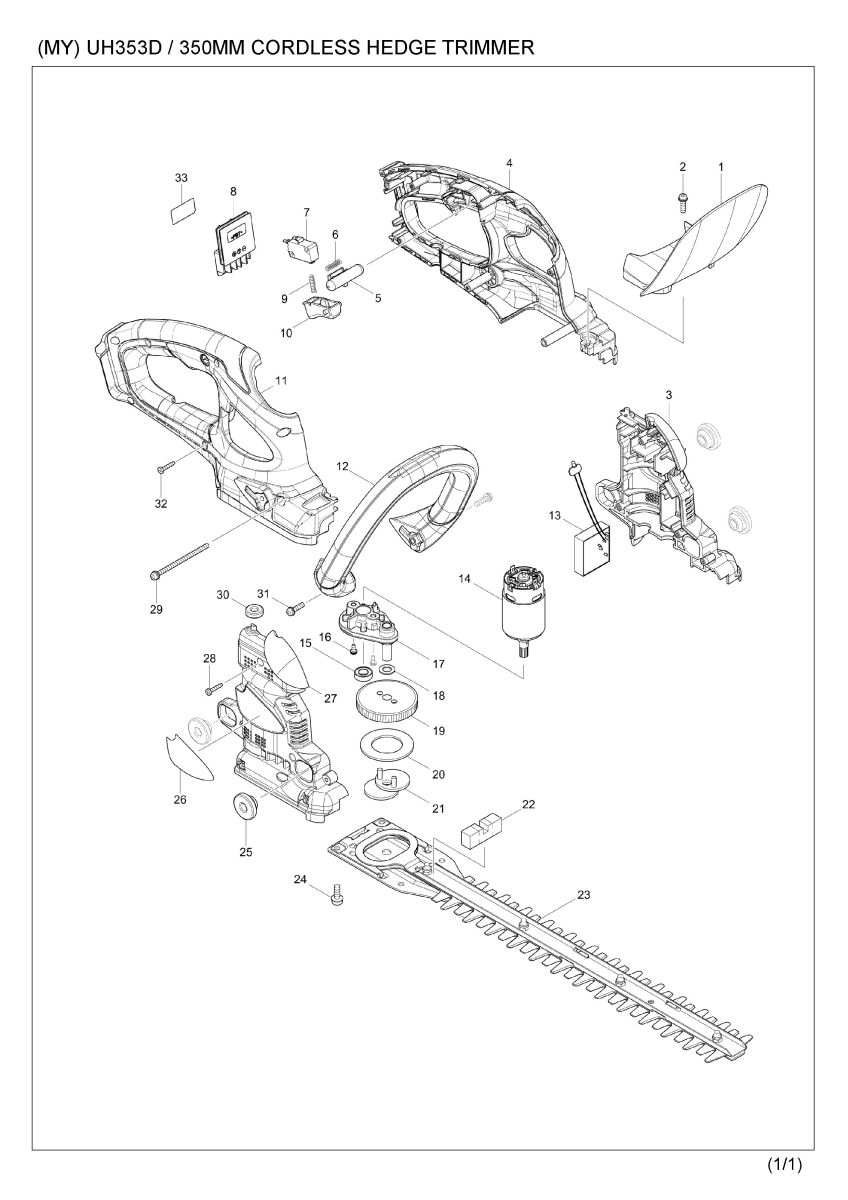

Part Diagram
Total: 61 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 458908-6 | PROTECTOR | 1 | |
| 002 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 003 | 183C71-1 | MOTOR HOUSING SET | 1 | |
| 003 | D10 | INC. 27 | ||
| 004 | 183K65-4 | HANDLE SET | 1 | |
| 004 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 004 | C20 | 931102-0 | HEX. NUT M4 | 2 |
| 004 | C30 | 263002-9 | RUBBER PIN 4 | 2 |
| 004 | D10 | INC. 11 | ||
| 005 | 458900-2 | LOCK OFF BUTTON | 1 | |
| 006 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 007 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 008 | 644813-5 | TERMINAL | 1 | |
| 009 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 010 | 417564-1 | SWITCH LEVER | 1 | |
| 011 | 183K65-4 | HANDLE SET | 1 | |
| 011 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 011 | C20 | 931102-0 | HEX. NUT M4 | 2 |
| 011 | C30 | 263002-9 | RUBBER PIN 4 | 2 |
| 011 | D10 | INC. 4 | ||
| 012 | 455329-3 | GRIP 25 | 1 | |
| 013 | 620952-5 | CONTROLLER | 1 | |
| 013 | C10 | 654069-2 | RECEPTACLE | 2 |
| 013 | C20 | 654079-9 | INSULATED RECEPTACLE DF1.25 | 1 |
| 013 | C30 | 654208-4 | RECEPTACLE | 1 |
| 013 | C40 | 654281-4 | RECEPTACLE | 1 |
| 014 | 629380-1 | DC MOTOR | 1 | |
| 015 | 210124-6 | BALL BEARING 688ZZ | 1 | |
| 016 | 911008-8 | PAN HEAD SCREW M3X8 | 2 | |
| 017 | 140838-2 | MOTOR HOLDER COMPLETE | 1 | |
| 018 | 253215-0 | FLAT WASHER 8 | 1 | |
| 019 | 143526-0 | GEAR COMPLETE | 1 | |
| 020 | 267404-1 | FLAT WASHER 28 | 1 | |
| 021 | 165734-3 | CRANK | 1 | |
| 021-1 | 162C43-9 | CRANK | 1 | |
| 022 | 423342-9 | SPONGE SEAL | 1 | |
| 023 | 196879-6 | SHEAR BLADE ASSEMBLY SET | 1 | |
| 023 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 4 |
| 023 | C20 | 257672-4 | SLEEVE 5 | 4 |
| 023 | C21 | 257889-9 | SLEEVE 5 | 4 |
| 023 | C30 | 265193-2 | + TRUSS HEAD SCREW M5X14 | 4 |
| 024 | 265074-0 | PAN HEAD SCREW M5X16 | 4 | |
| 025 | 424194-1 | RUBBER RING 8 | 4 | |
| 026 | 818H05-2 | UH353D NAME PLATE | 1 | |
| 027 | 183C71-1 | MOTOR HOUSING SET | 1 | |
| 027 | D10 | INC. 3 | ||
| 028 | 266429-2 | TAPPING SCREW 3X16 | 4 | |
| 029 | 911193-7 | PAN HEAD SCREW M4X65 | 1 | |
| 030 | 424195-9 | RUBBER RING 6 | 1 | |
| 031 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 032 | 266429-2 | TAPPING SCREW 3X16 | 6 | |
| 033 | 818J24-0 | UH353D SERIAL NO. LABEL | 1 | |
| A01 | 458359-3 | BLADE COVER | 1 | |
| A02B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A02B | D10 | COMPO-PARTS | ||
| A03B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A03-1B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A03-2B | 191B85-0 | BATTERY BL1021B SET | 1 | |
| A03-3B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A04B | 456128-6 | BATTERY COVER | 1 | |
| A05 | 126834-4 | CHIP RECEIVER ASSEMBLY | 1 |
