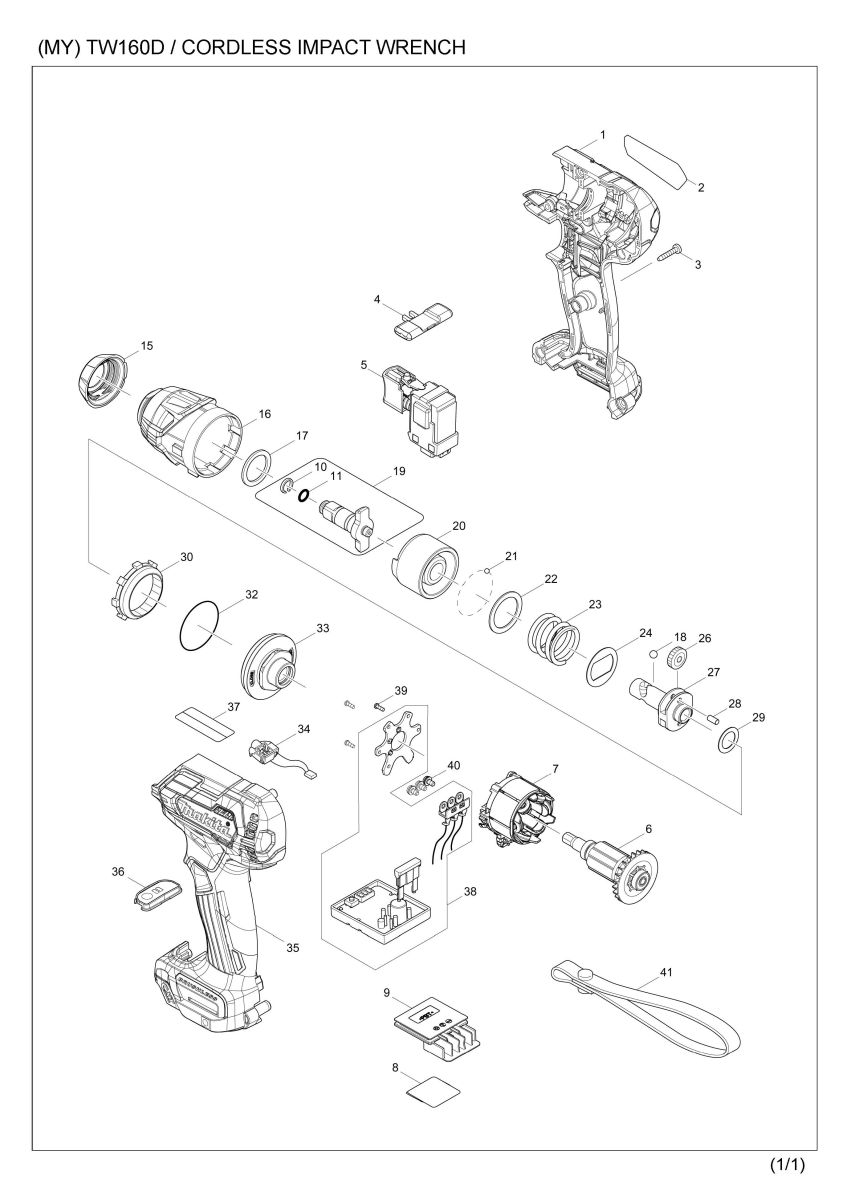

Part Diagram
Total: 47 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183L31-7 | HOUSING SET | 1 | |
| 1 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 1 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 1 | D10 | INC. 35 | ||
| 2 | 855L57-6 | TW160D NAME PLATE | 1 | |
| 3 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 4 | 455053-8 | F/R CHANGE LEVER | 1 | |
| 5 | 143975-1 | SWITCH COMPLETE | 1 | |
| 5 | C10 | 424890-1 | SWITCH COVER | 1 |
| 6 | 619491-0 | ROTOR | 1 | |
| 006-1 | 619491-0 | ROTOR | 1 | |
| 7 | 629398-2 | STATOR | 1 | |
| 8 | 855L63-1 | TW160D SERIAL NO. LABEL | 1 | |
| 9 | 644813-5 | TERMINAL | 1 | |
| 10 | 233943-3 | RING SPRING 8 | 1 | |
| 11 | 213960-9 | O RING 5 | 1 | |
| 15 | 422228-4 | BUMPER | 1 | |
| 16 | 140G53-0 | HAMMER CASE COMPLETE | 1 | |
| 16 | C10 | 213166-9 | O RING 12.5 | 1 |
| 17 | 261159-0 | NYLON WASHER 19 | 1 | |
| 18 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 19 | 135932-3 | ANVIL ASS'Y | 1 | |
| 19 | D10 | INC. 10,11 | ||
| 20 | 327045-6 | HAMMER | 1 | |
| 21 | 216019-1 | STEEL BALL 3 | 24 | |
| 22 | 267352-4 | FLAT WASHER 22 | 1 | |
| 23 | 232410-5 | COMPRESSION SPRING 21 | 1 | |
| 24 | 267813-4 | WASHER 21 | 1 | |
| 26 | 227213-0 | SPUR GEAR 17 | 2 | |
| 27 | 327046-4 | SPINDLE | 1 | |
| 28 | 268217-3 | PIN 3.5 | 2 | |
| 29 | 253052-2 | FLAT WASHER 12 | 1 | |
| 30 | 227316-0 | INTERNAL GEAR 43 | 1 | |
| 32 | 213479-8 | O RING 33 | 1 | |
| 33 | 140G75-0 | BEARING BOX COMPLETE | 1 | |
| 33 | C10 | 213845-9 | O-RING 13 | 1 |
| 34 | 620999-9 | LED CIRCUIT | 1 | |
| 35 | 183L31-7 | HOUSING SET | 1 | |
| 35 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 35 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 35 | D10 | INC. 1 | ||
| 36 | 140G52-2 | SWITCH PLATE COMPLETE | 1 | |
| 38 | 620998-1 | CONTROLLER | 1 | |
| 39 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 40 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 |
