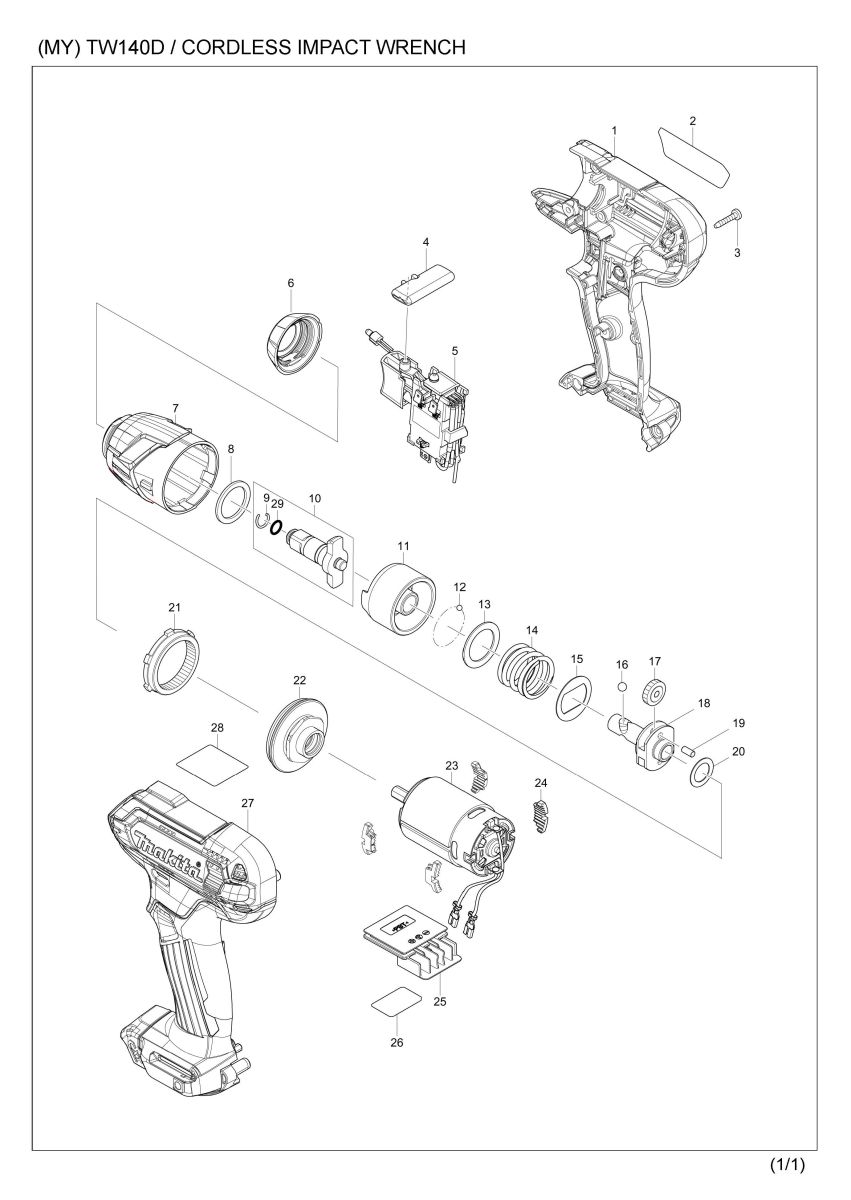

Part Diagram
Total: 37 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183J75-5 | HOUSING SET | 1 | |
| 1 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 1 | D10 | INC. 27 | ||
| 2 | 854M38-3 | TW140D NAME PLATE | 1 | |
| 3 | 266429-2 | TAPPING SCREW 3X16 | 8 | |
| 4 | 456039-5 | F/R CHANGE LEVER | 1 | |
| 5 | 632M06-4 | SWITCH UNIT | 1 | |
| 5 | C10 | 620625-0 | LED CIRCUIT | 1 |
| 6 | 422228-4 | BUMPER | 1 | |
| 7 | 140B03-5 | HAMMER CASE COMPLETE | 1 | |
| 8 | 261140-1 | NYLON WASHER 20 | 1 | |
| 9 | 233943-3 | RING SPRING 8 | 1 | |
| 10 | 135932-3 | ANVIL ASS'Y | 1 | |
| 10 | D10 | INC. 9,29 | ||
| 11 | 324894-2 | HAMMER | 1 | |
| 12 | 216019-1 | STEEL BALL 3 | 24 | |
| 13 | 267380-9 | FLAT WASHER 20 | 1 | |
| 14 | 234064-4 | COMPRESSION SPRING 21 | 1 | |
| 15 | 267813-4 | WASHER 21 | 1 | |
| 16 | 216002-8 | STEEL BALL 4.8 | 2 | |
| 17 | 226190-3 | SPUR GEAR 18 | 2 | |
| 18 | 327127-4 | SPINDLE | 1 | |
| 19 | 268217-3 | PIN 3.5 | 2 | |
| 20 | 253052-2 | FLAT WASHER 12 | 1 | |
| 21 | 226191-1 | INTERNAL GEAR 45 | 1 | |
| 22 | 140B04-3 | BEARING BOX COMPLETE | 1 | |
| 22 | C10 | 213188-9 | O-RING 13 | 1 |
| 23 | 632L96-1 | MOTOR COMPLETE | 1 | |
| 24 | 422273-9 | CUSHION | 4 | |
| 25 | 644813-5 | TERMINAL | 1 | |
| 26 | 854M45-6 | TW140D SERIAL NO. LABEL | 1 | |
| 27 | 183J75-5 | HOUSING SET | 1 | |
| 27 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 27 | D10 | INC. 1 | ||
| 29 | 213960-9 | O RING 5 | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 |
