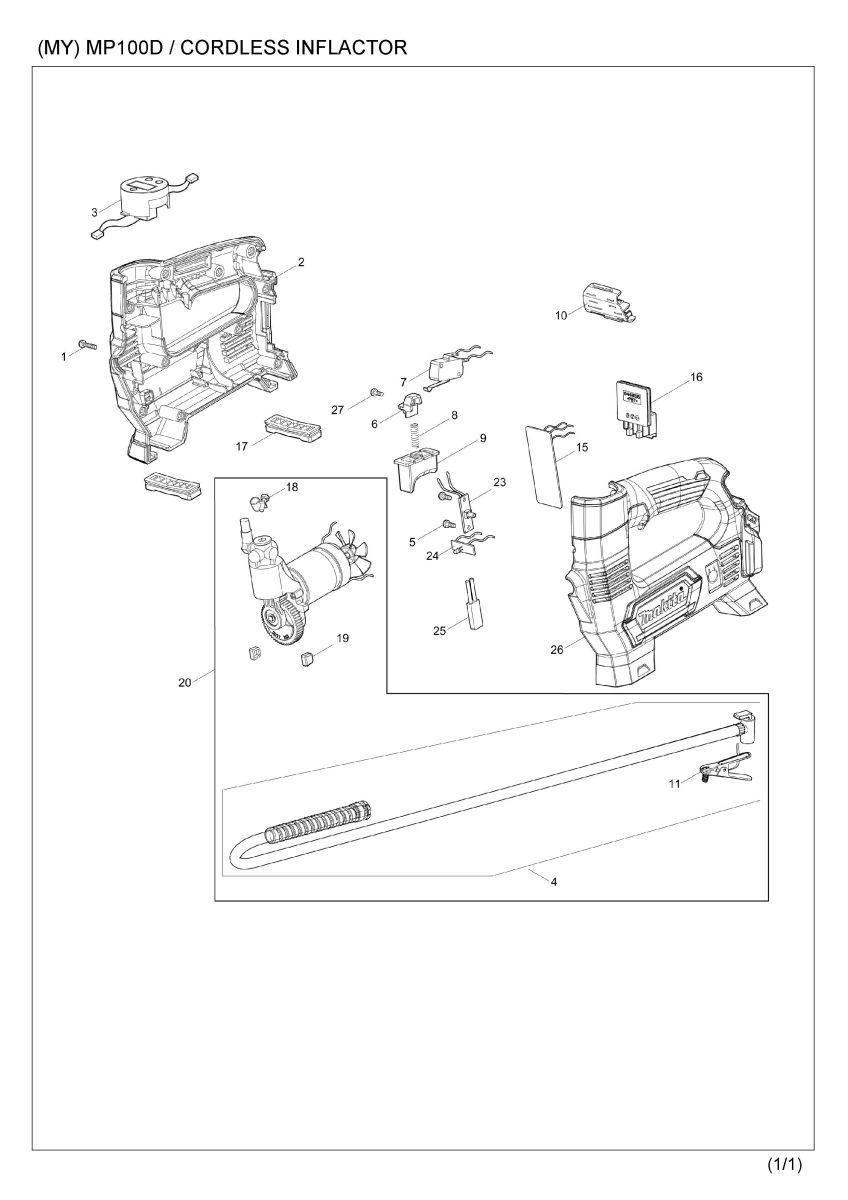

Part Diagram
Total: 51 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | TE00000324 | SCREW 3*14 | 10 | |
| 002 | TE00000351 | HOUSING SET | 1 | |
| 002 | D10 | INC. 26 | ||
| 002-1 | TE00000484 | HOUSING SET | 1 | |
| 002-1 | D10 | INC. 26 | ||
| 003 | TE00000326 | DIGITAL DISPLAY | 1 | |
| 003-1 | TE00000629 | DIGITAL DISPLAY | 1 | |
| 004 | TE00000345 | AIR PIPE ASSEMBLY(6MM) | 1 | |
| 004 | D10 | INC. 11 | ||
| 004A_ | TE00000638 | AIR PIPE ASSEMBLY(8MM) | 1 | |
| 004A_ | D10 | INC. 11 | ||
| 005 | TE00000327 | SCREW 3*10 | 2 | |
| 006 | TE00000328 | TRIGGER SPRING-FIXED BLOCK | 1 | |
| 007 | TE00000329 | SWITCH | 1 | |
| 007-1 | TE00000485 | SWITCH TRIGGER | 1 | |
| 007-2 | TE00000329 | SWITCH | 1 | |
| 008 | TE00000330 | SPRING | 1 | |
| 009 | TE00000331 | SWITCH TRIGGER | 1 | |
| 009-1 | TE00000485 | SWITCH TRIGGER | 1 | |
| 010 | TE00000332 | FIXED BRACKET | 1 | |
| 011 | TE00000346 | BRITISH ADAPTER | 1 | |
| 011-1 | TE00000597 | BRITISH ADAPTER | 1 | |
| 012 | TE00000333 | SWIM RING ADAPTER | 1 | |
| 013 | TE00000334 | FRENCH ADAPTER | 1 | |
| 014 | TE00000335 | BALL ADAPTER | 1 | |
| 015 | TE00000336 | PCB | 1 | |
| 016 | TE00000337 | BATTERY TERMINAL | 1 | |
| 017 | TE00000338 | MAT | 2 | |
| 018 | TE00000352 | CLAMP | 1 | |
| 019 | TE00000339 | RUBBER(CYLINDER) | 1 | |
| 020 | TE00000340 | MOTOR ASSEMBLY | 1 | |
| 020 | D10 | INC. 4,18,19 | ||
| 020-1 | TE00000478 | MOTOR ASSEMBLY | 1 | |
| 020-1 | D10 | INC. 28 | ||
| 020-2 | TE00000640 | MOTOR ASSEMBLY | 1 | |
| 020-2 | D10 | INC. 4,28 | ||
| 023 | TE00000341 | POWER ON/OFF | 1 | |
| 024 | TE00000342 | LED PCB | 1 | |
| 024-1 | TE00000836 | LED PCB | 1 | |
| 025 | TE00000343 | TERMINAL PROTECTOR | 1 | |
| 026 | TE00000351 | HOUSING SET | 1 | |
| 026 | D10 | INC. 2 | ||
| 026-1 | TE00000484 | HOUSING SET | 1 | |
| 026-1 | D10 | INC. 2 | ||
| 027 | TE00000327 | SCREW 3*10 | 1 | |
| 028 | TE00000477 | CONNECTING WIRE | 1 | |
| A01 | TE00000333 | SWIM RING ADAPTER | 1 | |
| A02 | TE00000334 | FRENCH ADAPTER | 1 | |
| A02-1 | TE00000594 | FRENCH ADAPTER | 1 | |
| A03 | TE00000335 | BALL ADAPTER | 1 | |
| A03-1 | TE00000592 | BALL ADAPTER | 1 |
