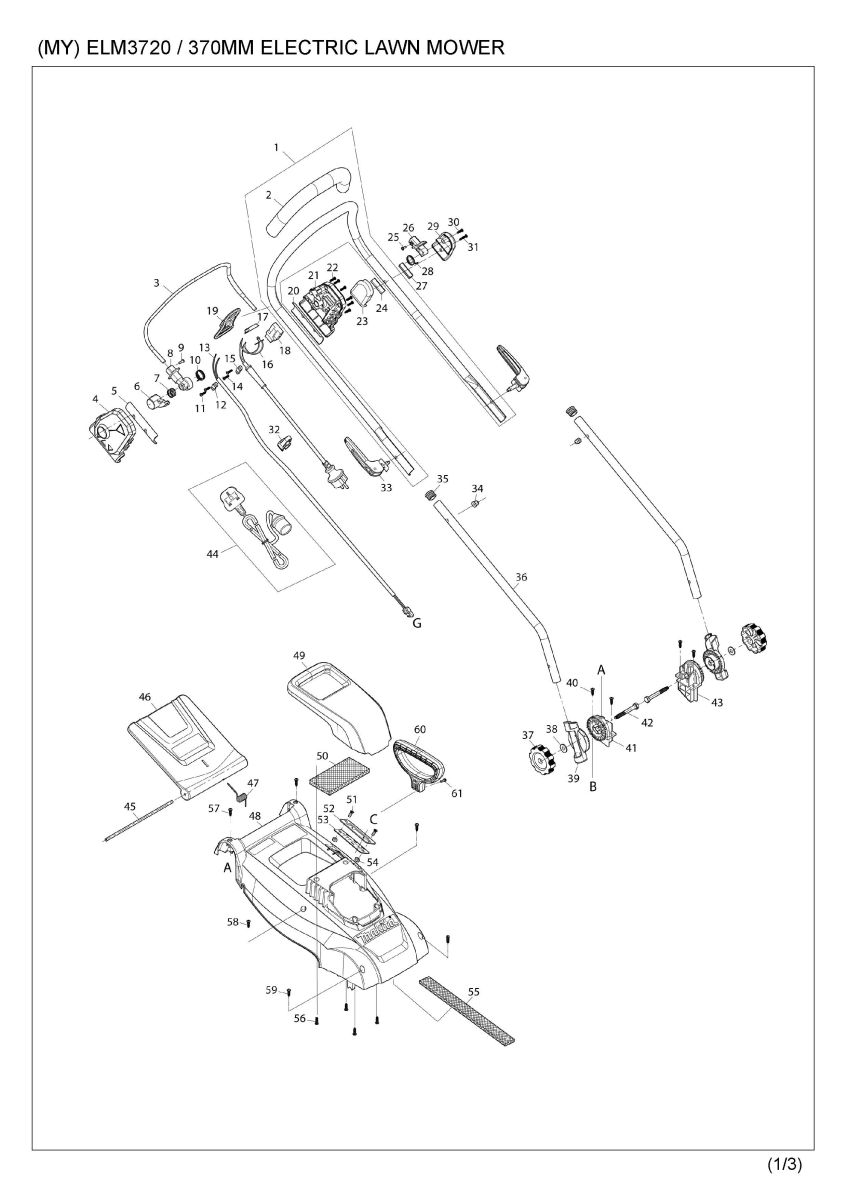

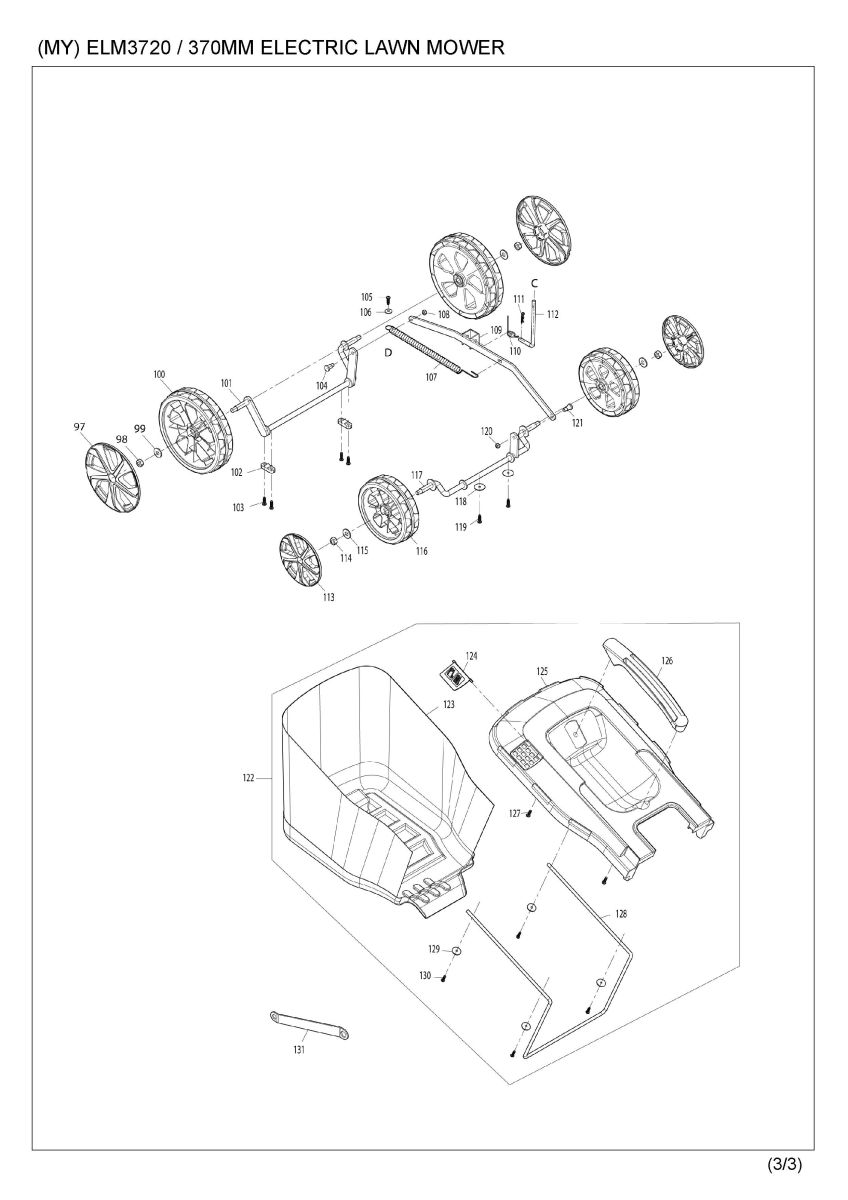

Part Diagram

Item	Sub	Parts No.	Parts Description	Qty
001		YA00000866	UPPER HANDLE BAR ASSY	1
001	D10		INC. 2
002		YA00001175	SPONGE GRIP	1
003		YA00000867	SWITCH LEVER	1
004		YA00000765	SWITCH BOX RIGHT	1
005		YA00000786	SWITCH BOX CLAMP SPASER	1
006		YA00000766	SWITCH LINK BUTTON	1
007		YA00000767	COMPRESSION SPRING 16.8	1
008		YA00000768	SWITCH LEVER END CAP RIGHT	1
009		652024721	SELF DRILLING SCREW 3.5X10	1
010		YA00000769	SWITCH TORSION SPRING 21	1
011		YA00000778	SELF TAPPING SCREW ST4X16	2
012		YA00000780	CORD CLAMP	1
013		YA00000771	POWER SUPPLY CORD ASSY	1
014		YA00000778	SELF TAPPING SCREW ST4X16	2
015		YA00000780	CORD CLAMP	1
016		YA00000773	POWER SUPPLY CORD ASSY (EURO)	1
017		YA00000781	INDICATOR LENZ	1
018		YA00000772	SWITCH	1
019		652023811	CABLE HANGER	1
020		YA00000786	SWITCH BOX CLAMP SPASER	1
021		YA00000782	SWITCH BOX LEFT	1
022		YA00000778	SELF TAPPING SCREW ST4X16	6
023		652023795	SPRING BOX RIGHT	1
024		YA00000787	LEVER BOX CLAMP SPASER	1
025		652024721	SELF DRILLING SCREW 3.5X10	1
026		652023794	SWITCH LEVER END LEFT	1
027		YA00000737	TORSION SPRING	1
028		YA00000787	LEVER BOX CLAMP SPASER	1
029		652023793	SPRING BOX LEFT	1
030		YA00000778	SELF TAPPING SCREW ST4X16	1
031		YA00000785	SELF TAPPING SCREW ST4X25	1
032		YA00000799	CABLE CLIP	1
033		YA00000801	TENSI0N LEVER ASSY	2
034		YA00000802	HEX.FRANGE CAP NUT M6	2
035		YA00001166	PIPE END CAP	2
036		YA00001167	LOWER HANDLE	2
037		YA00000803	M8 KNOB	2
038		YA00000420	WASHER	2
039		YA00000804	ANGLE ADJUSTMENT JOINT UPPER	2
040		YA00000806	SELF TAPPING SCREW ST5X20	4
041		YA00000875	ANGLE ADJUSTMENT JOINT LOWER R	1
042		YA00000807	HEX BOLT M8X65	2
043		YA00000876	ANGLE ADJUSTMENT JOINT LOWER L	1
044		YA00000858	EXTENSION LINE CABLE	1
045		YA00000894	REAR FLAP HINGE ROD	1
046		YA00000895	REAR FLAP BULE	1
047		YA00000831	REAR FLAP TORSION SPRING 7.7	1
048		YA00000901	HOUSING ASSY BULE	1
049		YA00000897	TOP COVER	1
050		YA00000398	SUNK SCREW 5*14	2
050-1		YA00000841	SPONGE CUSHION	1
051		YA00000898	HEIGHT ADJUSTER STOP PLATE	1
051-1		YA00000398	SUNK SCREW 5*14	2
052		YA00000899	STOP PLATE RUBBER SHEET	1
052-1		YA00000898	HEIGHT ADJUSTER STOP PLATE	1
053		YA00000837	NYLON INSERT HEX LOCK NUT M5	2
053-1		YA00000899	STOP PLATE RUBBER SHEET	1
054		YA00000841	SPONGE CUSHION	1
054-1		YA00000837	NYLON INSERT HEX LOCK NUT M5	2
055		YA00000840	SPONGE CUSHION	1
056		YA00000820	SELF TAPPING SCREW ST5X16	4
057		YA00000821	SELF TAPPING SCREW ST4X16	2
058		YA00000821	SELF TAPPING SCREW ST4X16	2
059		YA00000821	SELF TAPPING SCREW ST4X16	2
060		YA00000848	HIGHT ADJUST GRIP	1
061		YA00000849	PAN HEAD SCREW M4X10	1
062		YA00001176	MOTOR ASSY (230V)	1
062	D10		INC. 63-66
063		YA00000813	SELF TAPPING SCREW ST4X10	4
064		YA00000814	CARBON BRUSH 2PICS SET	1
065		YA00001174	CABLE TIE	3
066		YA00001173	HEAT SHRINKABLE TUBE	2
067		YA00001181	LEAD WIRE SET	1
068		YA00001178	MOTOR FLAME & PULLEY ASSY	1
069		YA00000806	SELF TAPPING SCREW ST5X20	4
070		YA00001180	RIBBED BELT	1
071		YA00000806	SELF TAPPING SCREW ST5X20	4
072		YA00001179	BELT COVER	1
073		YA00000806	SELF TAPPING SCREW ST5X20	3
074		YA00000821	SELF TAPPING SCREW ST4X16	2
075		YA00000780	CORD CLAMP	1
076		YA00000884	SPONGE CUSHION	1
077		YA00000881	DECK	1
078		YA00000882	SPONGE CUSHION	1
079		YA00000883	SPONGE CUSHION	1
080		YA00000885	SPONGE CUSHION	1
081		YA00000806	SELF TAPPING SCREW ST5X20	2
082		YA00000887	GRASS INTAKE UNDER PLATE	1
083		YA00000820	SELF TAPPING SCREW ST5X16	2
084		YA00000888	UNDER BRACE RIGHT	1
085		YA00000820	SELF TAPPING SCREW ST5X16	3
086		YA00000889	AIR INTAKE BOARD RIGHT	1
087		YA00000820	SELF TAPPING SCREW ST5X16	1
088		YA00000904	UNDER BRACE LEFT	1
089		YA00000820	SELF TAPPING SCREW ST5X16	3
090		YA00000905	AIR INTAKE BOARD LEFT	1
091		YA00000820	SELF TAPPING SCREW ST5X16	1
092		YA00000910	SPEASER RING 16	1
093		YA00000890	BLADE SUPPORT	1
094		YA00000732	BLADE 37	1
094-1		YA00000746	BLADE 370 SET	1
095		YA00000891	CLAMP WASHER 8	1
096		YA00000827	HEX. BOLT M8X25	1
097		YA00000809	WHEEL CAP 6 INCH	2
098		652023843	NYLON INSERT HEX. LOCK NUT M8	2
099		YA00000420	WASHER	2
100		YA00000810	WHEEL 7INCH	2
101		YA00000812	REAR AXLE	1
101-1		YA00000877	REAR AXLE	1
102		YA00000811	AXLE RETAINER	2
103		YA00000820	SELF TAPPING SCREW ST5X16	4
104		YA00000843	STEPPED HEX BOLT M6X16	1
105		YA00000820	SELF TAPPING SCREW ST5X16	1
106		YA00000845	WASHER 5	1
107		YA00000903	TENSION SPRING 11	1
108		YA00000627	HEX LOCK NUT M6	1
109		YA00000902	CONNECTING ROD	1
110		YA00000907	TORSION SPRING 8	1
111		YA00000851	R PIN 7	1
112		YA00000906	HIGHT ADJUST LEVER	1
113		YA00000853	WHEEL CAP 4.5 INCH	2
114		652023843	NYLON INSERT HEX. LOCK NUT M8	2
115		YA00000420	WASHER	2
116		YA00000854	WHEEL 5.5INCH	2
117		YA00000908	FRONT AXLE	1
118		YA00000909	AXLE RETAINER WASHER	2
119		YA00000820	SELF TAPPING SCREW ST5X16	2
120		YA00000627	HEX LOCK NUT M6	1
121		YA00000843	STEPPED HEX BOLT M6X16	1
122		YA00000869	GRASS BOX ASSY(MAKITA)	1
122	D10		INC. 123-130
123		YA00000870	GRASS CATCH SIDE CLOSS SET MAK	1
124		YA00000791	GRASS CATCHER INDICATOR BLUE	1
125		YA00000872	GRASS CATCHER UPPER BORAD	1
126		YA00000795	GRIP	1
127		YA00000873	SELF TAPPING SCREW ST4X12	2
128		YA00000874	GRASS CATCHER FRAME	1
129		YA00000796	WASHER 4	4
130		YA00000873	SELF TAPPING SCREW ST4X12	4
131		YA00000798	SPANNER 10-13	1
001		YA00000866	UPPER HANDLE BAR ASSY	1
001	D10		INC. 2
002		YA00001175	SPONGE GRIP	1
003		YA00000867	SWITCH LEVER	1
004		YA00000765	SWITCH BOX RIGHT	1
005		YA00000786	SWITCH BOX CLAMP SPASER	1
006		YA00000766	SWITCH LINK BUTTON	1
007		YA00000767	COMPRESSION SPRING 16.8	1
008		YA00000768	SWITCH LEVER END CAP RIGHT	1
009		652024721	SELF DRILLING SCREW 3.5X10	1
010		YA00000769	SWITCH TORSION SPRING 21	1
011		YA00000778	SELF TAPPING SCREW ST4X16	2
012		YA00000780	CORD CLAMP	1
013		YA00000771	POWER SUPPLY CORD ASSY	1
014		YA00000778	SELF TAPPING SCREW ST4X16	2
015		YA00000780	CORD CLAMP	1
016		YA00000773	POWER SUPPLY CORD ASSY (EURO)	1
017		YA00000781	INDICATOR LENZ	1
018		YA00000772	SWITCH	1
019		652023811	CABLE HANGER	1
020		YA00000786	SWITCH BOX CLAMP SPASER	1
021		YA00000782	SWITCH BOX LEFT	1
022		YA00000778	SELF TAPPING SCREW ST4X16	6
023		652023795	SPRING BOX RIGHT	1
024		YA00000787	LEVER BOX CLAMP SPASER	1
025		652024721	SELF DRILLING SCREW 3.5X10	1
026		652023794	SWITCH LEVER END LEFT	1
027		YA00000737	TORSION SPRING	1
028		YA00000787	LEVER BOX CLAMP SPASER	1
029		652023793	SPRING BOX LEFT	1
030		YA00000778	SELF TAPPING SCREW ST4X16	1
031		YA00000785	SELF TAPPING SCREW ST4X25	1
032		YA00000799	CABLE CLIP	1
033		YA00000801	TENSI0N LEVER ASSY	2
034		YA00000802	HEX.FRANGE CAP NUT M6	2
035		YA00001166	PIPE END CAP	2
036		YA00001167	LOWER HANDLE	2
037		YA00000803	M8 KNOB	2
038		YA00000420	WASHER	2
039		YA00000804	ANGLE ADJUSTMENT JOINT UPPER	2
040		YA00000806	SELF TAPPING SCREW ST5X20	4
041		YA00000875	ANGLE ADJUSTMENT JOINT LOWER R	1
042		YA00000807	HEX BOLT M8X65	2
043		YA00000876	ANGLE ADJUSTMENT JOINT LOWER L	1
044		YA00000858	EXTENSION LINE CABLE	1
045		YA00000894	REAR FLAP HINGE ROD	1
046		YA00000895	REAR FLAP BULE	1
047		YA00000831	REAR FLAP TORSION SPRING 7.7	1
048		YA00000901	HOUSING ASSY BULE	1
049		YA00000897	TOP COVER	1
050		YA00000398	SUNK SCREW 5*14	2
050-1		YA00000841	SPONGE CUSHION	1
051		YA00000898	HEIGHT ADJUSTER STOP PLATE	1
051-1		YA00000398	SUNK SCREW 5*14	2
052		YA00000899	STOP PLATE RUBBER SHEET	1
052-1		YA00000898	HEIGHT ADJUSTER STOP PLATE	1
053		YA00000837	NYLON INSERT HEX LOCK NUT M5	2
053-1		YA00000899	STOP PLATE RUBBER SHEET	1
054		YA00000841	SPONGE CUSHION	1
054-1		YA00000837	NYLON INSERT HEX LOCK NUT M5	2
055		YA00000840	SPONGE CUSHION	1
056		YA00000820	SELF TAPPING SCREW ST5X16	4
057		YA00000821	SELF TAPPING SCREW ST4X16	2
058		YA00000821	SELF TAPPING SCREW ST4X16	2
059		YA00000821	SELF TAPPING SCREW ST4X16	2
060		YA00000848	HIGHT ADJUST GRIP	1
061		YA00000849	PAN HEAD SCREW M4X10	1
062		YA00001176	MOTOR ASSY (230V)	1
062	D10		INC. 63-66
063		YA00000813	SELF TAPPING SCREW ST4X10	4
064		YA00000814	CARBON BRUSH 2PICS SET	1
065		YA00001174	CABLE TIE	3
066		YA00001173	HEAT SHRINKABLE TUBE	2
067		YA00001181	LEAD WIRE SET	1
068		YA00001178	MOTOR FLAME & PULLEY ASSY	1
069		YA00000806	SELF TAPPING SCREW ST5X20	4
070		YA00001180	RIBBED BELT	1
071		YA00000806	SELF TAPPING SCREW ST5X20	4
072		YA00001179	BELT COVER	1
073		YA00000806	SELF TAPPING SCREW ST5X20	3
074		YA00000821	SELF TAPPING SCREW ST4X16	2
075		YA00000780	CORD CLAMP	1
076		YA00000884	SPONGE CUSHION	1
077		YA00000881	DECK	1
078		YA00000882	SPONGE CUSHION	1
079		YA00000883	SPONGE CUSHION	1
080		YA00000885	SPONGE CUSHION	1
081		YA00000806	SELF TAPPING SCREW ST5X20	2
082		YA00000887	GRASS INTAKE UNDER PLATE	1
083		YA00000820	SELF TAPPING SCREW ST5X16	2
084		YA00000888	UNDER BRACE RIGHT	1
085		YA00000820	SELF TAPPING SCREW ST5X16	3
086		YA00000889	AIR INTAKE BOARD RIGHT	1
087		YA00000820	SELF TAPPING SCREW ST5X16	1
088		YA00000904	UNDER BRACE LEFT	1
089		YA00000820	SELF TAPPING SCREW ST5X16	3
090		YA00000905	AIR INTAKE BOARD LEFT	1
091		YA00000820	SELF TAPPING SCREW ST5X16	1
092		YA00000910	SPEASER RING 16	1
093		YA00000890	BLADE SUPPORT	1
094		YA00000732	BLADE 37	1
094-1		YA00000746	BLADE 370 SET	1
095		YA00000891	CLAMP WASHER 8	1
096		YA00000827	HEX. BOLT M8X25	1
097		YA00000809	WHEEL CAP 6 INCH	2
098		652023843	NYLON INSERT HEX. LOCK NUT M8	2
099		YA00000420	WASHER	2
100		YA00000810	WHEEL 7INCH	2
101		YA00000812	REAR AXLE	1
101-1		YA00000877	REAR AXLE	1
102		YA00000811	AXLE RETAINER	2
103		YA00000820	SELF TAPPING SCREW ST5X16	4
104		YA00000843	STEPPED HEX BOLT M6X16	1
105		YA00000820	SELF TAPPING SCREW ST5X16	1
106		YA00000845	WASHER 5	1
107		YA00000903	TENSION SPRING 11	1
108		YA00000627	HEX LOCK NUT M6	1
109		YA00000902	CONNECTING ROD	1
110		YA00000907	TORSION SPRING 8	1
111		YA00000851	R PIN 7	1
112		YA00000906	HIGHT ADJUST LEVER	1
113		YA00000853	WHEEL CAP 4.5 INCH	2
114		652023843	NYLON INSERT HEX. LOCK NUT M8	2
115		YA00000420	WASHER	2
116		YA00000854	WHEEL 5.5INCH	2
117		YA00000908	FRONT AXLE	1
118		YA00000909	AXLE RETAINER WASHER	2
119		YA00000820	SELF TAPPING SCREW ST5X16	2
120		YA00000627	HEX LOCK NUT M6	1
121		YA00000843	STEPPED HEX BOLT M6X16	1
122		YA00000869	GRASS BOX ASSY(MAKITA)	1
122	D10		INC. 123-130
123		YA00000870	GRASS CATCH SIDE CLOSS SET MAK	1
124		YA00000791	GRASS CATCHER INDICATOR BLUE	1
125		YA00000872	GRASS CATCHER UPPER BORAD	1
126		YA00000795	GRIP	1
127		YA00000873	SELF TAPPING SCREW ST4X12	2
128		YA00000874	GRASS CATCHER FRAME	1
129		YA00000796	WASHER 4	4
130		YA00000873	SELF TAPPING SCREW ST4X12	4
131		YA00000798	SPANNER 10-13	1
