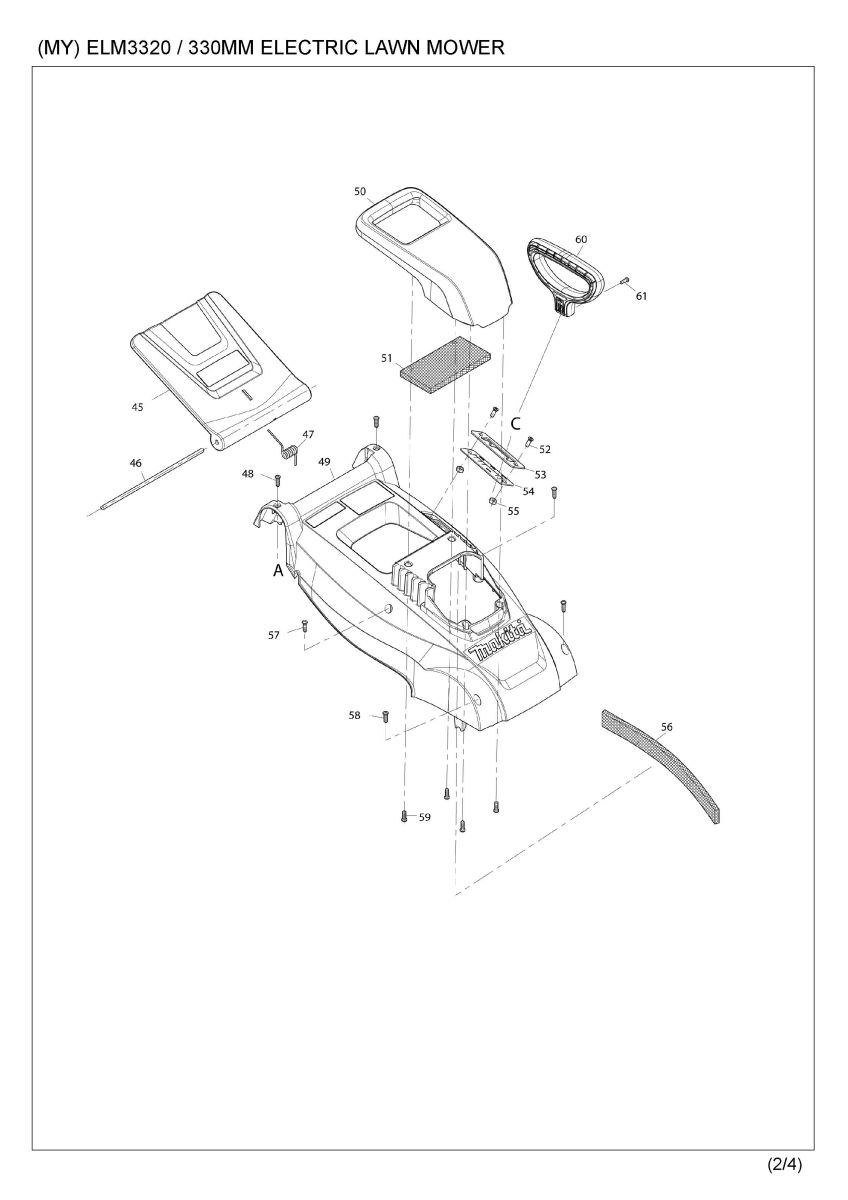

Part Diagram

Item	Sub	Parts No.	Parts Description	Qty
001		YA00000783	UPPER HANDLE BAR ASSY	1
001	D10		INC. 2
002		YA00001163	SPONGE GRIP	1
003		YA00000784	SWITCH LEVER	1
004		YA00000765	SWITCH BOX RIGHT	1
005		YA00000786	SWITCH BOX CLAMP SPASER	1
006		YA00000766	SWITCH LINK BUTTON	1
007		YA00000767	COMPRESSION SPRING 16.8	1
008		YA00000768	SWITCH LEVER END CAP RIGHT	1
009		652024721	SELF DRILLING SCREW 3.5X10	1
010		YA00000769	SWITCH TORSION SPRING 21	1
011		YA00000778	SELF TAPPING SCREW ST4X16	2
012		YA00000780	CORD CLAMP	1
013		YA00000771	POWER SUPPLY CORD ASSY	1
014		YA00000778	SELF TAPPING SCREW ST4X16	2
015		YA00000780	CORD CLAMP	1
016		YA00000773	POWER SUPPLY CORD ASSY (EURO)	1
017		YA00000781	INDICATOR LENZ	1
018		YA00000772	SWITCH	1
019		652023811	CABLE HANGER	1
020		YA00000786	SWITCH BOX CLAMP SPASER	1
021		YA00000782	SWITCH BOX LEFT	1
022		YA00000778	SELF TAPPING SCREW ST4X16	6
023		652023795	SPRING BOX RIGHT	1
024		YA00000787	LEVER BOX CLAMP SPASER	1
025		652024721	SELF DRILLING SCREW 3.5X10	1
026		652023794	SWITCH LEVER END LEFT	1
027		YA00000737	TORSION SPRING	1
028		YA00000787	LEVER BOX CLAMP SPASER	1
029		652023793	SPRING BOX LEFT	1
030		YA00000778	SELF TAPPING SCREW ST4X16	1
031		YA00000785	SELF TAPPING SCREW ST4X25	1
032		YA00000799	CABLE CLIP	1
033		YA00000801	TENSI0N LEVER ASSY	2
034		YA00000802	HEX.FRANGE CAP NUT M6	2
035		YA00001166	PIPE END CAP	2
036		YA00001167	LOWER HANDLE	2
037		YA00000803	M8 KNOB	2
038		YA00000420	WASHER	2
039		YA00000804	ANGLE ADJUSTMENT JOINT UPPER	2
040		YA00000806	SELF TAPPING SCREW ST5X20	4
041		YA00000805	ANGLE ADJUSTMENT JOINT LOWER R	1
042		YA00000807	HEX BOLT M8X65	2
043		YA00000808	ANGLE ADJUSTMENT JOINT LOWER L	1
044		YA00000858	EXTENSION LINE CABLE	1
045		YA00000832	REAR FLAP BULE	1
046		YA00000830	REAR FLAP HINGE ROD	1
047		YA00000831	REAR FLAP TORSION SPRING 7.7	1
048		YA00000821	SELF TAPPING SCREW ST4X16	2
049		YA00000838	HOUSING ASSY BULE	1
050		YA00000834	TOP COVER	1
051		YA00000841	SPONGE CUSHION	1
052		YA00000398	SUNK SCREW 5*14	2
053		YA00000835	HEIGHT ADJUSTER STOP PLATE	1
054		YA00000836	STOP PLATE RUBBER SHEET	1
055		YA00000837	NYLON INSERT HEX LOCK NUT M5	2
056		YA00000840	SPONGE CUSHION	1
057		YA00000821	SELF TAPPING SCREW ST4X16	2
058		YA00000821	SELF TAPPING SCREW ST4X16	2
059		YA00000820	SELF TAPPING SCREW ST5X16	4
060		YA00000848	HIGHT ADJUST GRIP	1
061		YA00000849	PAN HEAD SCREW M4X10	1
062		YA00001164	MOTOR ASSY (230V)	1
062	D10		INC. 63-66
063		YA00000813	SELF TAPPING SCREW ST4X10	4
064		YA00000814	CARBON BRUSH 2PICS SET	1
065		YA00001174	CABLE TIE	3
066		YA00001173	HEAT SHRINKABLE TUBE	2
067		YA00001172	LEAD WIRE SET	1
067-1		YA00001171	LEAD WIRE SET	1
068		YA00001169	MOTOR FLAME & PULLEY ASSY	1
069		YA00000806	SELF TAPPING SCREW ST5X20	4
070		YA00001168	POLY LIBBED BELT	1
071		YA00000821	SELF TAPPING SCREW ST4X16	2
072		YA00000780	CORD CLAMP	1
073		YA00000857	SPONGE CUSHION	1
074		YA00000819	SPONGE CUSHION	1
075		YA00000818	DECK	1
076		YA00000819	SPONGE CUSHION	1
077		YA00000841	SPONGE CUSHION	1
078		YA00000806	SELF TAPPING SCREW ST5X20	4
079		YA00000822	GRASS INTAKE UNDER PLATE	1
080		YA00000820	SELF TAPPING SCREW ST5X16	2
081		YA00000823	UNDER BRACE RIGHT	1
082		YA00000820	SELF TAPPING SCREW ST5X16	3
083		YA00000824	AIR INTAKE BOARD RIGHT	1
084		YA00000820	SELF TAPPING SCREW ST5X16	1
085		YA00000846	UNDER BRACE LEFT	1
086		YA00000820	SELF TAPPING SCREW ST5X16	3
087		YA00000847	AIR INTAKE BOARD LEFT	1
088		YA00000820	SELF TAPPING SCREW ST5X16	1
089		YA00000825	INNER FLANGE 45	1
090		YA00000731	BLADE 33	1
090-1		YA00000745	BLADE 330 SET	1
091		YA00000826	CLAMP WASHER 8	1
092		YA00000827	HEX. BOLT M8X25	1
093		YA00000809	WHEEL CAP 6 INCH	2
094		652023843	NYLON INSERT HEX. LOCK NUT M8	2
095		YA00000420	WASHER	2
096		YA00000810	WHEEL 7INCH	2
097		YA00000856	SPEASER WASHER 10	1
098		YA00000812	REAR AXLE	1
099		YA00000811	AXLE RETAINER	2
100		YA00000820	SELF TAPPING SCREW ST5X16	4
101		YA00000843	STEPPED HEX BOLT M6X16	1
102		YA00000820	SELF TAPPING SCREW ST5X16	1
103		YA00000845	WASHER 5	1
104		YA00000844	TENSION SPRING 11	1
105		YA00000627	HEX LOCK NUT M6	1
106		YA00000852	TORSION SPRING 8	1
107		YA00000851	R PIN 7	1
108		YA00000850	HIGHT ADJUST LEVER	1
109		YA00000853	WHEEL CAP 4.5 INCH	2
110		652023843	NYLON INSERT HEX. LOCK NUT M8	2
111		YA00000420	WASHER	2
112		YA00000854	WHEEL 5.5INCH	2
113		YA00000855	FRONT AXLE	1
114		YA00000820	SELF TAPPING SCREW ST5X16	4
115		YA00000811	AXLE RETAINER	2
116		YA00000627	HEX LOCK NUT M6	1
117		YA00000842	CONNECTING ROD	1
118		YA00000843	STEPPED HEX BOLT M6X16	1
119		YA00001156	GRASS BOX ASSY(MAKITA)	1
119	D10		INC. 120-127
120		YA00000789	GRASS CATCH SIDE CLOSS SET MAK	1
121		YA00000791	GRASS CATCHER INDICATOR BLUE	1
122		YA00000793	GRASS CATCHER UPPER BORAD	1
123		YA00000795	GRIP	1
124		YA00000794	SELF TAPPING SCREW ST4X14	2
125		YA00000797	GRASS CATCHER FRAME	1
126		YA00000796	WASHER 4	4
127		YA00000794	SELF TAPPING SCREW ST4X14	4
128		YA00000798	SPANNER 10-13	1
001		YA00000783	UPPER HANDLE BAR ASSY	1
001	D10		INC. 2
002		YA00001163	SPONGE GRIP	1
003		YA00000784	SWITCH LEVER	1
004		YA00000765	SWITCH BOX RIGHT	1
005		YA00000786	SWITCH BOX CLAMP SPASER	1
006		YA00000766	SWITCH LINK BUTTON	1
007		YA00000767	COMPRESSION SPRING 16.8	1
008		YA00000768	SWITCH LEVER END CAP RIGHT	1
009		652024721	SELF DRILLING SCREW 3.5X10	1
010		YA00000769	SWITCH TORSION SPRING 21	1
011		YA00000778	SELF TAPPING SCREW ST4X16	2
012		YA00000780	CORD CLAMP	1
013		YA00000771	POWER SUPPLY CORD ASSY	1
014		YA00000778	SELF TAPPING SCREW ST4X16	2
015		YA00000780	CORD CLAMP	1
016		YA00000773	POWER SUPPLY CORD ASSY (EURO)	1
017		YA00000781	INDICATOR LENZ	1
018		YA00000772	SWITCH	1
019		652023811	CABLE HANGER	1
020		YA00000786	SWITCH BOX CLAMP SPASER	1
021		YA00000782	SWITCH BOX LEFT	1
022		YA00000778	SELF TAPPING SCREW ST4X16	6
023		652023795	SPRING BOX RIGHT	1
024		YA00000787	LEVER BOX CLAMP SPASER	1
025		652024721	SELF DRILLING SCREW 3.5X10	1
026		652023794	SWITCH LEVER END LEFT	1
027		YA00000737	TORSION SPRING	1
028		YA00000787	LEVER BOX CLAMP SPASER	1
029		652023793	SPRING BOX LEFT	1
030		YA00000778	SELF TAPPING SCREW ST4X16	1
031		YA00000785	SELF TAPPING SCREW ST4X25	1
032		YA00000799	CABLE CLIP	1
033		YA00000801	TENSI0N LEVER ASSY	2
034		YA00000802	HEX.FRANGE CAP NUT M6	2
035		YA00001166	PIPE END CAP	2
036		YA00001167	LOWER HANDLE	2
037		YA00000803	M8 KNOB	2
038		YA00000420	WASHER	2
039		YA00000804	ANGLE ADJUSTMENT JOINT UPPER	2
040		YA00000806	SELF TAPPING SCREW ST5X20	4
041		YA00000805	ANGLE ADJUSTMENT JOINT LOWER R	1
042		YA00000807	HEX BOLT M8X65	2
043		YA00000808	ANGLE ADJUSTMENT JOINT LOWER L	1
044		YA00000858	EXTENSION LINE CABLE	1
045		YA00000832	REAR FLAP BULE	1
046		YA00000830	REAR FLAP HINGE ROD	1
047		YA00000831	REAR FLAP TORSION SPRING 7.7	1
048		YA00000821	SELF TAPPING SCREW ST4X16	2
049		YA00000838	HOUSING ASSY BULE	1
050		YA00000834	TOP COVER	1
051		YA00000841	SPONGE CUSHION	1
052		YA00000398	SUNK SCREW 5*14	2
053		YA00000835	HEIGHT ADJUSTER STOP PLATE	1
054		YA00000836	STOP PLATE RUBBER SHEET	1
055		YA00000837	NYLON INSERT HEX LOCK NUT M5	2
056		YA00000840	SPONGE CUSHION	1
057		YA00000821	SELF TAPPING SCREW ST4X16	2
058		YA00000821	SELF TAPPING SCREW ST4X16	2
059		YA00000820	SELF TAPPING SCREW ST5X16	4
060		YA00000848	HIGHT ADJUST GRIP	1
061		YA00000849	PAN HEAD SCREW M4X10	1
062		YA00001164	MOTOR ASSY (230V)	1
062	D10		INC. 63-66
063		YA00000813	SELF TAPPING SCREW ST4X10	4
064		YA00000814	CARBON BRUSH 2PICS SET	1
065		YA00001174	CABLE TIE	3
066		YA00001173	HEAT SHRINKABLE TUBE	2
067		YA00001172	LEAD WIRE SET	1
067-1		YA00001171	LEAD WIRE SET	1
068		YA00001169	MOTOR FLAME & PULLEY ASSY	1
069		YA00000806	SELF TAPPING SCREW ST5X20	4
070		YA00001168	POLY LIBBED BELT	1
071		YA00000821	SELF TAPPING SCREW ST4X16	2
072		YA00000780	CORD CLAMP	1
073		YA00000857	SPONGE CUSHION	1
074		YA00000819	SPONGE CUSHION	1
075		YA00000818	DECK	1
076		YA00000819	SPONGE CUSHION	1
077		YA00000841	SPONGE CUSHION	1
078		YA00000806	SELF TAPPING SCREW ST5X20	4
079		YA00000822	GRASS INTAKE UNDER PLATE	1
080		YA00000820	SELF TAPPING SCREW ST5X16	2
081		YA00000823	UNDER BRACE RIGHT	1
082		YA00000820	SELF TAPPING SCREW ST5X16	3
083		YA00000824	AIR INTAKE BOARD RIGHT	1
084		YA00000820	SELF TAPPING SCREW ST5X16	1
085		YA00000846	UNDER BRACE LEFT	1
086		YA00000820	SELF TAPPING SCREW ST5X16	3
087		YA00000847	AIR INTAKE BOARD LEFT	1
088		YA00000820	SELF TAPPING SCREW ST5X16	1
089		YA00000825	INNER FLANGE 45	1
090		YA00000731	BLADE 33	1
090-1		YA00000745	BLADE 330 SET	1
091		YA00000826	CLAMP WASHER 8	1
092		YA00000827	HEX. BOLT M8X25	1
093		YA00000809	WHEEL CAP 6 INCH	2
094		652023843	NYLON INSERT HEX. LOCK NUT M8	2
095		YA00000420	WASHER	2
096		YA00000810	WHEEL 7INCH	2
097		YA00000856	SPEASER WASHER 10	1
098		YA00000812	REAR AXLE	1
099		YA00000811	AXLE RETAINER	2
100		YA00000820	SELF TAPPING SCREW ST5X16	4
101		YA00000843	STEPPED HEX BOLT M6X16	1
102		YA00000820	SELF TAPPING SCREW ST5X16	1
103		YA00000845	WASHER 5	1
104		YA00000844	TENSION SPRING 11	1
105		YA00000627	HEX LOCK NUT M6	1
106		YA00000852	TORSION SPRING 8	1
107		YA00000851	R PIN 7	1
108		YA00000850	HIGHT ADJUST LEVER	1
109		YA00000853	WHEEL CAP 4.5 INCH	2
110		652023843	NYLON INSERT HEX. LOCK NUT M8	2
111		YA00000420	WASHER	2
112		YA00000854	WHEEL 5.5INCH	2
113		YA00000855	FRONT AXLE	1
114		YA00000820	SELF TAPPING SCREW ST5X16	4
115		YA00000811	AXLE RETAINER	2
116		YA00000627	HEX LOCK NUT M6	1
117		YA00000842	CONNECTING ROD	1
118		YA00000843	STEPPED HEX BOLT M6X16	1
119		YA00001156	GRASS BOX ASSY(MAKITA)	1
119	D10		INC. 120-127
120		YA00000789	GRASS CATCH SIDE CLOSS SET MAK	1
121		YA00000791	GRASS CATCHER INDICATOR BLUE	1
122		YA00000793	GRASS CATCHER UPPER BORAD	1
123		YA00000795	GRIP	1
124		YA00000794	SELF TAPPING SCREW ST4X14	2
125		YA00000797	GRASS CATCHER FRAME	1
126		YA00000796	WASHER 4	4
127		YA00000794	SELF TAPPING SCREW ST4X14	4
128		YA00000798	SPANNER 10-13	1
