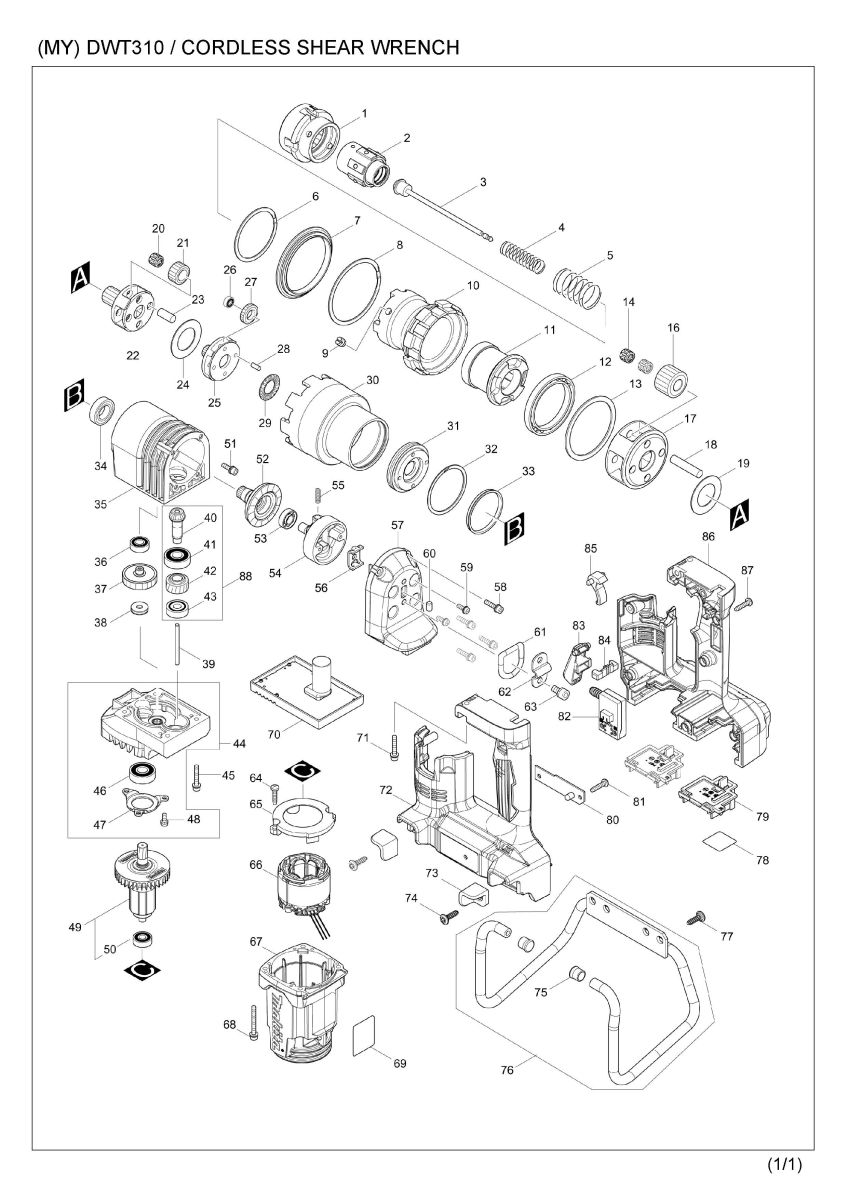

Part Diagram
Total: 127 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 153909-6 | OUTER SLEEVE 22-39 COMPLETE | 1 | |
| 2 | 764418-6 | INNER SLEEVE 22-39 COMPLETE | 1 | |
| 3 | 165074-9 | CHIP ROD | 1 | |
| 4 | 233087-9 | COMPRESSION SPRING 13 | 1 | |
| 5 | 234143-8 | COMPRESSION SPRING 25 | 1 | |
| 6 | 257941-3 | SPIRO LOCK WASHER 62 | 1 | |
| 7 | 324447-7 | SPACER | 1 | |
| 8 | 257940-5 | SPIRO LOCK WASHER 70 | 1 | |
| 9 | 266022-2 | - SET SCREW(DOG POINT) M8X8 | 2 | |
| 10 | 325688-8 | OUTER SUPPORT | 1 | |
| 11 | 153872-3 | INNER SUPPORT COMPLETE | 1 | |
| 12 | 211611-8 | BALL BEARING 6810 | 1 | |
| 13 | 267282-9 | FLAT WASHER 60 | 1 | |
| 14 | 212954-1 | NEEDLE CAGE 810 | 8 | |
| 16 | 227117-6 | SPUR GEAR 20 | 4 | |
| 17 | 310147-5 | CARRIER | 1 | |
| 18 | 256228-0 | PIN 8 | 4 | |
| 19 | 216207-0 | WASHER 2542 | 1 | |
| 20 | 212954-1 | NEEDLE CAGE 810 | 4 | |
| 21 | 226270-5 | SPUR GEAR 25 | 4 | |
| 22 | 226275-5 | SPUR GEAR 11 | 1 | |
| 23 | 256227-2 | PIN 8 | 4 | |
| 24 | 216207-0 | WASHER 2542 | 1 | |
| 25 | 226273-9 | SPUR GEAR 14 | 1 | |
| 26 | 211044-7 | BALL BEARING 694 | 4 | |
| 27 | 226269-0 | SPUR GEAR 25 | 4 | |
| 28 | 256226-4 | PIN 4 | 4 | |
| 29 | 216403-0 | THRUST NEEDLE GAUGE 1528 | 1 | |
| 30 | 227118-4 | INTERNAL GEAR 53-66 | 1 | |
| 31 | 323855-9 | BRACKET | 1 | |
| 32 | 257929-3 | SPIRO LOCK WASHER 52 | 1 | |
| 33 | 257186-3 | RING 44 | 1 | |
| 34 | 211221-1 | BALL BEARING 6902 | 1 | |
| 35 | 159930-3 | GEAR CASE COMPLETE | 1 | |
| 35 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 36 | 210013-5 | BALL BEARING 698VV | 1 | |
| 37 | 226651-3 | HELICAL GEAR 30 | 1 | |
| 38 | 212048-2 | THRUST NEEDLE BEARING 617 | 1 | |
| 39 | 256225-6 | PIN 4 | 1 | |
| 40 | 226711-1 | SPIRAL BEVEL GEAR 12 | 1 | |
| 41 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 42 | 226476-5 | HELICAL GEAR 18 | 1 | |
| 43 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 44 | 134788-1 | GEAR HOUSING ASS'Y | 1 | |
| 44 | D10 | INC. 46-48 | ||
| 45 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 4 | |
| 46 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 47 | 344470-6 | BEARING RETAINER | 1 | |
| 48 | 911111-5 | PAN HEAD SCREW M4X10 WITH W | 3 | |
| 49 | 519497-7 | ROTOR ASSY | 1 | |
| 49 | D10 | INC. 50 | ||
| 50 | 211023-5 | BALL BEARING 607LB | 1 | |
| 51 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 4 | |
| 52 | 226812-5 | GEAR 14-41 | 1 | |
| 53 | 211082-9 | BALL BEARING 699 | 1 | |
| 54 | 311930-3 | ROD SUPPORTER | 1 | |
| 55 | 233098-4 | COMPRESSION SPRING 4 | 1 | |
| 56 | 344062-1 | STOPPER PLATE | 1 | |
| 57 | 319669-2 | REAR COVER | 1 | |
| 057-1 | 319834-3 | REAR COVER | 1 | |
| 057-2 | 312B27-3 | REAR COVER | 1 | |
| 58 | 922133-0 | H.S.H.BOLT M4X18 WITH WR | 4 | |
| 59 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 60 | 263005-3 | RUBBER PIN 6 | 1 | |
| 61 | 282018-5 | D-RING | 1 | |
| 62 | 345517-9 | PLATE | 1 | |
| 63 | 266157-9 | HEX. SOCKET HEAD BOLT M6X12 | 2 | |
| 64 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 65 | 458306-4 | BAFFLE PLATE | 1 | |
| 66 | 629337-2 | STATOR | 1 | |
| 67 | 458302-2 | MOTOR HOUSING | 1 | |
| 68 | 922909-5 | HEX. SOCKET HEAD BOLT M4X35 | 4 | |
| 69 | 854C60-0 | DWT310 NAME PLATE | 1 | |
| 70 | 632L40-8 | CONTROLLER UNIT | 1 | |
| 070-1 | 632N37-9 | CONTROLLER UNIT | 1 | |
| 71 | 922149-5 | H.S.H.BOLT M4X25 WITH WG | 2 | |
| 72 | 183J09-8 | HANDLE SET | 1 | |
| 72 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 72 | C20 | 816P35-5 | INDICATION LABEL | 1 |
| 72 | C30 | 422226-8 | SPONGE SHEET | 1 |
| 72 | C40 | 416285-2 | ACRYLIC PIN 5 | 1 |
| 72 | D10 | INC. 86 | ||
| 072-1 | 183K85-8 | HANDLE SET | 1 | |
| 072-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 072-1 | C20 | 816P35-5 | INDICATION LABEL | 1 |
| 072-1 | C30 | 422226-8 | SPONGE SHEET | 1 |
| 072-1 | C40 | 416285-2 | ACRYLIC PIN 5 | 1 |
| 072-1 | D10 | INC. 86 | ||
| 73 | 327048-0 | PROTECTION BLOCK | 2 | |
| 073-1 | 347482-8 | PROTECTION BLOCK | 2 | |
| 74 | 251587-7 | H.L.TAPPING SCREW 5X18 | 2 | |
| 75 | 422230-7 | CAP | 2 | |
| 76 | 135919-5 | GUARD PIPE ASS'Y | 1 | |
| 76 | D10 | INC. 75 | ||
| 076-1 | 135992-5 | GUARD ASSY | 1 | |
| 076-1 | D10 | INC. 75 | ||
| 77 | 251587-7 | H.L.TAPPING SCREW 5X18 | 4 | |
| 78 | 854C68-4 | DWT310 SERIAL NO. LABEL | 1 | |
| 79 | 644809-6 | TERMINAL | 2 | |
| 80 | 620809-0 | LED CIRCUIT | 1 | |
| 81 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 82 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 83 | 458303-0 | SWITCH LEVER | 1 | |
| 84 | 458307-2 | TRIGGER LOCK | 1 | |
| 084-1 | 459707-9 | TRIGGER LOCK | 1 | |
| 85 | 311928-0 | CHIP LEVER | 1 | |
| 86 | 183J09-8 | HANDLE SET | 1 | |
| 86 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 86 | C20 | 816P35-5 | INDICATION LABEL | 1 |
| 86 | C30 | 422226-8 | SPONGE SHEET | 1 |
| 86 | C40 | 416285-2 | ACRYLIC PIN 5 | 1 |
| 86 | D10 | INC. 72 | ||
| 086-1 | 183K85-8 | HANDLE SET | 1 | |
| 086-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 086-1 | C20 | 816P35-5 | INDICATION LABEL | 1 |
| 086-1 | C30 | 422226-8 | SPONGE SHEET | 1 |
| 086-1 | C40 | 416285-2 | ACRYLIC PIN 5 | 1 |
| 086-1 | D10 | INC. 72 | ||
| 87 | 265995-6 | TAPPING SCREW 4X18 | 7 | |
| 88 | 134790-4 | GEAR ASS'Y | 1 | |
| 88 | D10 | INC. 40-43 | ||
| A01 | 764361-9 | OUTER SLEEVE 20-37 | 1 | |
| A02 | 764417-8 | INNER SLEEVE 20-38 COMPLETE | 1 | |
| A03 | 783001-0 | (-) SCREWDRIVER 6 | 1 | |
| A04 | 821748-9 | PLASTIC CASE | 1 | |
| A04 | C10 | 162271-8 | LATCH | 2 |
| A08 | 161347-8 | SHOULDER BELT | 1 |
