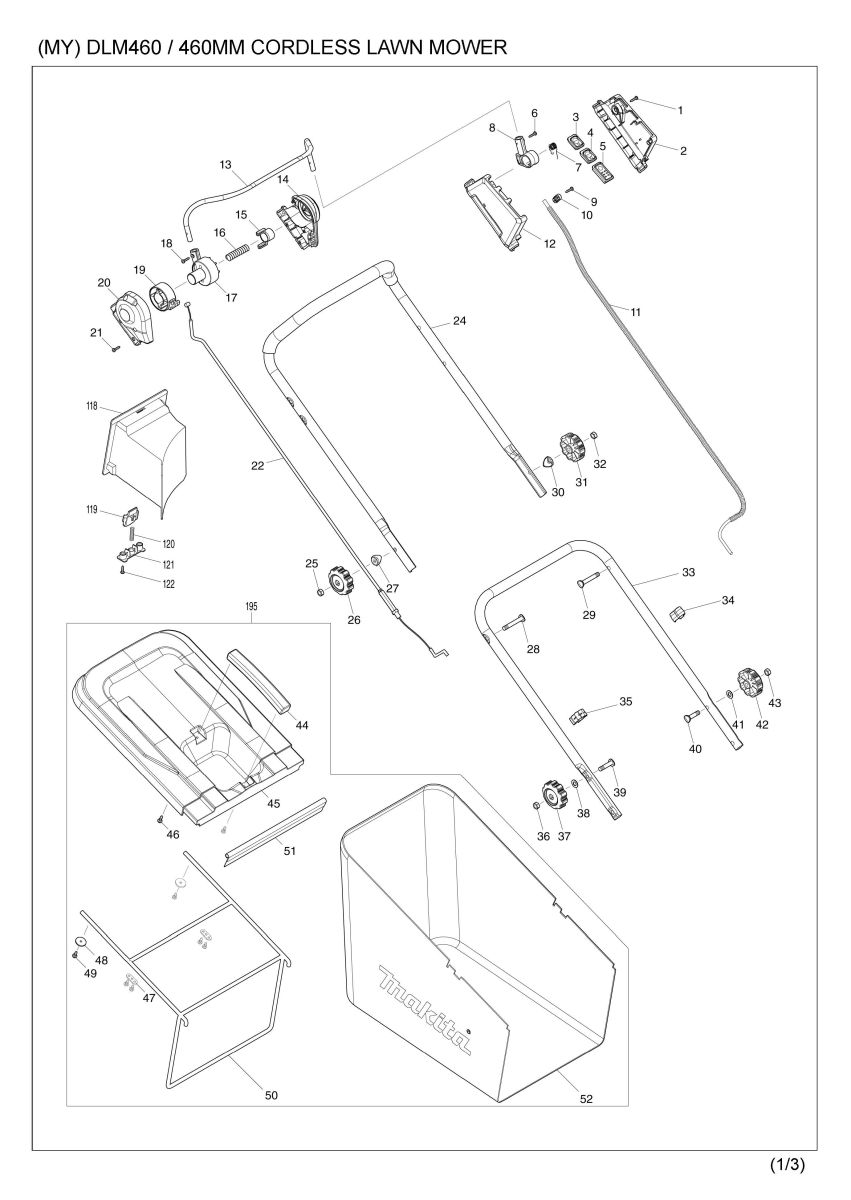

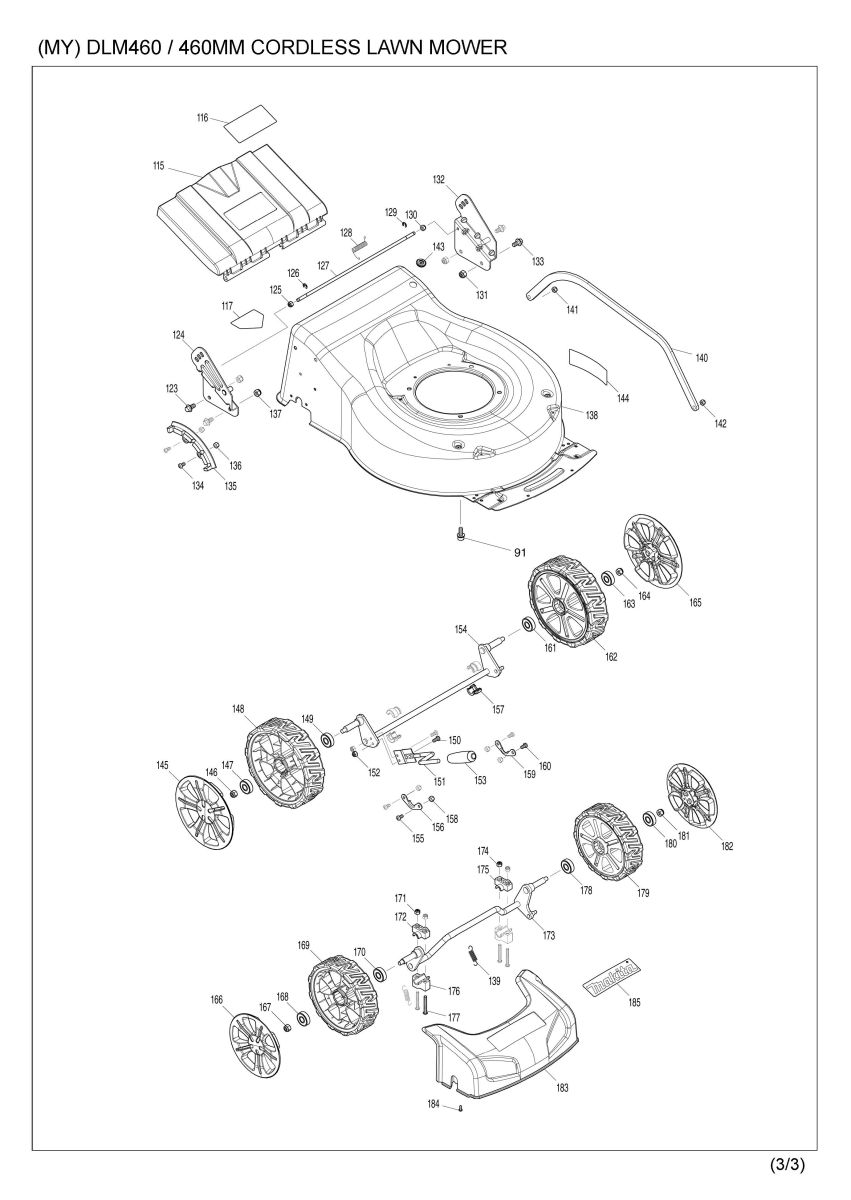

Part Diagram
Total: 207 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 2 | 183K45-0 | SWITCH BOX SET | 1 | |
| 2 | D10 | INC. 12 | ||
| 3 | 140F09-7 | SWITCH CIRCUIT COMPLETE | 1 | |
| 3 | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 4 | 140F10-2 | SWITCH CIRCUIT COMPLETE | 1 | |
| 4 | C10 | 818A74-1 | SWITCH LABEL | 1 |
| 5 | 140F08-9 | LED CIRCUIT COMPLETE | 1 | |
| 5 | C10 | 818A73-3 | INDICATION LABEL | 1 |
| 6 | 266324-6 | TAPPING SCREW 4X22 | 1 | |
| 7 | 232470-7 | TORSION SPRING 12 | 1 | |
| 8 | 458803-0 | LEVER SUPPORT | 1 | |
| 9 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 10 | 687124-5 | STRAIN RELIEF | 1 | |
| 11 | 699115-4 | POWER SUPPLY CORD UNIT | 1 | |
| 12 | 183K45-0 | SWITCH BOX SET | 1 | |
| 12 | D10 | INC. 2 | ||
| 13 | 327208-4 | SWITCH LEVER | 1 | |
| 14 | 183K56-5 | LEVER BOX SET | 1 | |
| 14 | C10 | 818A72-5 | INDICATION LABEL | 1 |
| 14 | D10 | INC. 20 | ||
| 15 | 458807-2 | LOCK OFF BUTTON | 1 | |
| 16 | 231227-3 | COMPRESSION SPRING 15 | 1 | |
| 17 | 458805-6 | DRIVING SLEEVE A | 1 | |
| 18 | 266324-6 | TAPPING SCREW 4X22 | 1 | |
| 19 | 458806-4 | DRIVING SLEEVE B | 1 | |
| 20 | 183K56-5 | LEVER BOX SET | 1 | |
| 20 | C10 | 818A72-5 | INDICATION LABEL | 1 |
| 20 | D10 | INC. 14 | ||
| 21 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 22 | 162509-1 | CONTROL CABLE | 1 | |
| 24 | DA00001255 | HANDLE UPPER + GRIP RUBBER | 1 | |
| 024-1 | 327329-2 | HANDLE UPPER | 1 | |
| 25 | DA00000563 | HEXAGON NUT M8 | 1 | |
| 26 | DA00000564 | KNOB | 1 | |
| 27 | DA00000924 | PLASTIC SADDLE WASHER 8 | 1 | |
| 28 | DA00000569 | SADDLE HEAD BOLT M8X58 | 1 | |
| 29 | DA00000569 | SADDLE HEAD BOLT M8X58 | 1 | |
| 30 | DA00000924 | PLASTIC SADDLE WASHER 8 | 1 | |
| 31 | DA00000564 | KNOB | 1 | |
| 32 | DA00000563 | HEXAGON NUT M8 | 1 | |
| 33 | 671001606 | LOWER HANDLE BAR | 1 | |
| 34 | 458810-3 | CABLE CLAMP | 1 | |
| 35 | 671611001 | CABLE CLIP | 1 | |
| 36 | DA00000563 | HEXAGON NUT M8 | 1 | |
| 37 | DA00000564 | KNOB | 1 | |
| 38 | 671007007 | FLAT WASHER 8 | 1 | |
| 39 | DA00000880 | SADDLE HEAD BOLT M8X35 | 1 | |
| 40 | DA00000880 | SADDLE HEAD BOLT M8X35 | 1 | |
| 41 | 671007007 | FLAT WASHER 8 | 1 | |
| 42 | DA00000564 | KNOB | 1 | |
| 43 | DA00000563 | HEXAGON NUT M8 | 1 | |
| 44 | 671454001 | GRASS CATCHER HANDLE | 1 | |
| 45 | 671467001 | GRASS CATCHER UPPER BORAD | 1 | |
| 46 | DA00000326 | TAPPING SCREW ST5X16 | 2 | |
| 47 | DA00000335 | RETAINER PLATE | 2 | |
| 48 | DA00000025 | WASHER 5 | 2 | |
| 49 | DA00000888 | TAPPING SCREW ST5X12 | 6 | |
| 50 | 671001443 | GRASS CATCHER FRAME | 1 | |
| 51 | 671001353 | GRASS CATCHER FRAME SHEATH | 1 | |
| 52 | 671001418 | GRASS CATCHER CLOTH SET MAKITA | 1 | |
| 54 | 140F02-1 | BATTERY COVER COMPLETE | 1 | |
| 54 | C10 | 890380-0 | CAUTION LABEL | 1 |
| 54 | C20 | 818U29-6 | INDICATION LABEL | 1 |
| 55 | 232471-5 | LEAF SPRING | 1 | |
| 56 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 57 | 458809-8 | LOCK LEVER | 1 | |
| 58 | 643535-4 | KEY | 1 | |
| 59 | 961018-5 | STOP RING E-5 | 1 | |
| 60 | 327209-2 | ROD 6 | 1 | |
| 61 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 62 | 458798-7 | COWLING UPPER | 1 | |
| 63 | 854V20-6 | DLM460 NAME PLATE | 1 | |
| 64 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 65 | 140F01-3 | MOTOR COVER COMPLETE | 1 | |
| 65 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 66 | 629374-6 | DC MOTOR | 1 | |
| 67 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 68 | 347456-9 | LEVER BRACKET | 1 | |
| 69 | 347455-1 | BRAKE LEVER | 1 | |
| 70 | 232469-2 | TENSION SPRING 15 | 1 | |
| 71 | 140F28-3 | BRAKE BAND COMPLETE | 1 | |
| 071-1 | 140K44-5 | BRAKE BAND COMPLETE | 1 | |
| 72 | 140F06-3 | DRUM HOLDER COMPLETE | 1 | |
| 73 | 922438-8 | H.S.H.BOLT M8X22 WITH WR | 1 | |
| 74 | 347506-0 | BRAKE DRUM | 1 | |
| 75 | 327207-6 | SPINDLE | 1 | |
| 075-1 | 327361-6 | SPINDLE | 1 | |
| 76 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | |
| 77 | 922116-0 | HEX. SOCKET HEAD BOLT M4X12 | 1 | |
| 78 | 253874-0 | FLAT WASHER 4 | 1 | |
| 79 | 266420-0 | TAPPING SCREW 5X20 | 4 | |
| 80 | 319768-0 | MOTOR BRACKET | 1 | |
| 080-1 | 319908-0 | MOTOR BRACKET | 1 | |
| 81 | 911243-8 | PAN HEAD SCREW M5X25 | 4 | |
| 82 | 140F51-8 | BRAKE COVER COMPLETE | 1 | |
| 82 | C10 | 211326-7 | BALL BEARING 6004DDW | 1 |
| 82 | C11 | 210237-3 | BALL BEARING 6004DDW | 1 |
| 83 | 911243-8 | PAN HEAD SCREW M5X25 | 4 | |
| 84 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 85 | 687124-5 | STRAIN RELIEF | 1 | |
| 86 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 87 | 632M81-0 | LEAD UNIT | 1 | |
| 88 | 620939-7 | CONTROLLER | 1 | |
| 89 | 422351-5 | SPONGE | 2 | |
| 90 | 458799-5 | COWLING LOWER | 1 | |
| 91 | 922438-8 | H.S.H.BOLT M8X22 WITH WR | 4 | |
| 92 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 93 | 183K40-0 | TERMINAL HOUSING SET | 1 | |
| 93 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 93 | D10 | INC. 97 | ||
| 94 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 95 | 644809-6 | TERMINAL | 2 | |
| 96 | 854V26-4 | DLM460 SERIAL NO. LABEL | 1 | |
| 97 | 183K40-0 | TERMINAL HOUSING SET | 1 | |
| 97 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 97 | D10 | INC. 93 | ||
| 98 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 99 | 458797-9 | SWITCH COVER | 1 | |
| 100 | 422350-7 | SPONGE | 1 | |
| 102 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 103 | 458808-0 | BUFFLE PLATE | 1 | |
| 104 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 105 | 140F05-5 | BLADE SUPPORT COMPLETE | 1 | |
| 106 | 199367-2 | BLADE 460 SET | 1 | |
| 113 | 941251-5 | FLAT WASHER 10 | 1 | |
| 114 | 921556-9 | HEX. BOLT M10X35 | 1 | |
| 115 | DA00001252 | REAR FLAP | 1 | |
| 115-1 | DA00001295 | REAR COVER | 1 | |
| 116 | 818A77-5 | CAUTION LABEL | 1 | |
| 118 | 671660001 | MULCHING PLUG BOX | 1 | |
| 119 | 671316004 | LOCKING BUTTON | 1 | |
| 120 | 671011005 | COMPRESSION SPRING | 1 | |
| 121 | 671317001 | PRESSING BOARD OF LOCKING | 1 | |
| 122 | DA00000603 | TAPPING SCREW ST4X16 | 2 | |
| 123 | DA00000562 | HEX.FLANGE BOLT M8X16 | 2 | |
| 124 | DA00001248 | HANDLE BRACKET R | 1 | |
| 125 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 1 | |
| 126 | 671009017 | STOP RING E-6 | 1 | |
| 127 | 671001518 | REAR FLAP HINGE ROD | 1 | |
| 128 | 671011101 | REAR FLAP TORSION SPRING | 1 | |
| 129 | 671009017 | STOP RING E-6 | 1 | |
| 130 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 1 | |
| 131 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | |
| 132 | DA00001249 | HANDLE BRACKET L | 1 | |
| 133 | DA00000562 | HEX.FLANGE BOLT M8X16 | 2 | |
| 134 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | |
| 135 | DA00000787 | HEIGHT ADJUSTER STOP PLATE | 1 | |
| 135-1 | 459361-9 | ADJUST PLATE | 1 | |
| 136 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | |
| 137 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 2 | |
| 138 | DA00001250 | DECK | 1 | |
| 138-1 | DA00001294 | DECK | 1 | |
| 139 | 671011125 | HEIGHT ADJUST TENSION SPRING | 2 | |
| 140 | DA00001154 | LINK ROD | 1 | |
| 141 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 1 | |
| 142 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 1 | |
| 143 | 671800104 | GROMMET | 1 | |
| 144 | 818A76-7 | 3 IN 1 LOGO LABEL | 1 | |
| 145 | DA00000536 | WHEEL COVER 7 INCH | 1 | |
| 146 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 1 | |
| 147 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 148 | 671020160 | WHEEL ASSY 8 INCH | 1 | |
| 149 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 150 | 671002030 | PAN. HEAD SCREW M6X14 | 2 | |
| 151 | DA00001174 | HANDLE | 1 | |
| 152 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 2 | |
| 153 | DA00001058 | HEIGHT ADJUSTMENT KNOB | 1 | |
| 154 | DA00001175 | REAR WHEEL AXIS ASSY | 1 | |
| 155 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | |
| 156 | DA00000542 | AXLE RETAINER | 1 | |
| 157 | DA00001025 | REAR AXLE MOUNT | 4 | |
| 158 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 4 | |
| 159 | DA00000542 | AXLE RETAINER | 1 | |
| 160 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | |
| 161 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 162 | 671020160 | WHEEL ASSY 8 INCH | 1 | |
| 163 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 164 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 1 | |
| 165 | DA00000536 | WHEEL COVER 7 INCH | 1 | |
| 166 | 671001176 | WHEEL COVER 6.5 INCH | 1 | |
| 167 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 1 | |
| 168 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 169 | 671020150 | WHEEL ASSY 7 INCH | 1 | |
| 170 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 171 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 2 | |
| 172 | 671445001 | FRONT AXLE RETAINER | 1 | |
| 173 | 671001786 | FRONT AXLE | 1 | |
| 174 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 2 | |
| 175 | 671445001 | FRONT AXLE RETAINER | 1 | |
| 176 | 671418001 | FRONT AXLE MOUNT | 2 | |
| 177 | 671002028 | PAN.HED SCREW M6X45 | 4 | |
| 178 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 179 | 671020150 | WHEEL ASSY 7 INCH | 1 | |
| 180 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 181 | DA00000537 | HEX.FLANGE LOCK NUT M8 | 1 | |
| 182 | 671001176 | WHEEL COVER 6.5 INCH | 1 | |
| 183 | DA00001251 | FRONT COVER | 1 | |
| 184 | DA00000911 | TAPPING SCREW ST4.2X10 | 8 | |
| 185 | 818A75-9 | MAKITA LOGO LABEL | 1 | |
| 195 | 127061-6 | GRASS CATCHER ASSEMBLY | 1 | |
| 195 | D10 | INC. 44-52 | ||
| A01 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| A02B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A02B | D10 | COMPO-PARTS | ||
| A03B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A03-1B | 197280-8 | BATTERY BL1850B SET | 2 |
