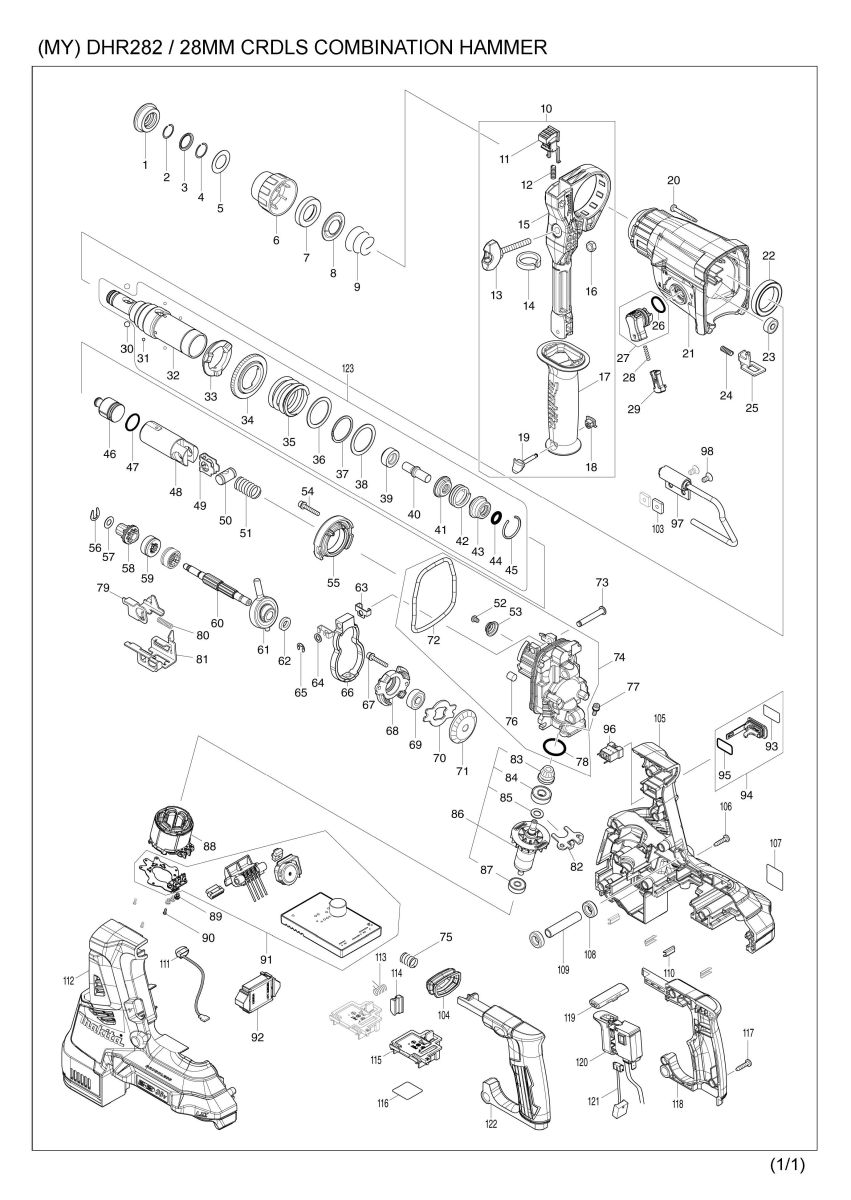

Part Diagram
Total: 172 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 286288-8 | CAP 35 | 1 | |
| 2 | 233989-9 | RING SPRING 14 | 1 | |
| 3 | 346834-0 | WASHER 16 | 1 | |
| 4 | 233992-0 | RING SPRING 15 | 1 | |
| 5 | 267114-0 | FLAT WASHER 17 | 1 | |
| 6 | 455393-4 | CHUCK COVER | 1 | |
| 7 | 325813-1 | RING 21 | 1 | |
| 8 | 346177-0 | GUIDE WASHER | 1 | |
| 9 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 10 | 126882-3 | GRIP ASSEMBLY | 1 | |
| 10 | D10 | INC. 11-19 | ||
| 11 | 144959-2 | LOCK BUTTON COMPLETE | 1 | |
| 12 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 13 | 265625-9 | THUMB SCREW M6X50 | 1 | |
| 14 | 422258-5 | SPONGE SHEET | 1 | |
| 15 | 458355-1 | SIDE HANDLE BASE | 1 | |
| 16 | 931302-2 | HEX. NUT M6 | 1 | |
| 17 | 458357-7 | GRIP 36 | 1 | |
| 18 | 422255-1 | CAP | 1 | |
| 19 | 161838-9 | FIX PIN | 1 | |
| 20 | 266351-3 | TAPPING SCREW 4X35 | 4 | |
| 21 | 144965-7 | GEAR HOUSING COMPLETE | 1 | |
| 21 | C10 | 213345-9 | OIL SEAL 25 | 1 |
| 21 | C20 | 331890-3 | CUP SLEEVE | 1 |
| 22 | 211294-4 | BALL BEARING 6806LLU | 1 | |
| 23 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 24 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 25 | 347228-2 | LOCK PLATE | 1 | |
| 26 | 213278-8 | O RING 17 | 1 | |
| 27 | 135961-6 | CHANGE LEVER ASSY | 1 | |
| 27 | D10 | INC. 26 | ||
| 28 | 234264-6 | COMPRESSION SPRING 3 | 1 | |
| 29 | 457709-9 | LOCK BUTTON | 1 | |
| 30 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 31 | 216019-1 | STEEL BALL 3 | 4 | |
| 32 | 142972-4 | TOOL HOLDER COMPLETE | 1 | |
| 32 | C10 | 213344-1 | OIL SEAL 9 | 1 |
| 33 | 332139-4 | DRIVING FLANGE | 1 | |
| 34 | 227360-7 | SPUR GEAR 51 | 1 | |
| 35 | 234148-8 | COMPRESSION SPRING 31 | 1 | |
| 36 | 267153-0 | FLAT WASHER 30 | 1 | |
| 37 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | |
| 38 | 267153-0 | FLAT WASHER 30 | 1 | |
| 39 | 325783-4 | SLEEVE 9B | 1 | |
| 40 | 325789-2 | IMPACT BOLT A | 1 | |
| 41 | 325792-3 | WASHER 10 | 1 | |
| 42 | 234149-6 | COMPRESSION SPRING 20 | 1 | |
| 43 | 325793-1 | O-RING CASE B | 1 | |
| 44 | 213073-6 | O RING 9 | 1 | |
| 45 | 233979-2 | RING SPRING 28 | 1 | |
| 46 | 325784-2 | STRIKER | 1 | |
| 47 | 213258-4 | O RING 17.5 | 1 | |
| 48 | 327079-9 | PISTON CYLINDER | 1 | |
| 49 | 346036-8 | GUIDE PLATE | 1 | |
| 50 | 324215-8 | PISTON JOINT | 1 | |
| 51 | 232449-8 | COMPRESSION SPRING 14 | 1 | |
| 52 | 265627-5 | H.S.BUTTON HEAD BOLT M4X6 | 1 | |
| 53 | 347344-0 | SPRING GUIDE | 1 | |
| 54 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 2 | |
| 55 | 144960-7 | INNER SUPPORT COMPLETE | 1 | |
| 56 | 257336-0 | STOP RING EXT U-6 | 1 | |
| 57 | 253186-1 | FLAT WASHER 7 | 1 | |
| 58 | 226170-9 | SPUR GEAR 10 | 1 | |
| 59 | 332125-5 | CLUTCH CAM | 2 | |
| 60 | 327078-1 | CAM SHAFT | 1 | |
| 61 | 219030-2 | SWASH BEARING 10 | 1 | |
| 62 | 257321-3 | RING 8 | 1 | |
| 63 | 346538-4 | WEIGHT HOLDER GUIDE | 2 | |
| 64 | 253077-6 | FLAT WASHER 6 | 1 | |
| 65 | 961018-5 | STOP RING E-5 | 1 | |
| 66 | 310869-7 | COUNTER WEIGHT | 1 | |
| 67 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 2 | |
| 68 | 319674-9 | BEARING BOX | 1 | |
| 69 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 70 | 347343-2 | BEARING RETAINER B | 1 | |
| 71 | 221599-4 | SPIRAL BEVEL GEAR 32 | 1 | |
| 72 | 213850-6 | O-RING 74 | 1 | |
| 73 | 256536-9 | FLAT FILLISTER HD PIN 6 | 1 | |
| 74 | 135962-4 | INNER HOUSING ASSY | 1 | |
| 74 | D10 | INC. 52,53,72,76,78 | ||
| 75 | 232436-7 | COMPRESSION SPRING 10 | 1 | |
| 76 | 443153-6 | FELT | 1 | |
| 77 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 78 | 213008-7 | O RING 22.4 | 1 | |
| 79 | 347230-5 | CHANGE PLATE B | 1 | |
| 80 | 234343-0 | COMPRESSION SPRING 5 | 1 | |
| 81 | 347229-0 | CHANGE PLATE A | 1 | |
| 82 | 346536-8 | BEARING RETAINER A | 1 | |
| 83 | 144964-9 | SPIRAL BEVEL GEAR 11 COMPLETE | 1 | |
| 84 | 210024-0 | BALL BEARING 608LLU | 1 | |
| 85 | 253835-0 | FLAT WASHER 8 | 1 | |
| 86 | 519513-5 | ROTOR ASSY | 1 | |
| 86 | D10 | INC. 83-85,87 | ||
| 87 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 88 | 629340-3 | STATOR | 1 | |
| 89 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 90 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 91 | 620814-7 | CONTROLLER | 1 | |
| 92 | 620816-3 | ACCELEROMETER CIRCUIT | 1 | |
| 092-1 | 620816-3 | ACCELEROMETER CIRCUIT | 1 | |
| 93 | 813T75-8 | CAP LABEL | 1 | |
| 093-1 | 818H48-4 | CAP LABEL | 1 | |
| 94 | 183H92-3 | CAP SET | 1 | |
| 094A | D10 | INC. 93,95 | ||
| 94 | 183J85-2 | CAP SET | 1 | |
| 094-1 | 183J85-2 | CAP SET | 1 | |
| 094-1A | D10 | INC. 93,95 | ||
| 094-1 | 140G30-2 | CAP COMPLETE | 1 | |
| 094-2 | 140G30-2 | CAP COMPLETE | 1 | |
| 094-2A | D10 | INC. 93,95 | ||
| 95 | 213275-4 | O RING 18 | 1 | |
| 95 | 213218-6 | O RING 16 | 1 | |
| 095-1 | 213218-6 | O RING 16 | 1 | |
| 96 | 632L87-2 | CONNECTOR UNIT | 1 | |
| 97 | 135963-2 | HOOK ASSY | 1 | |
| 98 | 912207-5 | COUNTERSUNK HEAD SCREW M5X10 | 2 | |
| 103 | 264002-2 | SQUARE NUT M5 | 2 | |
| 104 | 422257-7 | BELLOWS | 1 | |
| 105 | 183J30-7 | HOUSING SET | 1 | |
| 105 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 105 | D10 | INC. 112 | ||
| 105-1 | 183K53-1 | HOUSING SET | 1 | |
| 105-1 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 105-1 | D10 | INC. 112 | ||
| 106 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 107 | 854J30-1 | DHR282 NAME PLATE | 1 | |
| 108 | 422256-9 | RUBBER RING 10 | 2 | |
| 109 | 257438-2 | SLEEVE 10 | 1 | |
| 110 | 346783-1 | PLATE | 4 | |
| 111 | 620549-0 | LED CIRCUIT | 1 | |
| 112 | 183J30-7 | HOUSING SET | 1 | |
| 112 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 112 | D10 | INC. 105 | ||
| 112-1 | 183K53-1 | HOUSING SET | 1 | |
| 112-1 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 112-1 | D10 | INC. 105 | ||
| 113 | 233598-4 | TORSION SPRING 6 | 1 | |
| 114 | 313226-8 | OPENER | 1 | |
| 115 | 644809-6 | TERMINAL | 2 | |
| 116 | 854J37-7 | DHR282 SERIAL NO. LABEL | 1 | |
| 117 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 118 | 183J29-2 | HANDLE SET | 1 | |
| 118 | D10 | INC. 122 | ||
| 119 | 453124-5 | F/R CHANGE LEVER | 1 | |
| 120 | 651366-7 | SWITCH C3JW-6B-24 | 1 | |
| 121 | 632L95-3 | LEAD UNIT | 1 | |
| 122 | 183J29-2 | HANDLE SET | 1 | |
| 122 | D10 | INC.118 | ||
| 123 | 135966-6 | TOOL HOLDER ASSY | 1 | |
| 123 | D10 | INC. 31-45 | ||
| A01 | 198901-5 | WIRELESS UNIT SET | 1 | |
| A01-1 | 199393-1 | WIRELESS UNIT SET | 1 | |
| A02 | 194683-7 | GREASE VESSEL SET | 1 | |
| A04 | 331886-4 | DEPTH GAUGE | 1 | |
| A05 | 443122-7 | CLOTH | 1 | |
| A06 | 195173-3 | DUSTCUP SET | 1 | |
| A09 | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A09B | D10 | COMPO-PARTS | ||
| A10 | 197280-8 | BATTERY BL1850B SET | 2 | |
| A10-1 | 197280-8 | BATTERY BL1850B SET | 2 | |
| A11 | 839559-8 | INNER TRAY | 1 | |
| A12 | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A12B | C10 | 453974-8 | LATCH | 4 |
| A13B | 817L53-2 | DHR282T2JU INDICATION LABEL | 1 | |
| A13D | 817W13-0 | DHR282PT2J INDICATION LABEL | 1 | |
| A14B | 817L50-8 | DHR282T2JU PLASTIC CASE LABEL | 2 | |
| A14D | 817W14-8 | DHR282PT2J PLASTIC CASE LABEL | 2 | |
| A14-1B | 817L49-3 | DHR282T2JU PLASTIC CASE LABEL | 2 | |
| B01 | 199233-3 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 2 |
| B01 | D10 | INC. 1,2,4,30,44,45,47 | ||
| E01 | 818S15-5 | CLEAR LABEL | 1 |
