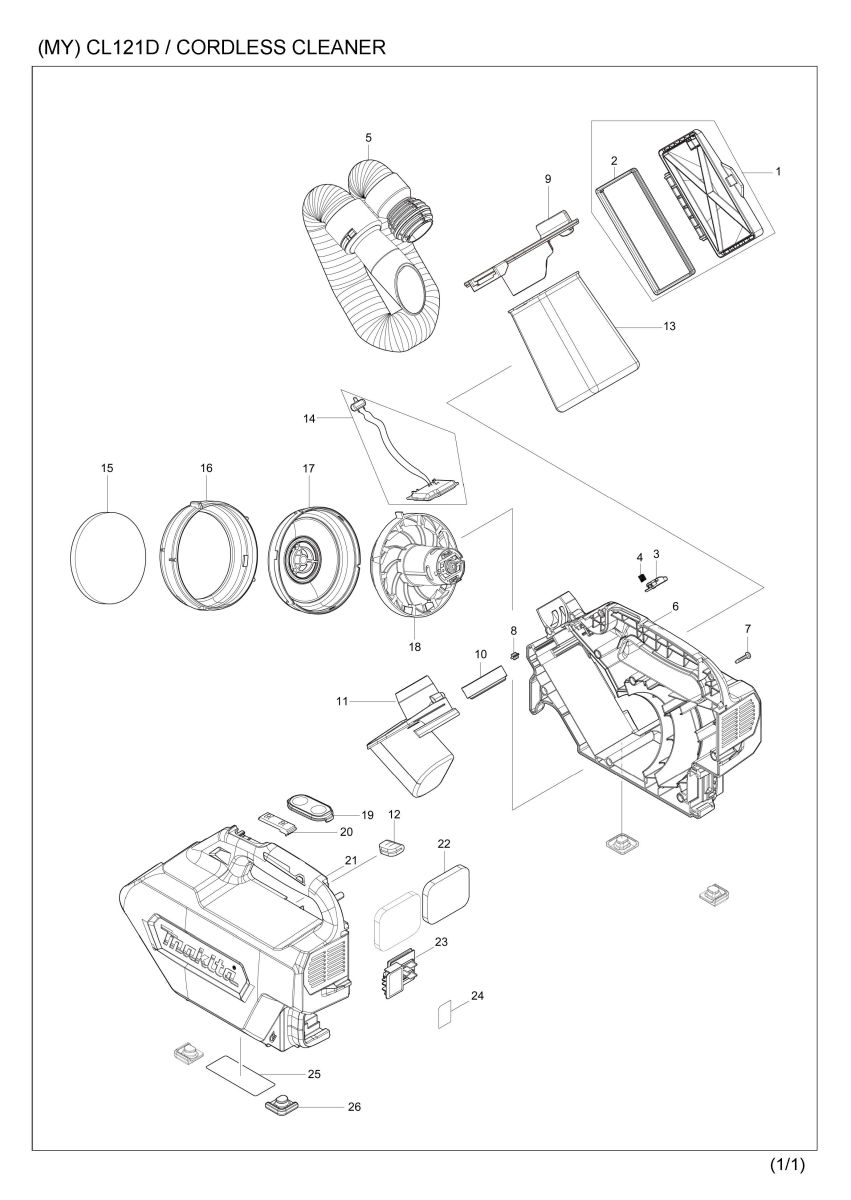

Part Diagram
Total: 53 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 136100-1 | DUST BOX COVER ASS'Y | 1 | |
| 1 | D10 | INC. 2 | ||
| 2 | 422433-3 | SEAL | 1 | |
| 3 | 459050-6 | STOPPER PLATE | 1 | |
| 4 | 232485-4 | COMPRESSION SPRING 5 | 1 | |
| 5 | 140H92-6 | HOSE COMPLETE | 1 | |
| 5 | C10 | 140J50-4 | HOSE JOINT COMPLETE | 1 |
| 5 | C20 | 459042-5 | STRAIGHT PIPE | 1 |
| 5 | C30 | 459043-3 | SLEEVE | 1 |
| 5 | C40 | 459044-1 | STOPPER | 1 |
| 6 | 183L86-2 | HOUSING SET | 1 | |
| 6 | D10 | INC. 1,3,4,12,21,26 | ||
| 7 | 266429-2 | TAPPING SCREW 3X16 | 10 | |
| 8 | 450522-4 | LENS | 1 | |
| 9 | 143677-9 | VALVE STAY COMPLETE | 1 | |
| 10 | 422434-1 | PACKING | 1 | |
| 11 | 459048-3 | HOSE JOINT HOLDER | 1 | |
| 12 | 424246-8 | SPONGE SHEET | 1 | |
| 13 | 166084-9 | DUST BAG | 1 | |
| 14 | 632N32-9 | CONTROLLER UNIT | 1 | |
| 14 | C10 | 654086-2 | RECEPTACLE | 2 |
| 15 | 422440-6 | SPONGE SHEET 90 | 1 | |
| 16 | 422421-0 | RUBBER RING | 1 | |
| 17 | 459035-2 | FAN COVER | 1 | |
| 18 | 127236-7 | MOTOR ASSEMBLY | 1 | |
| 19 | 144096-2 | SWITCH PLATE COMPLETE | 1 | |
| 19 | C10 | 810P35-7 | SWITCH LABEL | 1 |
| 20 | 631973-2 | SWITCH UNIT | 1 | |
| 21 | 183L86-2 | HOUSING SET | 1 | |
| 21 | D10 | INC. 1,3,4,6,12,26 | ||
| 22 | 422439-1 | SPONGE SHEET 47-57 | 2 | |
| 23 | 644813-5 | TERMINAL | 1 | |
| 24 | 855M51-4 | CL121D SERIAL NO. LABEL | 1 | |
| 25 | 855M45-9 | CL121D NAME PLATE | 1 | |
| 26 | 422435-9 | FOOT | 4 | |
| A01 | 140H94-2 | SOFT BRUSH 360 COMPLETE | 1 | |
| A02 | 140H95-0 | SEAT NOZZLE 120 COMPLETE | 1 | |
| A03 | 140J64-3 | BLOWER NOZZLE COMPLETE | 1 | |
| A03-1 | 140J64-3 | BLOWER NOZZLE COMPLETE | 1 | |
| A04 | 162544-9 | SHOULDER BELT | 1 | |
| A05 | 194566-1 | PAPER FILTER SET (5PCS/SET) | 1 | |
| A05-1 | 198745-3 | PAPER FILTER SET | 1 | |
| A06 | 422437-5 | RUBBER NOZZLE 330 | 1 | |
| A07 | 459056-4 | MAT NOZZLE 120 | 1 | |
| A08B | 832188-6 | TOOL BAG | 1 | |
| A12B | 456128-6 | BATTERY COVER | 1 | |
| A13B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A13B | D10 | COMPO-PARTS | ||
| A14B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A14-1B | 197396-9 | BATTERY BL1021B SET | 1 | |
| A14-2B | 191B85-0 | BATTERY BL1021B SET | 1 | |
| A14-3B | 197396-9 | BATTERY BL1021B SET | 1 | |
| F01 | 199900-0 | TOOL BAG SET | 1 |
