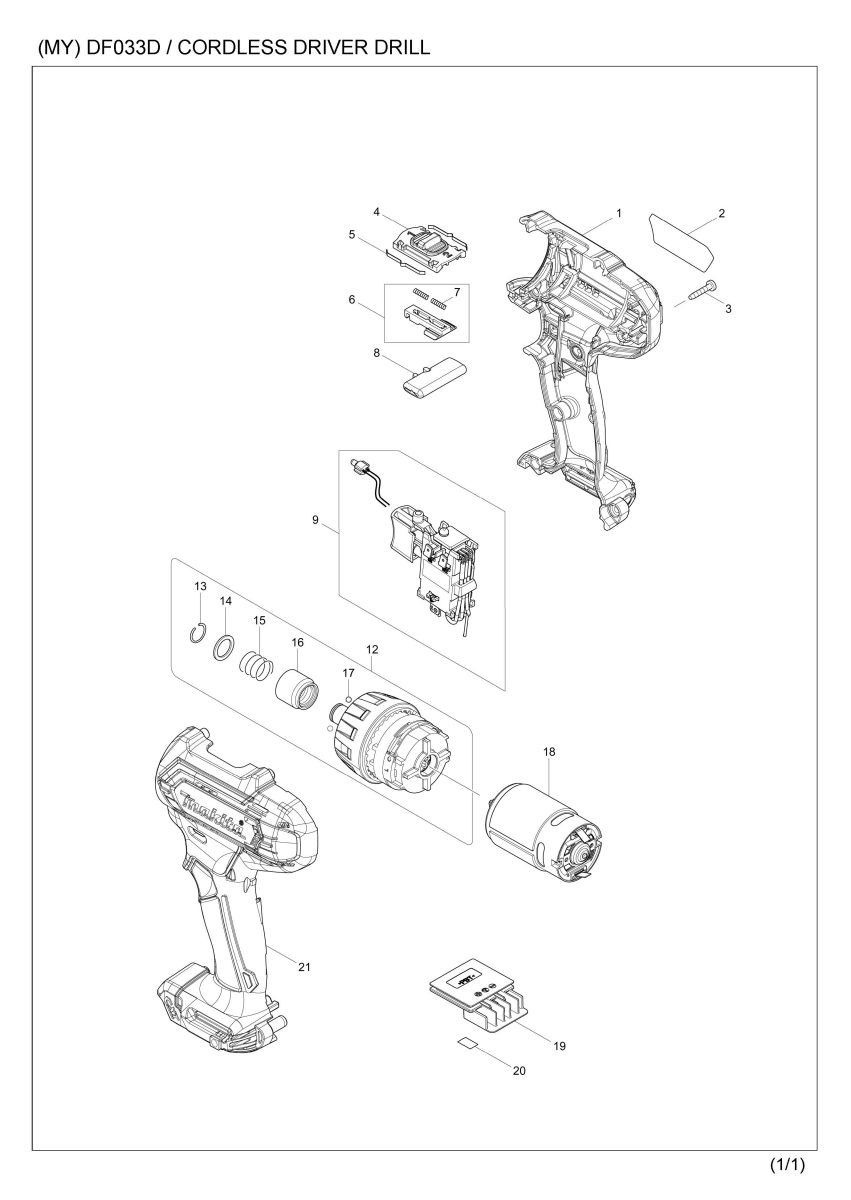

Part Diagram
Total: 56 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183K90-5 | HOUSING SET | 1 | |
| 1 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 1 | D10 | INC. 21 | ||
| 2 | 855E57-4 | DF033D NAME PLATE | 1 | |
| 3 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 4 | 459026-3 | SPEED CHANGE LEVER | 1 | |
| 004-1 | 413F37-8 | SPEED CHANGE LEVER | 1 | |
| 5 | 232493-5 | LEAF SPRING | 2 | |
| 6 | 127127-2 | CHANGE LEVER ASSEMBLY | 1 | |
| 6 | D10 | INC. 7 | ||
| 006-1 | 122B84-1 | CHANGE LEVER ASSEMBLY | 1 | |
| 006-1 | D10 | INC. 7 | ||
| 7 | 233025-1 | COMPRESSION SPRING 2 | 2 | |
| 8 | 456039-5 | F/R CHANGE LEVER | 1 | |
| 9 | 632J77-3 | SWITCH UNIT | 1 | |
| 9 | C10 | 620625-0 | LED CIRCUIT | 1 |
| 12 | 127126-4 | GEAR ASSEMBLY N | 1 | |
| 12 | D10 | INC. 13-17 | ||
| 012-1 | 127126-4 | GEAR ASSEMBLY N | 1 | |
| 012-1 | D10 | INC. 13-17 | ||
| 13 | 231965-7 | RING SPRING 10 | 1 | |
| 14 | 347004-4 | BIT WASHER | 1 | |
| 15 | 233005-7 | COMPRESSION SPRING 13 | 1 | |
| 16 | 326677-6 | BIT SLEEVE | 1 | |
| 17 | 216019-1 | STEEL BALL 3 | 2 | |
| 18 | 629395-8 | DC MOTOR | 1 | |
| 19 | 644813-5 | TERMINAL | 1 | |
| 20 | 855E64-7 | DF033D SERIAL NO. LABEL | 1 | |
| 21 | 183K90-5 | HOUSING SET | 1 | |
| 21 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 21 | D10 | INC. 1 | ||
| A01 | 251314-2 | + SCREW M4X12 | 1 | |
| A02 | 346909-5 | HOOK | 1 | |
| A03 | 784202-3 | PHILLIPS BIT 2-45 | 1 | |
| A03-1 | 784043-7 | +BIT 2-45 | 1 | |
| A04B | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A04B | C10 | 417724-5 | LATCH | 2 |
| A04C | 821661-1 | PLASTIC CARRYING CASE | 1 | |
| A04C | C10 | 417724-5 | LATCH | 2 |
| A05B | 818P10-7 | DF033DWAE MODEL NO. LABEL | 1 | |
| A05C | 818P12-3 | DF033DSME MODEL NO. LABEL | 1 | |
| A08B | 456128-6 | BATTERY COVER | 1 | |
| A08C | 456128-6 | BATTERY COVER | 1 | |
| A09B | ***DC10WD | DC10WD BATTERY CHARGER | 1 | |
| A09B | D10 | COMPO-PARTS | ||
| A09C | ***DC10SB | DC10SB BATTERY CHARGER | 1 | |
| A09C | D10 | COMPO-PARTS | ||
| A10B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A10C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A10-1B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A10-1C | 197406-2 | BATTERY BL1041B SET | 2 | |
| A10-2B | 191B85-0 | BATTERY BL1021B SET | 2 | |
| A10-2C | 191B86-8 | BATTERY BL1041B SET | 2 | |
| A10-3B | 197396-9 | BATTERY BL1021B SET | 2 | |
| A10-3C | 197406-2 | BATTERY BL1041B SET | 2 | |
| F40 | 347C56-3 | HOOK | 1 |
