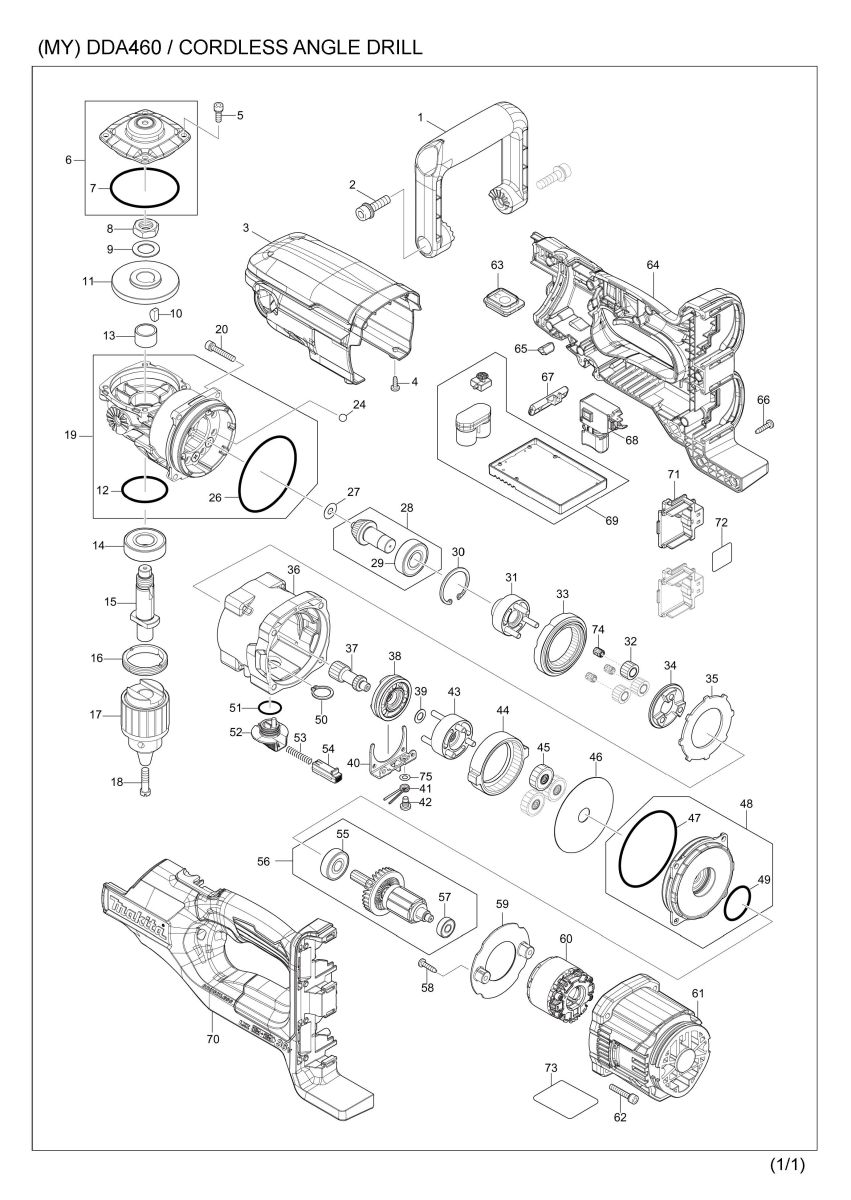

Part Diagram
Total: 117 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 458431-1 | FRONT GRIP | 1 | |
| 002 | 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | |
| 003 | 458430-3 | TOP COVER | 1 | |
| 004 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 005 | 266086-6 | HEX. SOCKET HEAD BOLT M5X16 | 4 | |
| 006 | 140A21-7 | GEAR HOUSING COVER COMPLETE | 1 | |
| D10 | INC. 7 | |||
| 007 | 213709-7 | O RING 63 | 1 | |
| 008 | 252182-6 | HEX. NUT M16-22 | 1 | |
| 008-1 | 252267-8 | HEX. NUT M16-22 | 1 | |
| 009 | 253771-0 | FLAT WASHER 16 | 1 | |
| 010 | 254032-1 | WOODRUFF KEY 5 | 1 | |
| 011 | 227416-6 | SPIRAL BEVEL GEAR 40 | 1 | |
| 011-1 | 227920-5 | SPIRAL BEVEL GEAR 40 | 1 | |
| 012 | 213507-9 | O RING 40 | 1 | |
| 013 | 257440-5 | SLEEVE 17 | 1 | |
| 014 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 015 | 327106-2 | SPINDLE | 1 | |
| 016 | 285842-5 | BEARING RETAINER 36-43 | 1 | |
| 017 | 763250-5 | DRILL CHUCK S-13 | 1 | |
| 018 | 251463-5 | - FLAT HEAD SCREW M6X22 | 1 | |
| 019 | 140A22-5 | GEAR HOUSING COMPLETE | 1 | |
| C10 | 233326-7 | COMPRESSION SPRING 5 | 8 | |
| C20 | 256393-5 | SHOULDER PIN 5-8.5 | 8 | |
| C30 | 347364-4 | GUIDE PLATE | 1 | |
| C40 | 265148-7 | TORX SOCKET HEAD SCREW M5X14 | 6 | |
| D10 | INC. 12,26 | |||
| 020 | 265695-8 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 020-1 | 265D08-7 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 024 | 216022-2 | STEEL BALL 7.0 | 8 | |
| 026 | 213755-0 | O RING 75 | 1 | |
| 027 | 253411-0 | FLAT WASHER 6 | 1 | |
| 028 | 140A23-3 | SPIRAL BEVEL GEAR 13 COMPLETE | 1 | |
| D10 | INC. 29 | |||
| 028-1 | 136563-1 | SPIRAL BEVEL GEAR 13 ASS'Y | 1 | |
| D10 | INC. 29 | |||
| 029 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 030 | 962153-2 | RETAINING RING R-35 | 1 | |
| 031 | 140A13-6 | CARRIER A COMPLETE | 1 | |
| 032 | 226176-7 | SPUR GEAR 13 | 3 | |
| 033 | 226177-5 | INTERNAL GEAR 40 | 1 | |
| 034 | 223188-1 | CAM | 1 | |
| 035 | 347365-2 | WASHER 65 | 1 | |
| 036 | 140A16-0 | GEAR CASE COMPLETE | 1 | |
| 037 | 226175-9 | SPUR GEAR 14 | 1 | |
| 038 | 310876-0 | CHANGE RING | 1 | |
| 039 | 253215-0 | FLAT WASHER 8 | 1 | |
| 040 | 347366-0 | CHANGE GUIDE | 1 | |
| 041 | 231657-8 | TORSION SPRING 6 | 1 | |
| 042 | 265628-3 | + BINDING HEAD SCREW M5 | 1 | |
| 043 | 140A14-4 | CARRIER B COMPLETE | 1 | |
| 044 | 226174-1 | INTERNAL GEAR 71 | 1 | |
| 045 | 140A12-8 | SPUR GEAR 29 COMPLETE | 3 | |
| 046 | 253412-8 | FLAT WASHER 15 | 1 | |
| 047 | 213755-0 | O RING 75 | 1 | |
| 048 | 140A20-9 | MOTOR BRACKET COMPLETE | 1 | |
| D10 | INC. 47,49 | |||
| 049 | 213406-5 | O RING 30 | 1 | |
| 050 | 961058-3 | RETAINING RING (EXT) S-18 | 1 | |
| 051 | 213265-7 | O RING 17 | 1 | |
| 052 | 458433-7 | CHANGE LEVER | 1 | |
| 053 | 233279-0 | COMPRESSION SPRING 4 | 1 | |
| 054 | 458434-5 | LOCK BUTTON | 1 | |
| 055 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 056 | 519526-6 | ROTOR ASSY | 1 | |
| D10 | INC. 55,57 | |||
| 056-1 | 519689-8 | ROTOR ASSY | 1 | |
| D10 | INC. 55,57 | |||
| 057 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 058 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 059 | 458427-2 | BAFFLE PLATE | 1 | |
| 060 | 629356-8 | STATOR | 1 | |
| 060-1 | 629B69-3 | STATOR | 1 | |
| 061 | 458426-4 | MOTOR HOUSING | 1 | |
| 062 | 265695-8 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 062-1 | 265D08-7 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 063 | 140A19-4 | SWITCH CIRCUIT COMPLETE | 1 | |
| C10 | 810D46-0 | SWITCH LABEL | 1 | |
| 064 | 183J58-5 | HANDLE SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| C20 | 347379-1 | KEY HOLDER | 1 | |
| D10 | INC. 70 | |||
| 064-1 | 183R46-0 | HANDLE SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| C20 | 347379-1 | KEY HOLDER | 1 | |
| D10 | INC. 70 | |||
| 065 | 620839-1 | LED CIRCUIT | 1 | |
| 066 | 266326-2 | TAPPING SCREW 4X18 | 12 | |
| 067 | 458432-9 | F/R CHANGE LEVER | 1 | |
| 068 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 069 | 620838-3 | CONTROLLER | 1 | |
| 070 | 183J58-5 | HANDLE SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| C20 | 347379-1 | KEY HOLDER | 1 | |
| D10 | INC. 64 | |||
| 070-1 | 183R46-0 | HANDLE SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| C20 | 347379-1 | KEY HOLDER | 1 | |
| D10 | INC. 64 | |||
| 071 | 644809-6 | TERMINAL | 2 | |
| 072 | 854K90-9 | DDA460 SERIAL NO. LABEL | 1 | |
| 073 | 854K86-0 | DDA460 NAME PLATE | 1 | |
| 074 | 212193-3 | NEEDLE CAGE 5810 | 3 | |
| 075 | 267010-2 | FLAT WASHER 5 | 1 | |
| 076 | 620K74-7 | CONTROLLER B | 1 | |
| 077 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 078 | 638A31-1 | LEAD UNIT | 1 | |
| A01 | 126802-7 | GRIP ASSEMBLY | 1 | |
| A01-1 | 122A18-8 | GRIP ASSEMBLY | 1 | |
| A02 | 763251-3 | CHUCK KEY S-13 | 1 | |
| A03 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A05 | 821737-4 | PLASTIC CASE | 1 | |
| C10 | 162271-8 | LATCH | 2 | |
| A06B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A07B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A07-1B | 197280-8 | BATTERY BL1850B SET | 2 |
