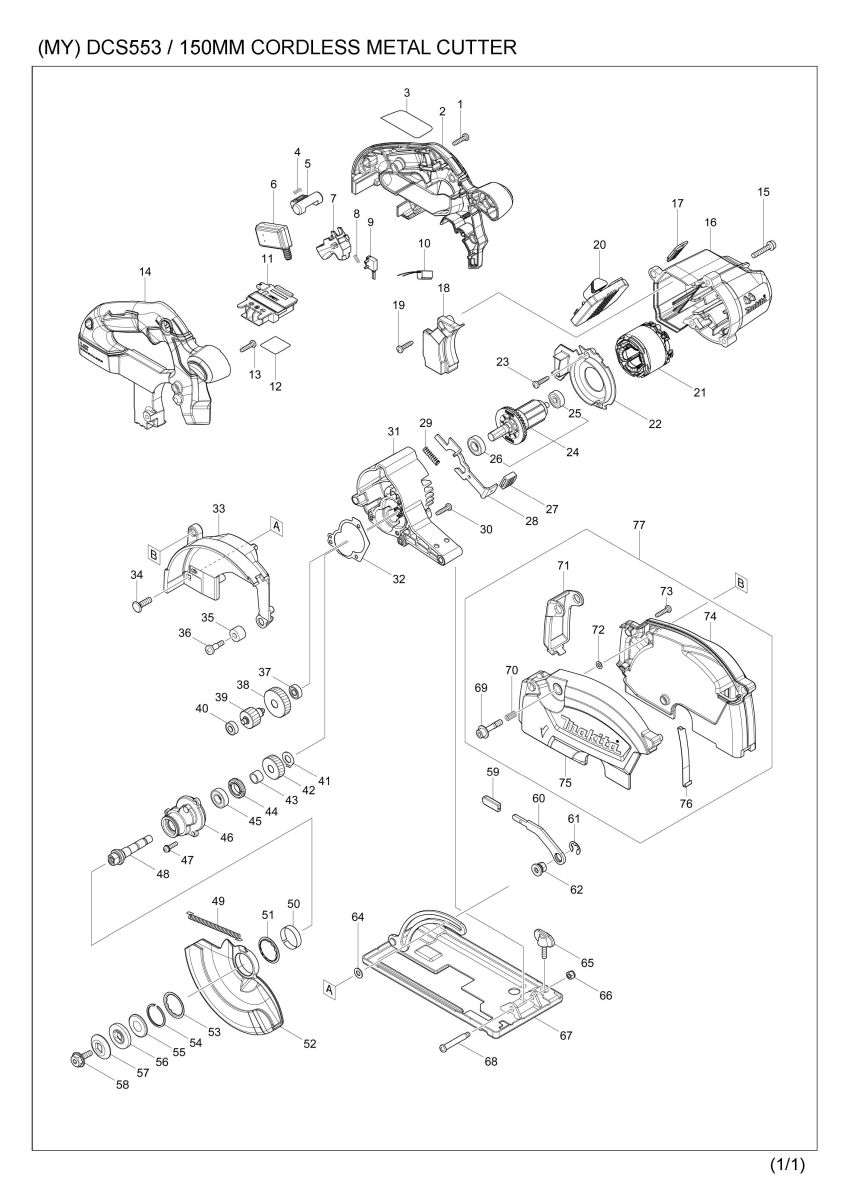

Part Diagram
Total: 117 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 2 | 183K13-3 | HANDLE SET | 1 | |
| 2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | D10 | INC. 14 | ||
| 3 | 854S64-8 | DCS553 NAME PLATE | 1 | |
| 4 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 5 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 005-1 | 459264-7 | LOCK OFF BUTTON | 1 | |
| 6 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 7 | 458594-3 | SWITCH LEVER | 1 | |
| 8 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 9 | 632M68-2 | SWITCH UNIT | 1 | |
| 10 | 620936-3 | LED CIRCUIT | 1 | |
| 11 | 643874-2 | TERMINAL | 1 | |
| 12 | 854S72-9 | DCS553 SERIAL NO. LABEL | 1 | |
| 13 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 14 | 183K13-3 | HANDLE SET | 1 | |
| 14 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 14 | D10 | INC. 2 | ||
| 15 | 911253-5 | PAN HEAD SCREW M5X30 | 3 | |
| 16 | 458656-7 | MOTOR HOUSING | 1 | |
| 17 | 144251-6 | INDICATION PLATE COMPLETE | 1 | |
| 18 | 458657-5 | MOTOR HOUSING COVER | 1 | |
| 19 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 20 | 620938-9 | CONTROLLER | 1 | |
| 020-1 | 620L75-1 | CONTROLLER | 1 | |
| 21 | 629368-1 | STATOR | 1 | |
| 021-1 | 629C04-7 | STATOR | 1 | |
| 22 | 458658-3 | BAFFLE PLATE | 1 | |
| 23 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 24 | 519530-5 | ROTOR ASS'Y | 1 | |
| 24 | D10 | INC. 25,26 | ||
| 024-1 | 510437-8 | ROTOR ASS'Y | 1 | |
| 024-1 | D10 | INC. 25,26 | ||
| 024-2 | 510437-8 | ROTOR ASS'Y | 1 | |
| 024-2 | D10 | INC. 25,26 | ||
| 25 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 26 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 026-1 | 210214-5 | BALL BEARING 6900DDW | 1 | |
| 27 | 286039-9 | CAP | 1 | |
| 28 | 346885-3 | SHAFT LOCK | 1 | |
| 29 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 30 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 31 | 140D79-4 | GEAR HOUSING COMPLETE | 1 | |
| 31 | C10 | 213961-7 | O RING 22 | 1 |
| 32 | 424715-9 | GASKET | 1 | |
| 33 | 458661-4 | BLADE CASE | 1 | |
| 34 | 266737-1 | FLAT HEAD SQ. NECK BOLT M6X20 | 1 | |
| 35 | 262511-5 | RUBBER SLEEVE 6 | 1 | |
| 36 | 265115-2 | + PAN HEAD SCREW M5 | 1 | |
| 37 | 210065-6 | BALL BEARING 625ZZ | 1 | |
| 38 | 227809-7 | HELICAL GEAR 30 | 1 | |
| 39 | 227807-1 | HELICAL GEAR 17 | 1 | |
| 40 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 41 | 961005-4 | RETAINING RING S-9 | 1 | |
| 42 | 227808-9 | HELICAL GEAR 24 | 1 | |
| 43 | 257728-3 | SLEEVE 10 | 1 | |
| 44 | 285847-5 | BEARING RETAINER 14-23 | 1 | |
| 45 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 045-1 | 210214-5 | BALL BEARING 6900DDW | 1 | |
| 46 | 143228-8 | BEARING BOX COMPLETE | 1 | |
| 46 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 47 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | |
| 48 | 326540-3 | SPINDLE | 1 | |
| 49 | 231792-2 | TENSION SPRING 3 | 1 | |
| 50 | 345470-9 | THICKNESS RING | 1 | |
| 51 | 345739-1 | SPACER | 1 | |
| 52 | 140C92-6 | SAFETY COVER COMPLETE | 1 | |
| 53 | 345739-1 | SPACER | 1 | |
| 54 | 257938-2 | RETAINING RING(EXT) WR-26 | 1 | |
| 55 | 267802-9 | CUP WASHER 13 | 1 | |
| 56 | 224391-7 | INNER FLANGE 30 | 1 | |
| 57 | 224404-4 | OUTER FLANGE 30 | 1 | |
| 58 | 266925-0 | HEX.SOCKET HEX.BOLT M6X18 | 1 | |
| 59 | 286036-5 | CAP | 1 | |
| 60 | 347418-7 | LEVER PLATE | 1 | |
| 61 | 257982-9 | BOW STOP RING E-8 | 1 | |
| 62 | 252265-2 | HEX. NUT M6 | 1 | |
| 64 | 941151-9 | FLAT WASHER 6 | 1 | |
| 65 | 251896-4 | SCREW M5X20 | 1 | |
| 66 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 67 | 162468-9 | BASE | 1 | |
| 68 | 265056-2 | + PAN HEAD SCREW M5 | 1 | |
| 69 | 265676-2 | H.S.H.B M6X29 | 1 | |
| 70 | 233267-7 | COMPRESSION SPRING 7 | 1 | |
| 71 | 458652-5 | DUST CAP | 1 | |
| 72 | 213005-3 | O RING 5 | 1 | |
| 73 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 74 | 458659-1 | DUST BOX L | 1 | |
| 75 | 458660-6 | DUST BOX R | 1 | |
| 76 | 347417-9 | PLATE | 1 | |
| 77 | 127011-1 | DUST BOX ASSEMBLY | 1 | |
| 77 | D10 | INC. 69-76 | ||
| 077-1 | 127011-1 | DUST BOX ASSEMBLY | 1 | |
| 077-1 | C10 | 162559-6 | GUIDE PLATE | 1 |
| 077-1 | D10 | INC. 69-76 | ||
| 077-2 | 136069-9 | DUST BOX ASSEMBLY | 1 | |
| 077-2 | C10 | 162559-6 | GUIDE PLATE | 1 |
| 077-2 | D10 | INC. 69-76 | ||
| 78 | 620K37-3 | CONTROLLER B | 1 | |
| 79 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 192219-6 | SAFETY GOGGLE | 1 | |
| A02 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A03 | B-46296 | T.C.T SAW BLADE 150X20X32T | 1 | |
| A04 | 164095-8 | GUIDE RULE | 1 | |
| A05B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A06-1B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A07B | 450128-8 | BATTERY COVER | 1 | |
| A08B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A08B | C10 | 453974-8 | LATCH | 4 |
| A09B | 839751-6 | INNER TRAY | 1 | |
| A10B | 817Y85-7 | DCS553RTJ INDICATION LABEL | 1 | |
| A11B | 817Y86-5 | DCS553RTJ PLASTIC CASE LABEL | 2 | |
| F05 | 199296-9 | HOOK SET | 1 | |
| F06 | 199935-1 | TOOL BAG SET | 1 |
