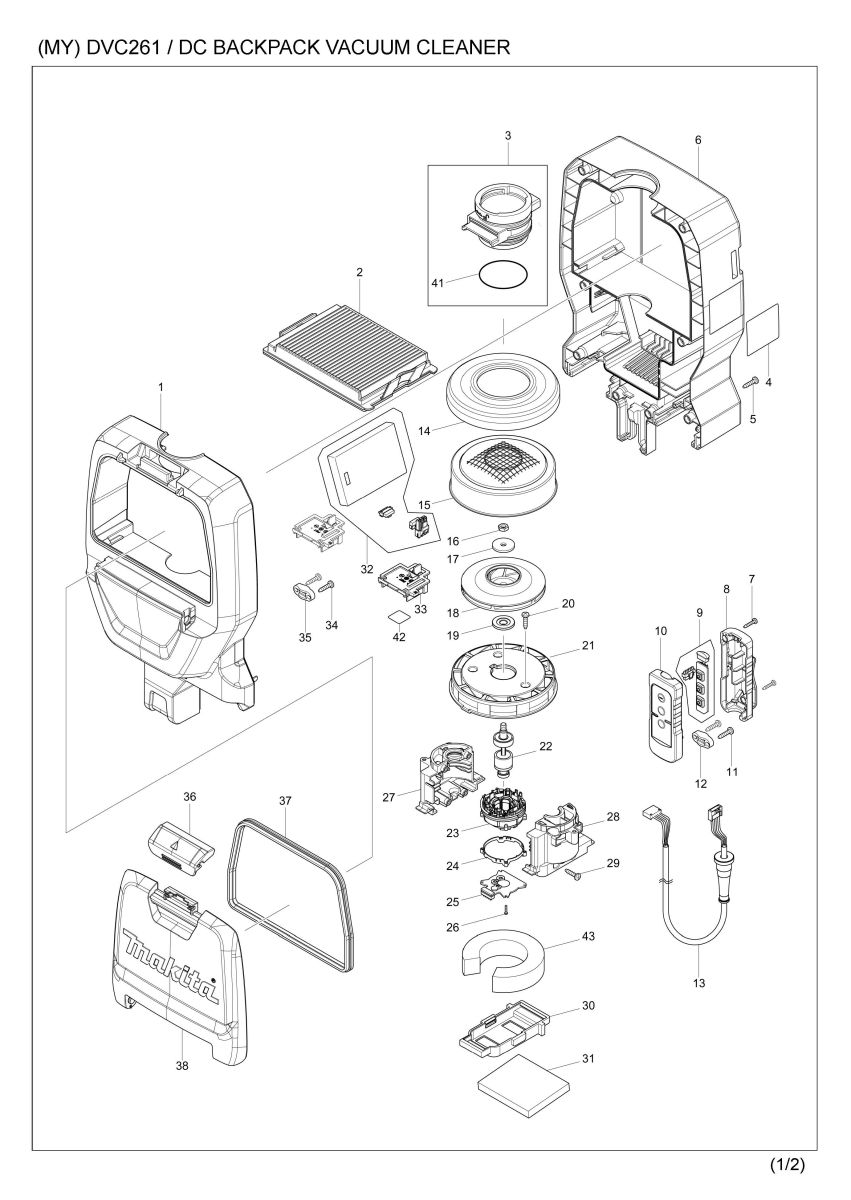

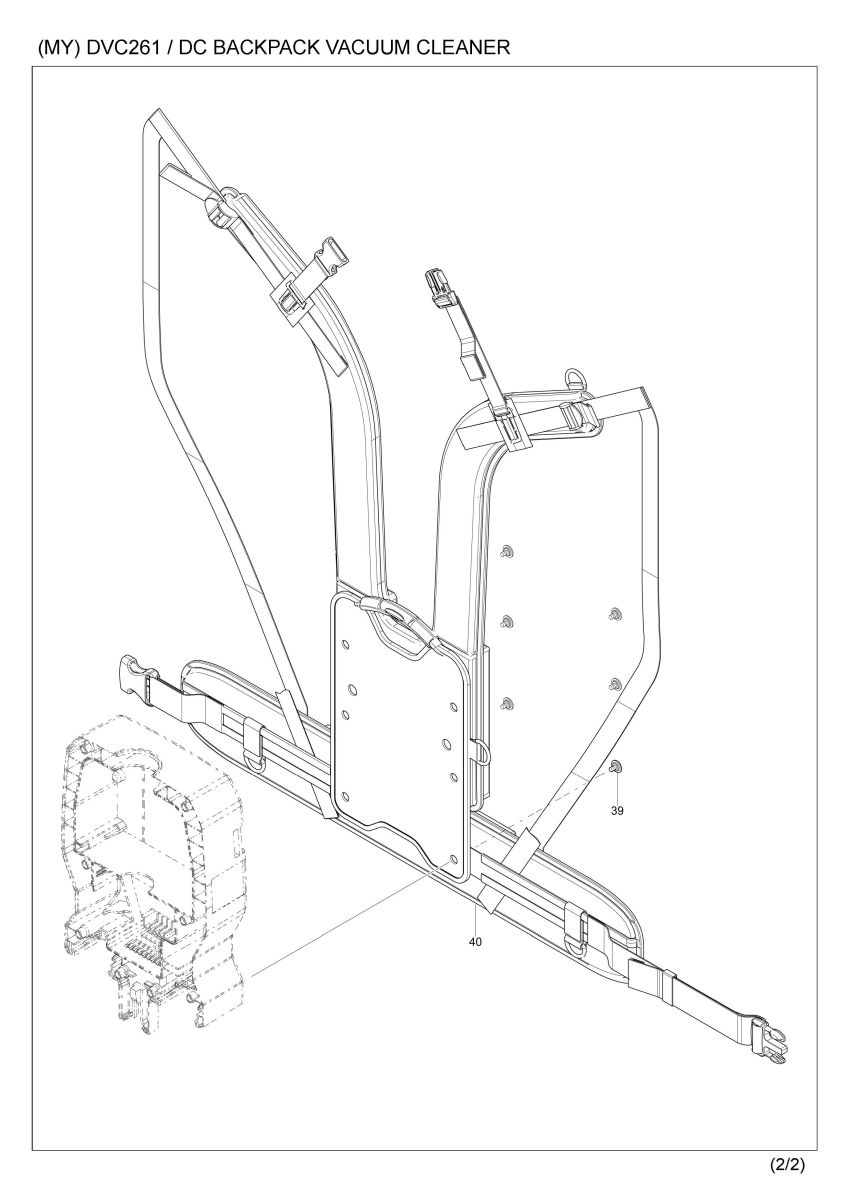

Part Diagram
Total: 119 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 140G16-6 | UPPER HOUSING COMPLETE | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 1 | C20 | 422373-5 | BAND DAMPER A | 1 |
| 2 | 123636-9 | HEPA FILTER ASSEMBLY | 1 | |
| 2 | C10 | 153820-2 | VALVE COMPLETE | 1 |
| 002-1 | 127725-2 | FILTER ASSEMBLY | 1 | |
| 002-1 | C10 | 153820-2 | VALVE COMPLETE | 1 |
| 3 | 135771-1 | INLET ASS'Y | 1 | |
| 3 | D10 | INC. 41 | ||
| 4 | 854Y90-3 | DVC261 NAME PLATE | 1 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 6 | 140F61-5 | LOWER HOUSING COMPLETE | 1 | |
| 6 | C10 | 422374-3 | BAND DAMPER B | 1 |
| 7 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 8 | 183K74-3 | SWITCH CASE SET | 1 | |
| 8 | C10 | 818F86-4 | SWITCH LABEL | 1 |
| 8 | D10 | INC. 10 | ||
| 9 | 620525-4 | SUB CONTROLLER | 1 | |
| 10 | 183K74-3 | SWITCH CASE SET | 1 | |
| 10 | C10 | 818F86-4 | SWITCH LABEL | 1 |
| 10 | D10 | INC. 8 | ||
| 11 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 12 | 687123-7 | STRAIN RELIEF | 1 | |
| 13 | 699077-6 | POWER SUPPLY CORD UNIT | 1 | |
| 013-1 | 699136-6 | POWER SUPPLY CORD UNIT | 1 | |
| 013-2 | 699136-6 | POWER SUPPLY CORD UNIT | 1 | |
| 14 | 422376-9 | SUPPORT RING | 1 | |
| 15 | 161804-6 | FAN COVER | 1 | |
| 16 | 931303-0 | HEX. NUT M6 | 1 | |
| 016-1 | 252268-6 | HEX. NUT M6 | 1 | |
| 17 | 322407-3 | WASHER 6 | 1 | |
| 18 | 241851-4 | FAN 94 | 1 | |
| 19 | 313062-2 | FLANGE | 1 | |
| 20 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 21 | 456736-3 | FAN BASE | 1 | |
| 22 | 619517-8 | ROTOR | 1 | |
| 022-1 | 619517-8 | ROTOR | 1 | |
| 022-2 | 619517-8 | ROTOR | 1 | |
| 23 | 629381-9 | STATOR | 1 | |
| 24 | 687464-1 | SUPPORT | 1 | |
| 25 | 620526-2 | CONTROLLER B | 1 | |
| 26 | 266786-8 | + PAN HEAD TAPPING SCREW 2X10 | 4 | |
| 27 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 27 | D10 | INC. 28 | ||
| 28 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 28 | D10 | INC. 27 | ||
| 29 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 30 | 424837-5 | SUPPORT A | 1 | |
| 31 | 424838-3 | REAR BLOCK FILTER | 2 | |
| 32 | 620992-3 | CONTROLLER | 1 | |
| 33 | 644808-8 | TERMINAL | 2 | |
| 34 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 35 | 687123-7 | STRAIN RELIEF | 1 | |
| 36 | 123586-8 | LATCH ASSEMBLY | 1 | |
| 37 | 424836-7 | SEAL | 1 | |
| 38 | 456739-7 | DUST BOX COVER | 1 | |
| 39 | 265008-3 | + FLAT HEAD SCREW M5 | 6 | |
| 40 | 162469-7 | HARNESS | 1 | |
| 040-1 | 162D04-5 | HARNESS | 1 | |
| 040-2 | 162B50-6 | HARNESS | 1 | |
| 41 | 213655-4 | O RING 56 | 1 | |
| 42 | 854Y97-9 | DVC261 SERIAL NO. LABEL | 1 | |
| 43 | 422370-1 | BAND DAMPER C | 1 | |
| A01 | 143787-2 | HOSE COMPLETE 28-1.0 | 1 | |
| A02 | 166116-2 | HOSE BAND | 1 | |
| A03 | 197902-0 | FILTER BAG SET 2L(10PCS) | 1 | |
| A03-1 | 197903-8 | FILTER BAG SET 2L(10PCS)EU | 1 | |
| A04 | 197900-4 | FLEXIBLE RUBBER NOZZLE SET | 1 | |
| A04-1 | 197901-2 | FLEXIBLE RUBBER NOZZLE SET EU | 1 | |
| A05 | 123486-2 | FLOOR T-NOZZLE 28 WHI | 1 | |
| A05 | C10 | 451410-8 | ROLLER | 4 |
| A05 | C20 | 268208-4 | PIN 3 | 4 |
| A05 | C30 | 422963-4 | WIPER | 1 |
| A06 | 123584-2 | TELESCOPIC PIPE ASSEMBLY 28 | 1 | |
| A07 | 126756-8 | BENT PIPE ASSEMBLY | 1 | |
| F10 | 192236-6 | TAPERED NOZZLE SET | 1 | |
| F13 | 195545-2 | FRONT CUFF 38 SET | 1 | |
| F14 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F15 | 195547-8 | FRONT CUFF 22 SET | 1 | |
| F16 | 195548-6 | JOINT 22-38 SET | 1 | |
| F17 | 195549-4 | T-NOZZLE ASSY A SET(DRY)38 | 1 | |
| F18 | 195551-7 | T-NOZZLE SET 38 | 1 | |
| F28 | 198184-7 | F/C SWITCHING T-NOZZLE 38 | 1 | |
| F32 | 198533-8 | F/C SWITCHING T-NOZZLE 38 EU | 1 | |
| F33 | 198537-0 | SHELF BRUSH SET28 IVO EU | 1 | |
| F34 | 191496-7 | FLEXIBLE HOSE SET28(IVO) | 1 | |
| F36 | 198552-4 | ROUND BRUSH SET 28 IVO | 1 | |
| F39 | 198560-5 | TELESCOPIC PIPE SET 28 EU | 1 | |
| F42 | 198868-7 | FLEXIBLE HOSE SET28(WHI) | 1 | |
| F44 | 198873-4 | SHELF BRUSH SET28 WHI | 1 | |
| F46 | 198878-4 | ROUND BRUSH SET 28 WHI | 1 | |
| F48 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F51 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F53 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F55 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F56 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F58 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F63 | 199491-1 | CYCLONE ATTACHMENT SET | 1 | |
| F65 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F68 | 199843-6 | PIPE 465 COMPLETE SET | 1 | |
| F69 | 199844-4 | JOINT PIPE 465 SET | 1 | |
| F70 | 191B15-1 | CLEANING WAND SET | 1 | |
| F72 | 191E30-3 | FLEXIBLE HOSE SET(LOCK) | 1 | |
| F75 | 191D71-3 | CYCLONE ATTACHMENT SET (LOCK) | 1 | |
| F76 | 191D73-9 | CYCLONE ATTACHMENT SET (LOCK) | 1 | |
| F78 | 191D75-5 | CYCLONE ATTACHMENT SET | 1 | |
| F79 | 191D76-3 | STRAIGHT PIPE SET 340 | 1 | |
| F80 | 191D77-1 | STRAIGHT PIPE SET 340 | 1 | |
| F81 | 191D78-9 | STRAIGHT PIPE SET 340 | 1 | |
| F83 | 191D80-2 | STRAIGHT PIPE SET 320 | 1 | |
| F86 | 191M77-5 | JOINT A 32 SET | 1 | |
| F87 | 191M78-3 | JOINT B 35 SET | 1 | |
| F88 | 191M79-1 | JOINT C 38 SET | 1 | |
| F90 | 191X06-4 | NOZZLE ASSEMBLY SET | 1 | |
| F91 | 1910S4-7 | PROTECTION COVER SET | 1 | |
| F98 | 191Y14-1 | HARNESS COVER SET | 1 | |
| F99 | 1914A7-9 | ANGLE ATTACHMENT SET | 1 | |
| G09 | 1912G4-5 | TELESCOPIC PIPE COMPLETE SET | 1 | |
| G10 | 1912G5-3 | BENT PIPE COMPLETE SET | 1 |
